Overview:

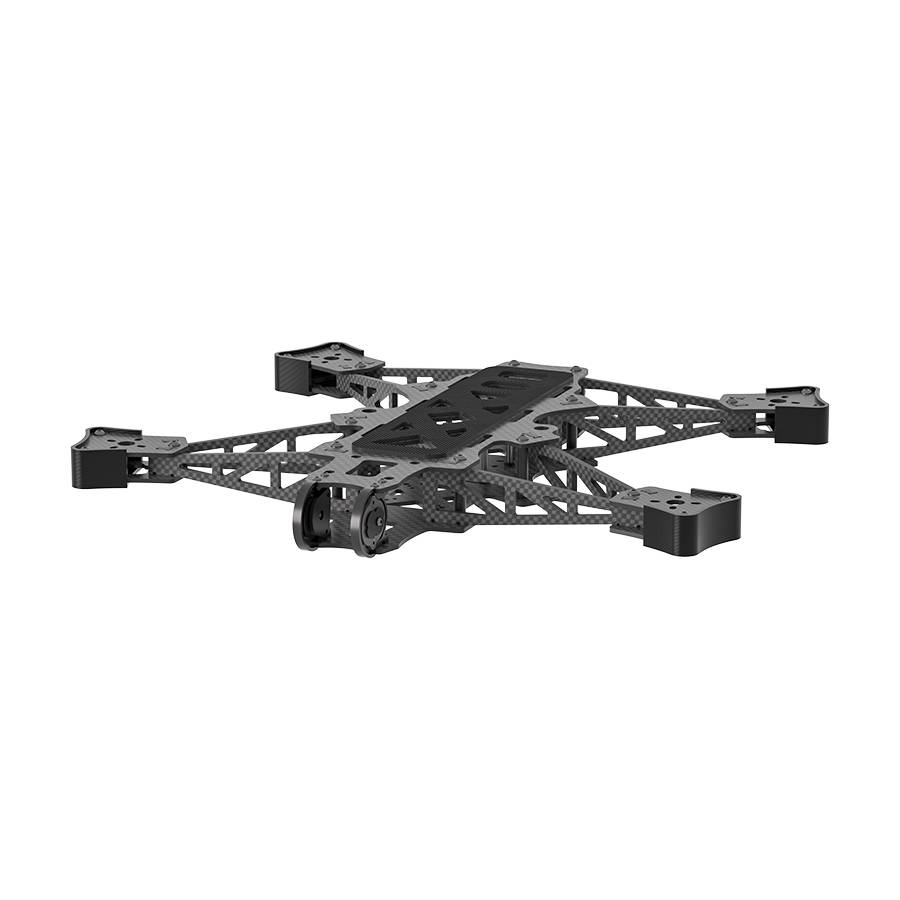

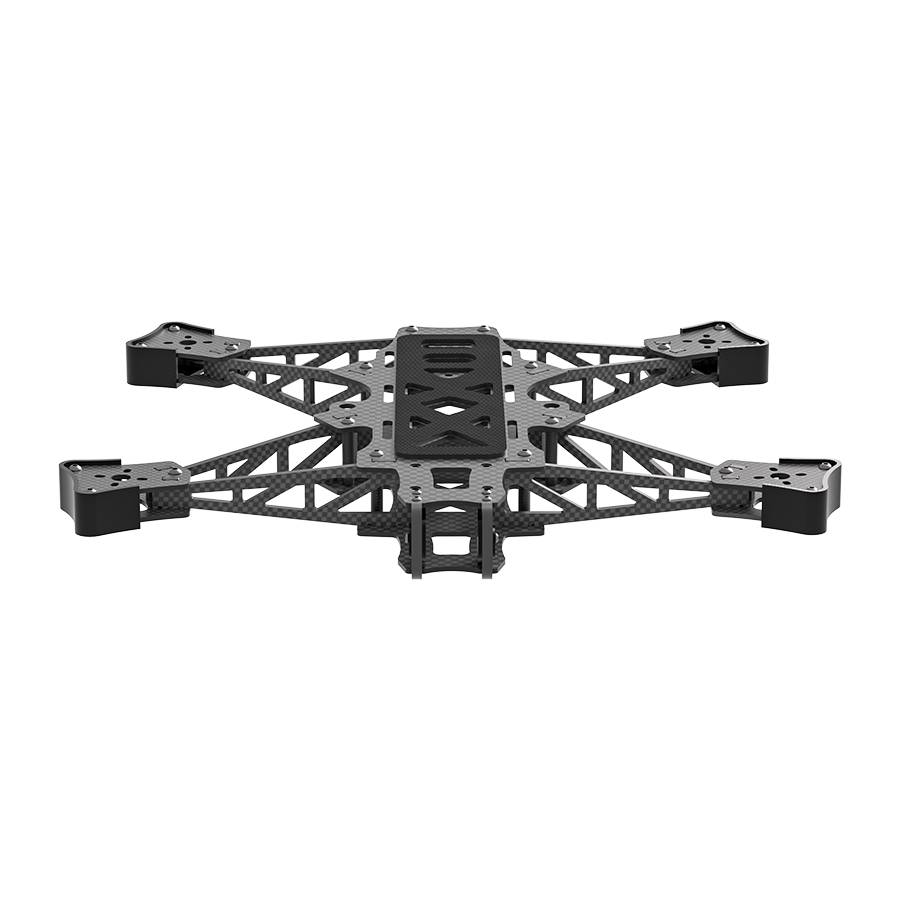

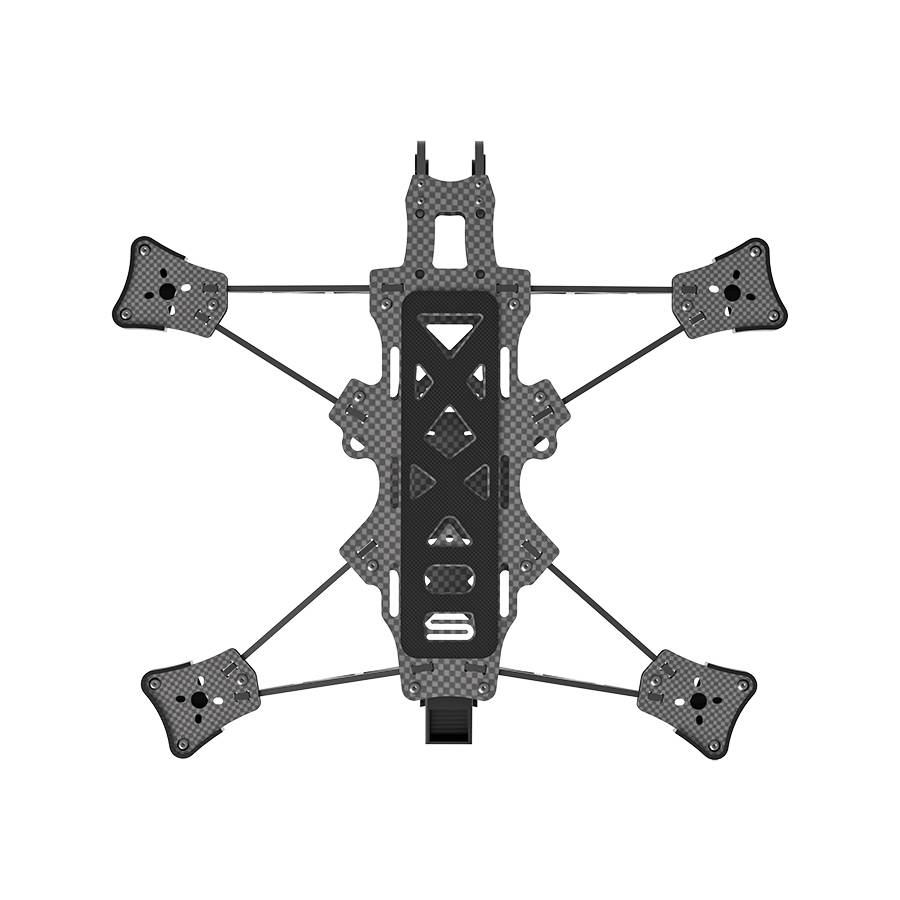

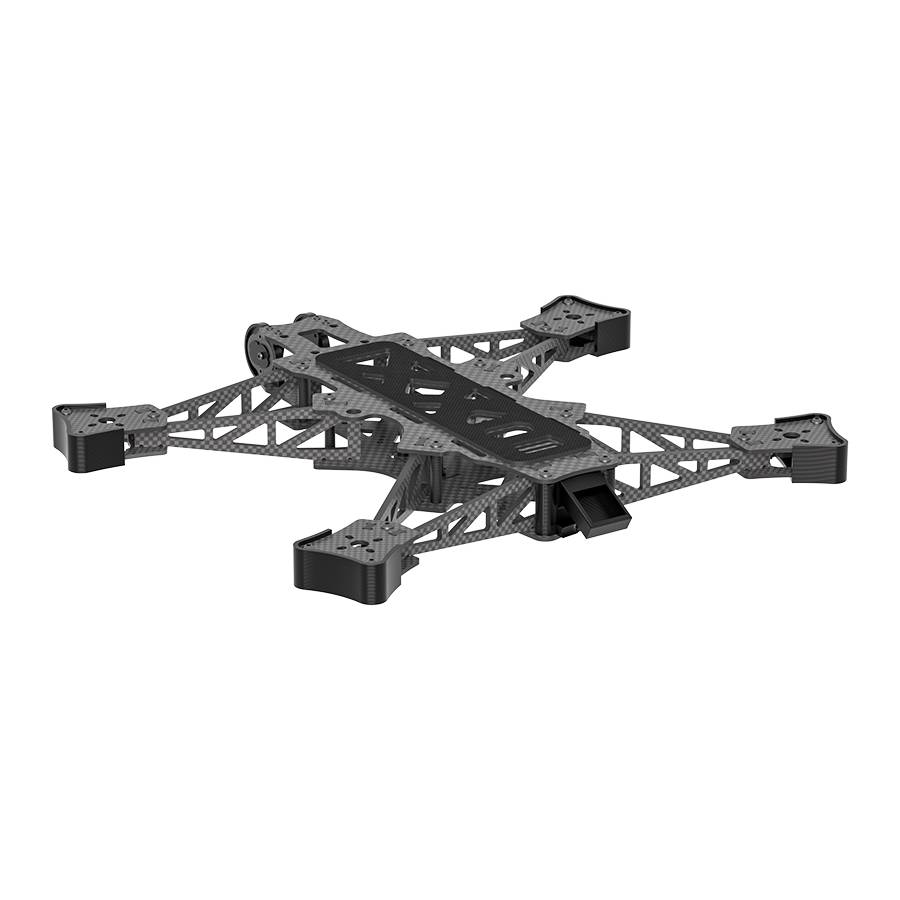

This iFlight AOS UL7 frame is engineered to revolutionize your long range FPV experience, built on the solid foundation of the original frame. This is the latest release, enhanced to carry the latest camera tech in a 7 inch frame.
Features:
- Ultra-Light, Ultra-Stiff Structure: The AOS UL7 V5 takes the groundbreaking arm design of the original model and refines it for greater durability and stiffness. This ensures smoother flights free from shaky imagery and tuning difficulties, delivering a 7” frame with stiffness that rivals most 5” designs.
- Durable and Versatile 7075 Aluminium Camera Cage: Built to last, the 7075 aluminium camera cage accommodates all 19-20mm cameras, ensuring broad compatibility with various camera systems. It includes an integrated soft mount specifically designed for the DJI O3 and supports the O4 camera, complete with full ND filter support. For users with different FPV systems, the frame supports hard mounting for all popular camera options, including Analogue, WS Avatar, HDZero, and DJI. Additionally, 14mm cameras are supported with a 3D printed mount (STL file available below).
- Immersive 155° FPV Experience: Enjoy an expansive 155-degree field of view (FOV) for your FPV camera, free of props in view. This feature is ideal for DJI O3 and O4 users and provides an immersive flight experience, allowing you to capture stunning footage without obstruction.
- Advanced Patent-Pending Anti-Vibration Technology: Achieve optimal flight performance with the new AOS X-Cell anti-vibration mount for the flight control stack. This innovative, patent-pending feature minimises unwanted vibrations, allowing for reduced filtering, higher PID gains, and a more responsive flight experience.
- Unrivalled Stack and VTX Compatibility: The AOS UL7 V5 offers three stack positions that support 30.5x30.5mm, 25.5x25.5mm, and 20x20mm mounting, ensuring complete compatibility with a wide range of flight controllers, ESCs, and other electronics. Whether using digital or analogue FPV VTXs, the AOS UL7 V5 gives you the flexibility to build and customise your drone to your exact specifications.
Specification:
- Model: AOS UL7 V5 Frame Kit
- Frame wheelbase: 312mm
- Frame Dimension: 232x190x29 mm
- Arm Thickness: 3mm
- Top Plate Thickness: 2mm
- Bottom Plate Thickness: 2mm
- Side Plate Thickness: 2mm
- Max Flight Stack Height: 25mm
- Max VTX Height: 25mm
- Flight Stack Mounting: 20x20 Φ3mm / 30x30 Φ3mm
- VTX Mounting: 20x20 Φ2mm / 25.5x25.5 Φ2mm / 30x30 Φ3mm
- Motor Mounting: 16x16mm/19x19mm -φ3
- Weight: 230g
- Compatibility: DJI O4 Air Unit Pro/DJI O3 Air Unit/HD Vista/BLITZ Whoop 1.6W VTX
Included:
- 1x iFlight AOS UL7 V5 FPV Frame Kit
- Accessories
