iFlight XING2 3106 1500KV Motor

The XING2 3106 1500KV motor designed for 6S 7" or 8" props.
Availability: In stock
£29.35 inc VAT
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Description:

The iFlight XING2 motors feature new centre slotted N52H curved arc magnets which dramatically reduce the response time of the motors. Simultaneously the air gap between the magnet and stator was reduce which leads to more efficiency and higher power output.

The new XING2 3106 1500KV motors is designed for 6S 7" or 8" props.

Features:

- 5mm titanium alloy shaft, our strongest prop shaft ever!

- Crash resistant 7075 aluminum bell
- Smooth and long-lasting NSK 9x4x4 bearings
- Center slotted N52H curved arc magnets
- XING O-ring bearing gap protection
- Motor wires protector
- Dynamically balanced

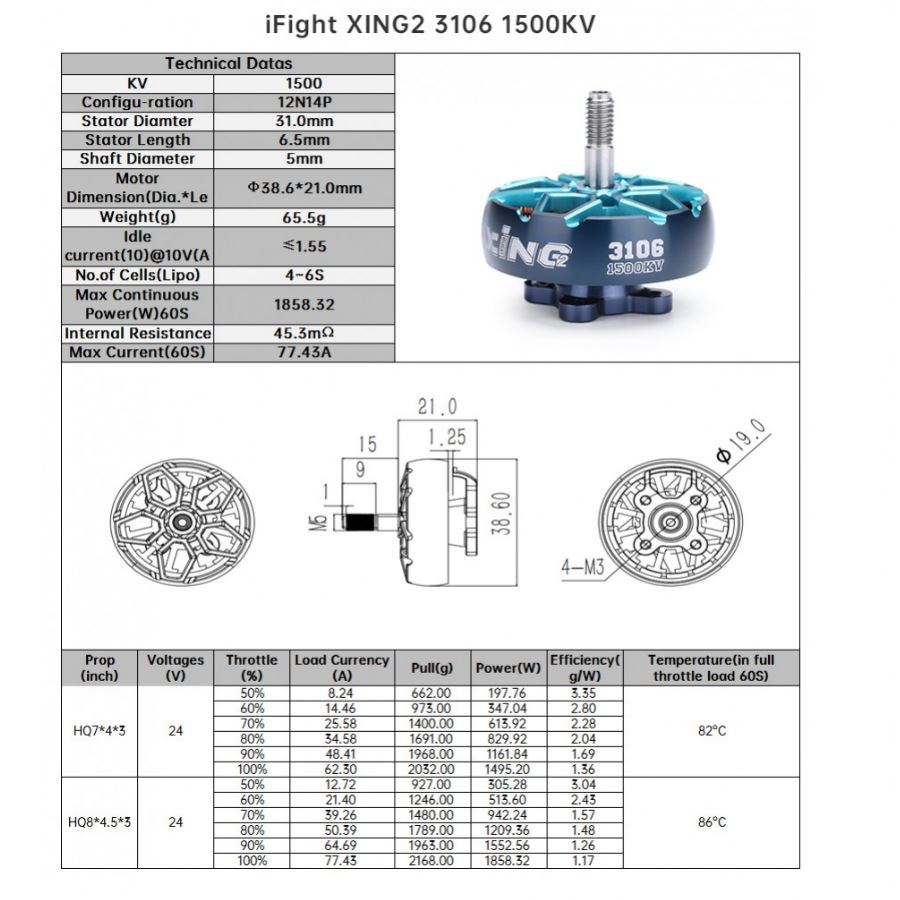

Specifications:

- Model: XING2 3106 1500KV
- Prop shaft: CW thread
- Recommended input voltage Voltage: 4S-6S (16V-26V)
- Configuration: 12N14P
- Stator Diameter: 31mm
- Stator Height: 6mm
- Weight: 65.5g with short wire
- Wire length: 16AWG 260mm
- Mounting pattern: 16*16mm

Includes:

- 1x XING2 3106 1500KV Motor
- Accessories
