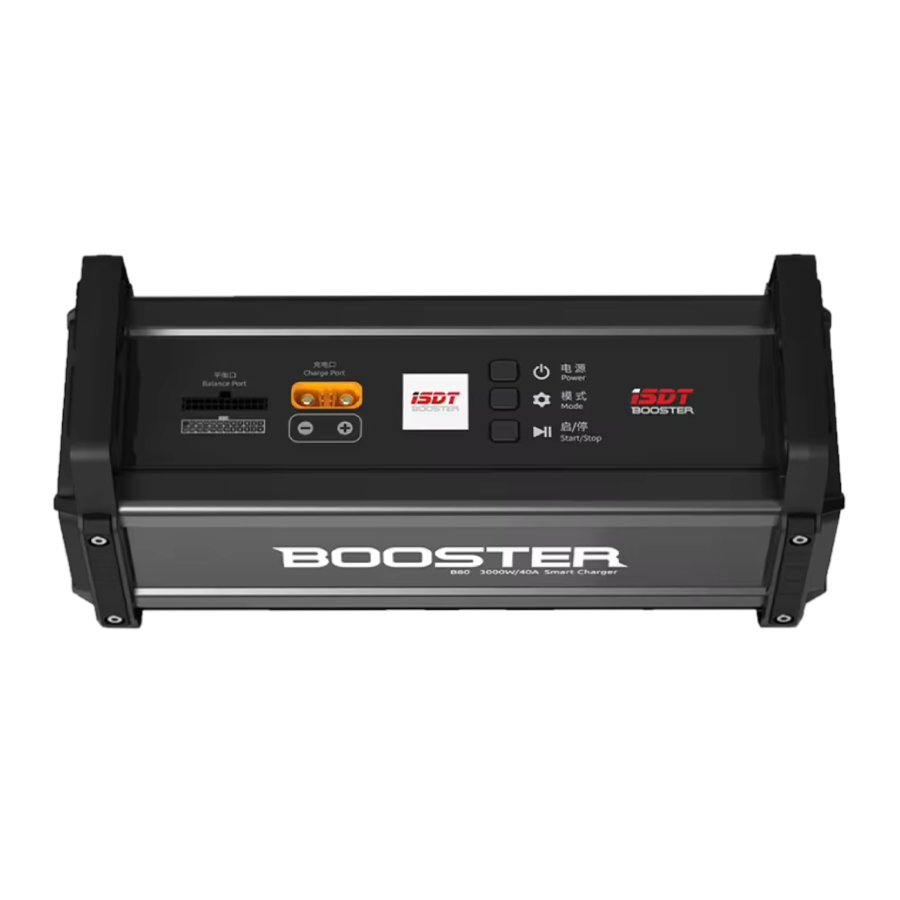

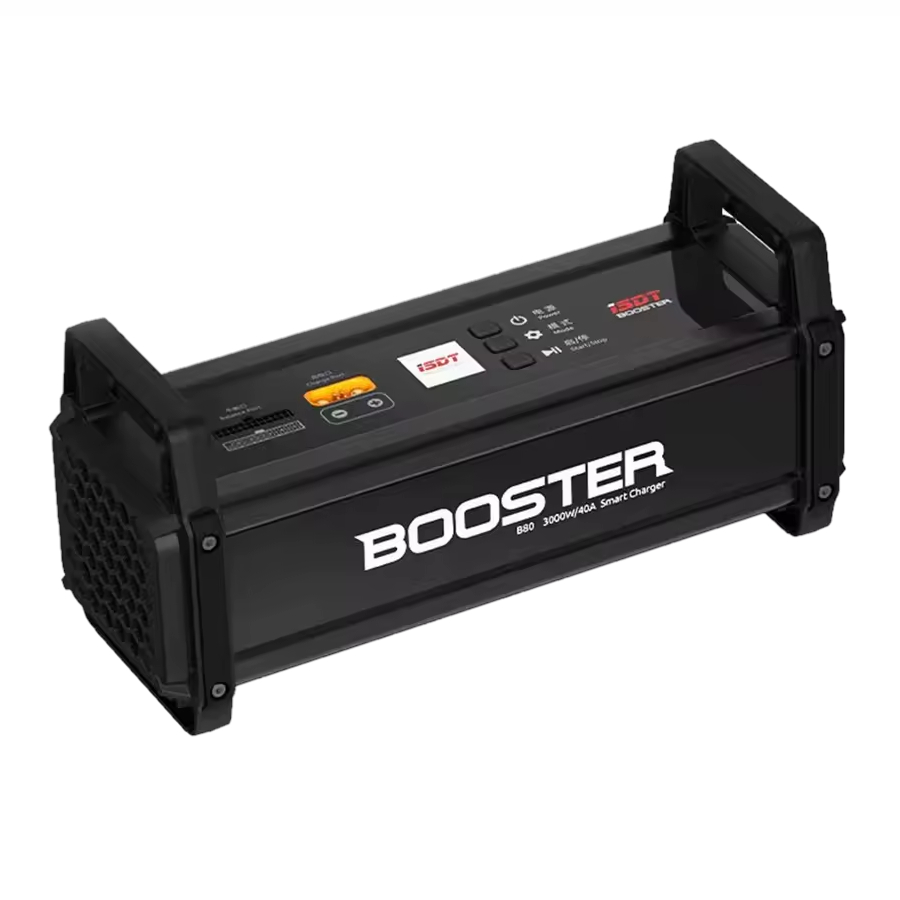

ISDT B80 Professional Smart Charger

Overview:
The ISDT B80 is a high-power smart battery charger designed for large-capacity lithium battery packs used in demanding RC applications. Its single-channel design combines high charging power with support for high-voltage battery configurations, making it particularly suitable for large fixed-wing aircraft, heavy-lift multirotors and other builds using high cell-count batteries.

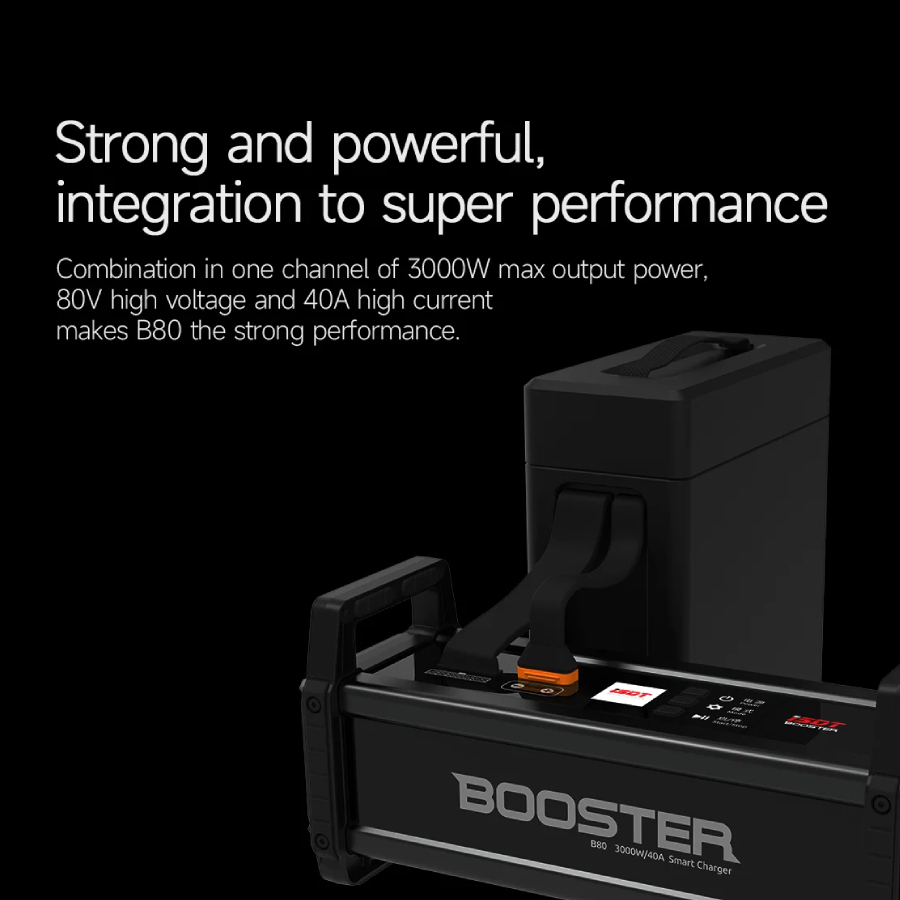

With up to 3000W of charging power at 220V AC and a maximum charging current of 40A, the B80 can handle substantial battery packs. It supports LiFe batteries up to 22S and LiPo, LiHv and ULiHv batteries up to 18S. Integrated cell balancing helps maintain consistent cell voltages, while dedicated charge, discharge and storage modes support routine battery management.

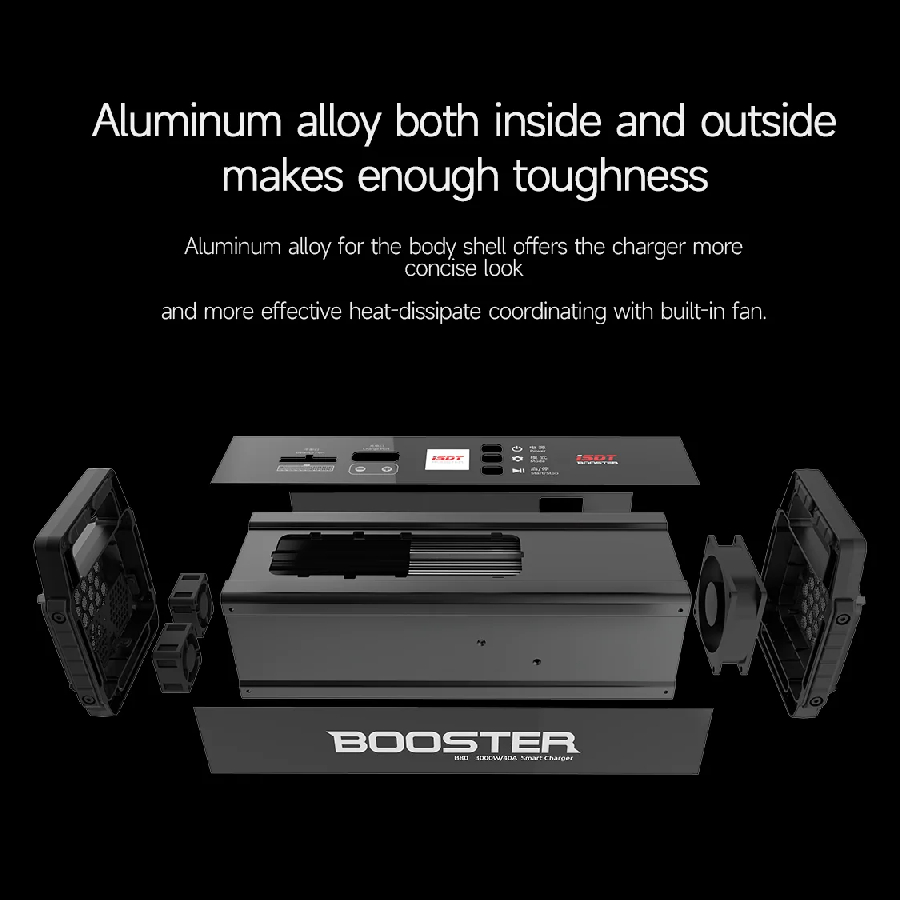

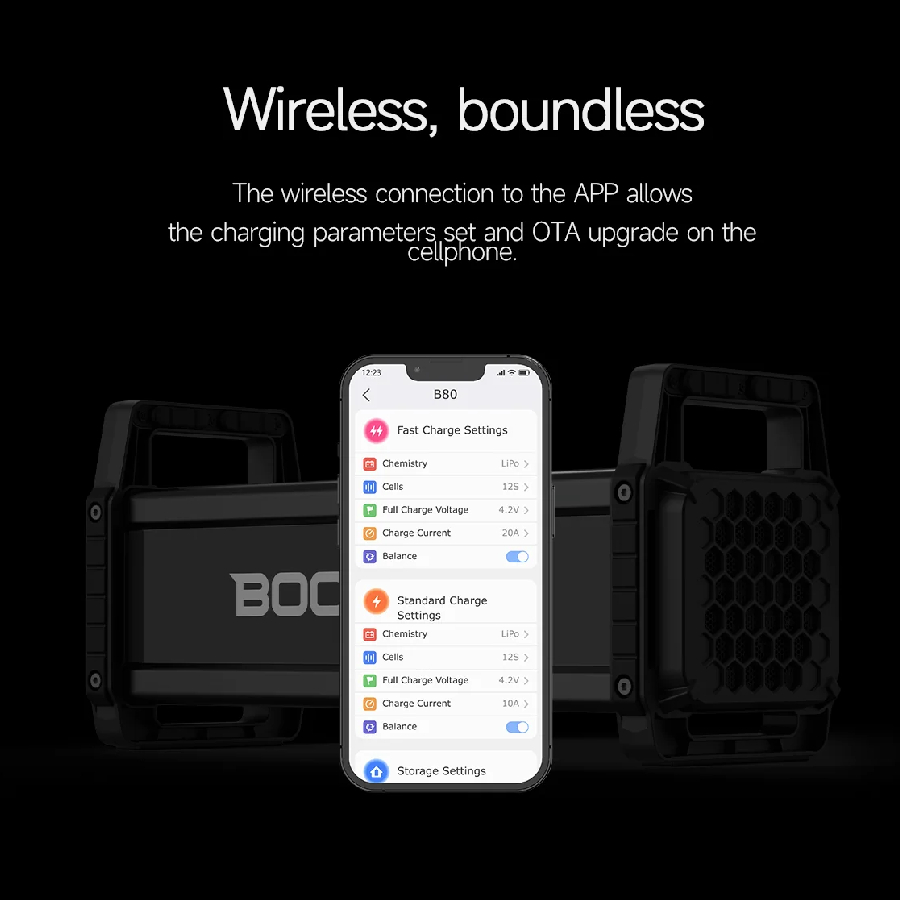

The aluminium alloy housing and built-in cooling fan help manage heat during high-power operation. Wireless connectivity to the ISDT app allows charging parameters to be adjusted from a compatible mobile device, with support for over-the-air firmware updates. BattAir technology is also supported for compatible battery-management accessories.

Features:
- High-power single-channel charging: Designed for charging large battery packs without splitting the process across multiple channels.
- Integrated cell balancing: Helps equalise individual cell voltages during balance charging.
- Multiple battery-management modes: Charge, discharge and storage functions
- Wireless app control: Adjust charging parameters and manage firmware updates through the ISD Link app.
- BattAir support: Compatible with ISDT's BattAir battery-management technology.
- Aluminium alloy housing: Provides a robust enclosure and works with the internal fan to dissipate heat.
- Built-in safety monitoring: Voltage alarms help identify abnormal battery voltage and incorrect cell-count settings.

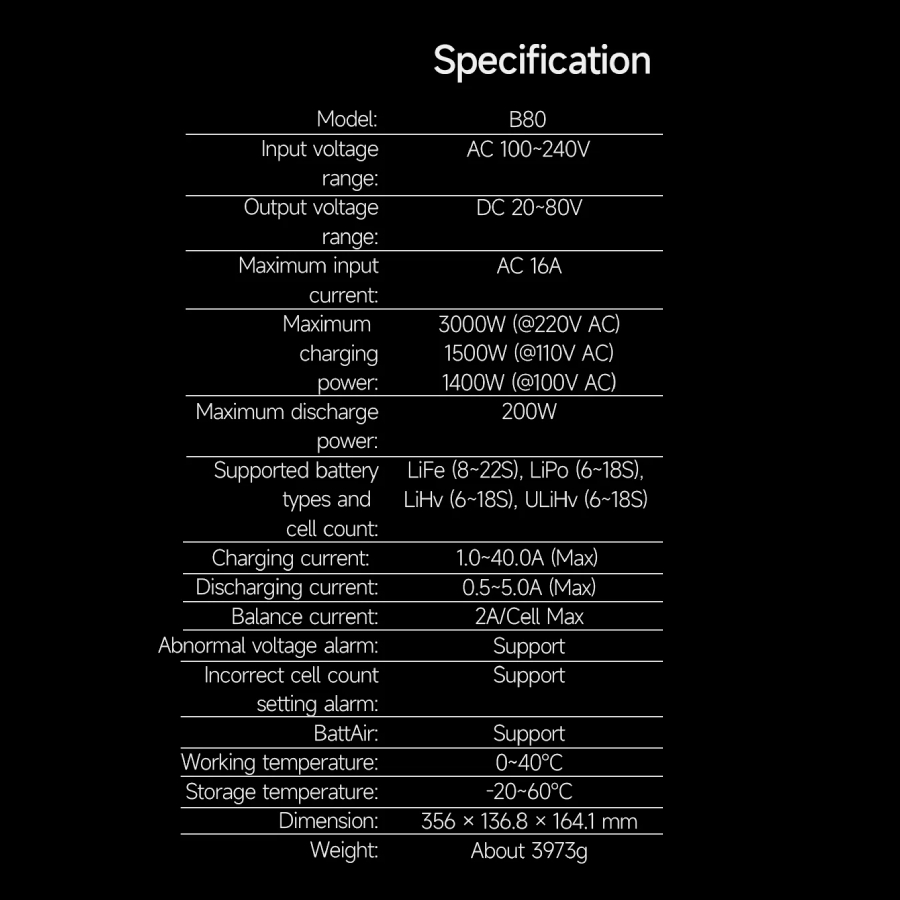

Specification:
- Model: ISDT B80 Professional Lipo Smart Charger
- AC input voltage: 100-240V
- Maximum input current: 16A
- DC output voltage: 20-80V
- Max charging power: 3000W at 220V AC, 1500W at 110V AC, 1400W at 100V AC
- Max charging current: 40A
- Max discharge power: 200W
- Discharge current: 0.5-5A
- Max balancing current: 2A per cell

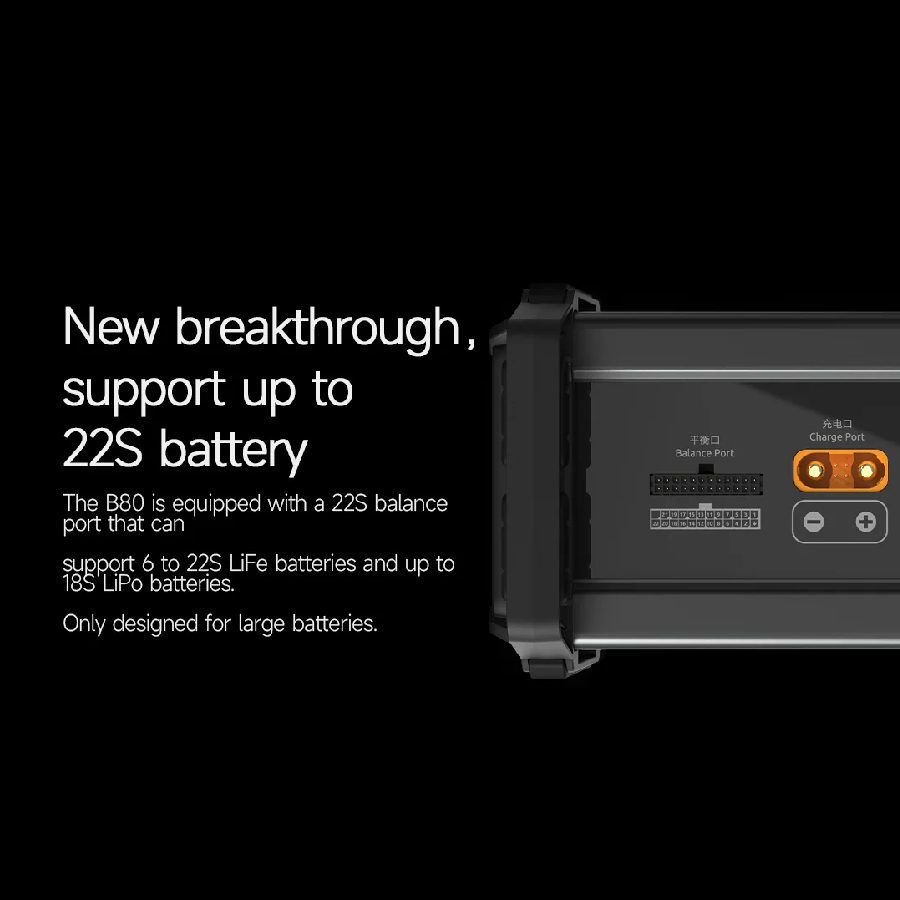

- Supported battery chemistries and max cell count: LiFe 8S-22S, LiPo 6S-18S, LiHv 6S-18S, ULiHv 6S-18S
- Operating temperature: 0-40°C
- Storage temperature: -20 to 60°C
- Dimensions: 356×136.8×164.1mm
- Weight: 3973g

Included:
- 1x ISDT B80 Professional Lipo Smart Charger
- Accessories
