KD Drones KD7 Cinelifter Frame

Overview:

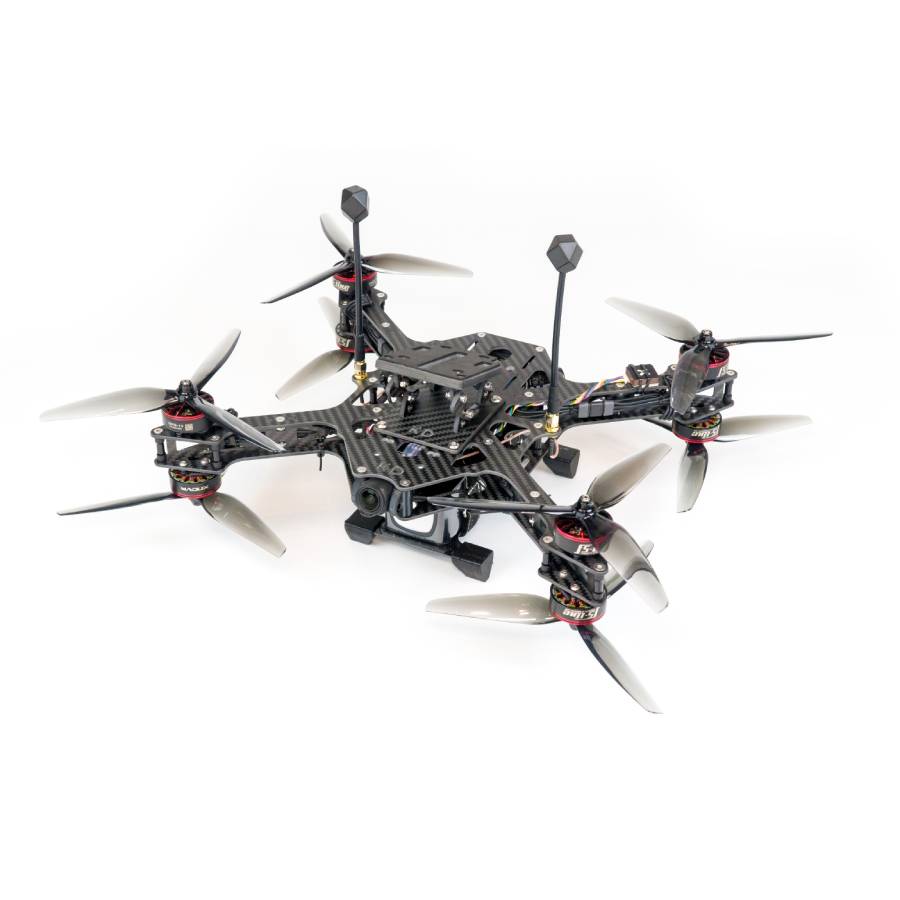

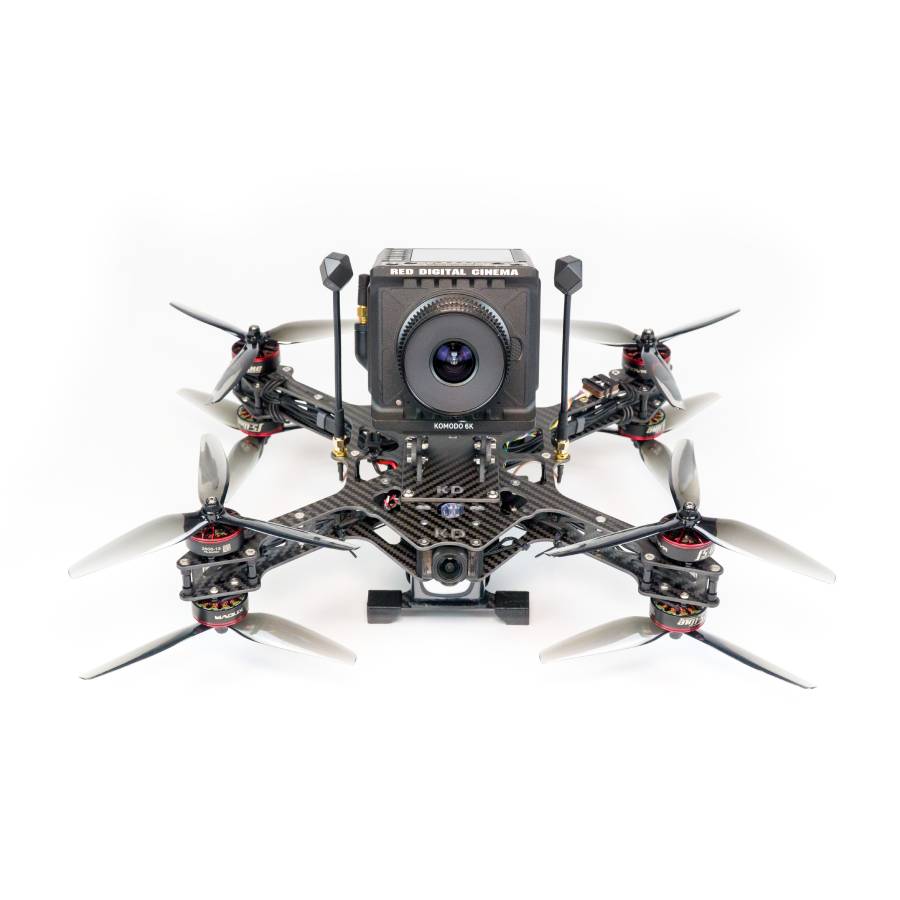

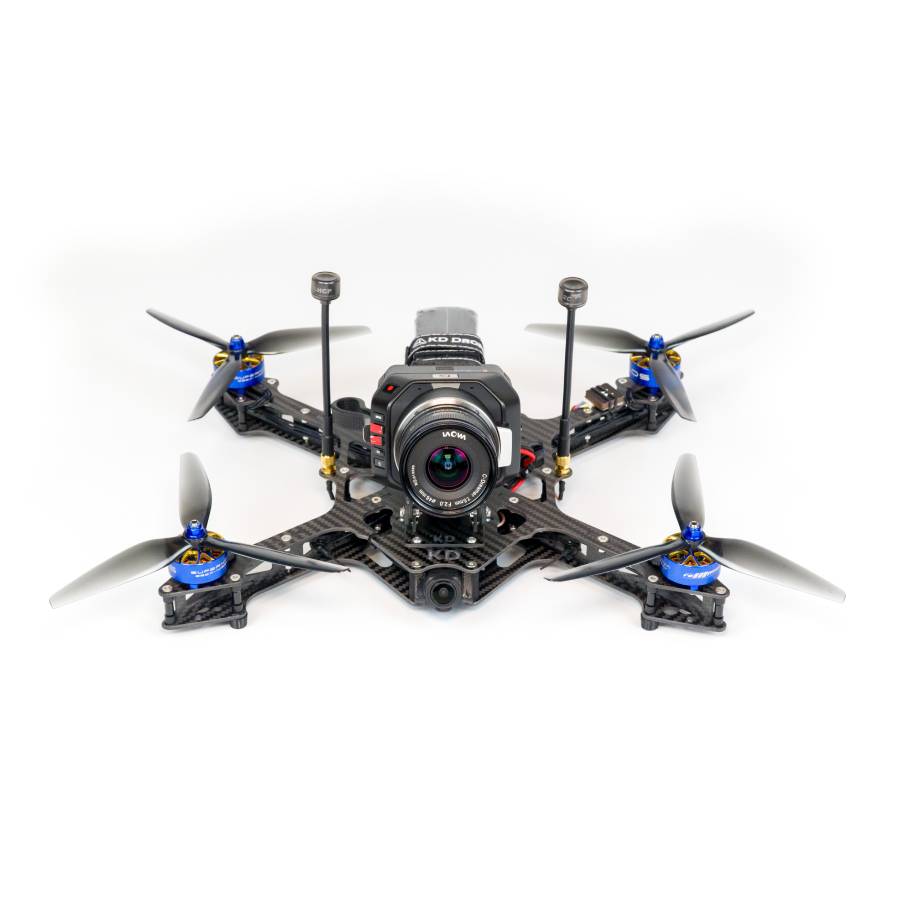

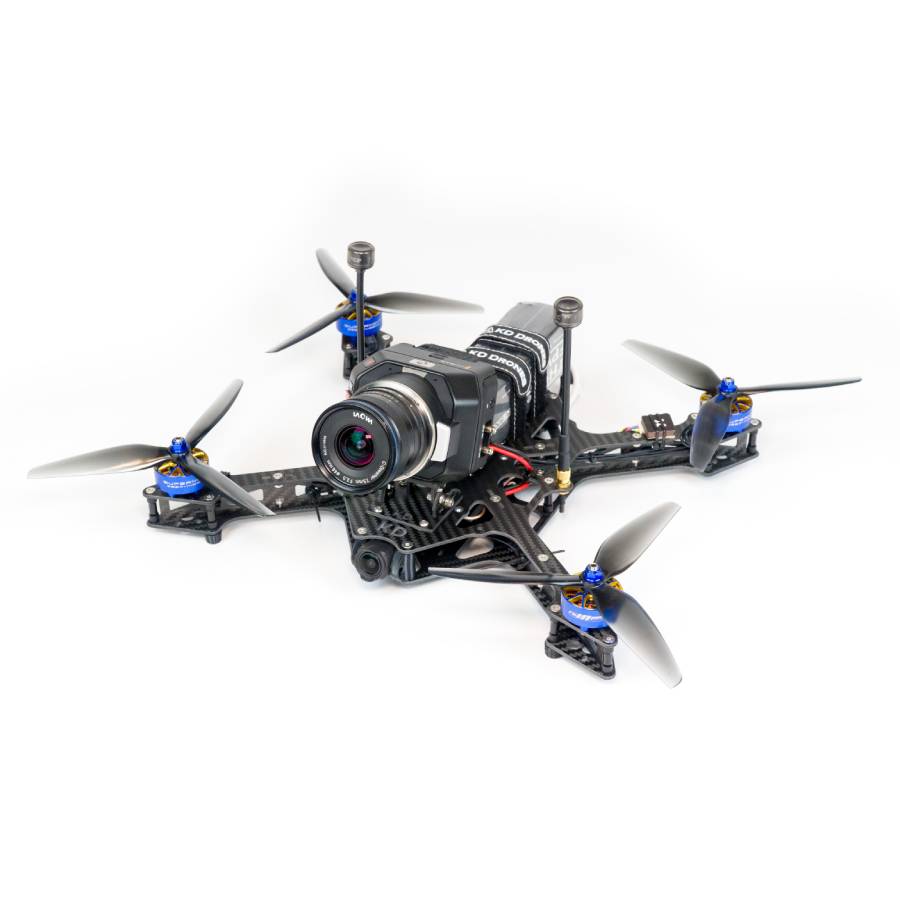

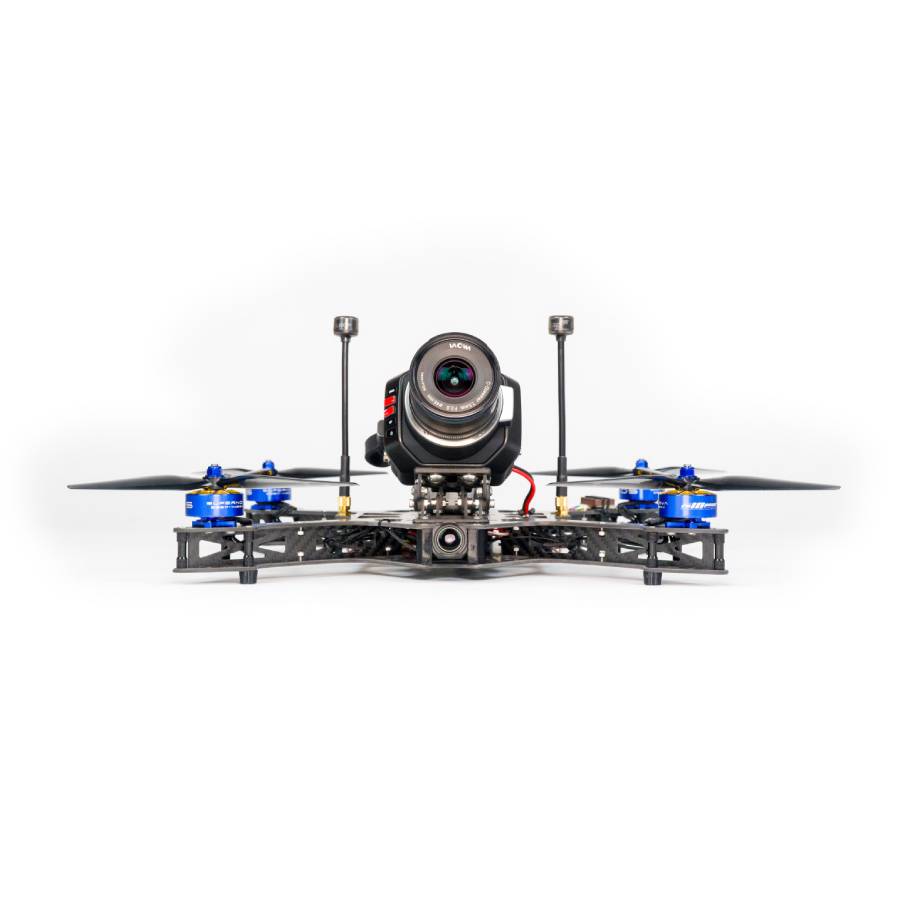

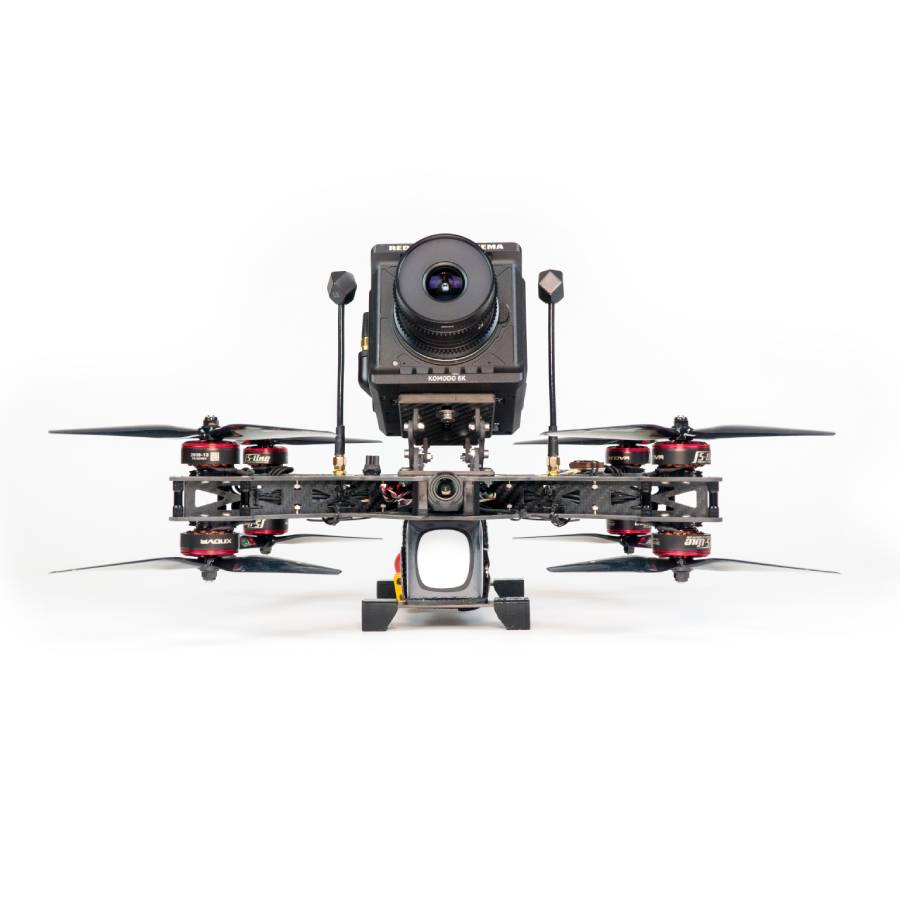

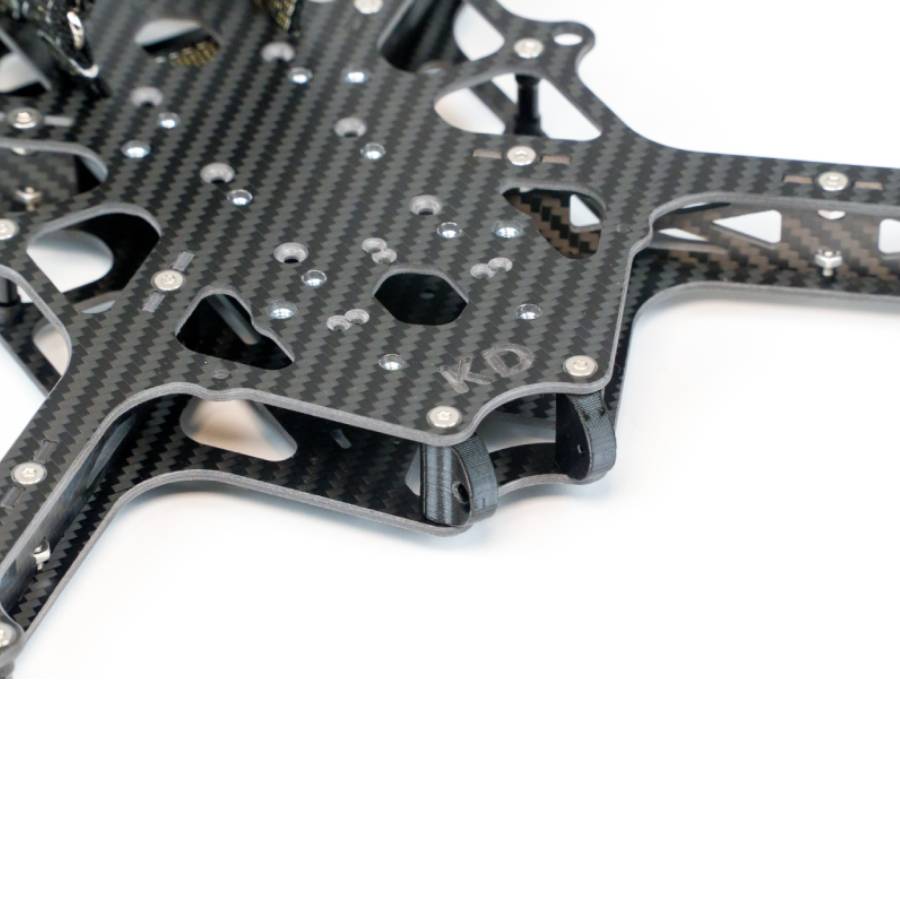

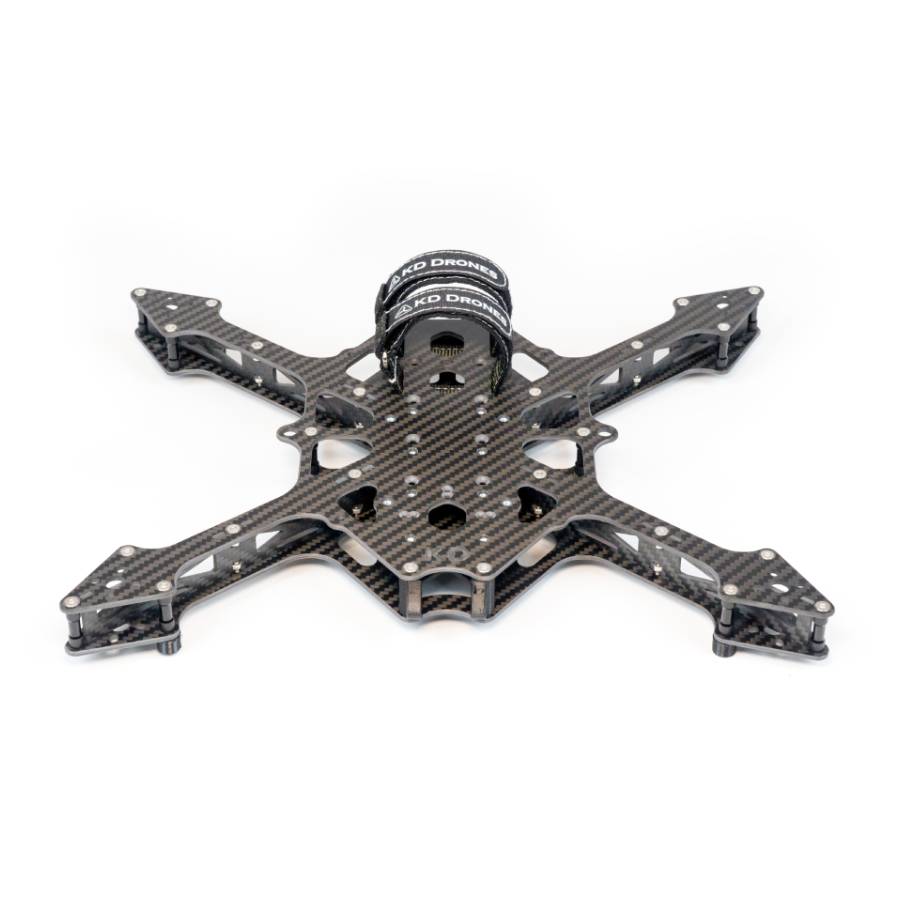

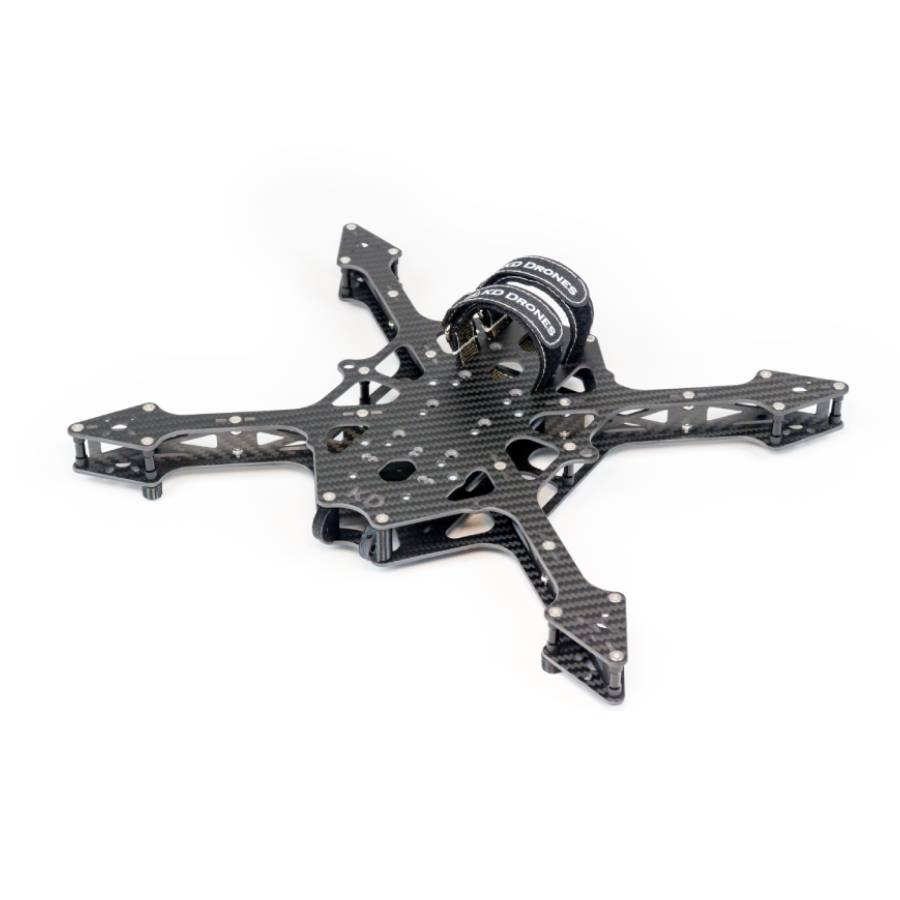

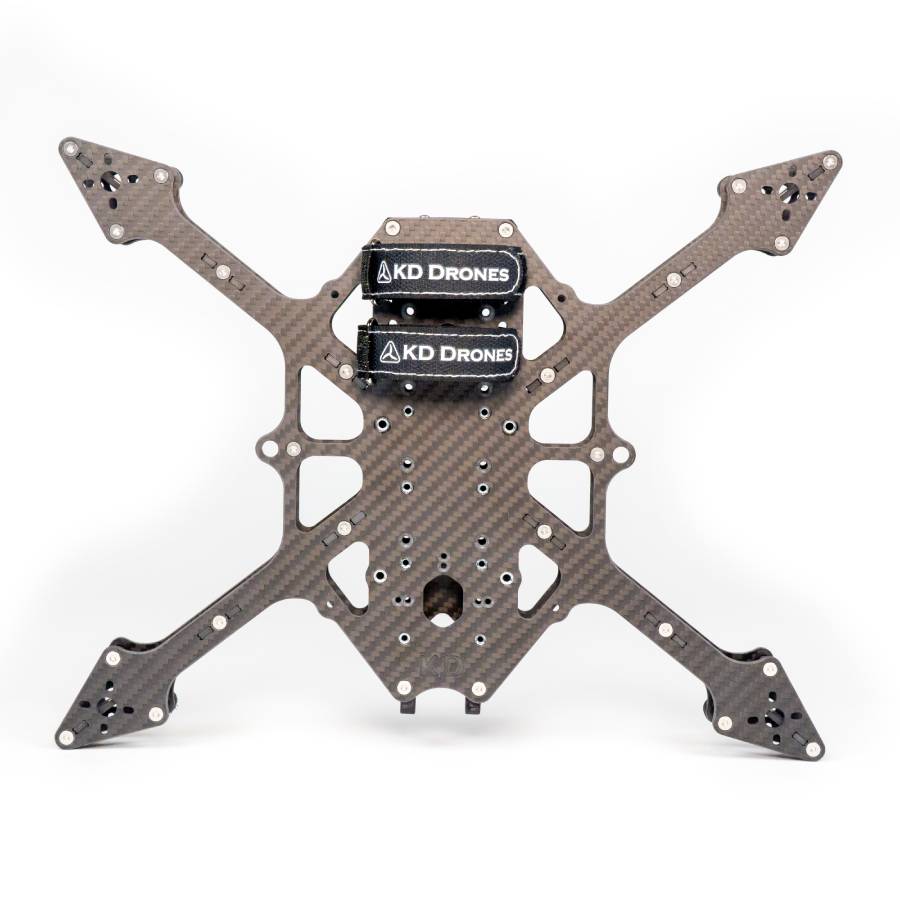

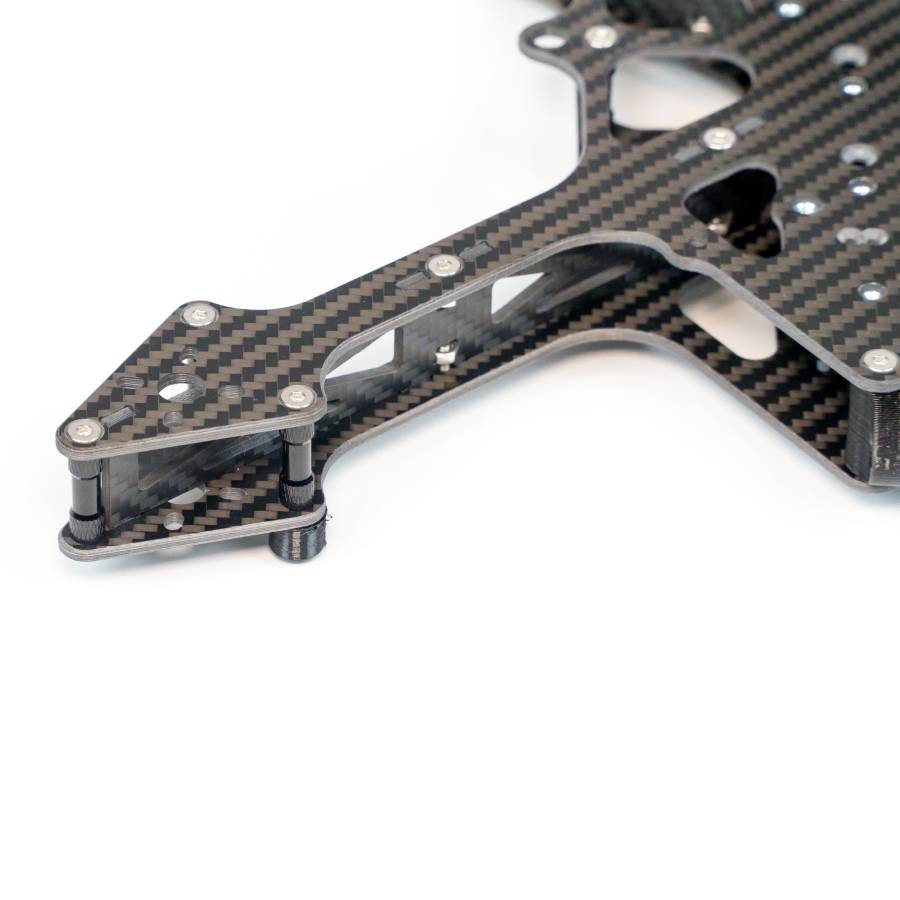

KD7 is a 7" X4/X8 cinelifter (both options from the same frame kit) designed to carry a BM 4KG2, Red Komodo, Sony FX6, Freefly Ember, etc. It has a unique I-beam design made of vertical arms clamped between two continuous plates. This creates an insanely strong and stiff structure, while packing a huge number of features into a frame of only 263g.

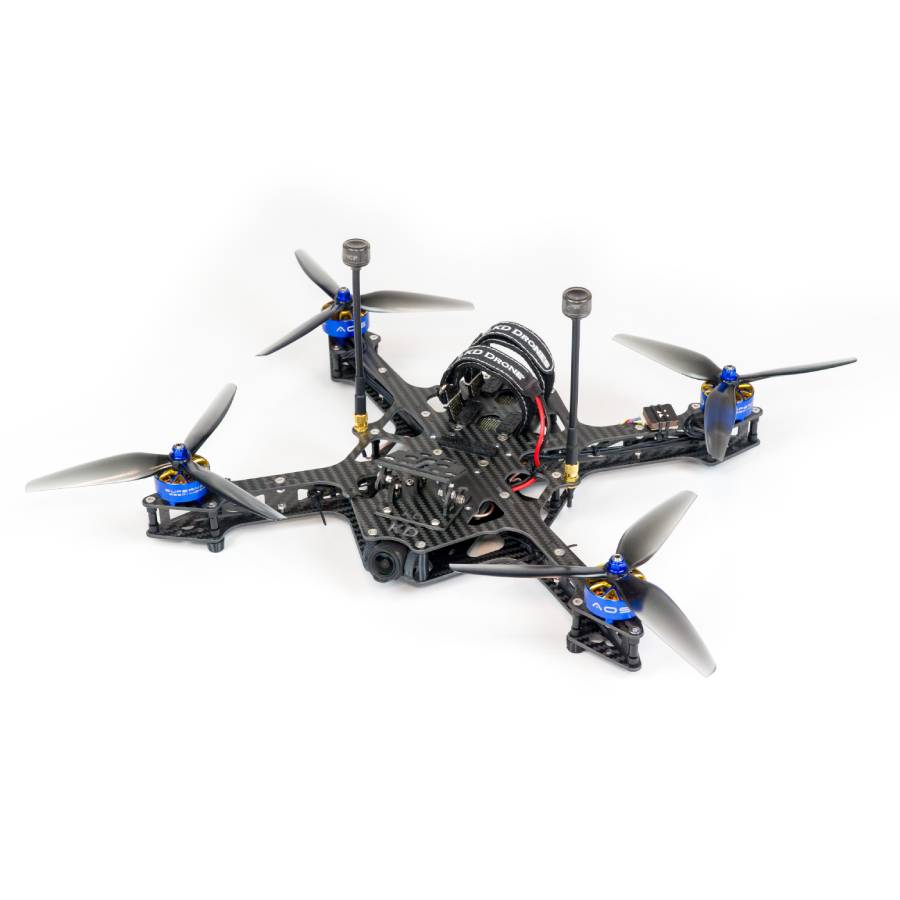

KD7 has KDCM Lite mounting holes in three positions, KDCM/DAC camera mount holes in the middle, and naked BM mounting holes on top. You can go down to zero degrees with no props in view on a 7.5mm lens on the 4KG2. The battery can be top or bottom mounted for great CG balance, lower moment of inertia and a more compact rig. For bottom mounting, you can buy a KD Battery Plate to protect the battery and act as landing gear. There is a lot of space inside, with an abundance of mounting holes, zip tie slots, and easy access to USB ports. For more information, check out their YouTube page here.

Specification:
- Model: KD Drones KD7 Quad Frame
- Weight: 263g (+35g if you use the battery plate)
- Size: 244x309x25mm

Mounting:
- KDCM Lite/KDCM/DAC camera mounting (30.5x30.5 M3 and 61x50.8mm M4 holes with press nuts)
- Naked BM M3 mounting holes (90x124mm)
- 3x 30.5x30.5 positions (2 can be used at once), 20x20, 25.5x25.5 VTX mounting
- Capacitor and VTX zip tie slots
- 16x16 and 19x19 Motor pattern

Included:

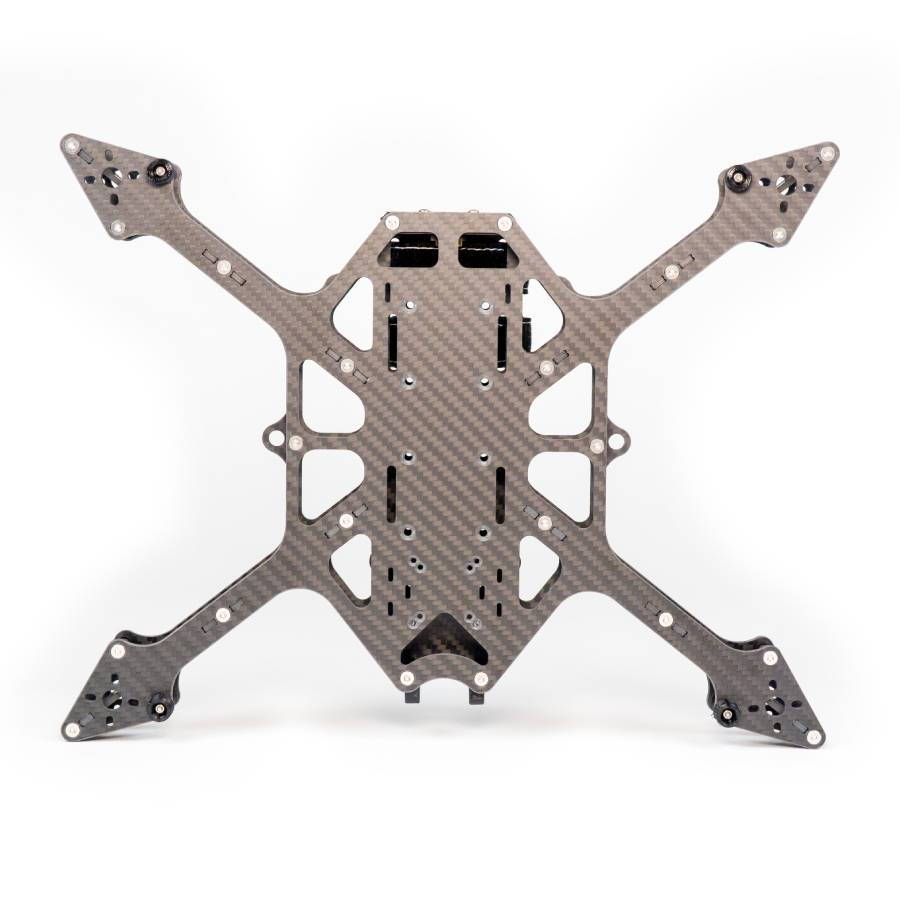

- T700 Carbon Frame: 1x top plate, 1x bottom plate, 4x arms
- Hardware
- Motor screws and washers
- 2x FC/ESC screws and nuts
- 3D Prints

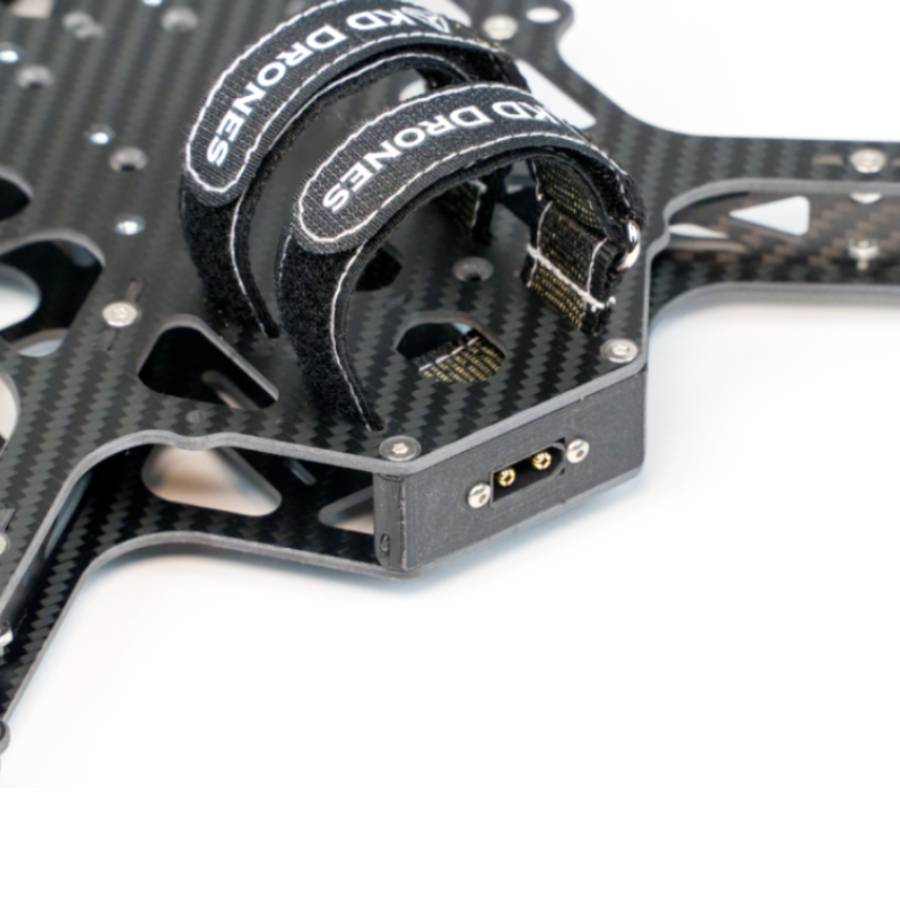

- Mounted XT60
- Mounted XT90
- XT30 female (for camera power)
- 2x 250mm battery straps
- Battery pad
- STLs and a Betaflight 4.5 tune can be downloaded for free from the KD7 GrabCAD page. The tune is used at your own risk and is not recommended for use. See below to get your own tune.

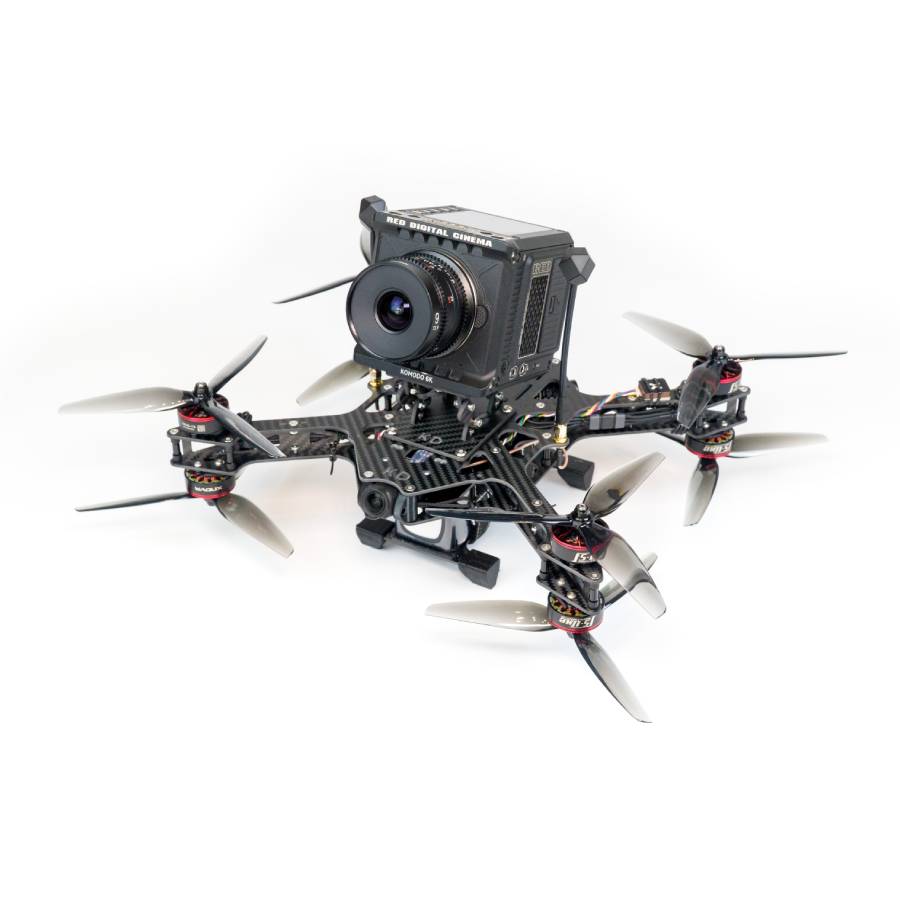

Recommended Parts (NOT included- gallery images are for reference only):
- KDCM Lite
- KDCM or DAC camera mount
- KD Battery Plate if you want to bottom mount your battery or make the X8 version
- Matek 12S Pro BEC for camera power
- 2808 1350kv Xnova motors, 2807 1400kv AOS Supernova motors
- HQ 7x4x3 props
- Hobbywing 60/65A or Foxeer Reaper 65A ESC and any X8 FC with a good gyro
- 6s 2000-6000mAh Lipo
- Any VTX you like will fit, and there are SMA mounts on the side for antennas (for ufl to SMA extensions use 10-15cm)
- Custom PIDtoolbox tune, available here: https://ptblabs.ca/
