Overview:

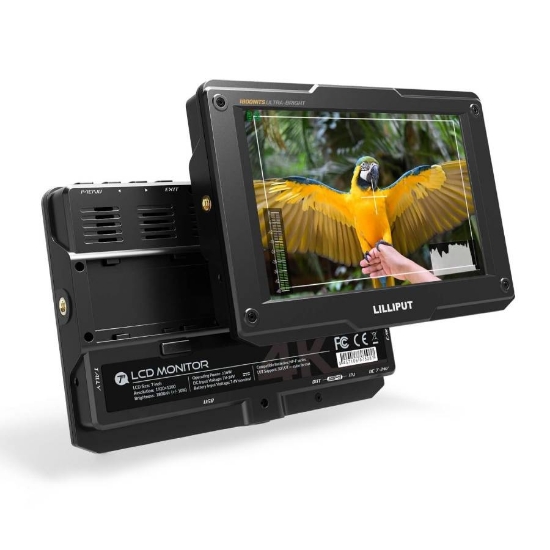

The Lilliput H7 7-inch 4K field monitor is a compact on-camera display designed for filmmakers, videographers and content creators who require a bright, high-resolution monitoring solution in outdoor environments. Featuring a 1920x1200 LCD panel with an ultra-bright 1800nit backlight, the H7 remains clearly visible even in direct sunlight, making it well suited for location shooting and field work.
The monitor supports HDMI video input and loop output, allowing it to display signals up to 4K UHD (2160p) via HDMI while maintaining compatibility with common HD formats used by mirrorless cameras, DSLRs and cinema cameras. This makes it a practical choice for monitoring high-resolution footage while keeping the display compact and portable.
HDR technology improves the range of colour and contrast in a digital image. When activated, the monitor will reproduce a much greater dynamic range of luminosity, allowing for lighter and darker details to be displayed with greater accuracy.
Designed with professional shooting in mind, the H7 includes a range of monitoring tools to assist with exposure, focus and colour accuracy. Functions such as HDR preview and waveform analysis tools allow users to evaluate footage more precisely while filming. Custom LUT files can be loaded via USB, enabling accurate preview of camera log profiles and colour grading workflows directly on the monitor.

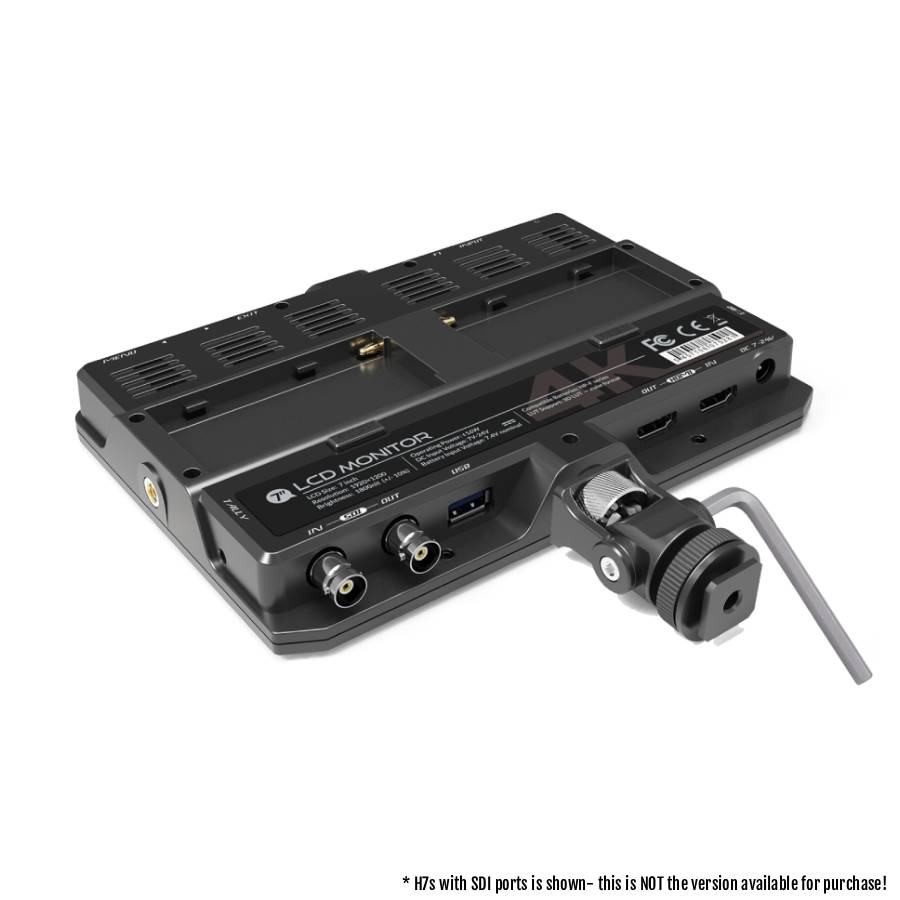

The aluminium housing keeps the monitor lightweight while providing durability for field use. Flexible mounting options and support for common Sony NP-F series batteries allow it to be easily integrated into a variety of camera rigs, gimbals or handheld setups.
Features:
- 1800nit ultra-bright display designed for outdoor visibility
- The 4K HDMI 1.4 compatible input supports up to 4096x2160p @24p and 3840x2160p, and can loop out through to another HDMi input monitor/device.
- Supports HDMI signals up to 2160p30 (4K UHD)
- HDR monitoring support including HLG and ST2084 formats
- 3D LUT support with USB LUT import (17x17x17 .cube files)

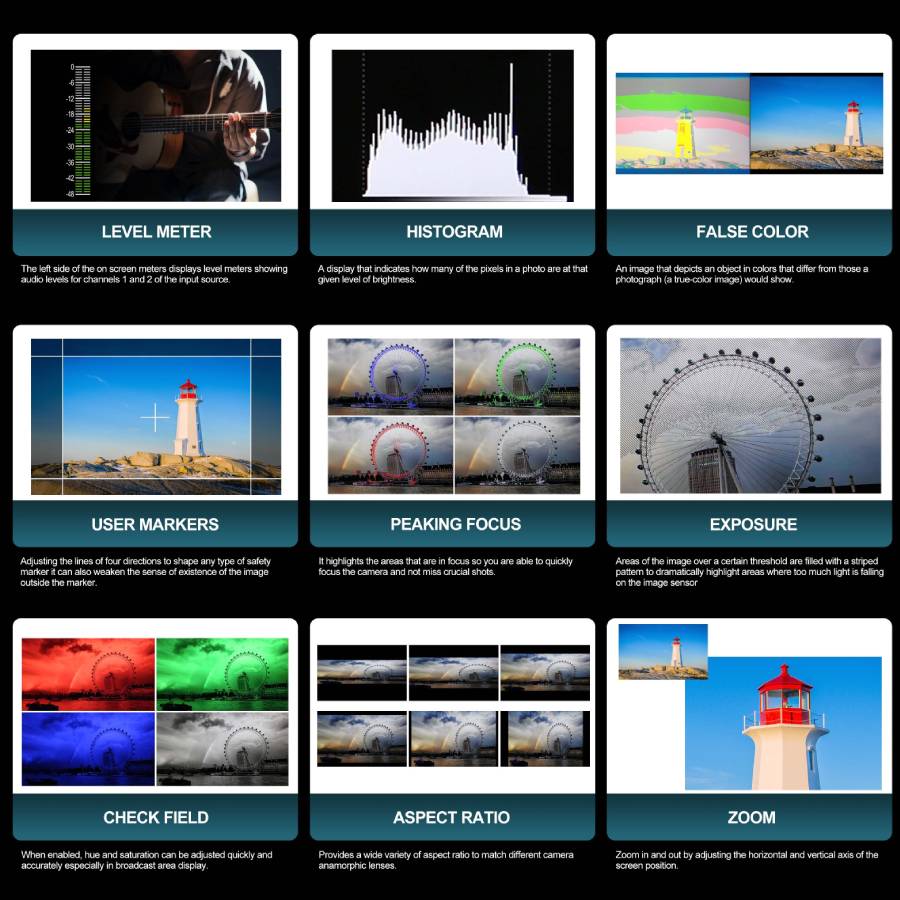

- Professional camera assist tools including peaking, histogram and false colour
- Waveform, vectorscope and exposure analysis tools for accurate monitoring
- Customisable markers, aspect guides and image flip options

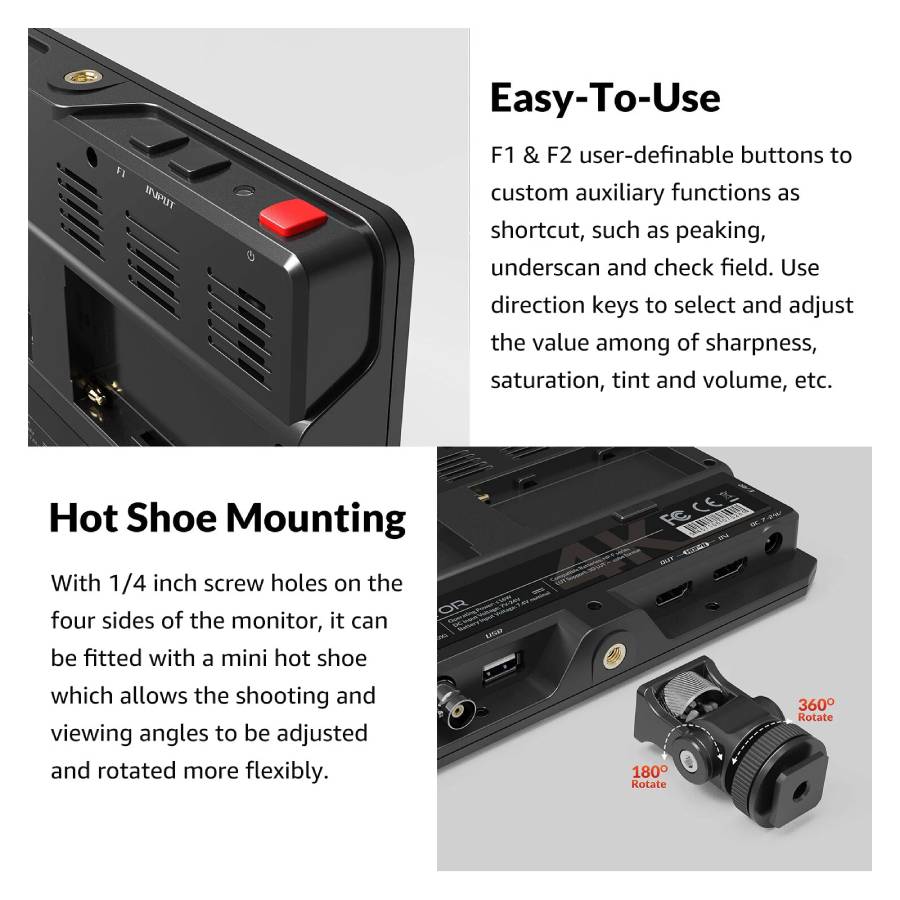

- Dual user-assignable function buttons for quick access to monitoring tools

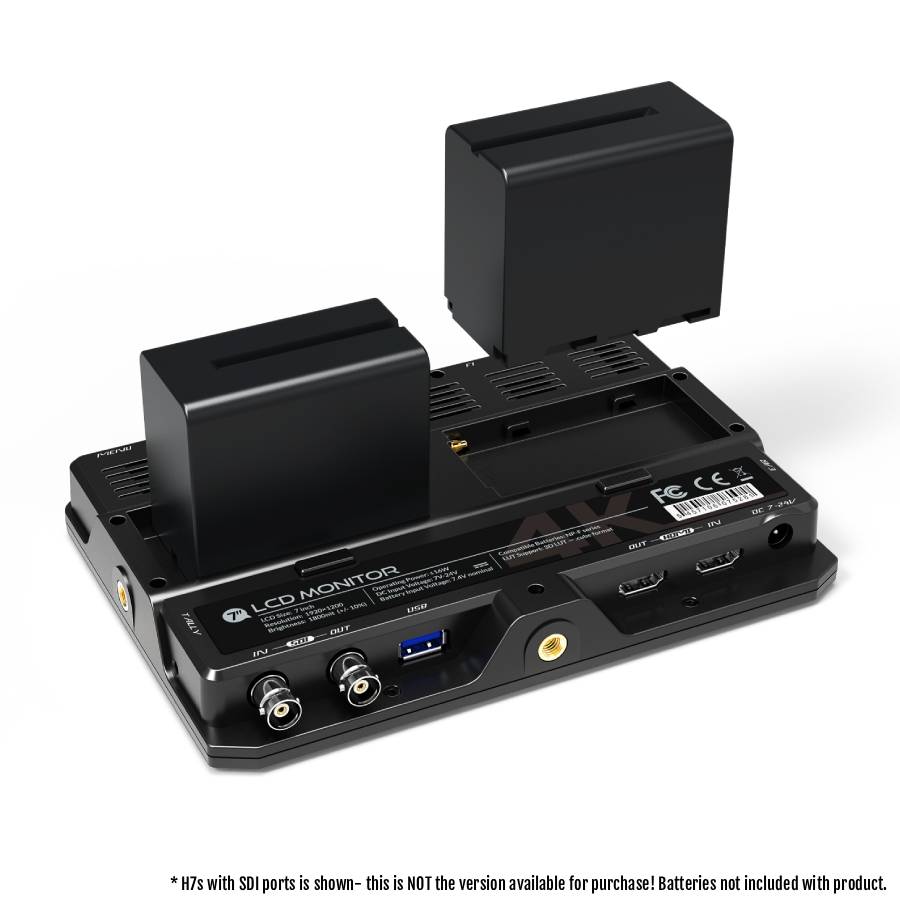

- Compatible with Sony NP-F series batteries for portable power

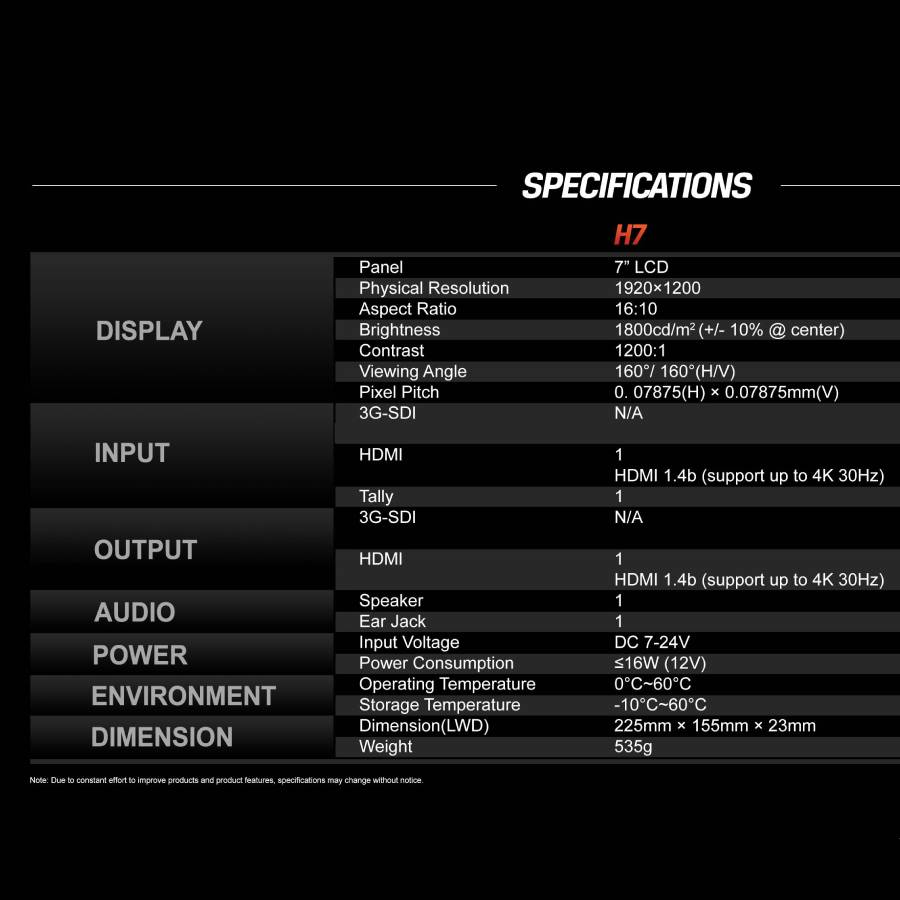

Specification:
- Model: Lilliput H7s 7 inch Ultra Bright 4K Field Monitor
- Display size: 7" LCD
- Native resolution: 1920x1200
- Aspect ratio: 16:10
- Brightness: 1800cd/m²
- Contrast ratio: 1200:1
- Viewing angle: 160°/160° (H/V)
- Pixel pitch: 0.0787x0.07875mm
- Video input: 1x HDMI 1.4
- Video output: 1x HDMI 1.4
- Audio output: 3.5mm headphone jack, built-in speaker
- Supported HDMI formats: 720p, 1080i, 1080p, 2160p 24/25/30
- Input voltage: DC7-24V
- Power consumption: ≤16W
- Battery compatibility: Sony NP-F series
- Dimensions: 225x155x23mm
- Weight: 535g
- Operating temperature: 0°C–50°C
- Storage temperature: -10°C-60°C
Included:
- 1x Lilliput H7s 7" Ultra-bright 4K Field Monitor
- Accessories
