Overview:

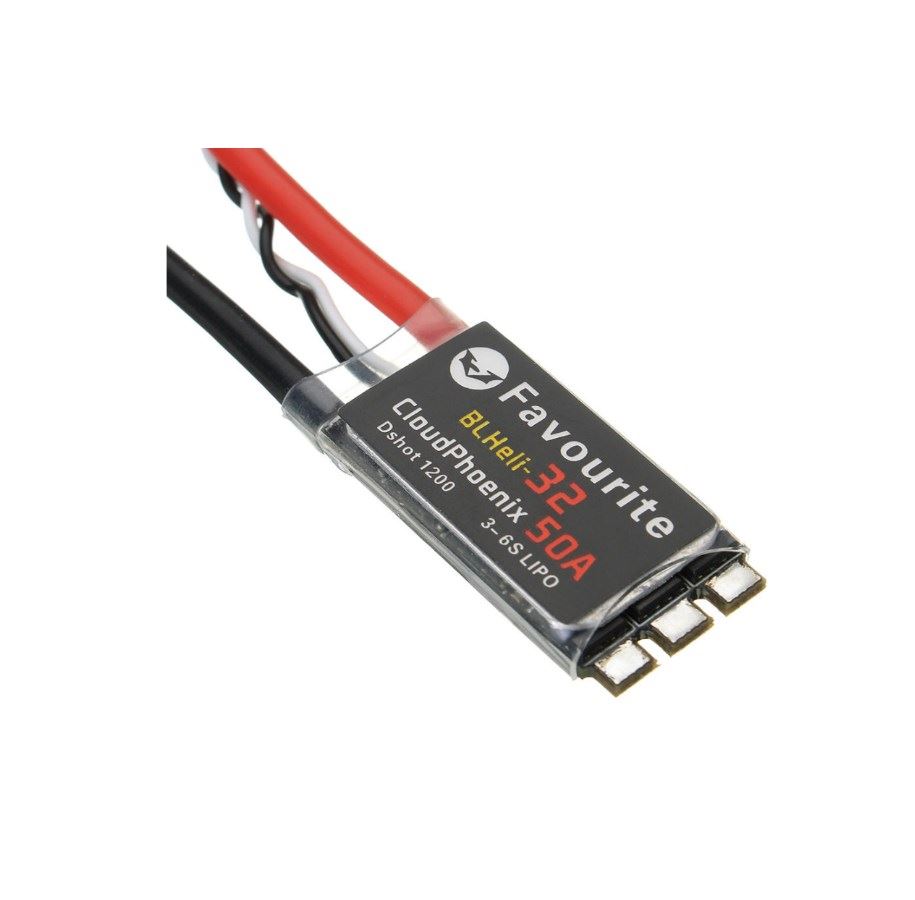

The latest Cloud Phoenix series of Little Bee ESCs allowing faster startup and acceleration. The ESC features a 3-6S input rating and a constant current of 50A and supporting burst currents of 55A.
Please note: This ESC is labelled as "BLHeli-32" but the manufacturer has now updated this product to 'AM32'.
Specifications:
- 3-6S Lipo
- NO BEC
- Continue Current:50A,Burst Current:55A up to 10S
- Size: 35x17mm
- Weight:13g (include Power and signal wire)
- Support Oneshot125, Oneshot42, Mutishot and at least Dshot1200 etc.
- Main IC:runs on an ARM 32bit running at 48MHz
- MOS:IR5301,Both low and high side fets are Nfets,size is 5*6
- Programmable pwm frequency, up to 48kHz,run motors even smoother
- Low voltage and temperature protection
- Current sensor and Telemetry Pad
- Firmware: AM32
