Overview:

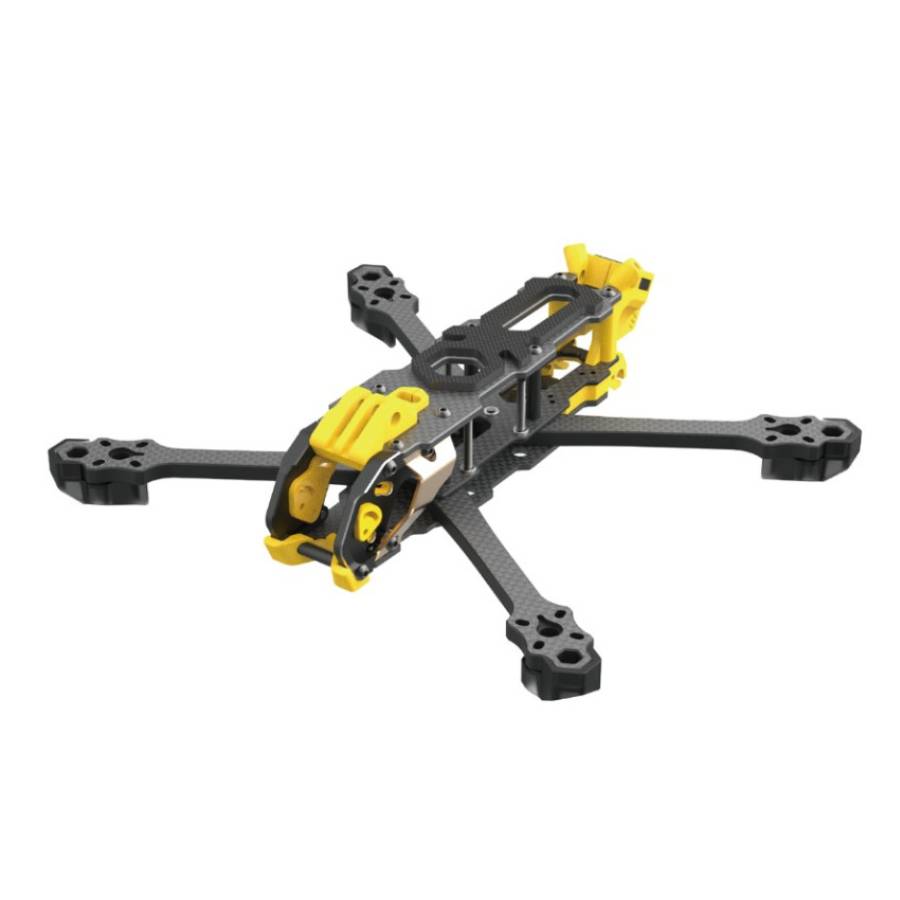

The SpeedyBee Mario 5 XH O4 Frame is the perfect frame for the DJI O4 Pro air unit, DJI O3 and various Analogue VTX. It also comes with a mount for your GoPro. The frame is made from T300 3K carbonfibre and has the capacity to fit a 30.5x30.5mm stack, a 20x20 or 25.5x25.5mm VTX together with 5.1" propellers.
Features:
- XH geometry
- Ideal for installing a GoPro
- Aluminum alloy head
- DJI O4 Pro & DJI O3 compatible
- Selectable dual feed to adjust centre of gravity
Specification:
- Wheelbase: 226mm
- Weight (3D Printed Parts Excluded): 126~5g
- Weight (Including 3D Printed & Moulded Parts): 167~5g
- Top Plate Thickness : 2.5mm
- Middle Plate Thickness: 2.0mm
- Bottom Plate Thickness: 2.5mm
- Arm Thickness: 6mm
- Camera Mounting Screw: 7mm
- Battery Anti-Slip Pad: 3mm Silicone
- Compatible Propeller Size: Max 5.1 Inch
- Motor Mounting Hole Distance: 16-19mm
- FC Mounting Hole: 30.5x30.5(M3)
- VTX Mounting Hole: 20x20(M2)/25.5x25.5(M2)
- Internal Mounting Height: 23-31mm
- Receiver Installation Space: 25x13x6mm
- GPS Installation Space: 18x18x7mm
Available versions:
- SpeedyBee Mario 5 XH O4 Frame Kit (Advanced Version)
- SpeedyBee Mario 5 XH O4 Frame Kit (Pro Version) Is the same as the version above, but also comes with a Heatsink Kit.
Included:
- 1x SpeedyBee Mario 5 XH O4 Frame Kit
- Accessories
