Matek Digital Airspeed Sensor ASPD-AUAV

Overview:

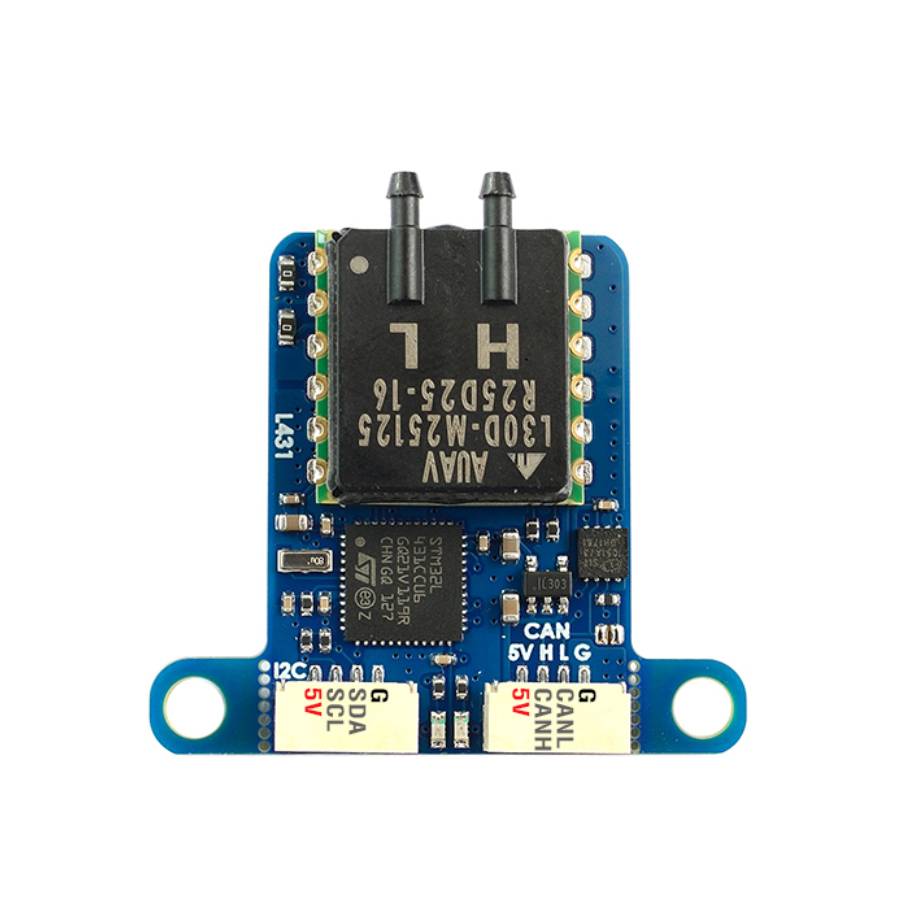

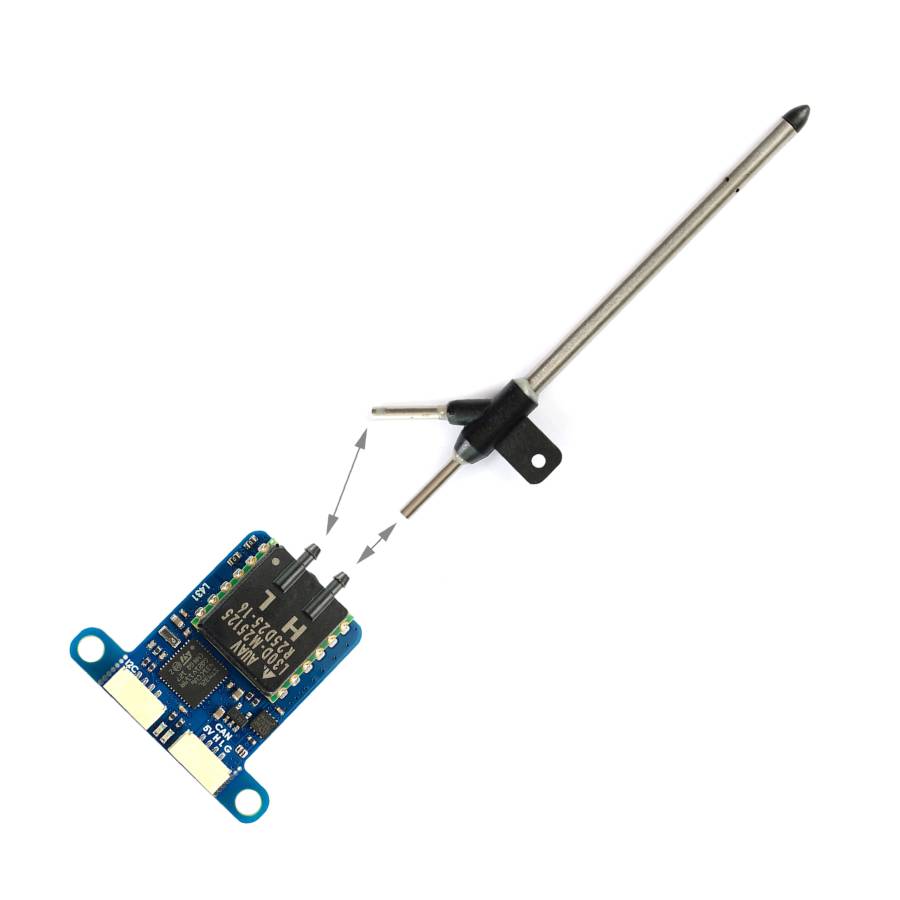

The Matek ASPD-AUAV is an advanced digital airspeed sensor designed for fixed-wing aircraft and UAV platforms using autopilot systems like ArduPilot or other DroneCAN-compatible controllers. Featuring the AUAV-L30D sensor element and supporting CAN, I2C and MSP interfaces, it offers highly accurate and reliable air-speed measurement up to 400km/h for demanding applications such as VTOL, gliders and hybrid aircraft. With a lightweight design and dedicated interface options, the ASPD-AUAV simplifies integration while delivering high precision.

Features:
- Dual interface support (DroneCAN/CAN + I2C) for flexible wiring and system compatibility
- Based on the AUAV-L30D differential pressure sensor for high precision and minimal drift
- Wide speed measurement range up to 400km/h (≈111 m/s) covering fast fixed-wing and UAV builds
- Low power consumption (~26mA) and compact form factor (36×32×7.3mm) make it suited to light aircraft
- Compatible with ArduPilot as AP_Periph peripheral node for telemetry and flight-data logging
- Input voltage range of 4.5V–5.5V simplifies power supply integration

Specification:
- Model: Matek Digital Airspeed Sensor ASPD-AUAV
- Input voltage: 4.5V–5.5V
- Power consumption: ~26mA
- Speed range: 400 km/h (≈111 m/s)
- Operating temperature range: -30°C to +85°C

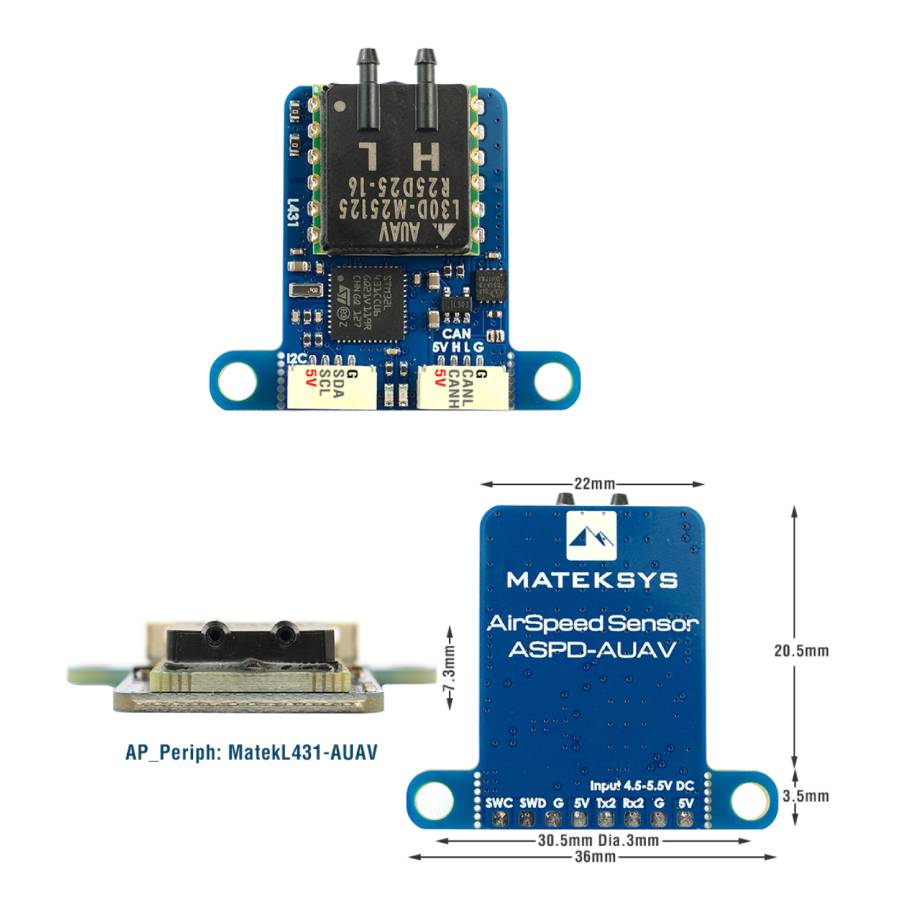

- Dimensions: 36×32×7.3mm
- Weight: ~5g
- Interfaces: DroneCAN (JST-GH), I²C, UART (MSP)

Included:

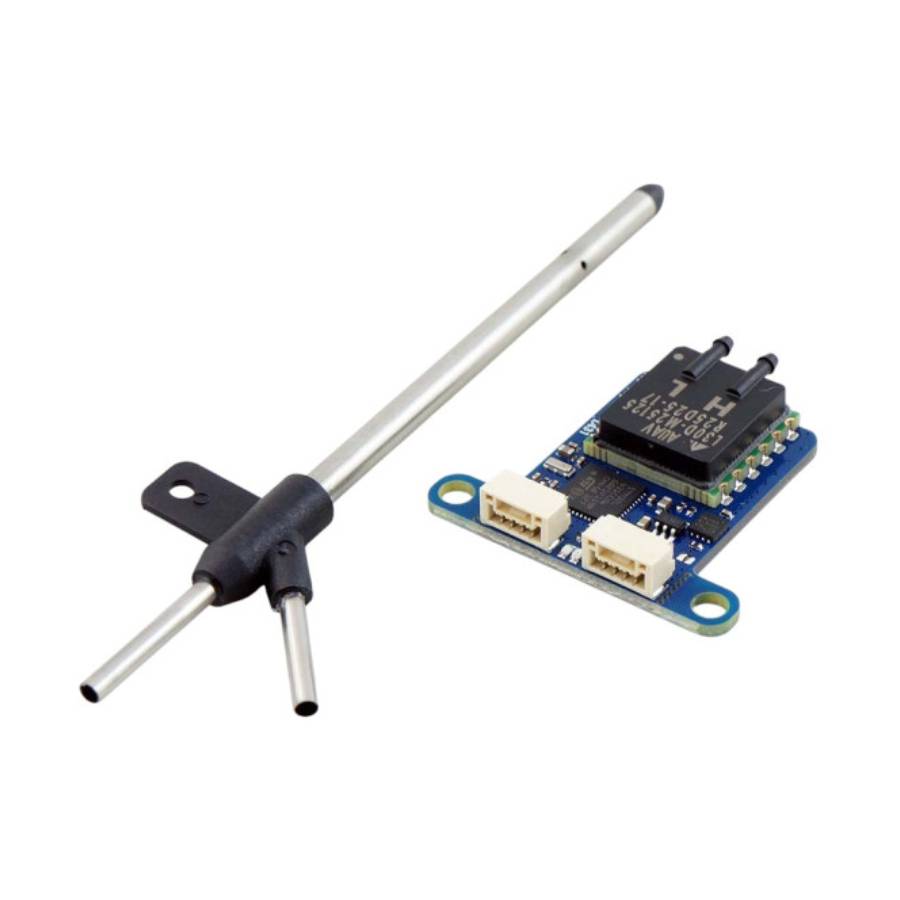

- 1x Matek Digital Airspeed Sensor ASPD-AUAV
- Accessories
