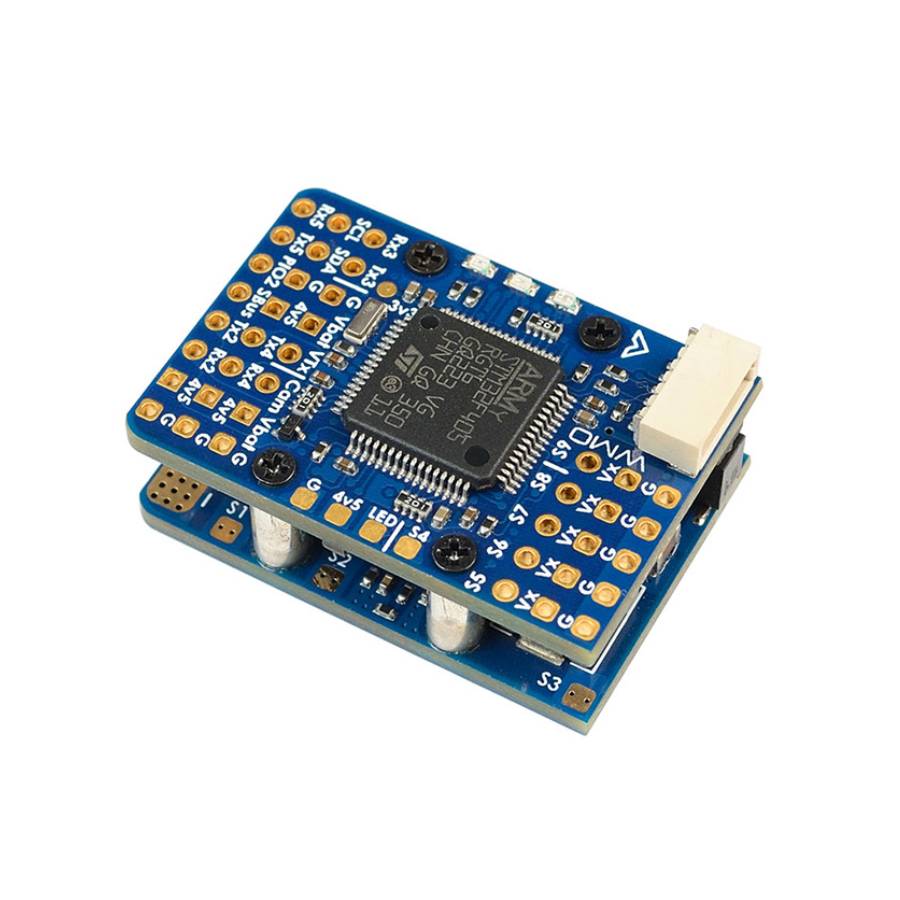

Matek Flight Controller F405-WMO

Overview:
The Matek F405-WMO is a compact and highly capable flight controller designed for fixed-wing aircraft and FPV platforms. Engineered for reliability and precision, it is built around the powerful STM32F405 MCU, offering advanced processing performance and excellent compatibility with popular firmware such as INAV. This controller integrates a barometer, current sensor, and onboard black box for flight data logging, ensuring stable performance and easy tuning.

Designed with versatility in mind, the F405-WMO supports both digital and analogue FPV systems, making it suitable for a wide range of aircraft setups. The layout has been optimised for clean wiring, with dedicated pads for peripherals including GPS, servos, and telemetry modules. Its onboard BEC provides stable power for sensitive components, while the inclusion of dual camera inputs and video switching enhances its flexibility for aerial photography or FPV flight.

Features:
- Integrated barometer and black box for advanced flight monitoring and tuning
- Compatible with INAV firmware and configurable via INAV Configurator
- Supports digital FPV systems as well as analogue cameras and VTXs
- Dual camera inputs with onboard video switch for mid-flight view changes
- Built-in current sensor and voltage monitoring for accurate telemetry feedback
- Clean and accessible pad layout for simple installation and wiring
- Compact and lightweight design suitable for fixed-wing and FPV platforms

Specification:
- Model: Matek Flight Controller F405-WMO
- MCU: STM32F405RGT6, 168MHz, 1Mb Flash
- IMU: ICM42688-P
- Baro: SPL06-001
- OSD: AT7456E
- Blackbox: SD card slot
- 4x UARTs
- 10x PWM outputs
- 1x I2C
- 2x ADC (VBAT, Current)
- 1x spare PINIO
- Vbat output ON/OFF control
- USB/Beep Extender with Type-C(USB2.0)
- Built in inverter on UART2-RX for SBUS input
- 5.4~30V DC IN (2~6S LiPo)
- 132A Current Sense (INAV Scale 250, ArduPilot 40A/V)
- PDB/Current sense resistor: 90A continuous, 132A burst.
- BEC 5V(4v5) 2A for FC & Peripherals
- BEC Vx 4.5A cont.(7A peak) for servos, 5V/ 6V option
- Filtered Vbat for VTX and camera
- LDO 3.3V 200mA
- Battery Voltage Sensor: 1k:20k

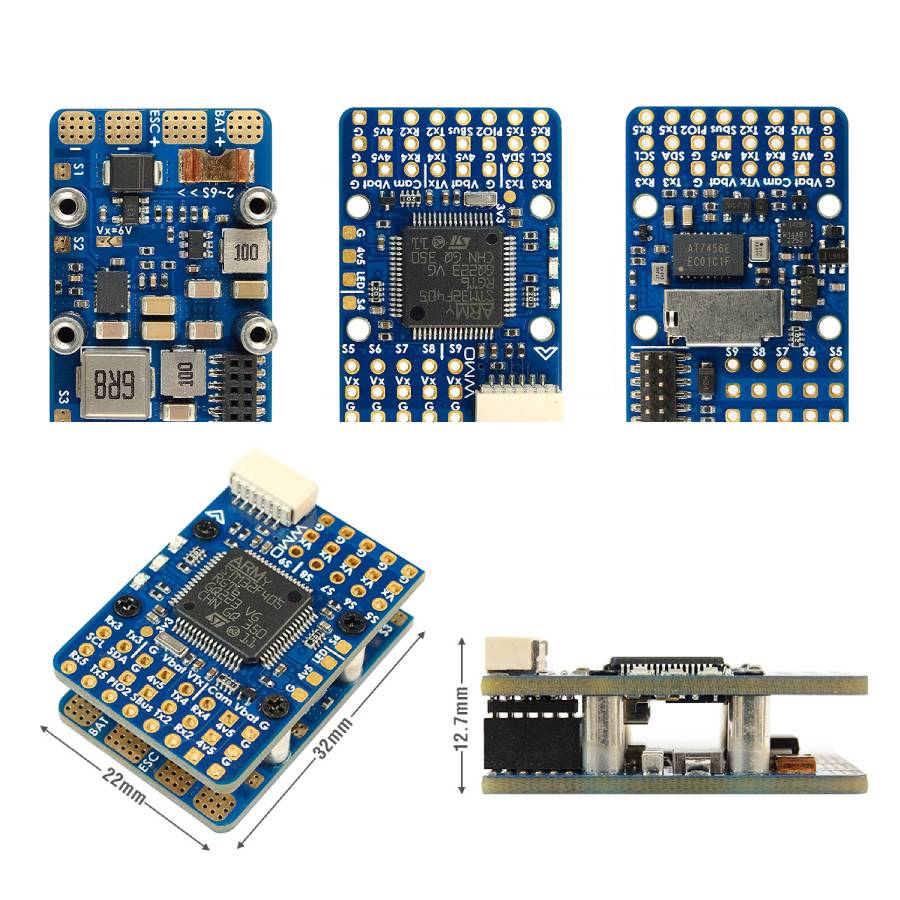

- Dimensions: 32x22x12.7mm
- Weight: 9g

Included:
- 1x Matek Flight Controller F405-WMO
- Accessories
