Overview:

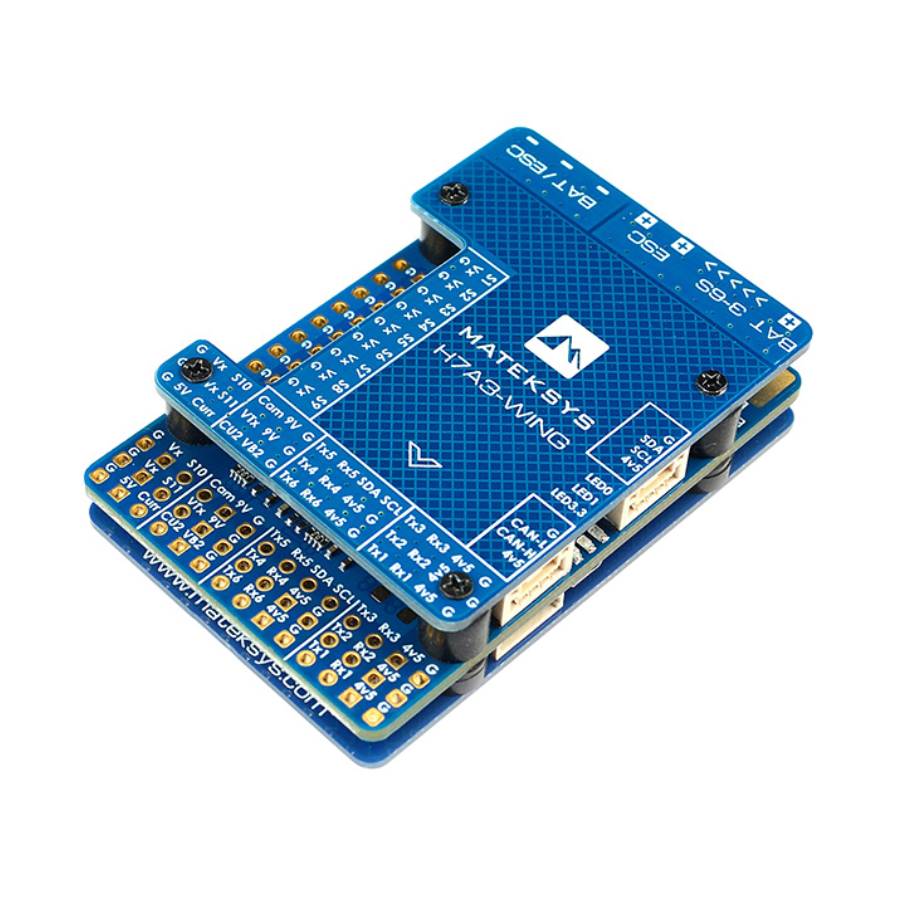

The Matek H7A3-WING is a high-performance flight controller designed for fixed-wing aircraft, flying-wing platforms and complex RC builds that demand advanced connectivity and stable power management.
Featuring a 280MHz ARM Cortex-M7 STM32H7A3RIT6 processor, dual high-precision IMUs and an integrated digital power monitor, it brings professional-grade features into an accessible 30.5×30.5mm mounting footprint.
Features:
- Dual-gyro setup with ICM42688P for ultra-stable and responsive flight data
- Integrated SPL06-001 barometer, AT7456E OSD and microSD slot for full-function telemetry and logging
- Built-in digital power monitor with high voltage/current accuracy
- 11 PWM outputs plus 6 UART ports, I²C bus, CAN interface and multiple ADC inputs for extensive peripheral integration
- Switchable 9V/12V and adjustable output (5V default, 6V or 7.2V option) to power cameras, servos and accessories
- Compatible with ArduPlane, ArduCopter and other open-source flight firmware for custom builds
Specification:
- Model: Matek H7A3-WING Flight Controller
- MCU: STM32H7A3RIT6, 280MHz Cortex-M7, 1.4MB RAM, 2MB Flash
- IMU: ICM42688P
- Baro: SPL06-001
- OSD: AT7456E
- Blackbox: MicroSD socket
- I2C digital power monitor
- 6x Uarts with built-in inversion.
- 11x PWM outputs
- 1x I2C
- 1x CAN
- 4x ADC (VBAT, Current, VB2, Cur2)
- 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
- USB/Beep Extender with Type-C(USB2.0)
- 2x JST-GH1.25_4pin connector for CAN and I2C
- 9V/12V output ON/OFF switchable
- Digital video OSD is supported by any spare UART
- Mounting: 30.5x30.5mm, Φ4mm with Grommets Φ3mm

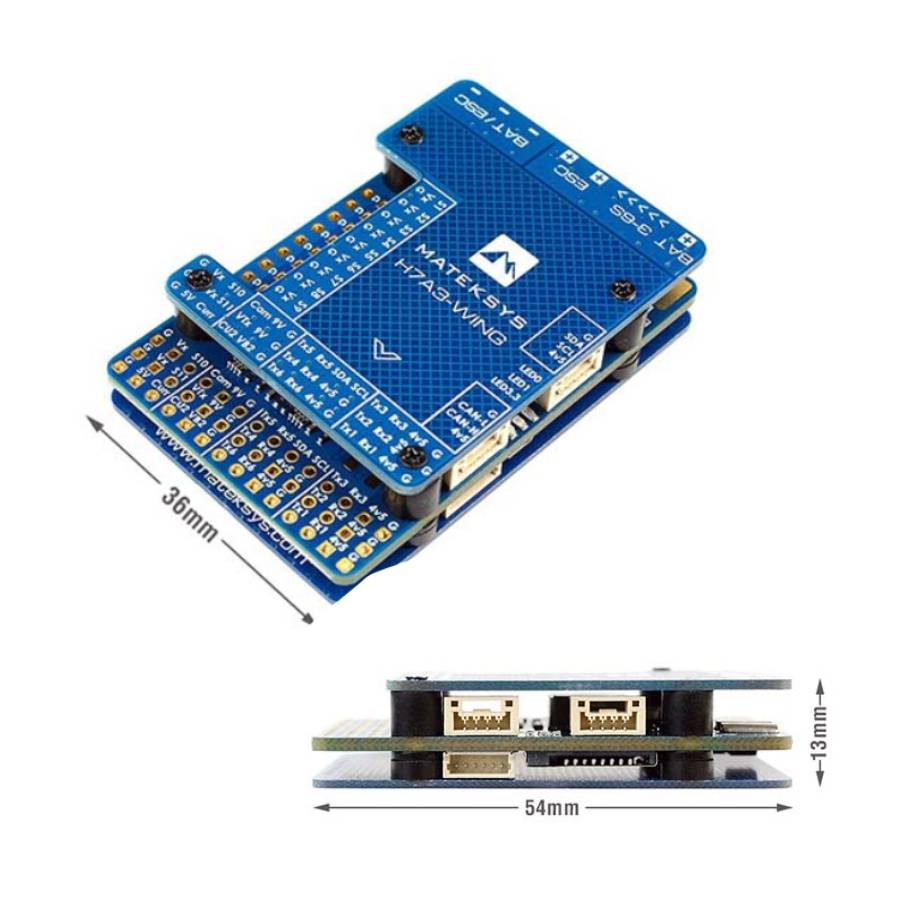

- Dimensions: 54x36x13mm
- Weight: 30g with USB extender
Included:
- 1x Matek H7A3-WING Flight Controller
- Accessories
