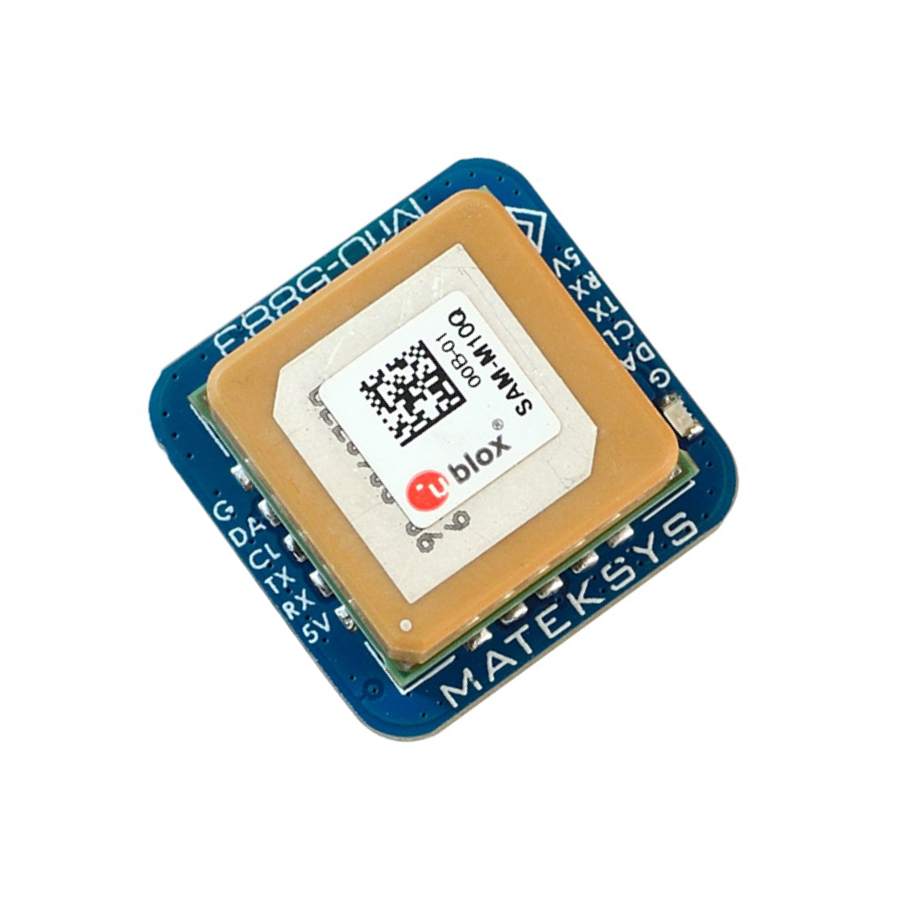

Overview:
The Matek M10Q-5883 GNSS & Compass features the u-blox M10 standard precision GNSS platform, which provides exceptional sensitivity and acquisition time for all L1 GNSS signals. It supports concurrent reception of four GNSS (GPS, GLONASS, Galileo, and BeiDou).
The larger range of satellites enables the receiver to select the best signals to determine location. This maximises the position availability, in particular under challenging conditions such as deep canyons. u-blox Super-S (Super-Signal) technology offers great RF sensitivity, which improves the dynamic position accuracy in non-line-of-sight scenarios.
The high-gain 15x15mm2 patch antenna provides the best balance between performance and small size. The omnidirectional radiation pattern of the antenna provides added flexibility for installation.
Specification:
- GNSS u-blox M10 series: GPS, GLONASS, Galileo and BeiDou
- Magnetic Compass: QMC5883L
- Input voltage range: 4~9V (5V pad/pin)
- Power consumption: 13mA
- UART baud rate: 9600 default
- Operating Temperatures: -20~80 °C
- UART(TX, RX) interface for GNSS
- I2C(DA, CL) interface for Compass QMC5883L

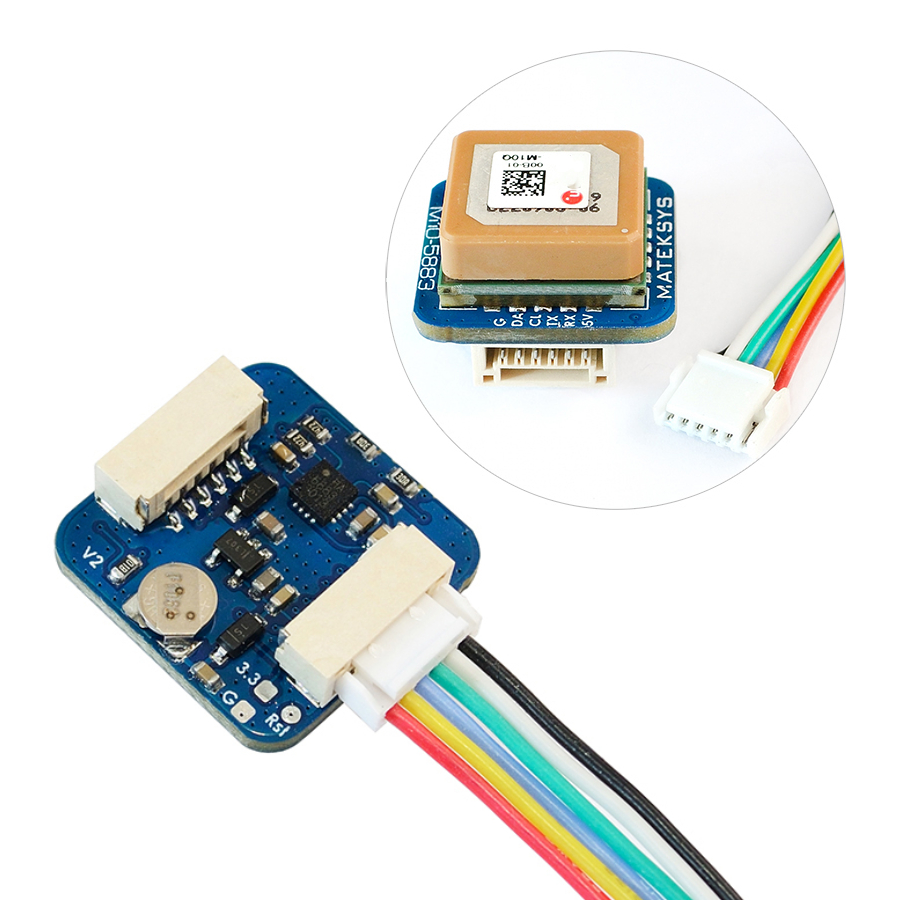

- JST-GH-6P connector (SM06B-GHS-TB). 1.27mm pitch
- GNSS PPS LED, Green. (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)
- Protocol: UBX(u-blox) 5Hz@GPS+GAL+BDS B1C+GLO or NMEA 1Hz

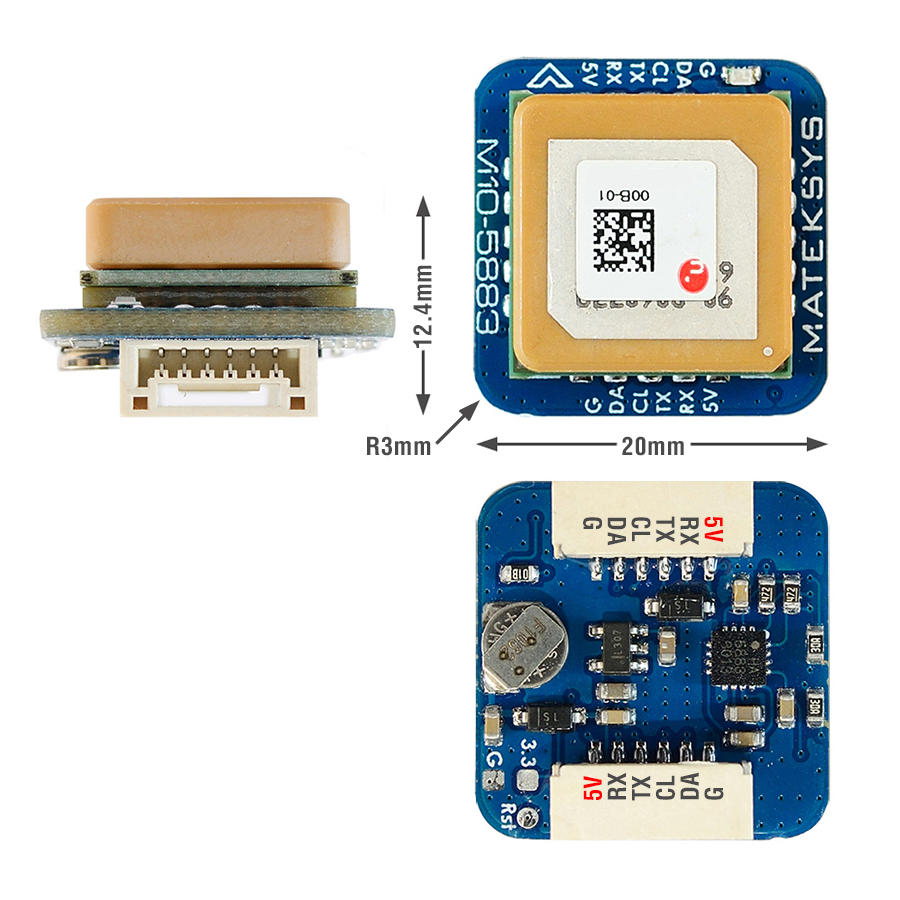

- Dimensions: 20x20x12.4mm
- Weight: 8g
Included:
- 1x Matek M10Q-5883 GNSS & Compass
- 1x JST-GH-6P to JST-GH-6P 20cm silicon wire
