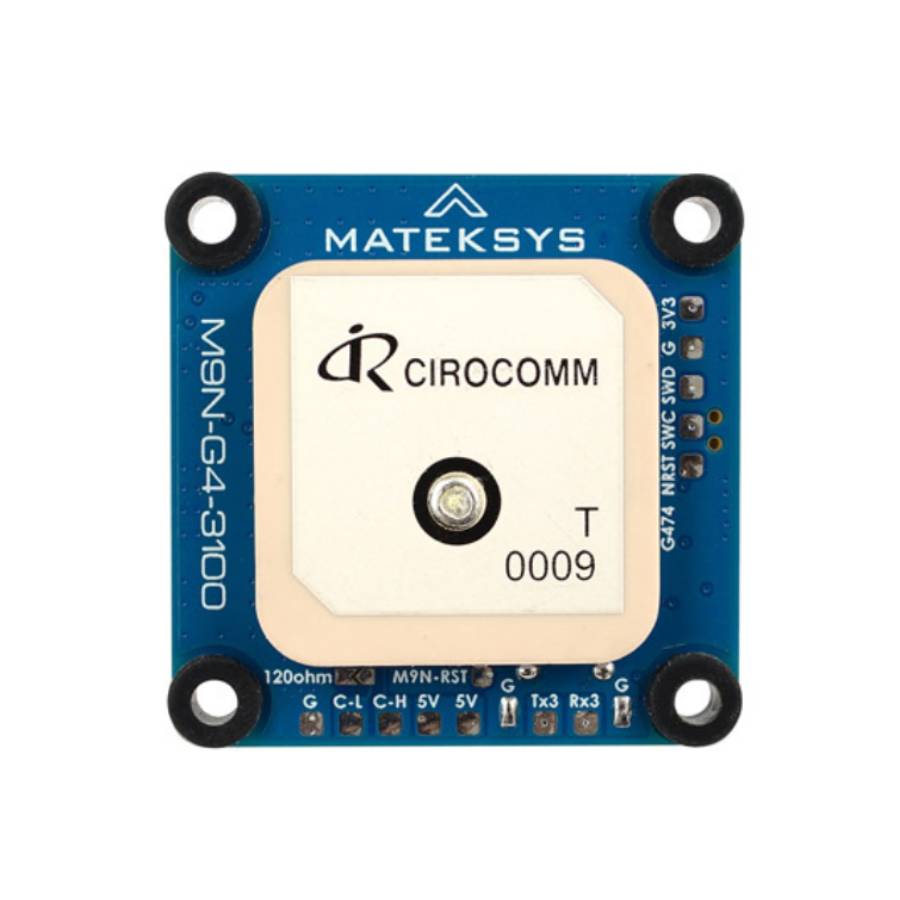

Matek M9N-G4-3100 GNSS Module

Overview:
The Matek M9N-G4-3100 uses GPS, Galileo, GLONASS, and BeiDou to provide accurate navigation for your drone/aircraft. It's a GNSS+COMPASS peripheral which utilises both CAN/DroneCAN and UART/MSP interfaces which can receive and track multiple GNSS systems simultaneously. Its industrial-grade PNI RM3100 compass provides low power consumption, low latency, wide dynamic range and a high sampling rate.

Specification:
- GNSS M9N series (GPS, GLONASS, Galileo and BeiDou)
- Magnetic Compass RM3100
- Patch GNSS Antenna 25x25x4mm
- MCU STMG474CE, 170MHz
- UART3, (TX3), MSP Protocol
- UART2onboard M9N GNSS module
- CAN, DroneCAN Protocol
- Input voltage range: 4.5-5.3V (5V pad/pin)
- Power consumption: 100mA
- Operating Temperatures: -20 to 80°C

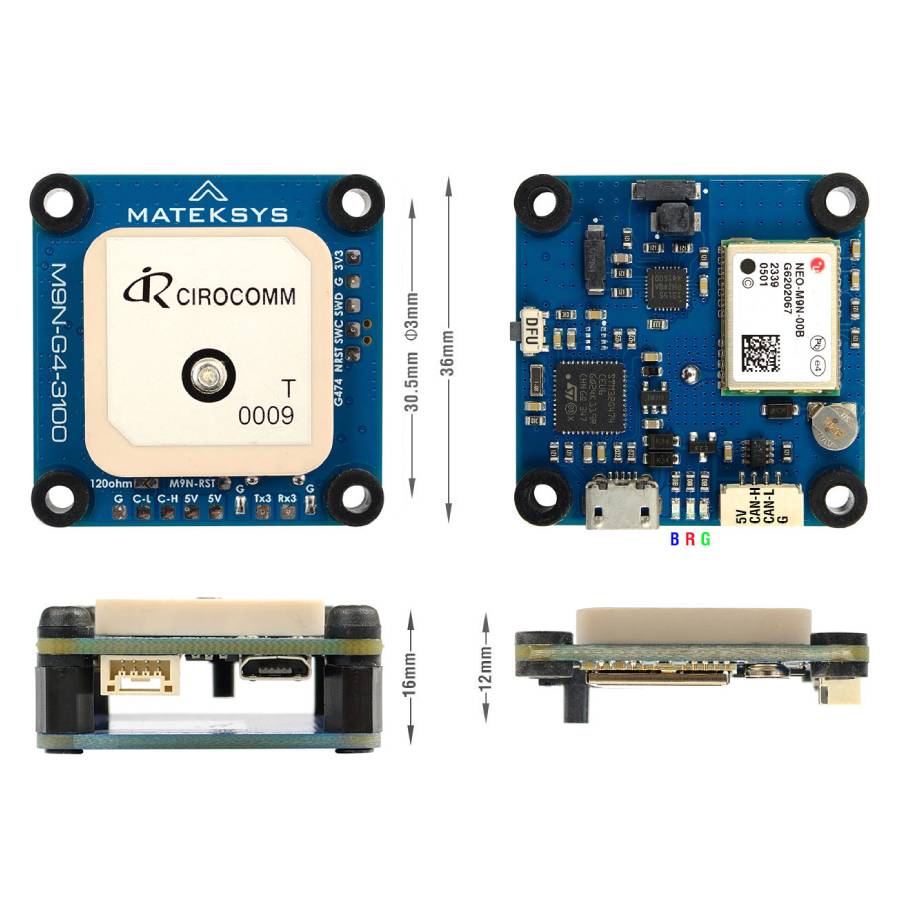

- 36x36x12mm
- Weight: 16g

Included:
- 1x Mateksys M9N-G4-3100 GNSS Module
-  Accessories
