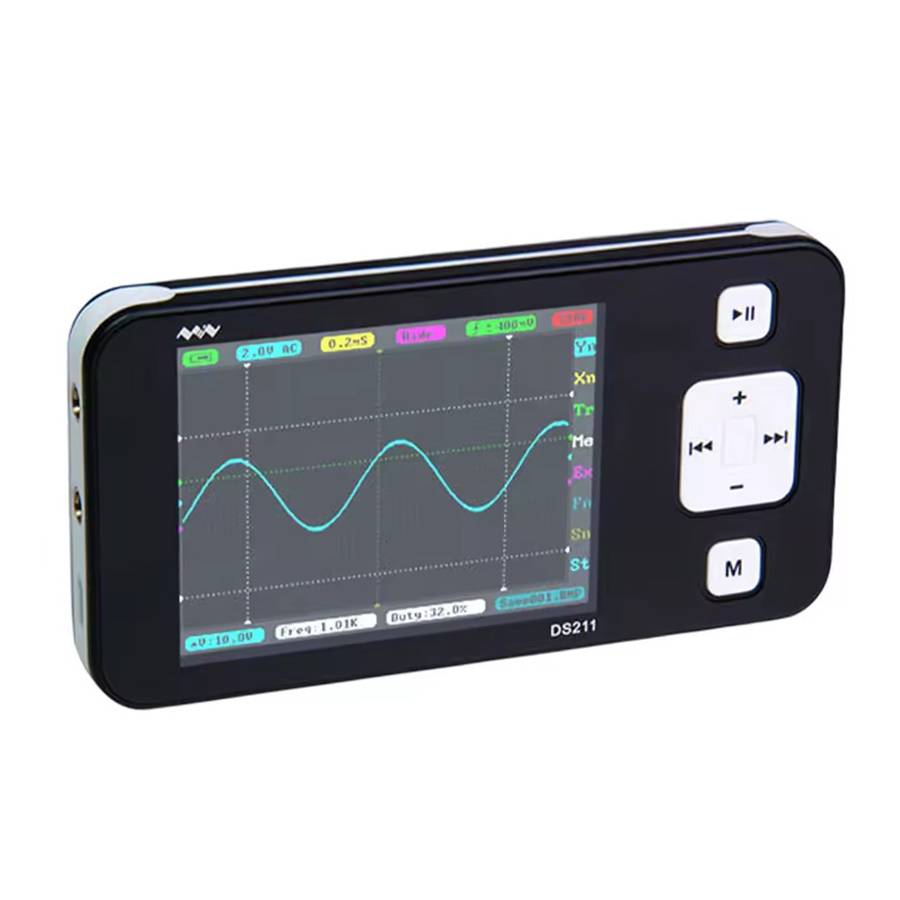

Miniware DS211 Mini Oscilloscope

Overview:
The Miniware DS211 Mini Oscilloscope is a compact, single-channel digital storage oscilloscope designed for portability and essential signal analysis tasks. Despite its small size, it offers a range of features suitable for basic electronic diagnostics and waveform analysis.

Features:
- Compact and lightweight, making it highly portable.
- 2.8-Inch Colour Display: Equipped with a 320×240 resolution TFT LCD for clear waveform visualization.
- Single Analog Channel: Provides essential signal monitoring capabilities with a 200kHz bandwidth.
- Built-in Signal Generator: Generates sine, square, triangle, and sawtooth waveforms from 10Hz to 1MHz.
- Integrated 500mAh Battery: Offers up to 3 hours of operation on a single charge.
- 8MB Internal Storage: Allows saving of waveform data and images in various formats.
- Open-Source Firmware: Enables customization and firmware updates via the micro USB interface.

Specifications:
- Model: Miniware DS211 Mini Oscilloscope
- Microcontroller: STM32F103VC
- Analog Bandwidth: 200kHz
- Maximum Sampling Rate: 1MSa/s
- Memory Depth: 8K points
- Vertical Sensitivity: 20mV/div to 10V/div (1-2-5 sequence)
- Horizontal Time Base: 1μs/div to 2s/div (1-2-5 sequence)
- Input Impedance: 500kΩ
- Coupling Modes: AC/DC
- Trigger Modes: Auto, Normal, Single, Scan
- Signal Generator Output: 10Hz to 1MHz (sine, square, triangle, sawtooth)
- Display: 2.8-inch TFT LCD, 320×240 pixels
- Battery: 500mAh rechargeable lithium battery
- Data Interface: Micro USB
- Storage: 8MB internal flash memory
- Dimensions: 106.5x55.7x11.5mm
- Weight: Approximately 65g

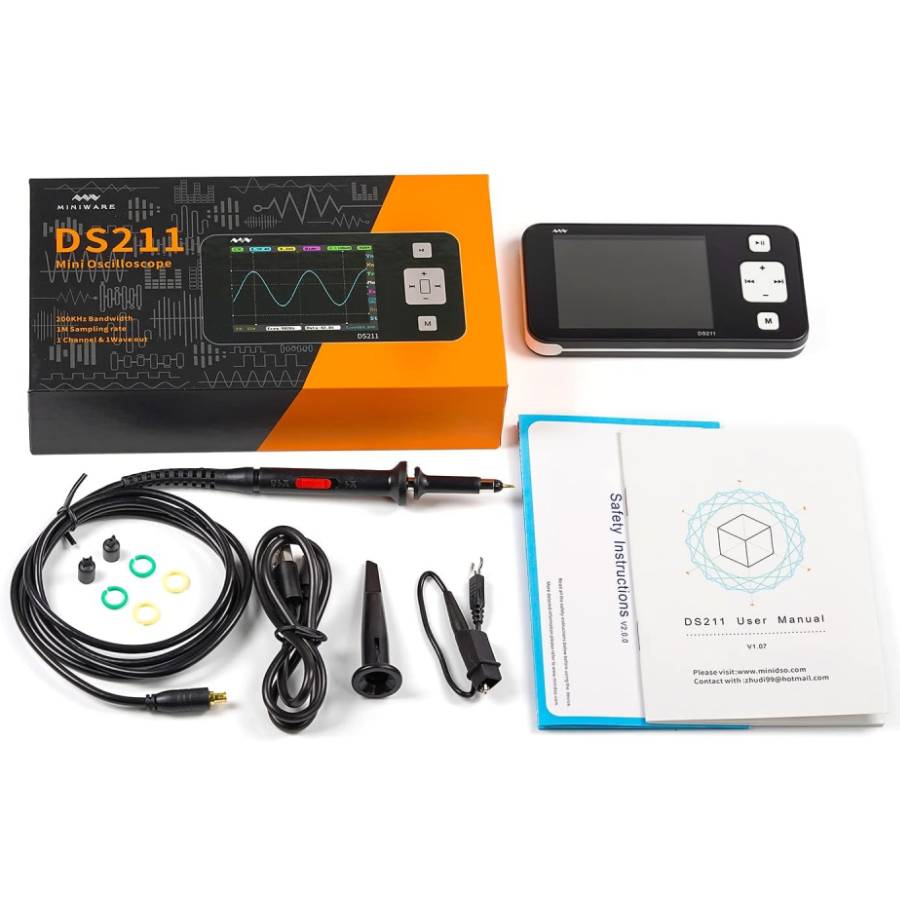

Included:
- 1x Miniware DS211 Mini Oscilloscope
- Accessories
