Overview:

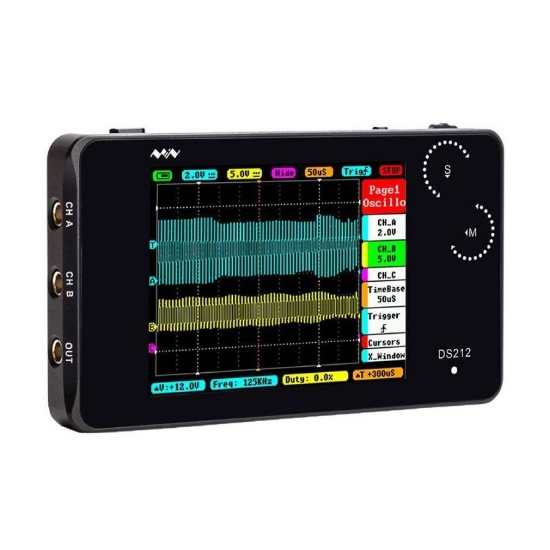

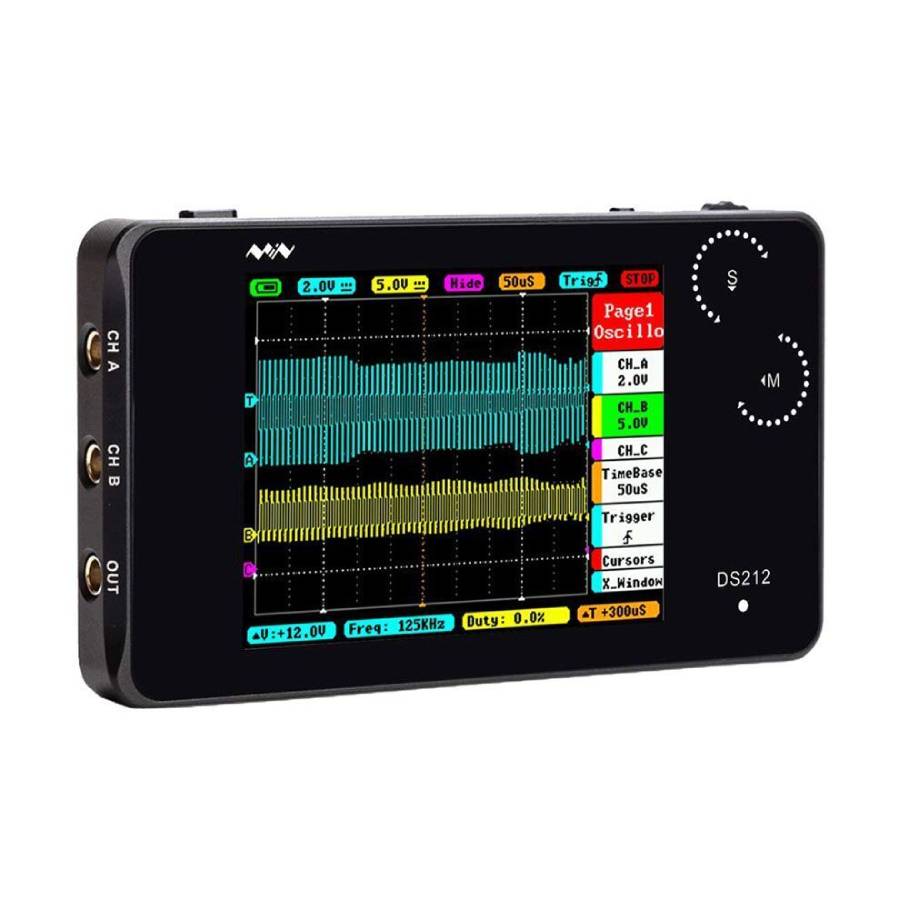

The Miniware DS212 is a compact, dual-channel digital storage oscilloscope designed for on-the-go signal analysis. Despite its pocket-sized form factor, the DS212 offers a 1MHz bandwidth and a maximum sampling rate of 10MSa/s, making it suitable for a variety of applications including circuit testing, waveform analysis, and educational demonstrations.
Equipped with a 2.8-inch colour TFT LCD display and intuitive thumbwheel control, the DS212 provides clear waveform visualization and user-friendly operation. Its built-in signal generator supports multiple waveform outputs, enhancing its versatility for testing and simulation tasks. The device's internal 8MB flash memory allows for convenient storage of waveform data and images, which can be transferred via the micro USB interface.
Housed in a durable aluminium alloy casing and powered by a rechargeable lithium battery, the DS212 is engineered for portability and resilience, making it a practical tool for fieldwork and mobile diagnostics.
Features:
- Dual Analog Channels: Facilitates simultaneous signal monitoring.
- High Sampling Rate: Captures waveforms with a maximum sampling rate of 10MSa/s.
- 1MHz Bandwidth: Suitable for a range of low to mid-frequency signal analyses.
- 2.8-Inch Colour Display: Provides clear and detailed waveform visualization.
- Built-In Signal Generator: Outputs sine, square, triangle, and sawtooth waveforms.
- 8MB Internal Storage: Allows for saving waveform data and images.
- Rechargeable Battery: Powered by a 500mAh lithium battery, rechargeable via micro USB.
- Compact and Durable Design: Aluminium alloy casing ensures portability and durability.
- Open-Source Firmware: Enables customization and firmware development.
Specifications:
- Model: Miniware DS212
- Microcontroller: STM32F303VC
- ADC: Internal MCU ADC
- Channels: 2 Analog Channels
- Analog Bandwidth: 1MHz
- Maximum Sampling Rate: 10MSa/s
- Memory Depth: 8K points
- Vertical Sensitivity: 20mV/div to 10V/div (1-2-5 sequence)
- Horizontal Time Base: 1µs/div to 2s/div (1-2-5 sequence)
- Input Impedance: 1MΩ
- Coupling Modes: AC/DC
- Maximum Input Voltage: ±40V (with X1 probe)
- Trigger Modes: Rising/Falling Edge, Auto, Normal, Single, Scan, None
- Math Functions: -A, -B, A+B, A-B, RecA, RecB, RecC
- Auto Measurements: Frequency, Cycle Time, Duty Cycle, DC RMS Voltage, Vpp, Vmax, Vmin, Vavg
- Signal Generator Output: Sine, Square, Triangle, Sawtooth (10Hz to 20kHz); Square Wave (10Hz to 1MHz, duty adjustable)
- Display: 2.8-inch TFT LCD, 320×240 resolution
- Storage: 8MB internal flash memory
- Battery: 500mAh lithium battery
- Charging Interface: Micro USB
- Dimensions: 100mm × 56.5mm × 10.7mm
- Weight: Approximately 88g (with battery)
- Body Material: CNC-machined aluminium alloy
- Certifications: CE, FCC compliant
Included:
- 1x Miniware DS212
- Accessories
