Overview:

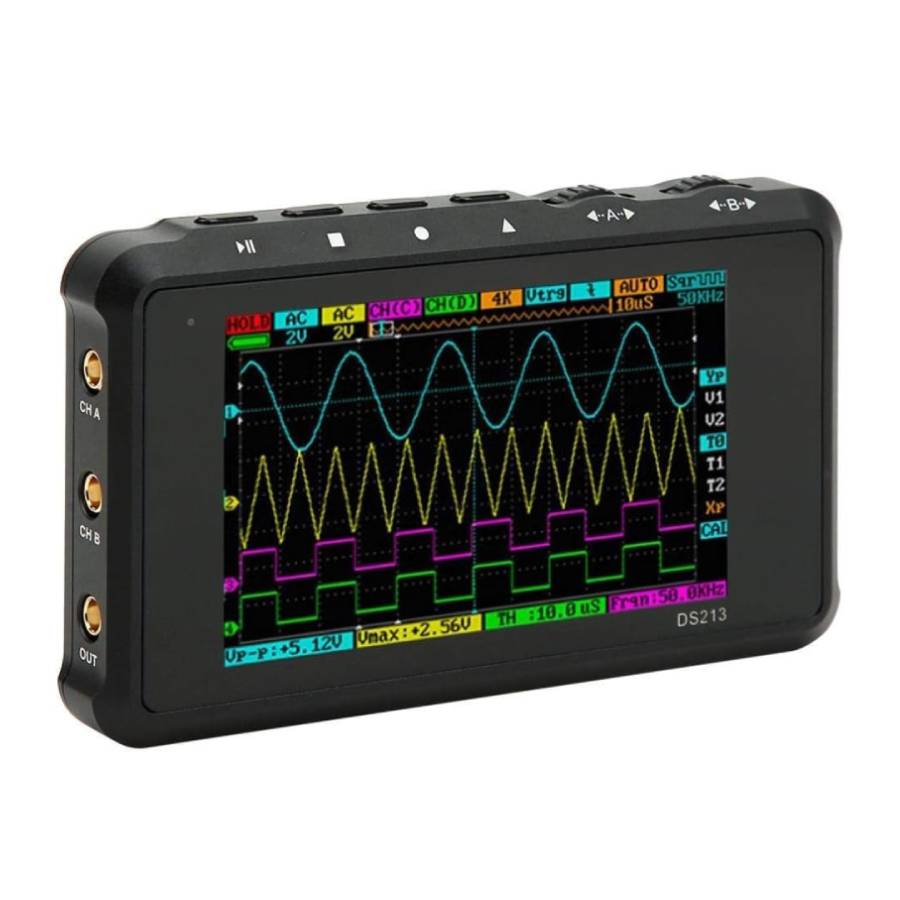

The Miniware DS213 Handheld Digital Oscilloscope is a compact, battery-powered device designed for electronics professionals and enthusiasts requiring portable signal analysis. Featuring two analogue and two digital channels, a built-in signal generator, and open-source firmware, it offers versatility for tasks ranging from field diagnostics to educational demonstrations.
Features:
- Multi-Channel Analysis: Equipped with 2 analogue and 2 digital channels, allowing simultaneous monitoring of multiple signals.
- High Sampling Rate: Provides a maximum sampling rate of 100MSa/s, ensuring accurate signal capture.
- Integrated Signal Generator: Includes a built-in generator capable of producing square waves (10Hz–8MHz) and sine, triangle, and sawtooth waves (10Hz–20kHz).
- Open-Source Firmware: Supports user-developed applications, enabling custom functionality to suit specific requirements.
- Portable Design: Compact dimensions and a 1000mAh rechargeable battery facilitate on-the-go usage without the need for external power sources.
- User-Friendly Interface: Features a 3-inch colour TFT LCD with 400x240 resolution, operated via buttons and an encoder for intuitive control.
- Data Storage: Offers 8MB of internal USB flash storage for saving waveforms and updating firmware.
Specification:
- Model: Miniware DS213 Handheld Digital Oscilloscope
- Analogue Bandwidth: 15MHz
- Vertical Sensitivity: 10mV/div to 10V/div (X1 probe); 100mV/div to 100V/div (X10 probe)
- Vertical Resolution: 8-bit
- Input Impedance: 1MΩ (analogue); 100kΩ (digital)
- Maximum Input Voltage: ±40V (X1 probe); ±400V (X10 probe)
- Coupling Modes: AC/DC
- Sampling Memory Depth: 4x4K
- Trigger Modes: Edge (rising/falling), pulse width, logic
- Measurement Functions: Frequency, period, duty cycle, peak-to-peak voltage, RMS, average, maximum, minimum
- Math Functions: INV A, INV B, A+B, A–B, C&D, C|D, RecA, RecB, RecC, RecD
- Display: 3-inch TFT LCD, 400x240 resolution
- Power Supply: 1000mAh lithium battery; charging via Micro USB
- Dimensions: 99.5x58.5x13.5mm
- Weight: 129g
- Data Storage: 8MB internal USB flash drive
- File Formats Supported: .BMP, .BUF, .CSV
- Certifications: CE, FCC

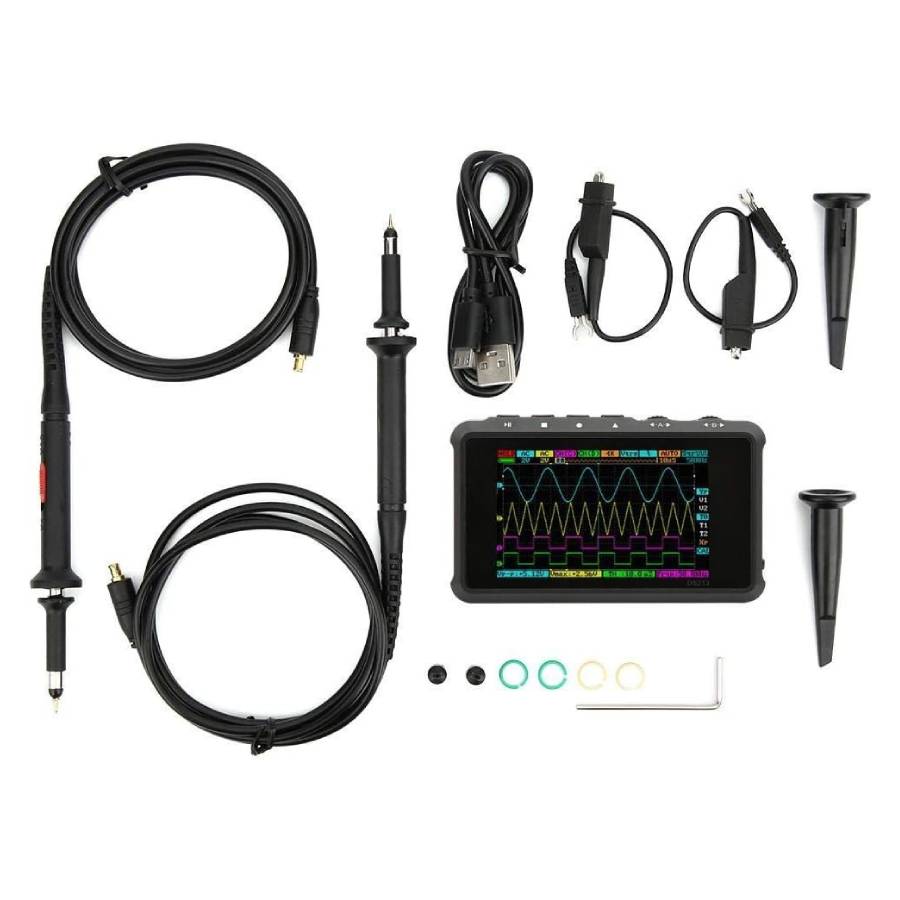

Included:
- 1x Miniware DS213 Handheld Digital Oscilloscope
- Accessories
