Overview:

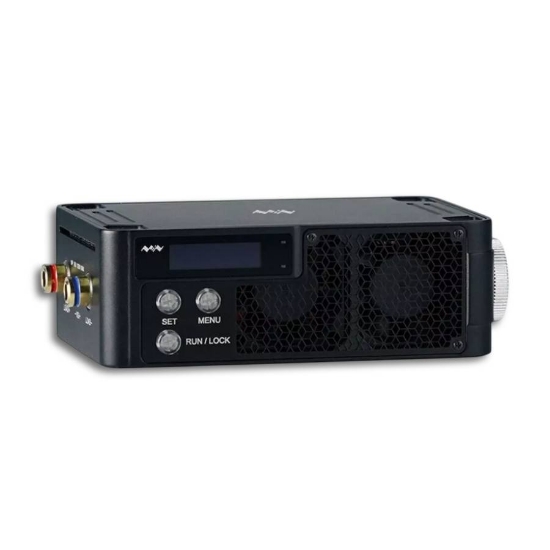

The Miniware MDP-L1060 DC Electronic Load is a compact, high-precision module designed for testing and evaluating power sources such as AC/DC supplies, DC/DC converters, batteries, and chargers. Making it a valuable tool for anyone engaged in power system development and testing. As part of Miniware’s modular MDP (Mini Digital Power) system, it offers versatile functionality in a portable size.
Features:
- Four Operating Modes: Supports Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR), and Constant Power (CP) modes, providing flexibility for various testing scenarios.
- Advanced Testing Functions: When paired with the MDP-M01 control module, it enables battery capacity testing, internal resistance measurement, dynamic load testing, factory testing, and over-current protection evaluation.
- Comprehensive Safety Protections: Incorporates over-voltage, under-voltage, over-current, over-power, over-temperature, and reverse polarity protections to ensure safe operation.
- Wireless Connectivity: Features 2.4GHz wireless communication for remote control and monitoring via the MDP-M01 display module.
- Built-in Battery: Equipped with a 650mAh battery, allowing for approximately 50 minutes of operation at full load (100W) in a 25°C environment, facilitating uninterrupted testing during power transitions.
- Efficient Thermal Management: Constructed with a CNC aluminium alloy frame, brass heat sinks, and an intelligent high-speed cooling fan that adjusts speed based on load conditions for optimal heat dissipation.
- Precision Input Interfaces: Offers a 4mm gold-plated standard input port and an XT30 port for remote voltage sensing, enhancing measurement accuracy.
Specifications:
- Model: Miniware MDP-L1060
- Input Voltage Range: 0.1–60V
- Input Current Range: 15mA–10A
- Maximum Input Power: 100W
- Resistance Range: 10mΩ–4kΩ
- Power Input: DC 5V, 2A via USB-C
- Battery Capacity: 650mAh
- Interfaces: USB-C, 2.4GHz wireless
- Dimensions: 112x66.5x35mm
- Weight: 330g
- Certifications: CE, FCC compliant
Included:
- 1x Miniware MDP-L1060 DC Electronic Load
- Accessories
