Overview:
The Miniware MDP-M01 offers an intuitive interface for managing and monitoring DC power with precision and reliability. Whether you're powering up sensitive RC electronics, testing drone components, or experimenting with embedded systems, the MDP-M01 provides the tools and features needed for safe and accurate operation.

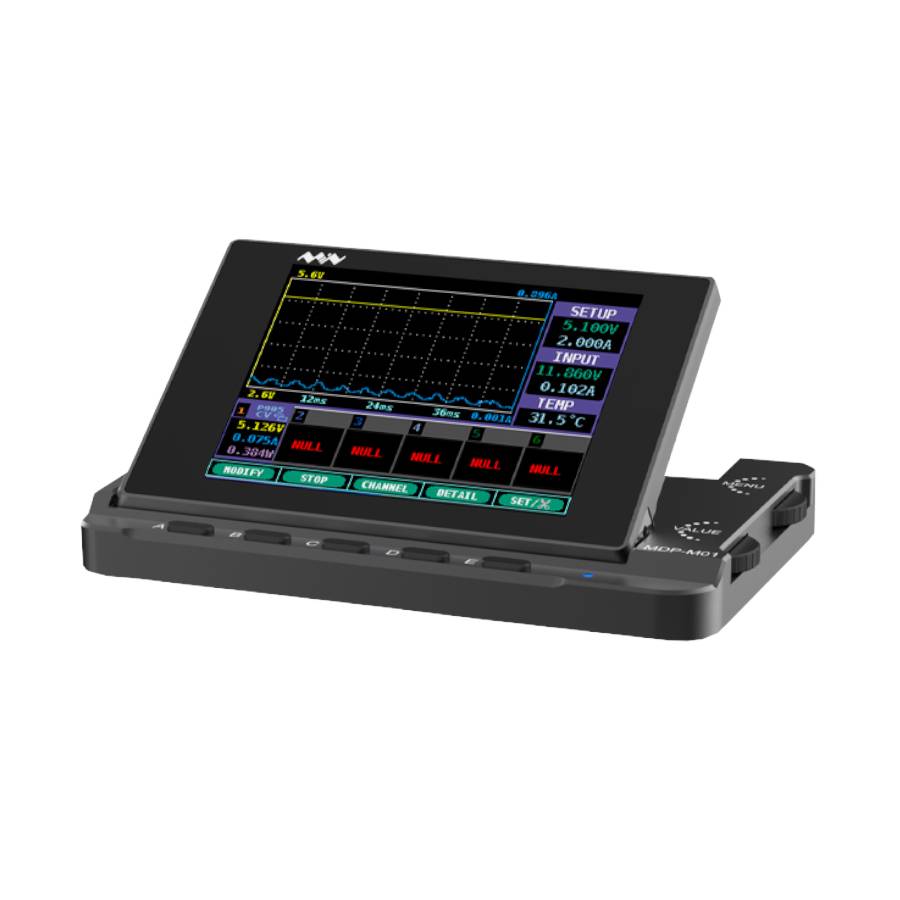

Compact yet capable, the MDP-M01 connects wirelessly to compatible Miniware modules (such as the MDP-P905 power supply). It incorporates a vibrant 2.8-inch TFT screen with touch control to display real-time data readouts, smart parameter configuration and current waveform monitoring. Its portable, modular design makes it ideal for both bench setups and fieldwork.

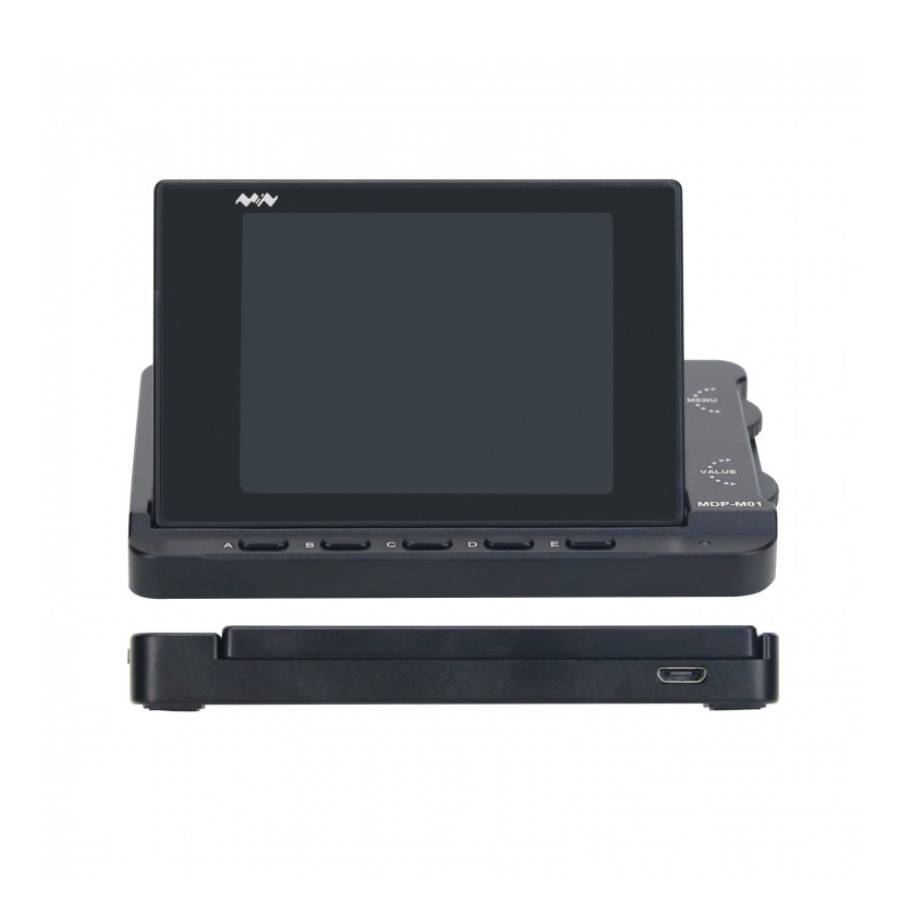

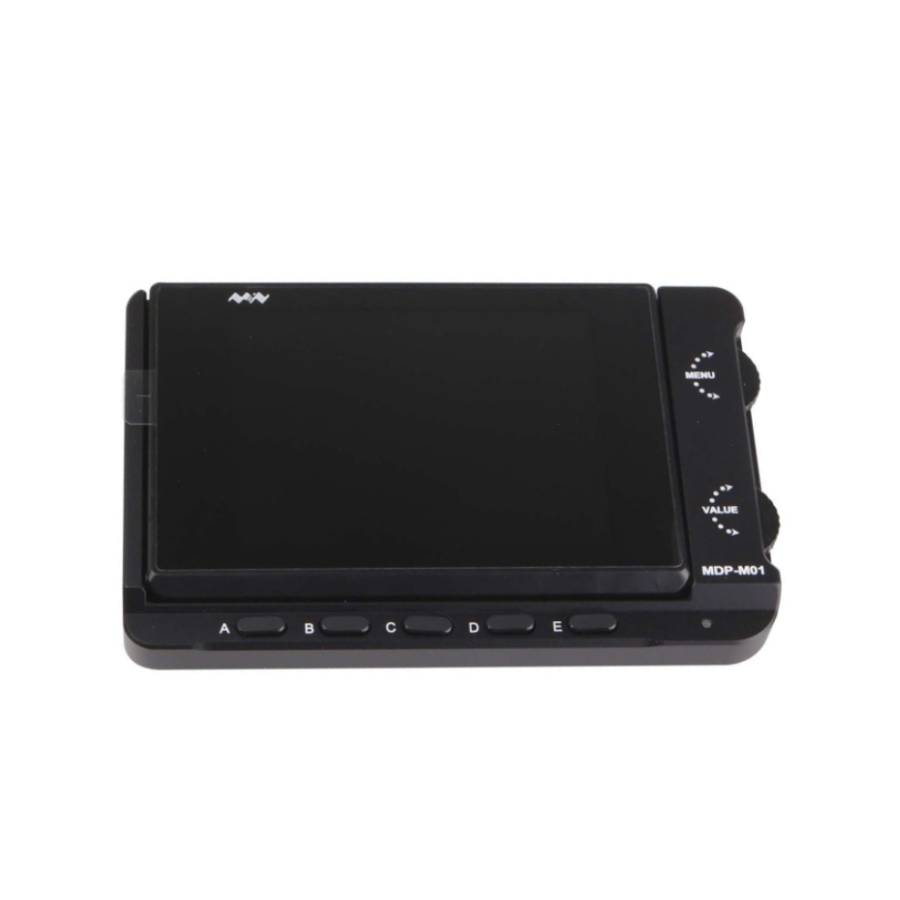

The Miniware MDP-M01 is a dedicated LCD controller unit for the MDP-P905 and MDP-P906 power supplies (not included). It can wirelessly connect to and manage up to six modules simultaneously. The screen can be rotated by up to 90 degrees for ease of viewing. There are five control buttons and two rotary encoders; adjusting and selecting values is both intuitive and efficient.
Features:
- Wireless control for Miniware MDP power supply modules (not included)
- TFT display with capacitive touch for easy operation
- Real-time voltage, current, power, and load monitoring
- Supports cascading multiple modules for extended functionality
- High-speed data refresh rate for accurate tracking and responsive control
- USB-C charging and firmware upgrade support
- Compact, lightweight aluminium alloy housing for durability and portability
Specifications:
- Power input: Micro USB or from a P905/P906 (not included)
- Screen size: 2.8" TFT
- Screen resolution: 240x320 Pixels
- Size: 107x66x13.6mm
- Weight: 133g
Included:
- 1x Miniware MDP-M01 Controller
