Overview:

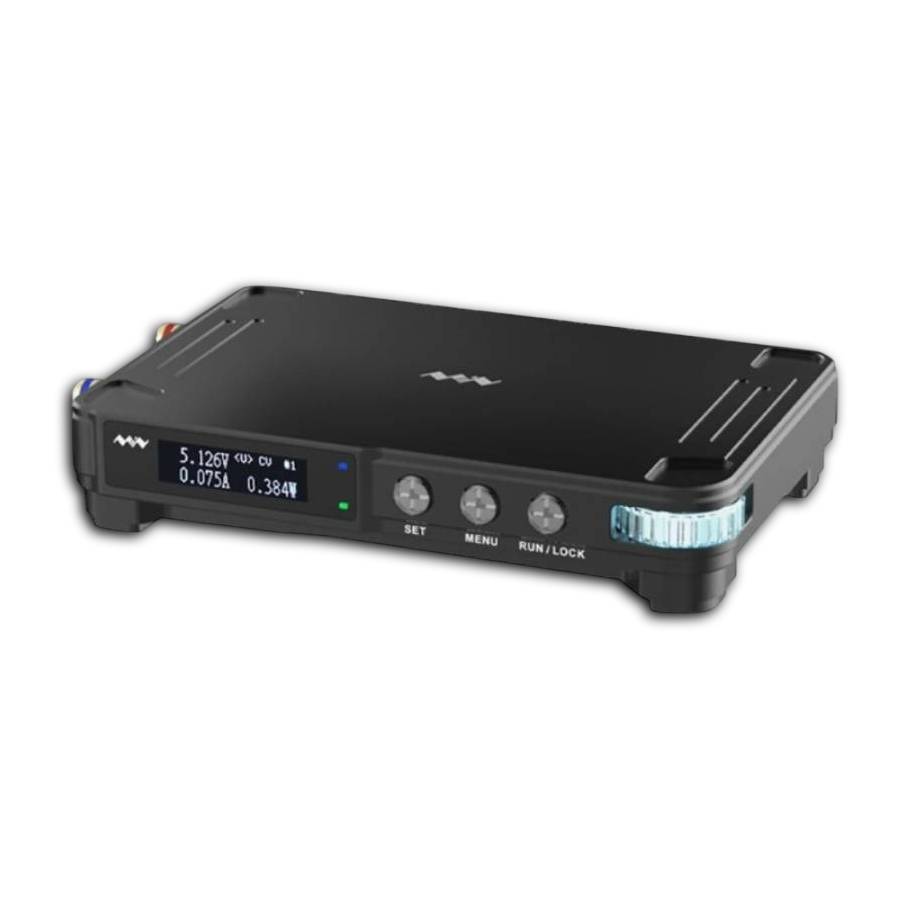

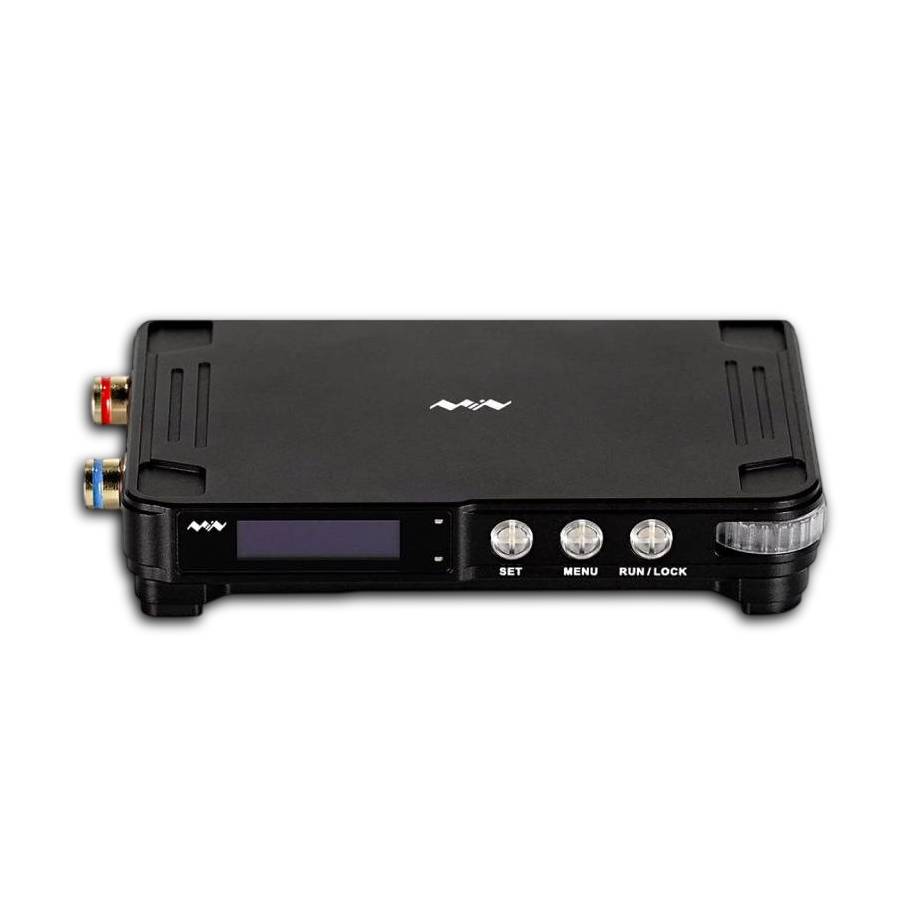

The Miniware MDP-P906 Digital Power Supply is a compact, high-precision programmable DC power module designed for versatile applications in electronics, prototyping, and fieldwork. Delivering up to 300W of power with exceptional accuracy and stability, it serves as a reliable solution for both laboratory and portable use. This unit connects directly to the Miniware MDP-M01 smart monitor sold separately.
Features:
- High Power Output: Delivers up to 300W with a voltage range of 0–30V and current up to 10A, accommodating a wide array of devices and applications.
- Precision Control: Offers fine resolution settings of 10mV/2mA, and when paired with the MDP-M01 control module, achieves enhanced resolution of 1mV/1mA.

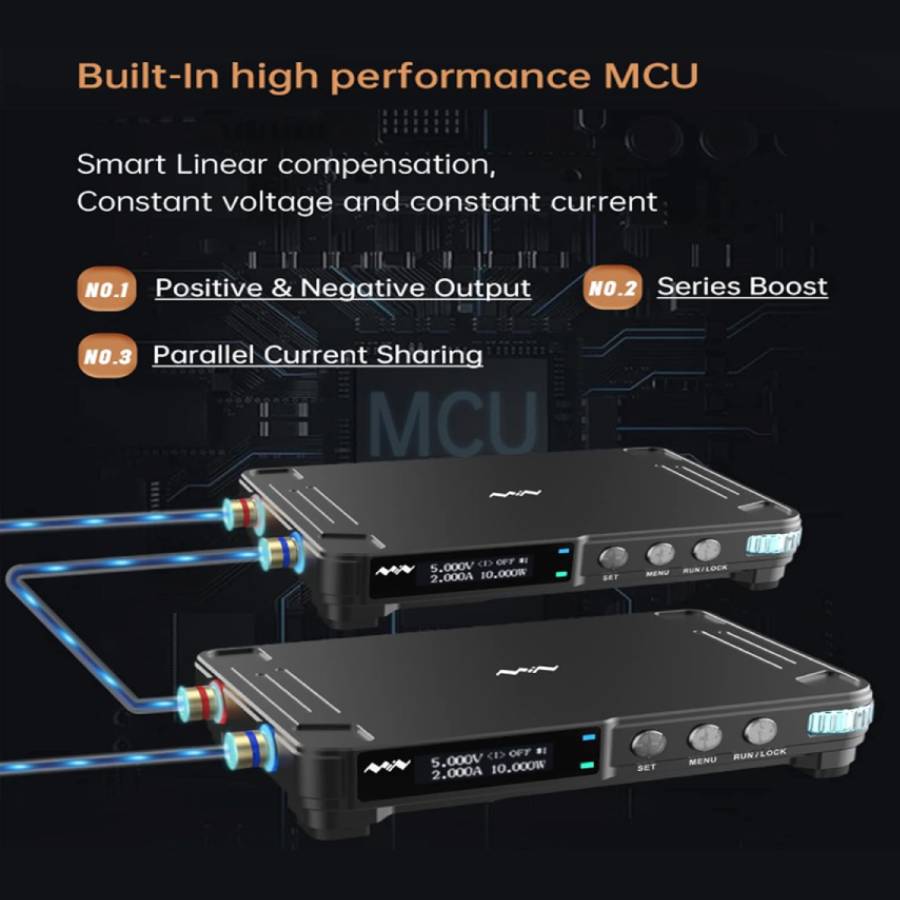

- Modular Connectivity: Supports wireless 2.4GHz communication with the MDP-M01, enabling control of up to six modules simultaneously for scalable power configurations.
- Advanced Protection: Incorporates comprehensive safety features, including input over-voltage, under-voltage, reverse polarity protection, and output over-current, backflow, and over-temperature safeguards.

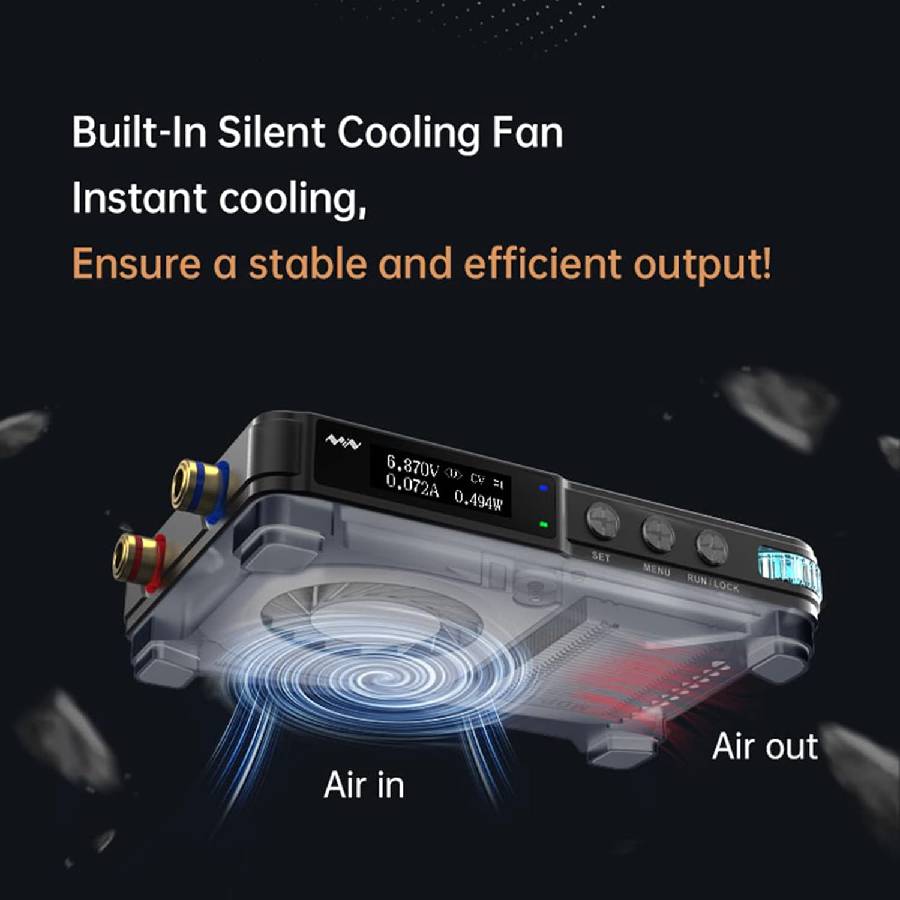

- Efficient Cooling: Equipped with a built-in low-noise, high-speed cooling fan to maintain optimal operating temperatures during intensive use.
- Firmware Upgradable: Supports USB firmware updates, ensuring the system remains current with the latest features and improvements.
- Compact Design: Its lightweight and portable form factor makes it suitable for both benchtop setups and on-site maintenance tasks.
Specification:
- Model: Miniware MDP-P906 Digital Power Supply
- Input Voltage: 4.2-30V DC (14A max), compatible with QC3.0/PD2.0 at 20V, 5A max
- Output Voltage Range: 0-30V
- Output Current Range: 0-10A
- Maximum Output Power: 300W
- Output Resolution: 10mV/2mA (enhanced to 1mV/1mA with MDP-M01)
- Output Accuracy: ±0.03% +5mV; ±0.05% +2mA
- Load Regulation: <±0.01%
- Power Regulation: <±0.01%
- Ripple and Noise: <250µVrms / 3mVpp; <2mArms
- Response Time: ≤4µs
- Line Loss Compensation Range: 5mΩ–100mΩ
- Interfaces: Micro USB for data transfer and firmware upgrades
- Dimensions: 112x66x20mm
- Weight: 181g
- Certifications: CE, FCC compliant
Included:
- 1x Miniware MDP-P906 Digital Power Supply
- Accessories
