Miniware TS101 Smart Soldering Iron

Overview:
The Miniware TS101 Smart Soldering Iron is a compact and portable soldering tool that offers high performance and versatility. Building upon the success of the TS100, the TS101 features a dual power input system, allowing it to be powered via a DC5525 connector (9–24V) or a USB-C PD interface (9–28V), with a maximum power output of up to 90W when using PD3.1. It can also be powered by a 3/4s Lipo Battery, should you need to make repairs out in the field.

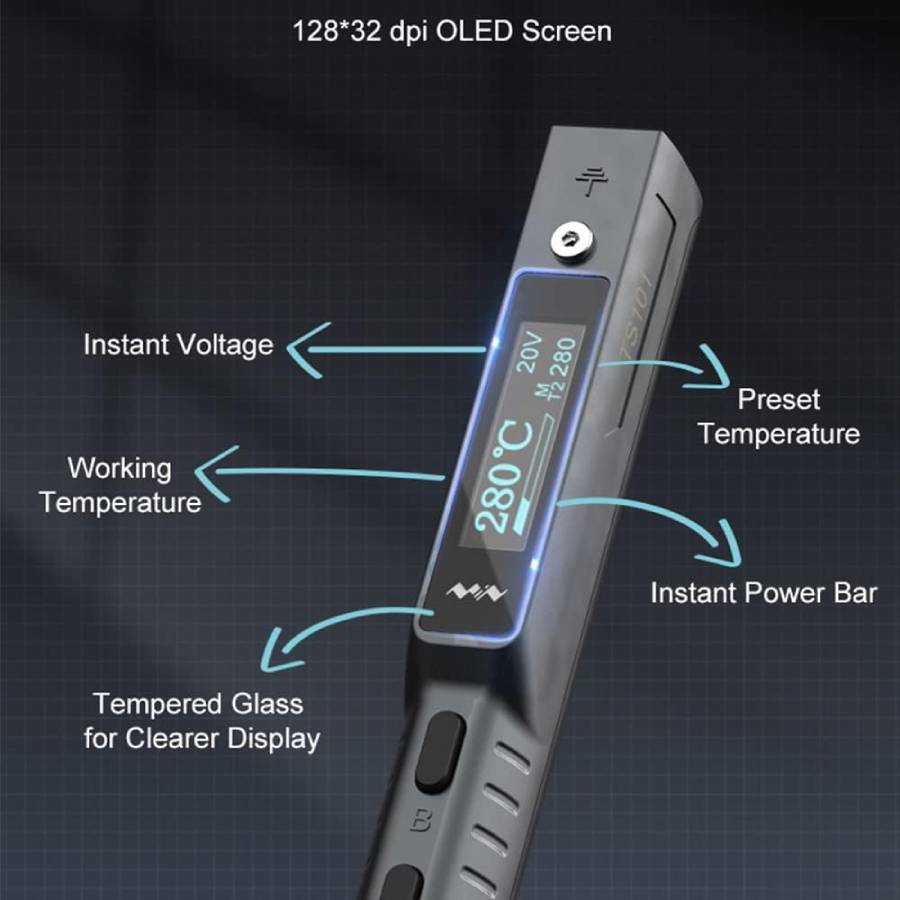

Equipped with a 128x32 OLED display, the TS101 provides clear and precise temperature readings, adjustable between 50°C and 400°C with a stability of 2%. The soldering iron also includes a boost mode for rapid heating and a motion sensor that enables automatic sleep and wake functions, enhancing both efficiency and safety.

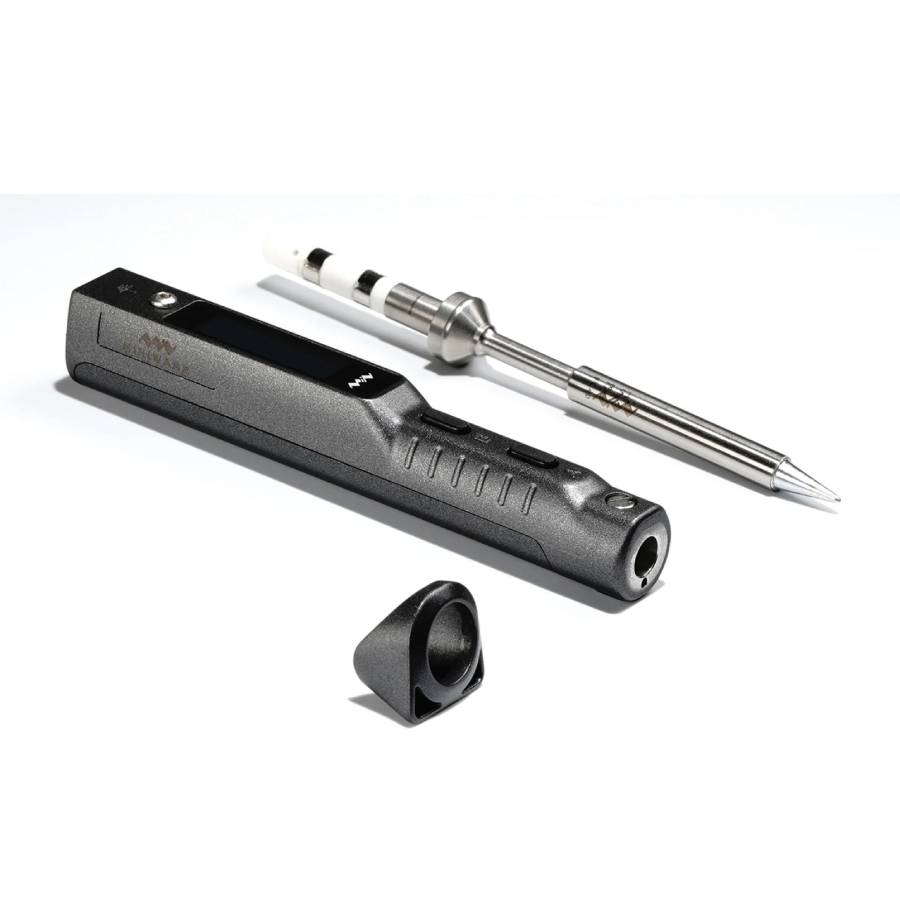

The TS101 is compatible with existing TS100 tips, ensuring a wide range of tip options for various soldering tasks. Its lightweight design, ergonomic handle, and anti-slip cap—which doubles as a stand—make it an ideal choice for both fieldwork and bench-top soldering.

Features:
- Dual Power Input
- Wide Temperature Range: Adjustable from 50°C to 400°C with 2% stability.
- Boost Mode: Allows for rapid temperature increase when needed.
- Motion Sensor: Enables automatic sleep and wake functions to conserve energy and extend tip life.
- Firmware Upgradable: Open-source firmware allows for customization and updates via USB-C.
- Compatibility: Works with TS100 soldering tips, providing flexibility for various applications.
- Portable Design: Lightweight and compact, suitable for on-the-go soldering tasks.

Specifications:
- Model: Miniware TS101 Smart Soldering Iron
- Power Input: 3/4s Lipo Battery, DC5525 (9–24V, up to 65W), USB-C PD3.0 (9–20V, up to 45W), USB-C PD3.1 (9–28V, up to 90W after firmware update)
- Temperature Range: 50–400°C
- Display: 128x32 OLED
- Tip Resistance to Ground: <2Ω
- Handle length: 98mm
- Weight: 33g (including tip)
- Firmware Interface: USB-C

Available versions:
- Miniware TS101 (B2) Smart Soldering Iron comes with the TS-B2 (conical tip)
- Miniware TS101 (BC2) Smart Soldering Iron comes with the TS-BC2 (small flat tip)
- Miniware TS101 (I) Smart Soldering Iron with the TS-I (fine point tip)

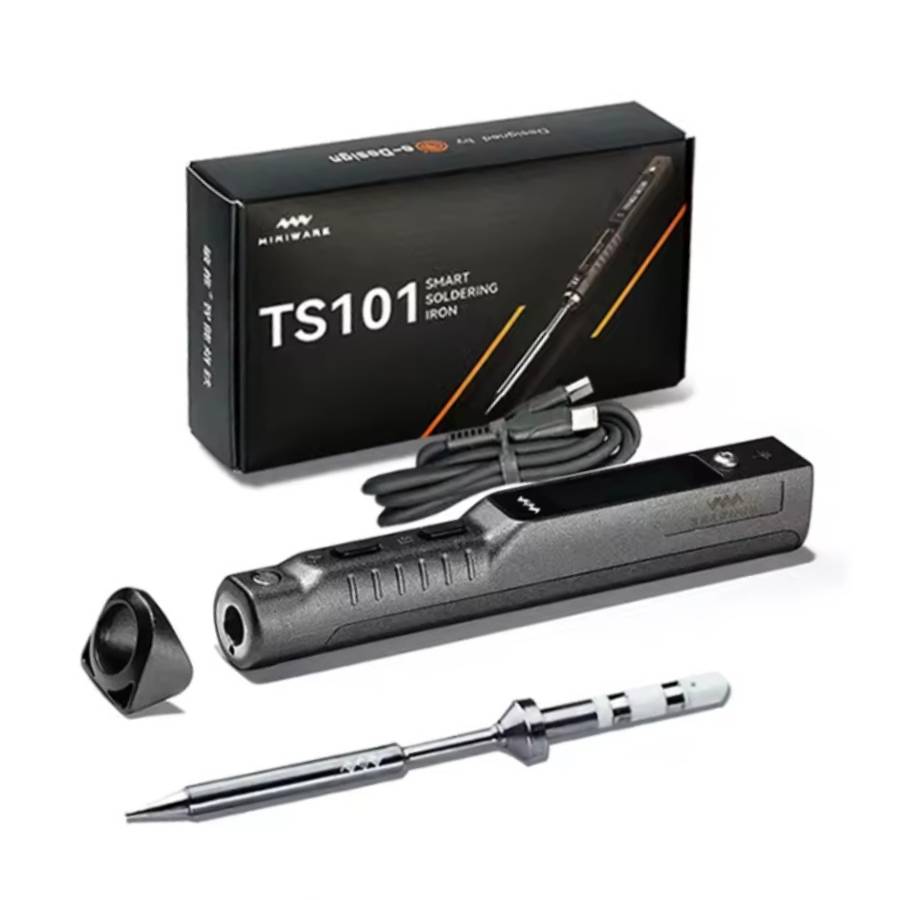

Included:
- 1x Miniware TS101 Smart Soldering Iron
- Accessories
