Overview:

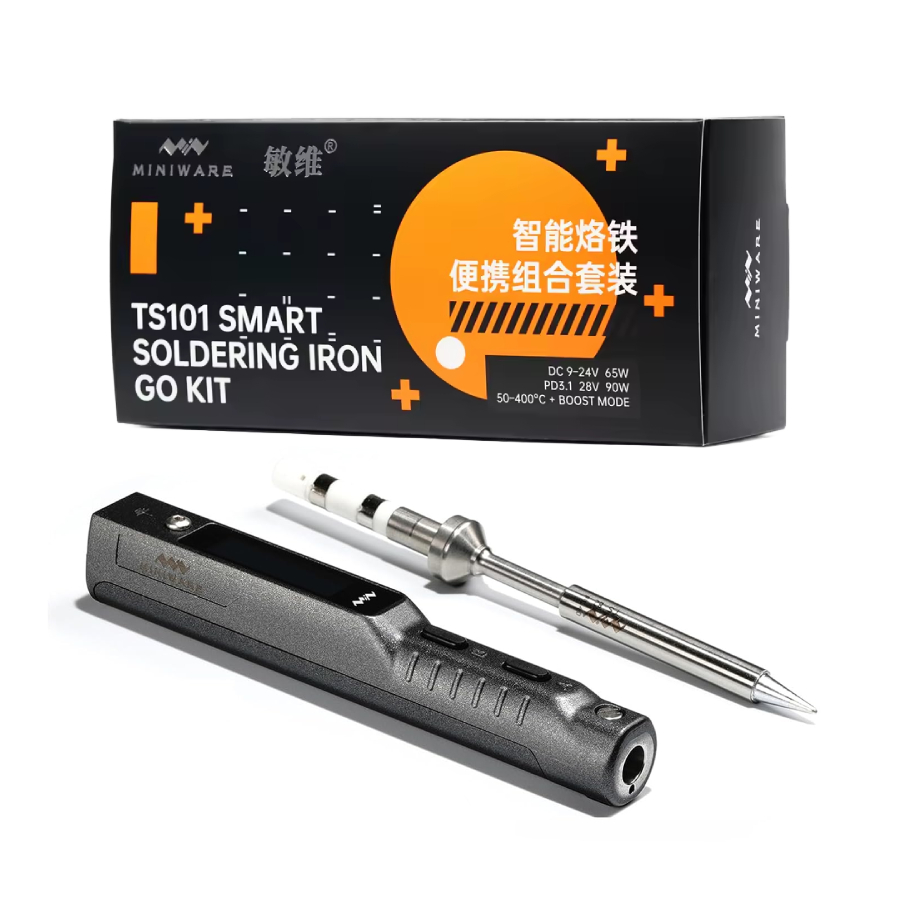

The Miniware TS101 GO KIT is a compact, programmable soldering iron designed for electronics work where portability and precise temperature control are important. Its slim 98mm body makes it particularly practical for RC, FPV and drone work, where a full-size soldering station is not always convenient.
The TS101 combines a high-performance heating system with an OLED display and adjustable temperature control from 50°C to 400°C. It supports both DC and USB-C PD power, allowing it to be used from a suitable power supply, USB-C PD charger or compatible power bank. DC input supports up to 65W, while USB-C PD provides up to 90W on the latest specification.

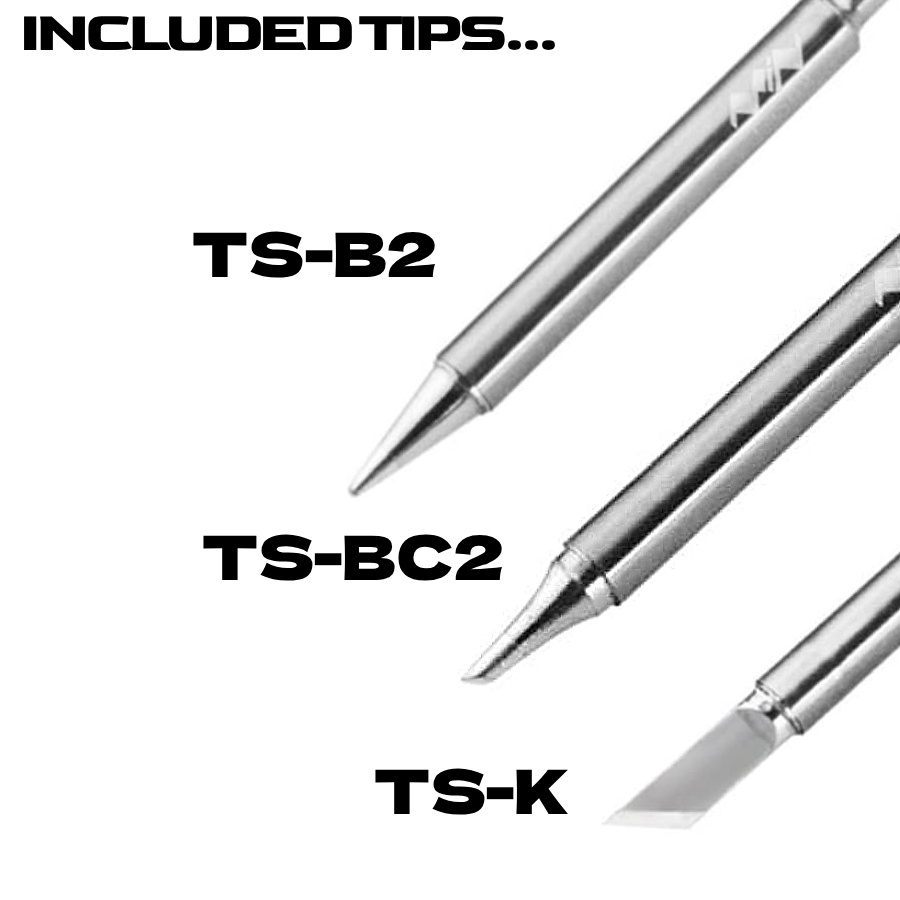

The GO KIT includes three interchangeable soldering tips, TS-B2, TS-BC2 and TS, providing a useful selection for different soldering tasks. The TS-B2 offers a general-purpose pointed profile, the TS-BC2 provides a broader chisel-style working surface, while the TS-K is a knife-style tip suited to applications where a larger contact area is useful.
The TS101 also features programmable settings, configurable heating behaviour, sleep and automatic shut-down functions, and firmware that can be updated or customised. This makes it considerably more capable than a basic portable soldering iron while retaining the compact form factor that makes it useful out in the field, workshop or workbench.
Features:
- Compact smart soldering iron designed for portable electronics work.
- Dual power input allows operation from DC or USB-C PD sources.
- High-power heating system provides rapid heat-up and good thermal recovery.

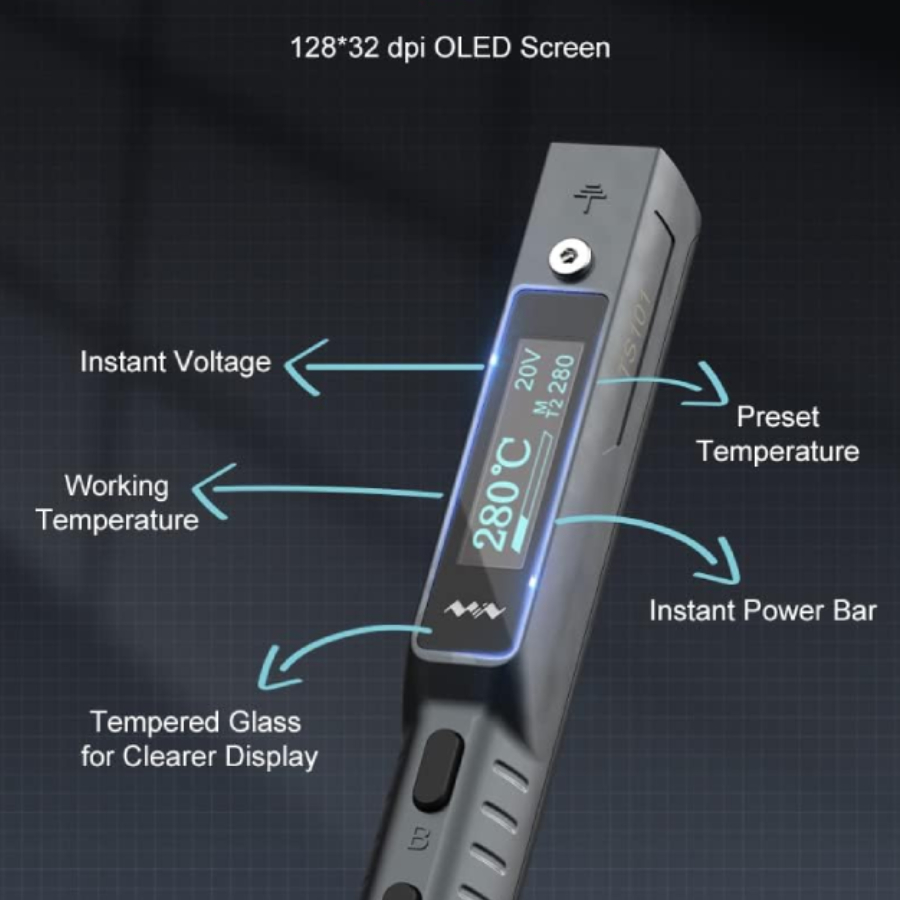

- OLED display provides clear temperature and operating information.
- Programmable operation allows heating behaviour and settings to be customised.
- Adjustable temperature control from 50°C to 400°C.

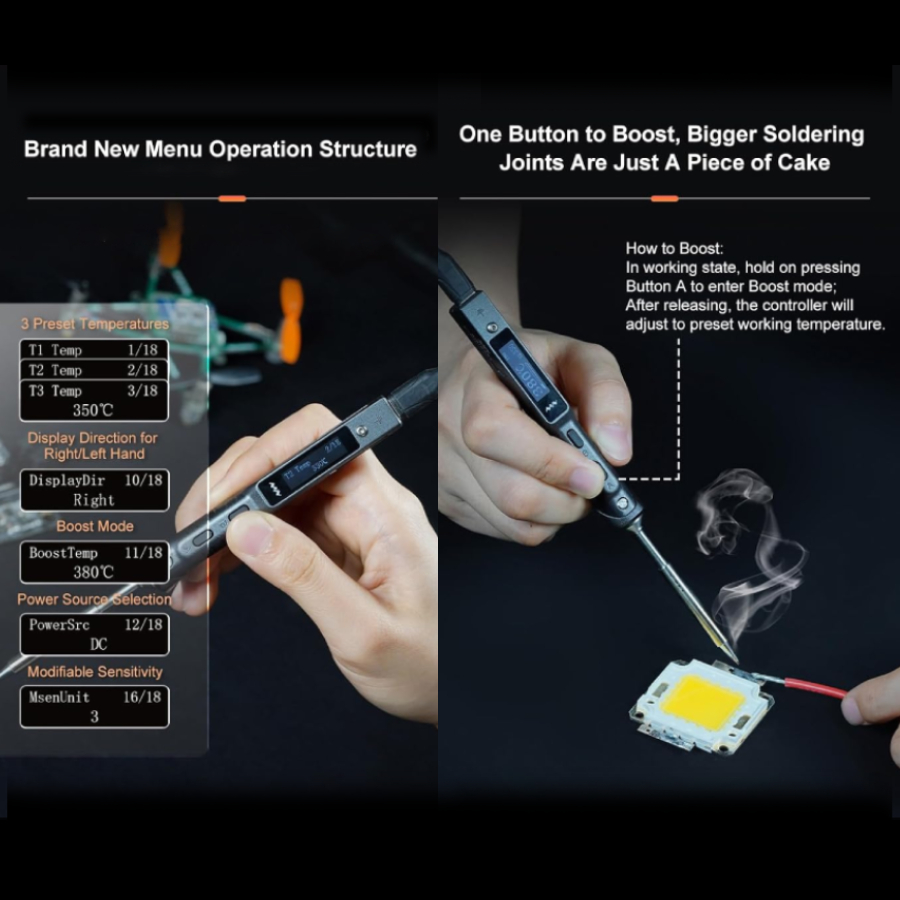

- Boost mode provides additional heating performance when required.
- Sleep mode reduces power consumption during periods of inactivity.
- Anti-slip cap helps protect the iron and provides additional grip when required.
- Three different soldering tips for greater versatility.
- Compact design is well suited to RC, FPV, drone and electronics work away from the bench.
- Carrying pouch provides a convenient way to store and transport the iron and accessories.
Specification:
- Model: Miniware TS101 Smart Soldering Iron
- Power input, DC: 9-24V
- Maximum DC power: 65W
- Power input, USB-C PD: 12-24V
- Maximum USB-C PD power: 90W
- Temperature range: 50°C-400°C
- Temperature stability: ±2%
- Soldering tip resistance to ground: <2Ω
- Display: OLED
- Display resolution: 128×32 pixels
- Handle length: 98mm
- Handle diameter: 16.5mm
- Power connectors: DC5525 / USB-C
- Compatible tip range: B2, BC2, I, C1, C4, D24, ILS, K and KU
- Included tips: TS-B2, TS-BC2 and TS-K
- Firmware: Programmable and upgradeable
- Maximum operating ambient temperature: 40°C

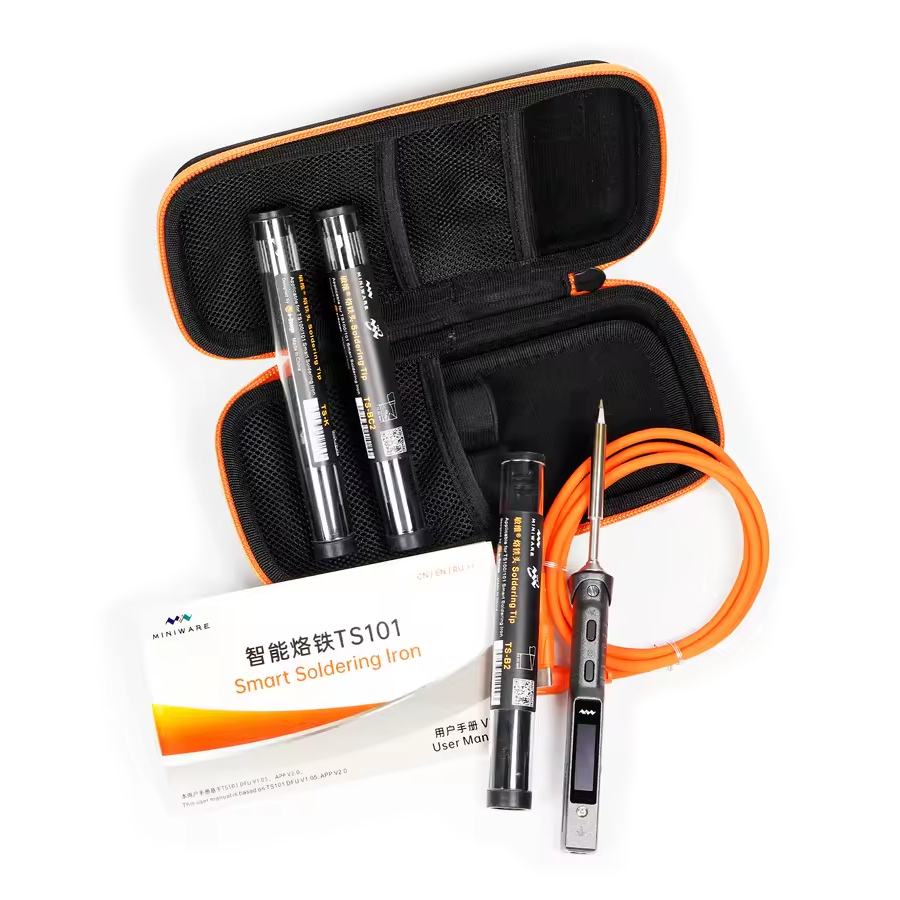

Included:
- 1x Miniware TS101 Smart Soldering Iron
- 1x TS-B2 soldering tip
- 1x TS-BC2 soldering tip
- 1x TS-K soldering tip
- 1x USB-C power cable
- 1x Zipped carry pouch
- 1x User manual
