Overview:

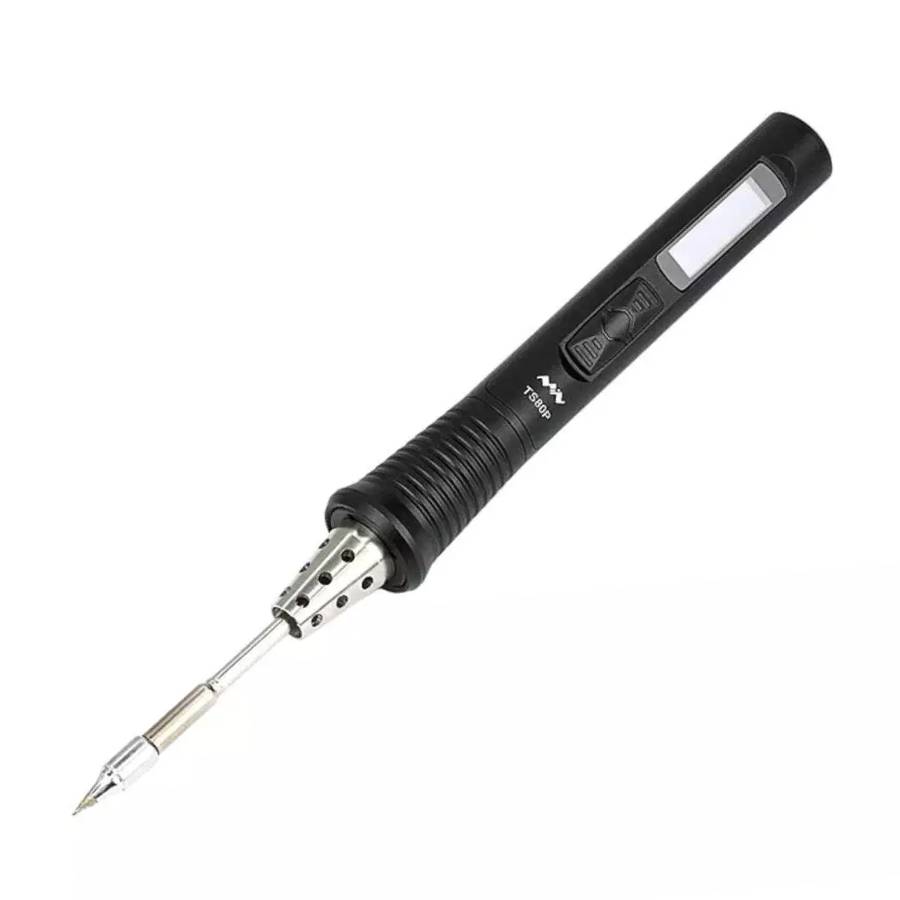

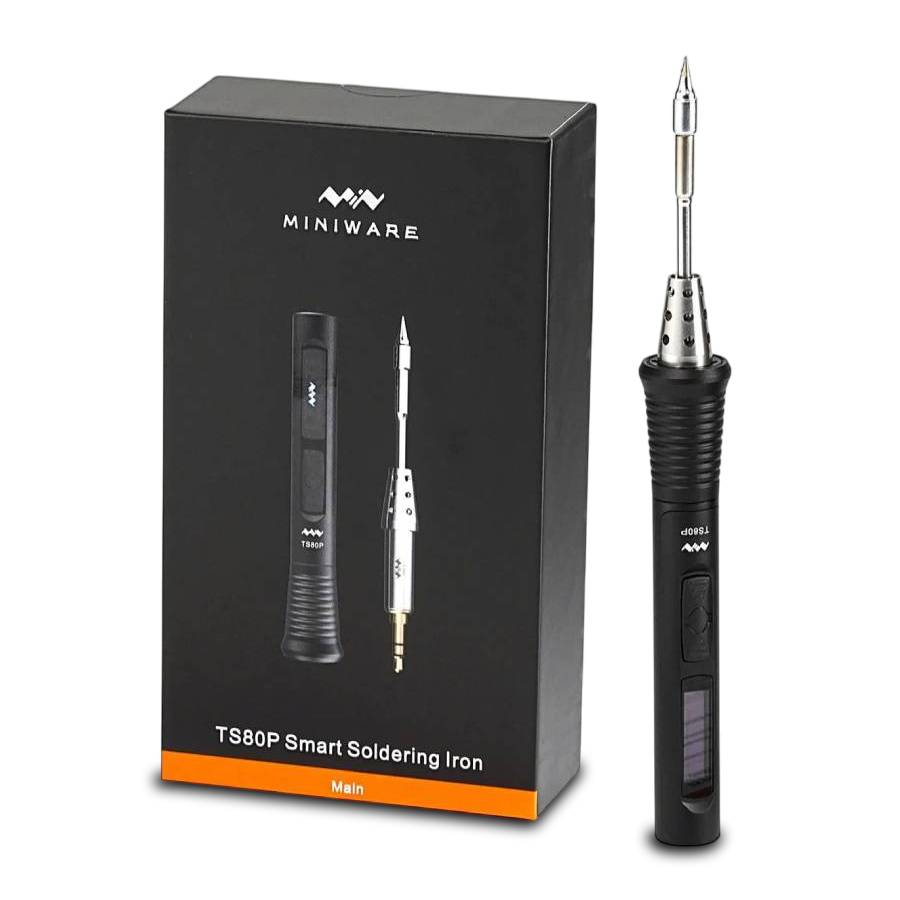

The Miniware TS80P Smart Soldering Iron is a compact, intelligent soldering iron that builds upon the success of its predecessor, the TS80. Designed for portability and efficiency, the TS80P delivers increased power output and faster heating times, making it suitable for a variety of soldering tasks.
Crafted with a CNC-machined aluminium alloy body, the TS80P combines durability with a sleek design. Its ergonomic form factor ensures comfortable handling during extended use. The integrated OLED display provides real-time temperature readings and operational status, enhancing user control and precision.
Powered via USB Type-C, the TS80P supports both PD2.0 and QC3.0 protocols, allowing for versatile power options including compatible power banks and adapters. The soldering iron's smart features, such as sleep mode and automatic power-off, are managed by a built-in STM32 microcontroller, ensuring safety and energy efficiency.
The TS80P is compatible with TS80 soldering tips, featuring a ceramic heating core and pure copper heat conduction for rapid and stable temperature control. Its easy-push fit tips allow for quick and secure tip changes, helping you get the job done faster.
Features:
- Enhanced Power Output: Delivers up to 30W, improving upon the TS80's 18W capacity.
- Rapid Heating: Reaches 300°C in approximately 8 seconds.
- Smart Temperature Control: Managed by an STM32 microcontroller for precise adjustments.
- USB Type-C Power Input: Supports PD2.0 and QC3.0 for flexible power sourcing.
- OLED Display: Provides clear, real-time temperature and status information.
- Ergonomic Design: CNC-machined aluminium alloy body for durability and comfort.
- Easy Tip Replacement: Features a push-to-release mechanism for quick tip changes.
- Open-Source Firmware: Allows for customisation and firmware development.
- Safety Features: Includes sleep mode, automatic power-off, and port protection.
- Tip Compatibility: Compatible with TS80 series tips, offering a range of options for various tasks.
Specifications:
- Model: Miniware TS80P Smart Soldering Iron
- Power Output: Up to 30W
- Temperature Range: 100°C–400°C
- Temperature Stability: ±3%
- Heating Time: Approximately 8 seconds to 300°C
- Input Voltage: 9V/2A (QC3.0) or 12V/2.5A (PD2.0)
- Power Interface: USB Type-C
- Display: OLED
- Controller Dimensions: 96mm (length)
- Tip Dimensions: 100mm (60mm heating element + 40mm tip)
- Weight: 38g (controller), 14g (B02 tip)
- Certifications: CE, FCC
Included:
- 1x Miniware TS80P Smart Soldering Iron
- Accessories
