Overview:

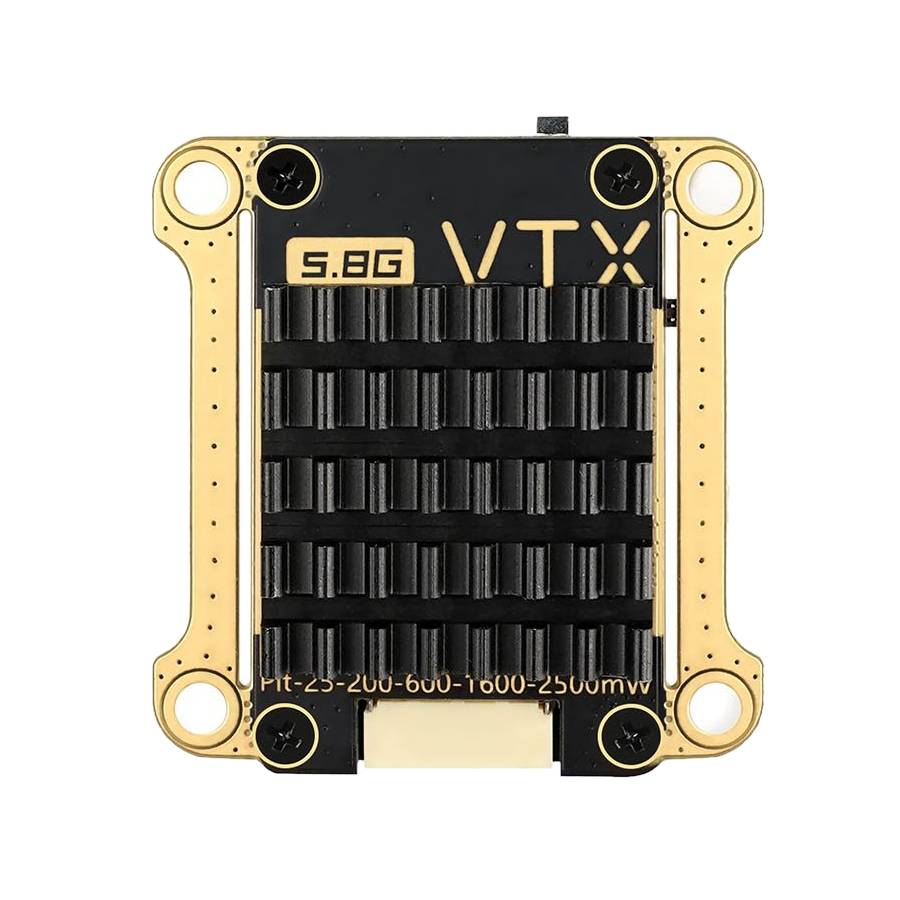

The RAD VTX 5.8G 2.5W high-power video transmitter offers six adjustable power levels, with a maximum output of 2500mW. It delivers a stable transmission signal with strong penetration capability. Its double-layer PCB design separates the power supply from the main control section, providing excellent heat dissipation and superior resistance to interference.
It features three selectable regional frequency groups that can be switched at any time. Supporting the IRC Tramp protocol, it allows quick parameter adjustment via OSD. A built-in microphone transmits live audio from the aircraft in real time.
Specifications:
- Model: GEPRC RAD VTX 5.8G 2.5W VTX (GP105998)
- Input voltage: DC 7–36V (2–8S battery)
- Output voltage: 5V@600mA
- Input impedance: 75Ω
- Protocol: IRC Tramp
- Antenna interface: MMCX

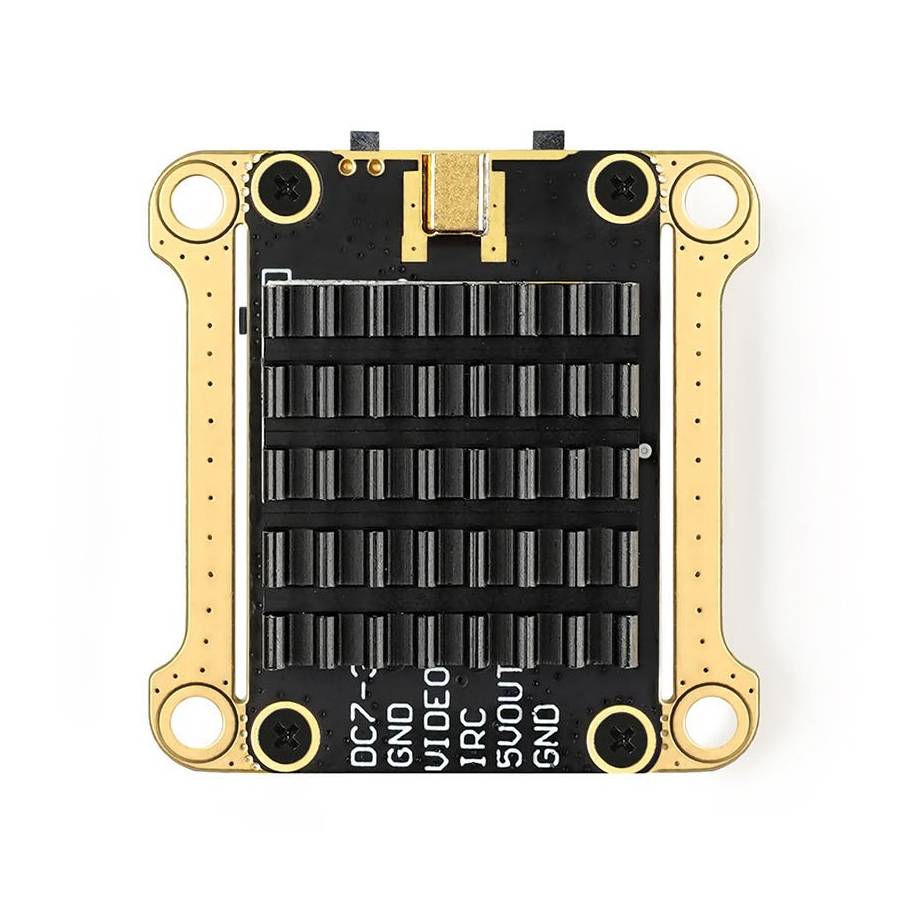

- Cable interface: GH 1.25-6P
- Output power levels: PitMode / 25mW / 200mW / 600mW / 1600mW / 2500mW
- Frequency groups: General (40CH), US FCC (37CH), - European EU (26CH)
- Video format: PAL / NTSC
- Microphone: Built-in
- Mounting holes: 30.5×30.5mm (M3)
- Size: 36.5×36.5×12mm
- Weight: 15g (without wires)
Features:
- high-power output for stable, long-range flight
- Tested at approximately 10km range in interference-free conditions

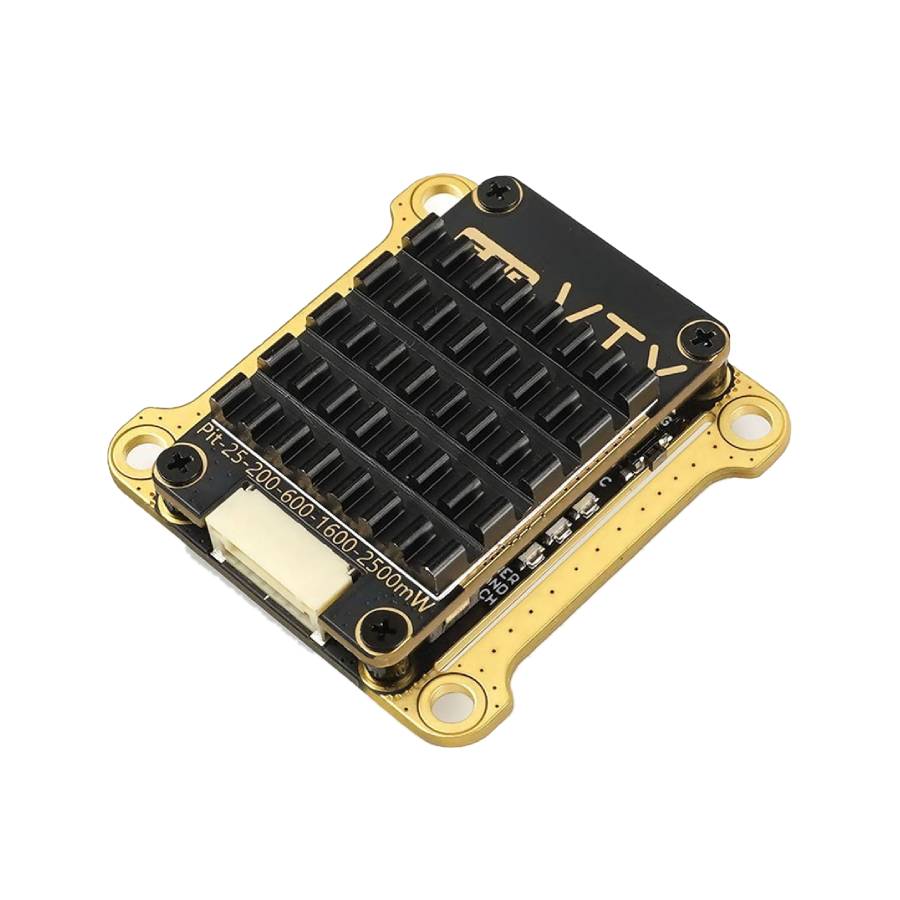

- Double-layer PCB structure separating power BEC and main control to reduce interference
- Temperature-control protection to prevent overheating
- Three regional frequency groups to suit various locations
- Supports IRC Tramp protocol with OSD parameter adjustment
- Built-in microphone transmits aircraft audio to the ground in real time
- Two function buttons and three indicator LEDs for quick, easy operation
Included:
- 1x GEPRC RAD VTX 5.8G VTX
