Overview:

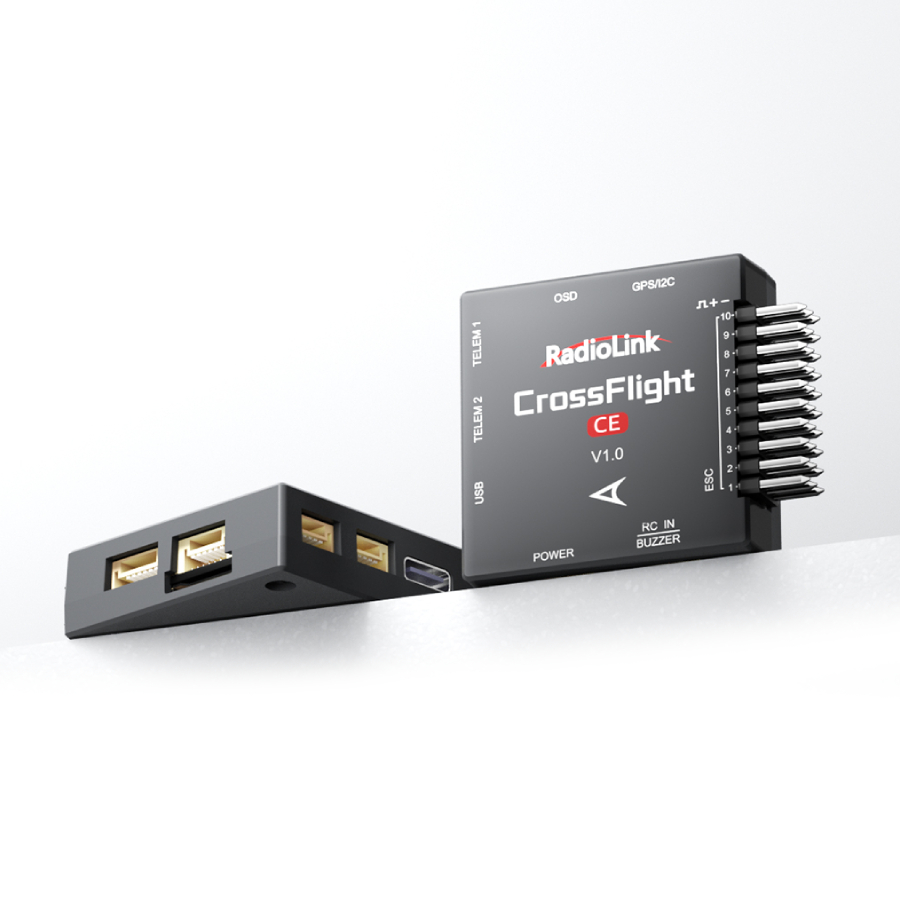

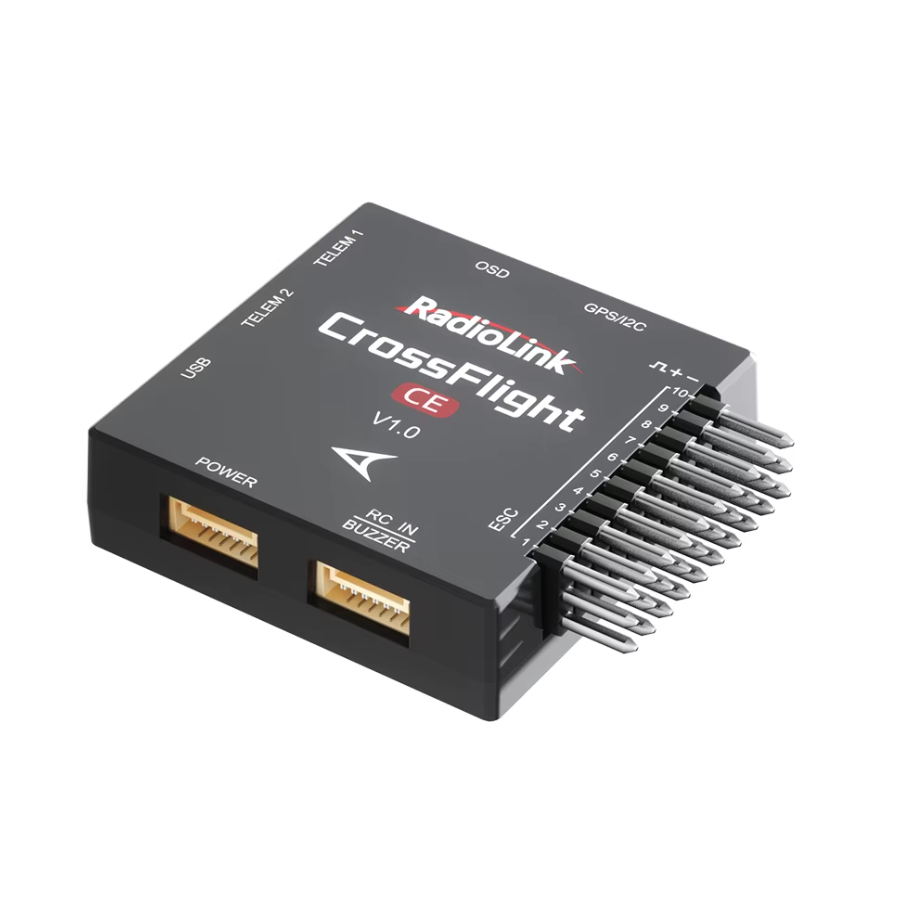

The Radiolink CrossFlight-CE is a versatile flight controller designed for multirotors, fixed-wing aircraft, helicopters, VTOL platforms, cars, boats and other RC vehicles. Built around Radiolink's proprietary high-dynamic control algorithm, it combines advanced flight stabilisation with broad platform compatibility, making it suitable for both manual flying and complex autonomous missions.

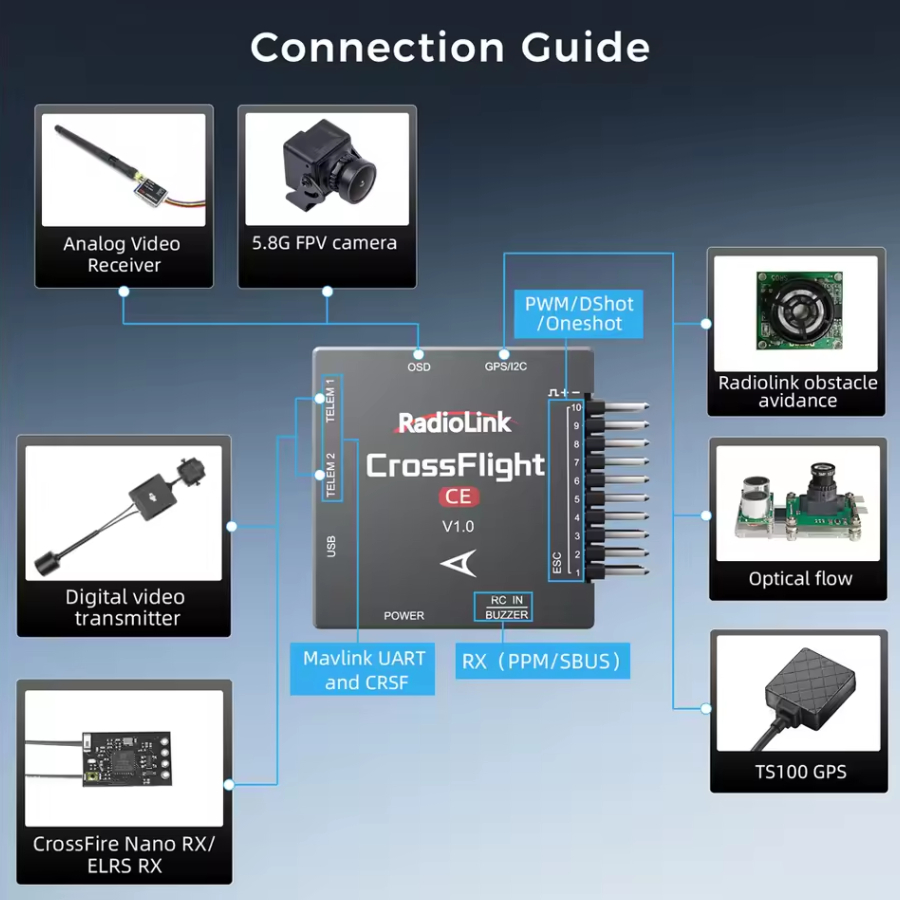

Featuring integrated gyroscope, accelerometer, compass, barometer and OSD functionality, the CrossFlight-CE provides the essential sensors required for precise navigation and flight control. Support for PWM, DShot and OneShot ESC protocols, along with 10 PWM outputs, allows it to be used across a wide range of aircraft and vehicle types. Compatibility with Radiolink Mission Planner, ArduPilot Mission Planner and QGroundControl simplifies setup and mission planning, while support for RTK positioning systems (sold separately) enable high-precision navigation where required.
Supplied with a dedicated power module supporting up to 12S input voltage and current monitoring up to 90A, the CrossFlight-CE offers a complete flight control solution for hobby, educational and professional projects alike.
Features:
- Instant Braking & Hover: A proprietary high-dynamic algorithm enables an instant stop at 180km/h in position-hold mode, delivering professional racing-grade handling for high-speed cinematography.
- Autonomous Flight: Supports auto-path planning/navigation with one-touch return on signal loss or low voltage.
- Geofence your aircraft according to your own preferences or the regulations of the area you're flying in.
- Suitable for quad's, fixed-wing aircraft, helicopters, VTOL aircraft, cars, boats and submarines
- Proprietary high-dynamic flight control algorithm with integrated Kalman filtering and inertial navigation technology
- Supports autonomous mission planning and waypoint navigation
- Compatible with Radiolink Mission Planner, ArduPilot Mission Planner and QGroundControl
- Integrated OSD: A pilot can intuitively grasp the status and coordinates of the aircraft at any time via the FPV display for aircraft such as racing drones and long-distance fixed-wing aircraft.
- Supports PWM, DShot and OneShot ESC protocols
- RTK positioning system support for high-accuracy navigation
- 10 PWM outputs for flexible vehicle configuration
- Compatible with PPM, SBUS and CRSF receiver protocols
- GPS and I2C expansion support for additional sensors and peripherals
- Type-C USB connectivity for configuration and firmware updates
- Includes a power module with voltage and current monitoring capability
- Analytics log: Multi-dimensional visualisation with full-chain data traceability for flight optimisations.
- The power module supports a wide voltage input range of 2-12S
Specification:
- Dimensions: 39.7x39.7x13mm
- Flight controller weight: 16.5g
- Weight with supplied cables: 54g

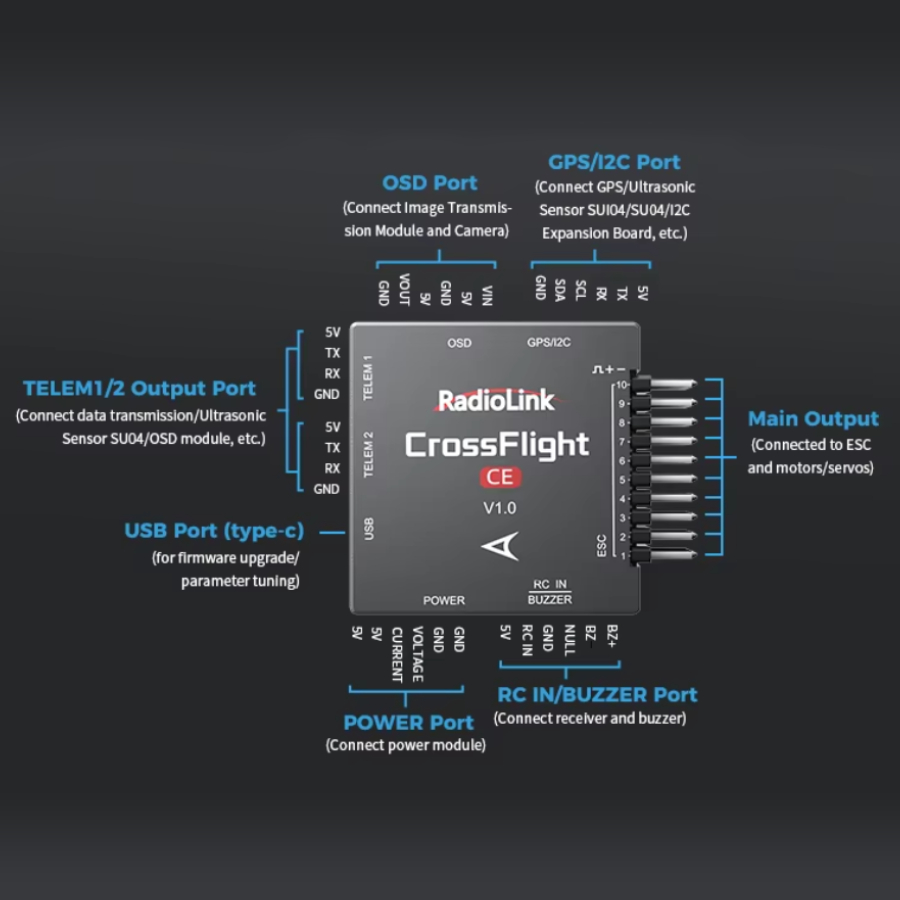

- MAVLink UART ports: 2
- GPS UART/I2C port: 1
- USB port: Type-C
- PWM outputs: 10
- Signal input: PPM/SBUS/CRSF
- RSSI output: Supported
- Parameter storage: Internal flash memory
- Power module input voltage: 2-12S (7.4-50.4V)
- Maximum current measurement: 90A
- Maximum current measurement per ESC channel: 22.5A
- BEC output voltage: 5.3V±0.2V
- BEC output current: 2A
- Operating temperature: -30°C to 85°C

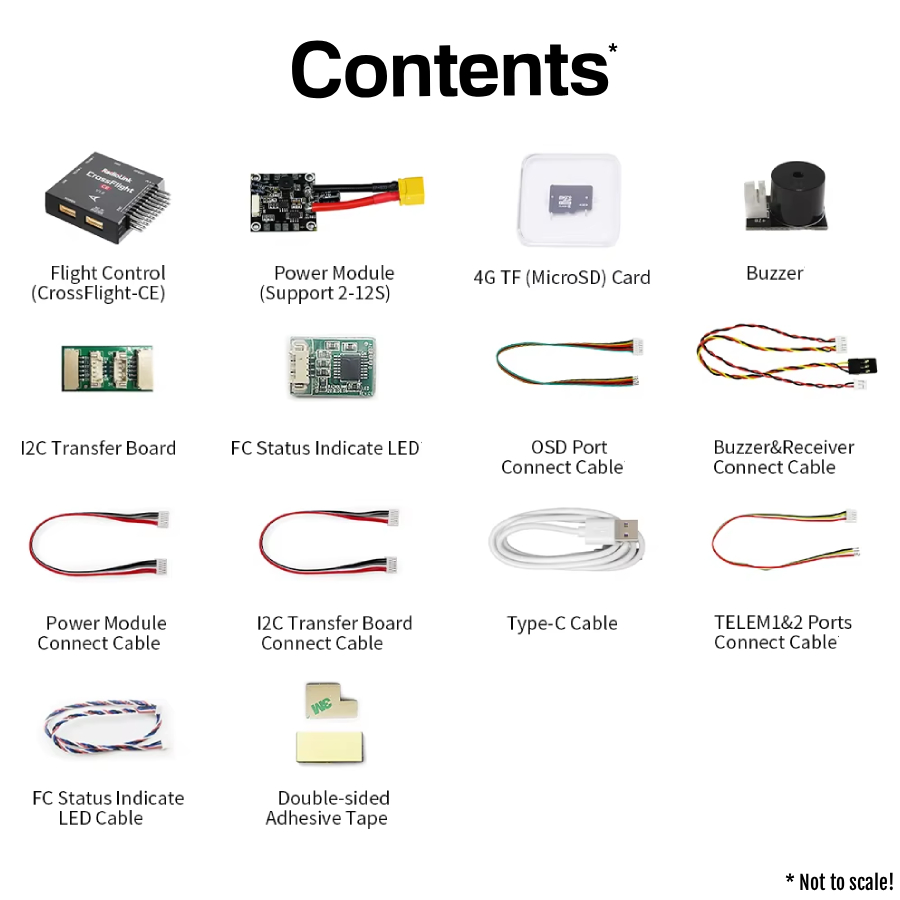

Included:
- 1x Radiolink CrossFlight-CE
- Accessories
