Overview:
The RadioLink CrossRace Pro is an advanced flight controller that bridges the gap between autonomous flight capability and agile manual performance, making it suitable for demanding multirotor and fixed-wing builds. It pairs a high-performance STM32H743 processor running at 480MHz with an extensive sensor suite and a flexible interface layout. This controller supports both ArduPilot-style autonomous navigation and Betaflight’s dynamic manual control, giving pilots the flexibility to configure aircraft for precise waypoint missions, return-to-home safety or aggressive freestyle flight. It also integrates an onboard on-screen display (OSD) and dual BEC outputs, simplifying power management for peripherals such as digital video transmission systems and GPS modules.
With 12 output channels, dual-frequency power supplies and compatibility with a wide range of inputs and peripherals, the CrossRace Pro is built for complex builds and heavy-lift platforms as well as long-range or cinematic applications. Its compact form-factor and comprehensive feature set make it a versatile choice for pilots who want both advanced autonomous functions and robust manual control in a single controller.
The RadioLink CrossRace Pro is an advanced flight controller for pilots who want a robust, feature-rich platform that supports both autonomous and manual flight modes, integrated video telemetry and flexible peripheral connectivity in a compact and lightweight design.
Features:
- Combines APM/ArduPilot autonomous flight modes with Betaflight manual control performance, offering flexible flight behaviour for different mission profiles.
- High-performance STM32H743 480MHz processor supports fast scheduling and complex control tasks.
- Integrated on-screen display (OSD) module overlays real-time flight data such as GPS coordinates, battery status and waypoints onto the video feed.
- Dual 5V and 12V BEC outputs simplify powering of peripherals, including video transmitters and GPS.
- Built-in vibration-damping software filters high-frequency noise for more stable sensor readings and altitude control.
- Support for DJI O3 and CADDX Walksnail Avatar HD PRO digital video transmission plug-and-play via a combined socket and solder pads.
- Permits connection of 4-in-1 ESCs with ESC telemetry support for enhanced motor feedback.
- Compatible with GPS modules and advanced navigation features, including geofencing and return-to-home.

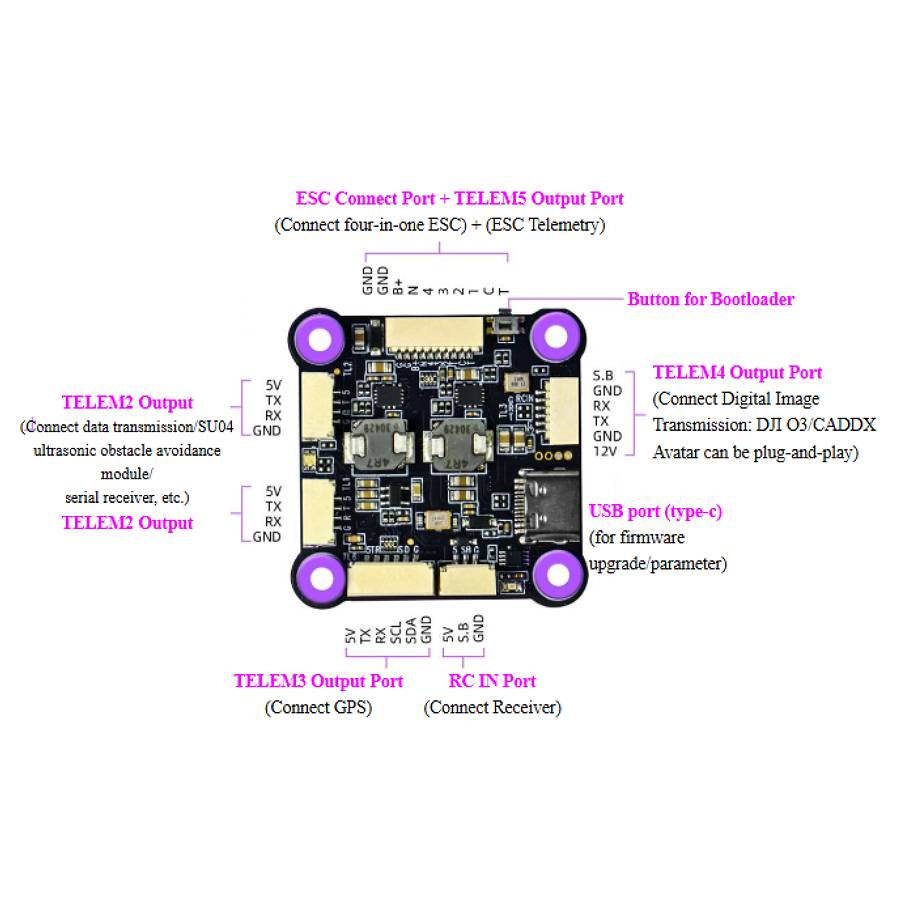

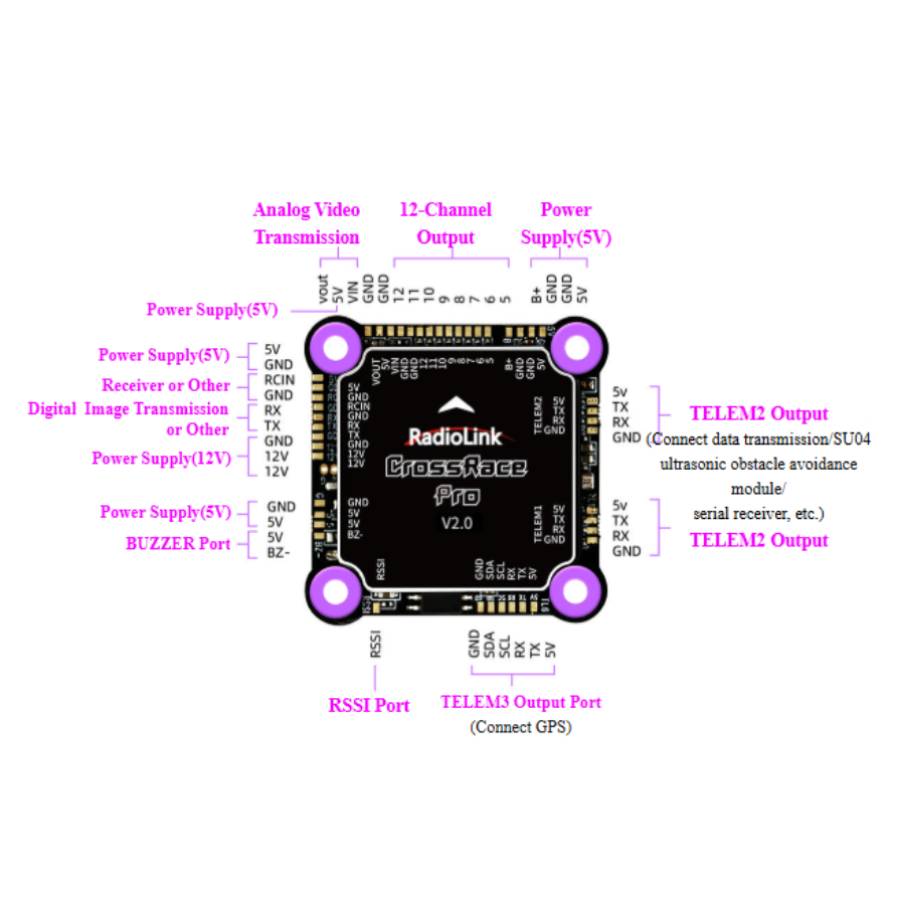

- Extensive interface options, including multiple UARTs and RSSI output, support flexible peripheral integration.
- 12 output channels support complex multirotor and hybrid aircraft builds.
Specification:
- Dimensions: 37×37mm (mounting hole distance 30.5×30.5mm).
- Weight: 12.2g (42.8g including connect cables).
- Processor: STM32H743 (32-bit, 480MHz).
- Loop rate: 1000Hz.
- IMU sensor: BMI270 (gyroscope and accelerometer).
- Barometer: SPL06 pressure sensor.
- Blackbox memory: 128 MB FRAM (stores up to ~2617 waypoints).
- BEC outputs: Built-in dual BEC (5 V and 12 V).
- Channel outputs: 12 PWM/ESC outputs.
- Signal inputs: SBUS, PPM, CRSF.
- UART interfaces: 2 MAVLink UART (without hardware flow control), 1 USB-C port, 1 GPS UART/I2C.
- RSSI output: Supported.
- ESC protocols: PWM, DShot, OneShot.
- OSD: Integrated module for telemetry overlay.
- Video transmission support: DJI O3 / CADDX digital plug-and-play plus analogue compatibility.
- RTK support: Supported for precise navigation.
- Power input: 2–6S LiPo
- Maximum input current: 5A
- USB voltage: 5V ± 0.3V
- Operating temperature range: -30°C to +85°C
- Supported aircraft: 2–8 axis multirotors
Included:
- 1x RadioLink CrossRace Pro
- Accessories
