Overview:
The RadioMaster ERS GPS Telemetry Sensor is a specialised GPS unit designed for use with compatible ExpressLRS PWM receivers. This plug-and-play sensor integrates with the receiver via the CRSF interface.
It's equipped with two modes: Mode One to provide accurate GPS data and Mode Two to provide accurate ground speed. Mode One is ideal for capturing position and altitude logs when used with Radiomaster ER series receivers with built-in barometers. Mode Two is ideal for measuring speed in RC planes, jets, boats, or cars. Additionally, the ERS GPS unit features a pass-through function that allows for easy future expansion of telemetry sensors through a daisy-chain arrangement.
Features:
- GPS Data mode and GPS Ground speed mode: Log your GPS position or track your speed in real-time and quickly access peak performance stats.
- Future-Ready Pass-Through: The ERS GPS comes equipped with an in-and-out pass-through port, allowing you to daisy-chain additional sensors in the future—no need to swap out hardware as your needs evolve.
- Seamless ExpressLRS Integration: Designed to work effortlessly with compatible ER series ExpressLRS receivers.
Specification:

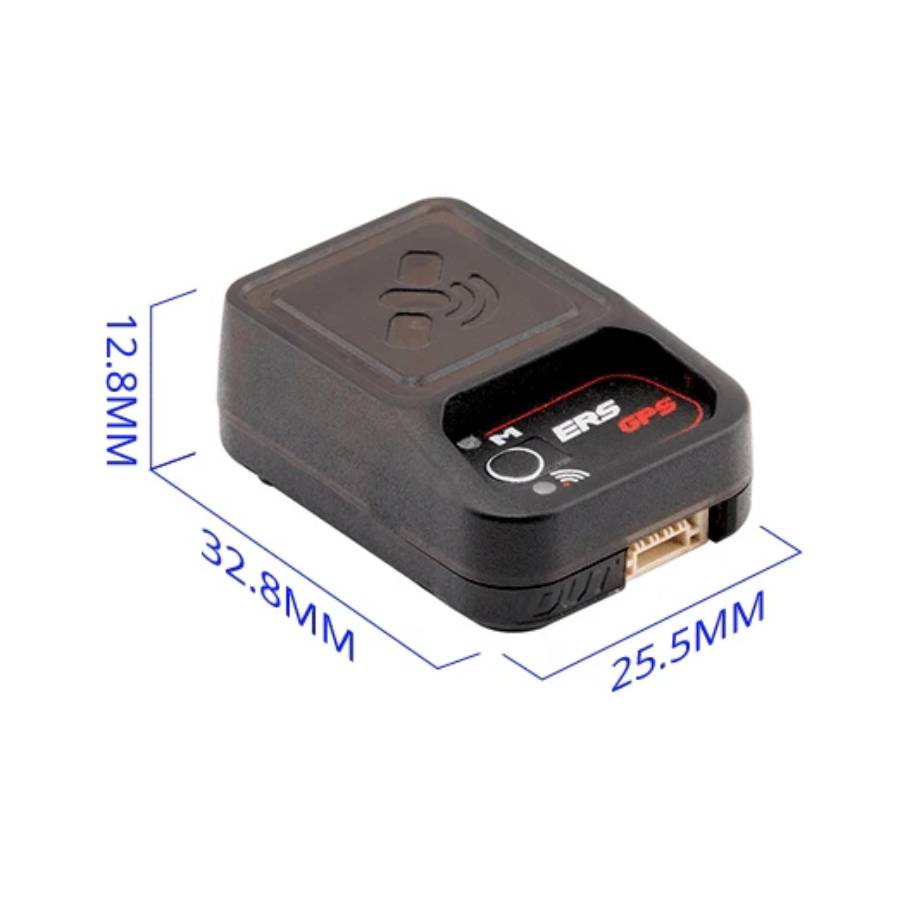

- Size: 32.8x25.5x12.8mm
- Weight: 13.35g
- Power Supply: DC 3.0-12.0V
- Current: 35mA (5V)
- Telemetry Protocol: CRSF
Included:
- 1x RadioMaster ERS GPS
