Overview:
The Nexus-X Helicopter Flight Controller is specifically designed for Rotorflight 2.2. Powered by the STM32F722 MCU and equipped with the highly accurate ICM42688P 6-axis MEMS motion tracker, the Nexus-X provides precise control, seamless stabilisation, and outstanding flight performance. Its integrated Black Box with 256MB of flash memory offers ample space for flight logging, enabling easy tuning and performance optimisation.
Designed for versatility and future-proofing, the Nexus-X features multi-function UART ports for seamless integration with various receivers and peripherals. It supports Plug’n’Play solder-free RP3-H ELRS receivers and traditional S.BUS to ensure flexible connectivity.
Encased in a robust CNC-machined aluminium case, the Nexus-X stays cool under demanding conditions while protecting its electronics. Its lightweight, compact design lends itself to multiple helicopter builds.
The Nexus-X is the ultimate helicopter flight controller for pilots who want a clean, reliable, high-performance Rotorflight experience.
Features:
- Optimised for Rotorflight 2.2: Engineered for peak performance and compatibility.
- Precision Control: STM32F722 MCU and ICM42688P 6-axis gyroscope/accelerometer for superior flight dynamics.
- Flight Logging: 256MB onboard flash memory for detailed logging and tuning.
- Versatile Connectivity: Multiple UART ports support CRSF, ELRS, S.BUS, and more.
- Plug’n’Play ExpressLRS: Solder-free locking connector for RP3-H ExpressLRS receivers (sold separately).
- More PWM Pins: Additional pins for expanded control in complex setups.
- CNC-Machined Aluminium Case: Sleek, rugged design doubles as a heat sink to keep the system cool.
- Tail Servo/ESC Support: Compatible with 760μs/1520μs tail servos and ESCs.
- 12V Servo Support: Capable of supporting 12-volt servos.
- Wide Voltage Range: Supports 3.6V–70V external power input for flexible setups.
- Improved BEC: Stable, reliable power delivery to electronics for enhanced performance.
- Isolated Power Supplies: Dedicated 1.8V (gyro), 3.3V (MCU), and 5V (interfaces) to minimise noise.
- USB-C Accessibility: Lightweight, flexible USB-C extender cable for easy access in tight builds.
- Compact and Lightweight: Ideal for any helicopter build.
- Rotorflight Rescue: Standard feature for enhanced safety in emergencies.
Specifications:
- Model: Radiomaster Nexus-X Helicopter Flight Controller
- Firmware: Rotorflight 2.2
- MCU: STM32F722RET6
- Gyro (IMU): ICM42688P
- Flash Memory (Black Box. IC): 256MB (W25N02KVZEIR)
- Barometer: SPL06-001

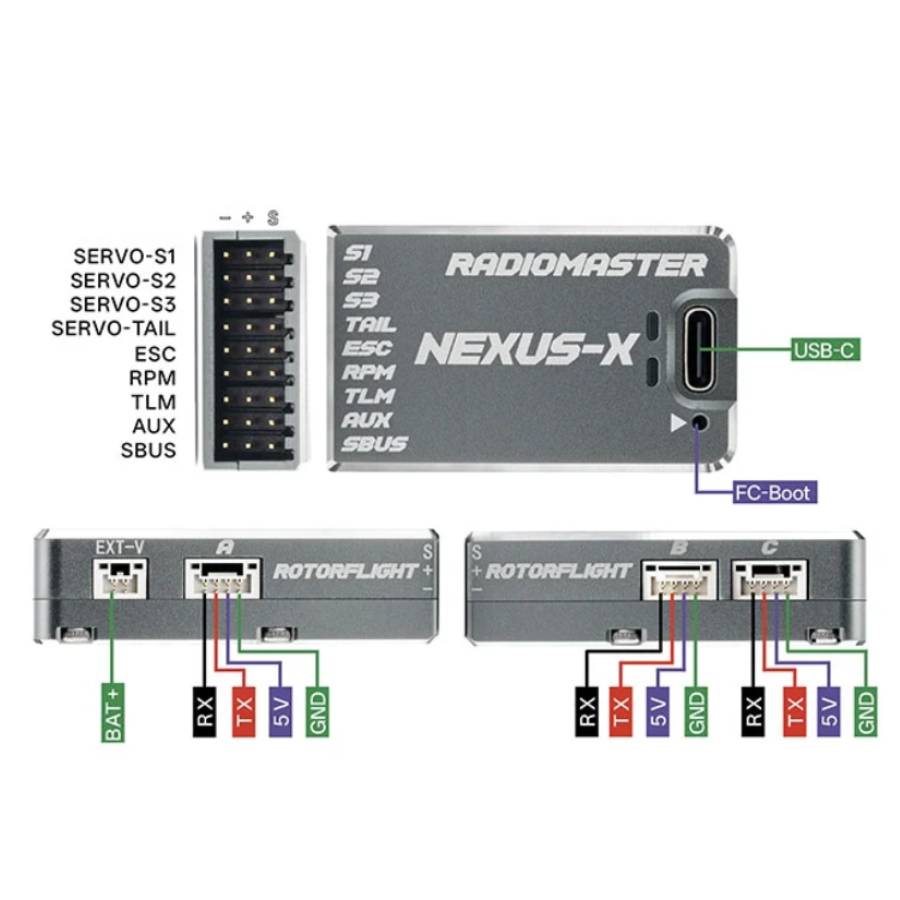

- Uart: 5 - S.BUS[UART1], TELEM[UART2],PORT-A[UART4], PORT-B[UART6], PORT-C[UART3]
- Servo: S1, S2, S3, TAIL Servos (Up to 12V )
- Rpm Sensor: 1 - FROM ESC FREQUENCY SENSOR
- AUX: 1
- Ext voltage input (tele): 3.6-70v
- Receiver Support: CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP
- Voltage Supply(DC): 5 - 16V
- A-B-C Serial Port Power Output: 5V - 1.5A
- Telemetry: S.BUS, HoTT, S.Port, MSP, EDGETX, ELRS
- ESC: PWM, Oneshot, Multishot, Dshot
- Support Tail ESC: 760μs/1520μs Servo
- Support Tail Motor: Yes

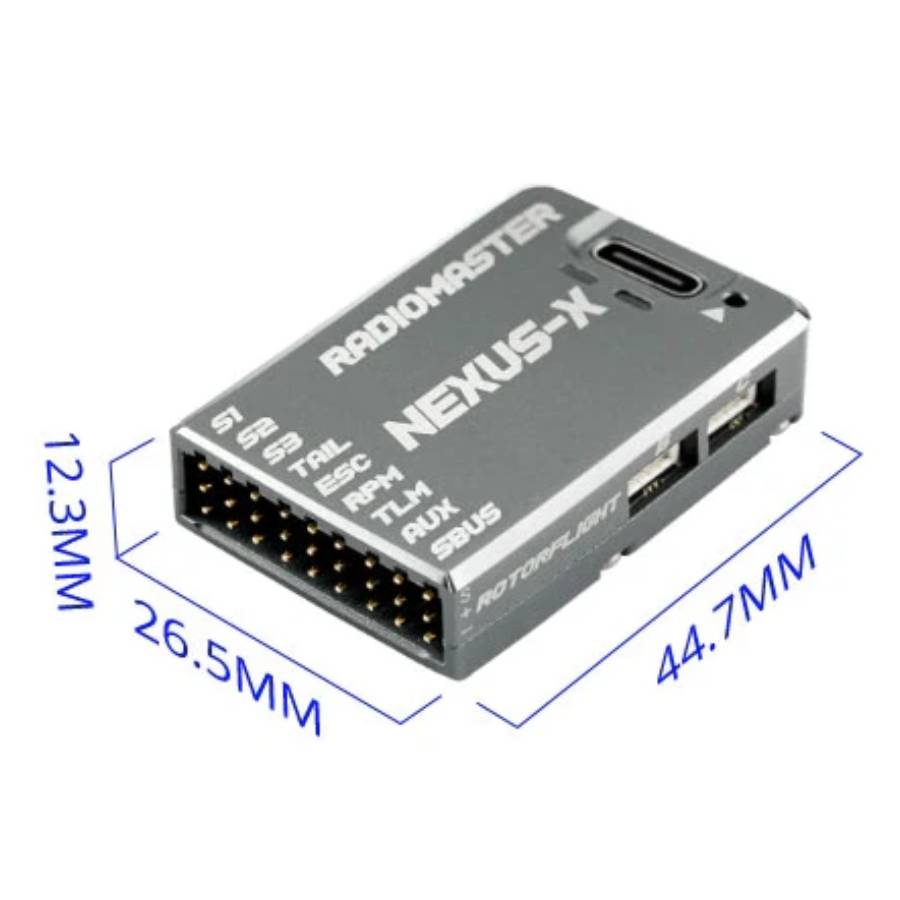

- Dimensions: 44.70 x 26.50 x 12.30mm
- Weight: 20.6g

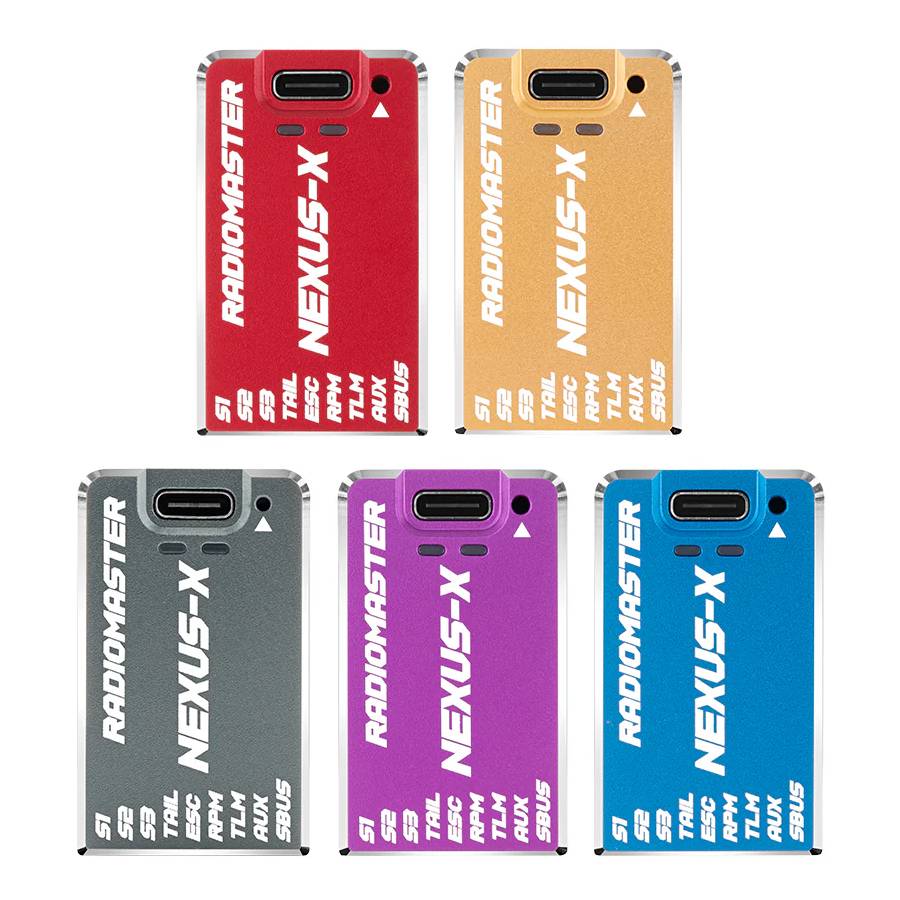

Available Versions (See below for purchase options):
- Radiomaster Nexus-X Helicopter Flight Controller in Grey (HP0157.0113-GRY)
- Radiomaster Nexus-X Helicopter Flight Controller in Gold (HP0157.0113-GLD)
- Radiomaster Nexus-X Helicopter Flight Controller in Red (HP0157.0113-RED)
- Radiomaster Nexus-X Helicopter Flight Controller in Blue (HP0157.0113-BLU)
- Radiomaster Nexus-X Helicopter Flight Controller in Purple (HP0157.0113-PUR)
Included:
- 1x Radiomaster Nexus-X Helicopter Flight Controller
- Accessories
