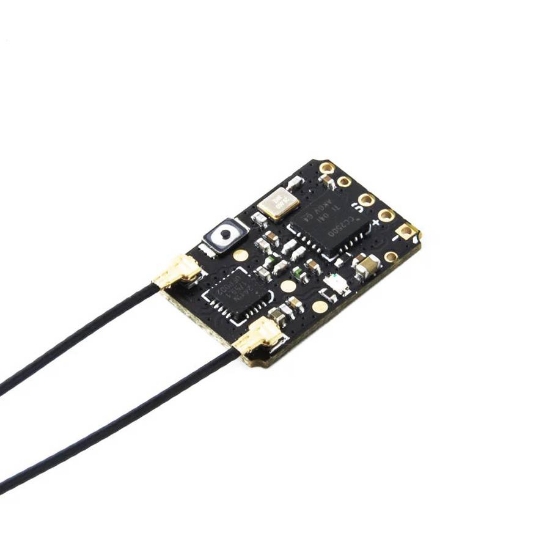

Radiomaster R81 V2 Nano Receiver

Overview:
The RadioMaster R81 V2 Nano is a compact, 8-channel receiver which supports FrSky D8, D16 and Futaba SFHSS protocols, and transmits SBUS with RSSI feedback — making it a versatile choice for lightweight multirotors, fixed-wing models and minimal-weight builds. Despite its nano form factor it offers a control range of over 1km in open conditions, making it both a reliable and space-saving option for a variety of RC applications.

Features:
- Full 8-channel SBUS output for rich control and compatibility with modern flight controllers.
- Supports FrSky D8, D16 and Futaba SFHSS protocols via multi-protocol or MPM radios.
- EU-LBT regulatory compliance ensures legal operation in Europe.
- RSSI fed back on channel 9 of the SBUS signal to help with telemetry or signal strength monitoring.
- Lightweight 2g design fits cleanly into tiny or tightly-packed frames.
- Small footprint (17×11mm) helps preserve space for other components in compact builds.
- Long antenna (60mm) gives good reception without significantly increasing size.

Specification:
- Model: Radiomaster R81 V2 Nano Receiver
- Type: R81 - D8 Nano Sbus Receiver
- Channels: 8
- Frequency range: 2400-2483.5Mhz
- Power input range: 4.5-6V
- Signal format: D8, D16 & SFHSS Compatible
- Output format: SBUS
- RSSI: RSSI on Ch9 of Sbus Output
- Range: 1km
- Antenna length: 60mm
- Size: 17x11mm
- Weight: 2g
- Binding: Bind via onboard button

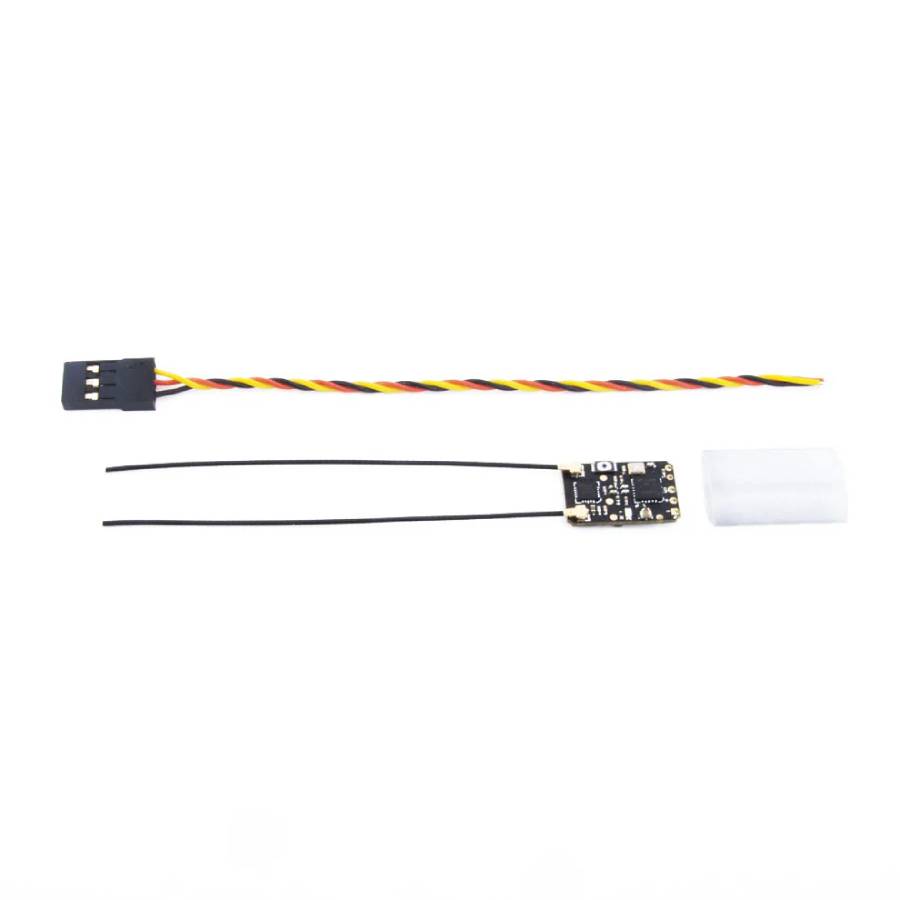

Included:
- 1x Radiomaster R81 V2 Nano Receiver
- Accessories
