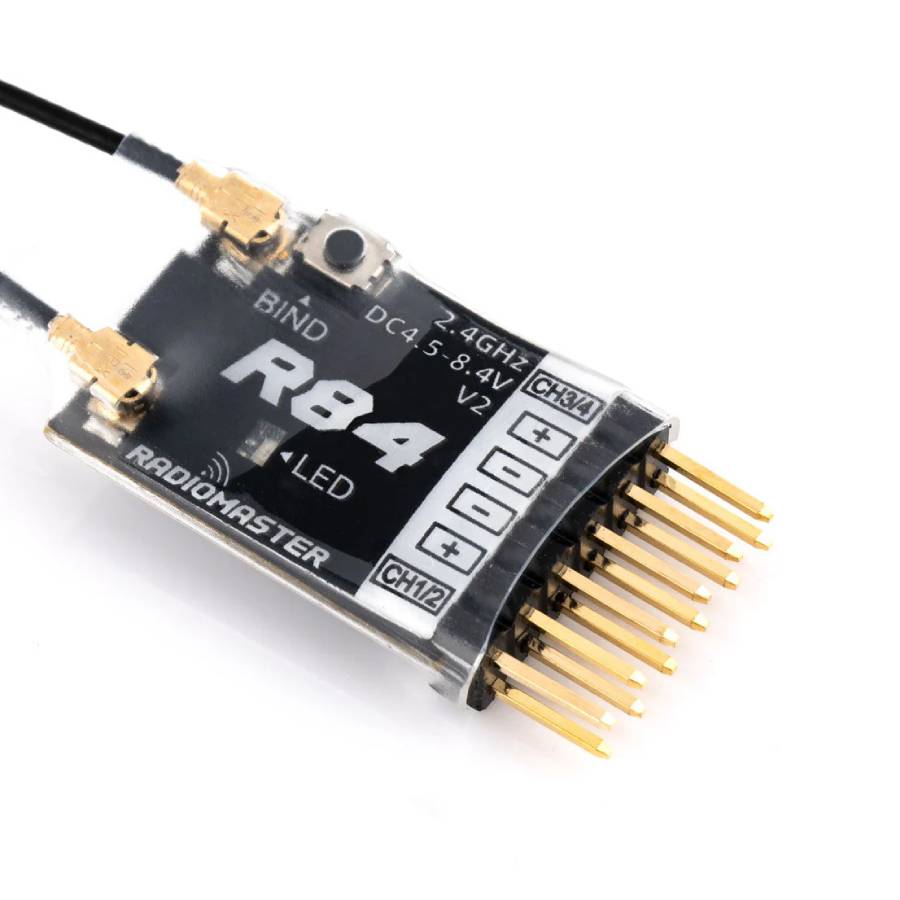

Radiomaster R84 V2 4CH FrSky Receiver

Overview:
The Radiomaster R84 V2 is a compact, lightweight 4-channel receiver, ideal for multi-protocol radios that support legacy FrSky protocols. It’s designed to work with D8, D16 and Futaba SFHSS systems via a multi-protocol module, making it suitable for micro models, fixed-wing planes or simple builds where only a few channels are needed. With its strong signal range and minimal footprint, you can keep your build light without compromising on range or reliability.

Note: that D16 mode corresponds to ACCST V1 FCC and NOT EU-LBT.

On a Radiomaster or other multiprotocol radio, you must do frequency fine-tuning before usage

Features:
- Compatible with FrSky D8, D16 and Futaba SFHSS protocols via a multi-protocol radio.

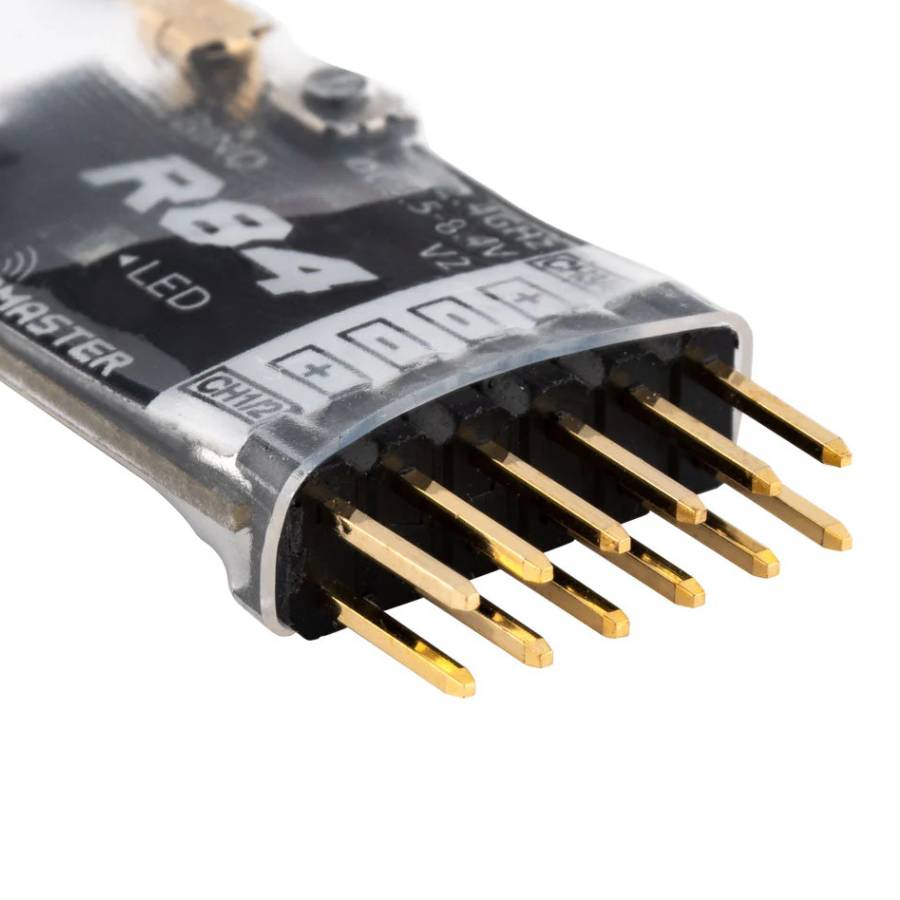

- 4 PWM output channels- ideal for basic control setups.
- Ultra-compact and lightweight: 17×11mm footprint, only 2 g.
- Long control range: rated at over 1km in open space.
- Wide input voltage support: 4.5-8.4V, making it compatible with a variety of power setups.

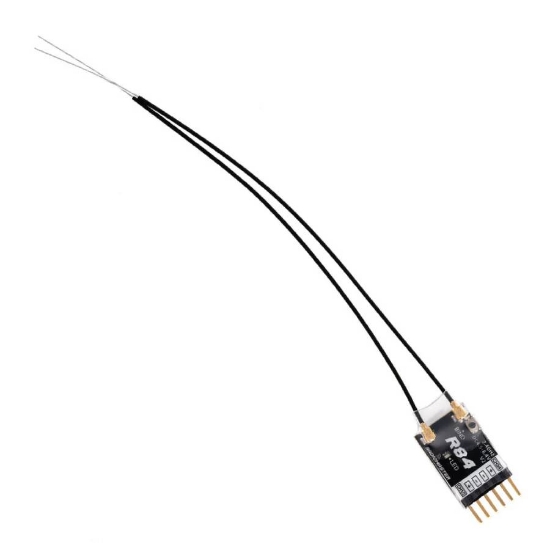

- 60mm antenna for reliable reception without being overly bulky.

Specification:
- Model: Radiomaster R84 V2 Receiver
- Channels: 4
- Frequency range: 2400-2483.5Mhz
- Power input range: 4.5-8.4V
- Signal format: D8, D16 & SFHSS Compatible
- Output format: PWM
- Control distance: more than 1km
- Antenna length: 6cm

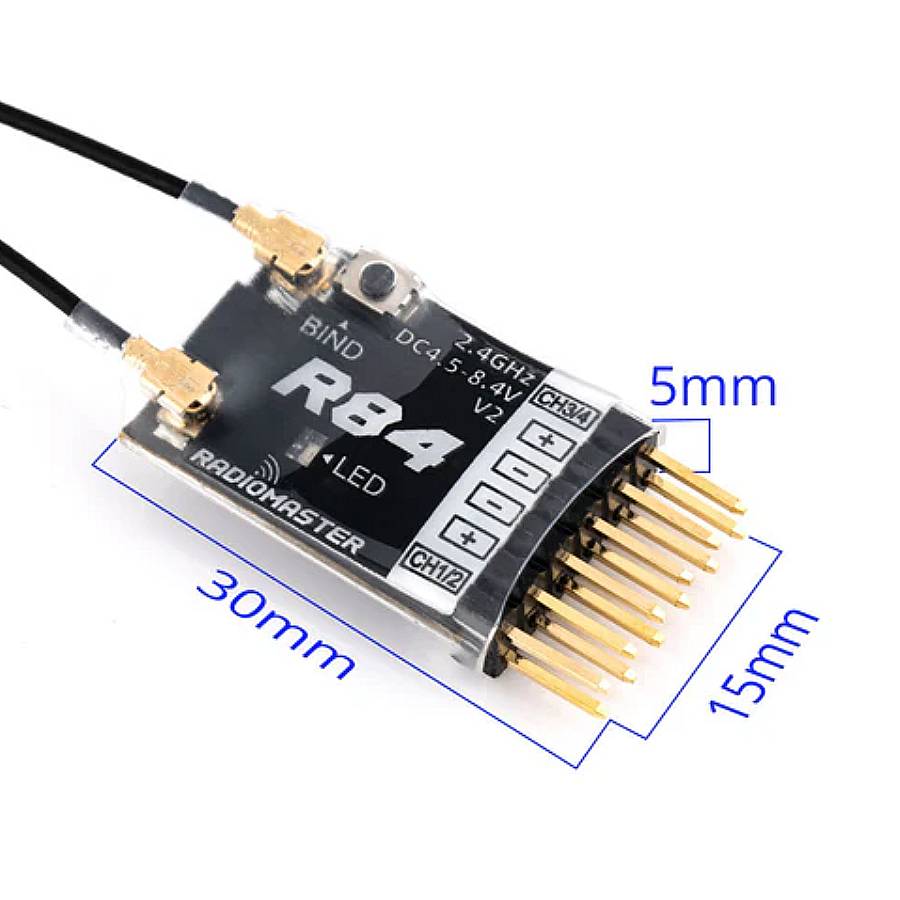

- Size: 17x11mm
- Weight: 2g

Included:
- 1x Radiomaster R84 V2 Receiver
