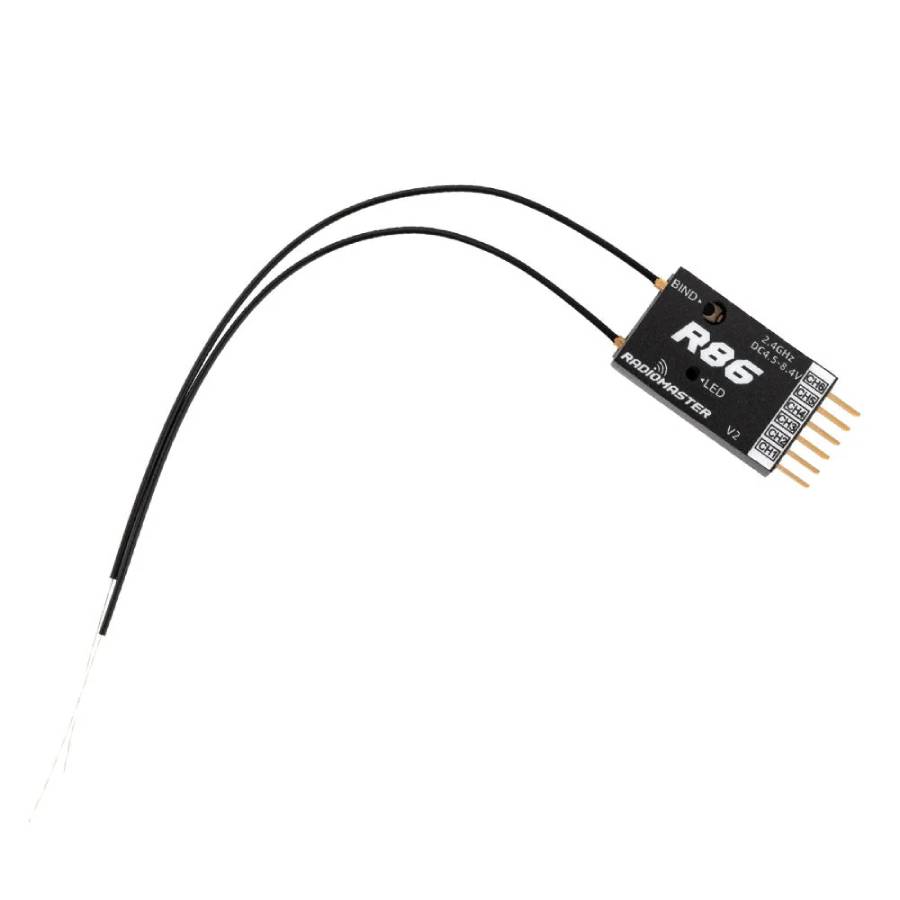

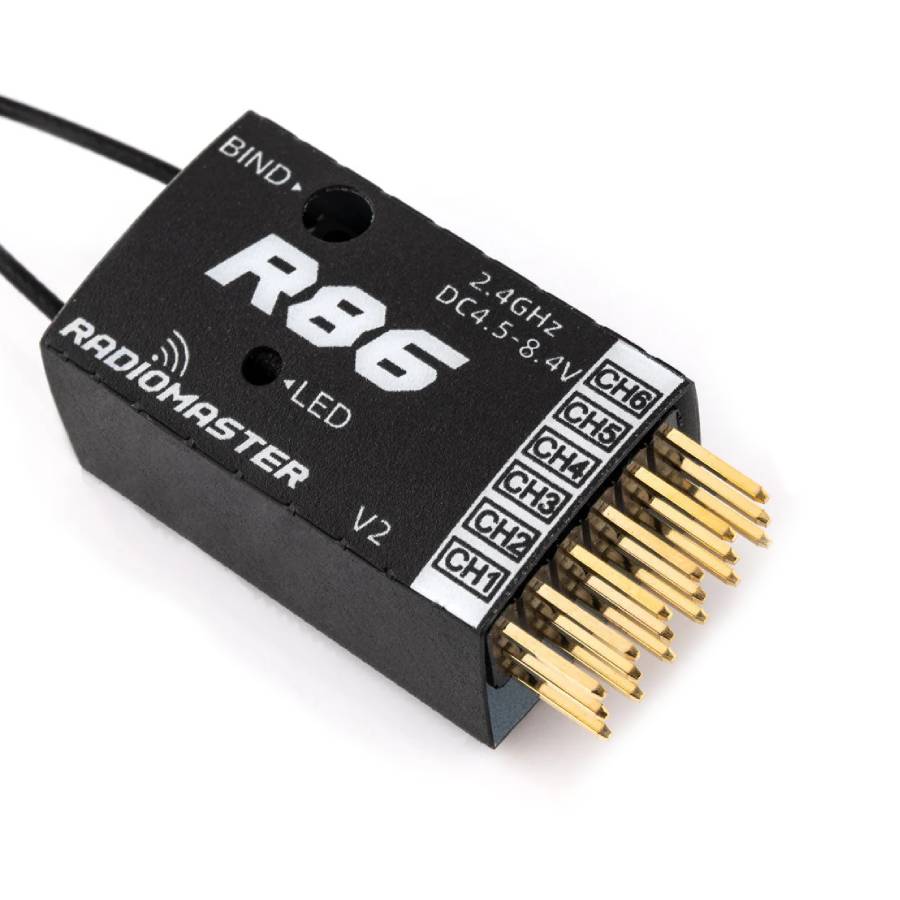

Radiomaster R86 V2 6CH FrSky Receiver
The Radiomaster R86 V2 Receiver is a compact and lightweight 2.4GHz PWM receiver designed for reliable control across a wide range of RC aircraft.
Overview:
The Radiomaster R86 V2 Receiver supports multiple popular protocols and a straightforward PWM output layout, it offers a practical solution for pilots who need a dependable receiver for traditional servo-based systems or simple multirotor builds.
Designed to work with radios equipped with a multi-protocol module (MPM), the R86 V2 supports FrSky D8, FrSky D16 and Futaba SFHSS compatible protocols, allowing it to integrate easily with many modern transmitters. Its six PWM output channels make it ideal for fixed-wing aircraft, gliders and multirotors where direct servo connections are required.
Despite its small footprint, the receiver delivers solid signal performance with a control range of over 1km under typical conditions, making it suitable for most sport flying and recreational RC applications. The lightweight design helps minimise installation weight while still providing dependable signal reception through a 15cm antenna.
The R86 V2 operates on the 2.4GHz band and supports a wide input voltage range compatible with common receiver power systems. Combined with its simple wiring and PWM outputs, it provides an easy drop-in receiver for many traditional RC setups where reliability and compatibility are key.
Features:
- Compatible with FrSky D8, FrSky D16 and Futaba SFHSS protocols
- Designed for use with transmitters featuring multi-protocol modules (MPM)
- Six PWM output channels for direct servo connection
- Reliable 2.4GHz control link suitable for a wide range of RC models
- More than 1km control range under typical conditions
- Failsafe protection for improved safety during signal loss
- Lightweight and compact design for easy installation in small models
Specification:
- Model: Radiomaster R86 V2 Receiver
- Channels: 6
- Frequency range: 2400-2483.5Mhz
- Power input range: 4.5-8.4V
- Signal format: D8, D16 & SFHSS Compatible
- Output format: PWM
- Range: more than 1km
- Antenna length: 15cm

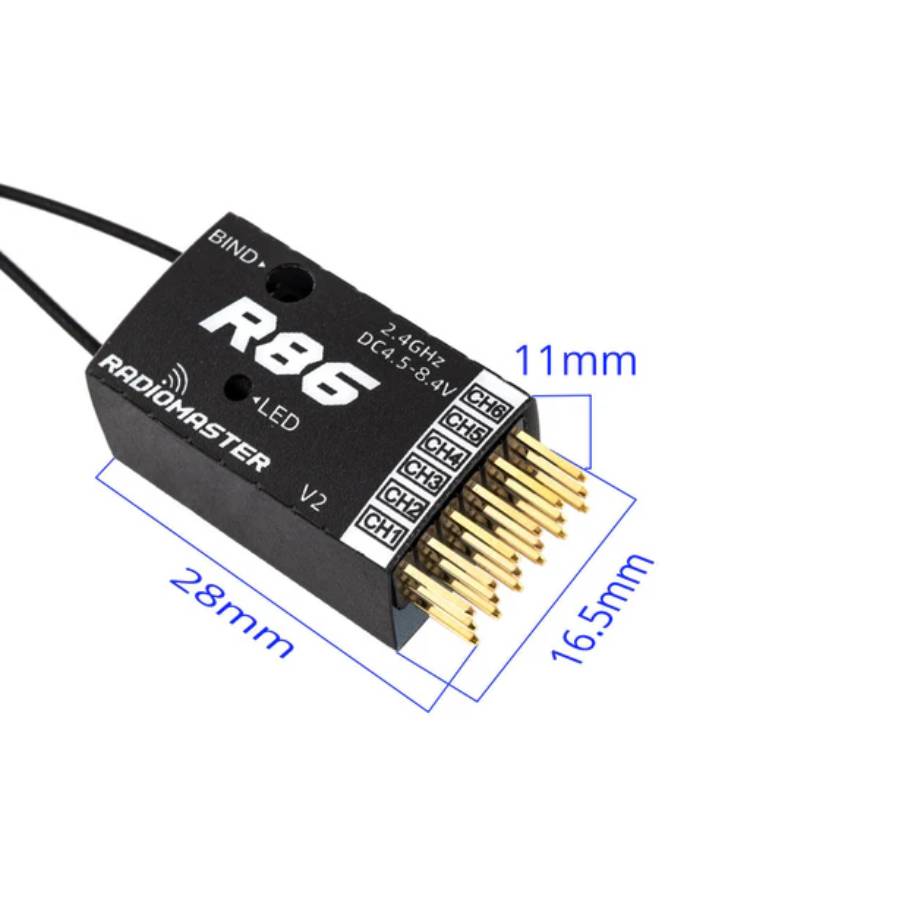

- Size: 28x16.5x11mm
- Weight: 4.8g
Included:
- 1x Radiomaster R86 V2 Receiver
