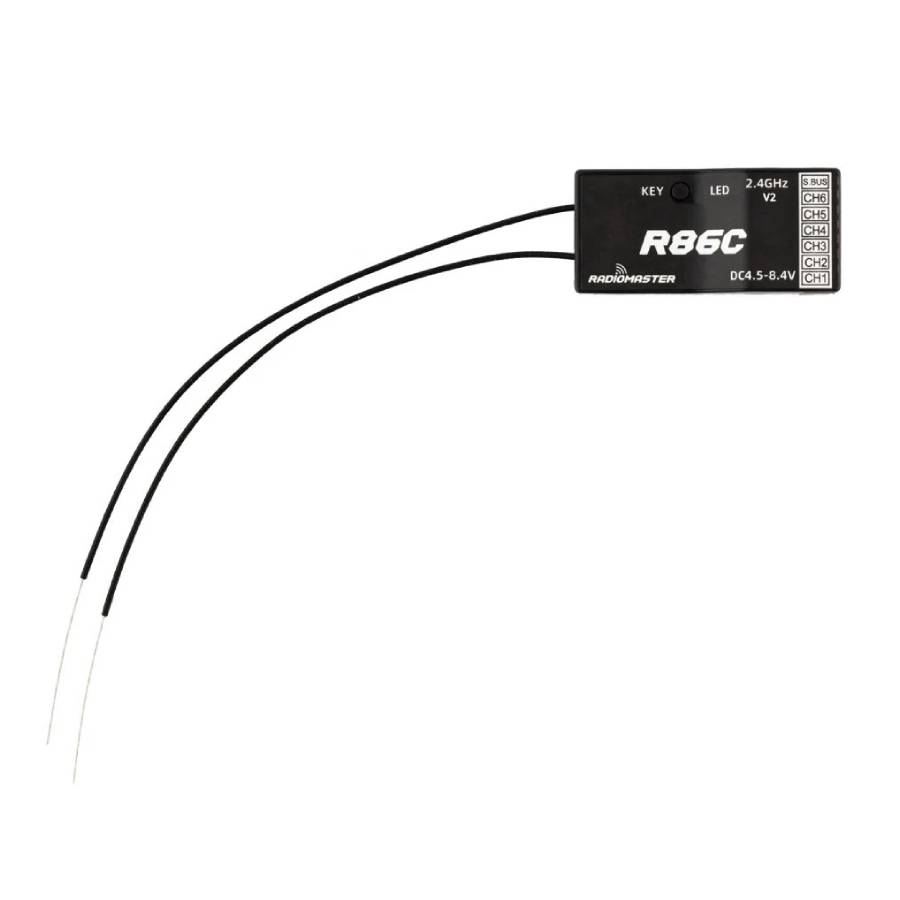

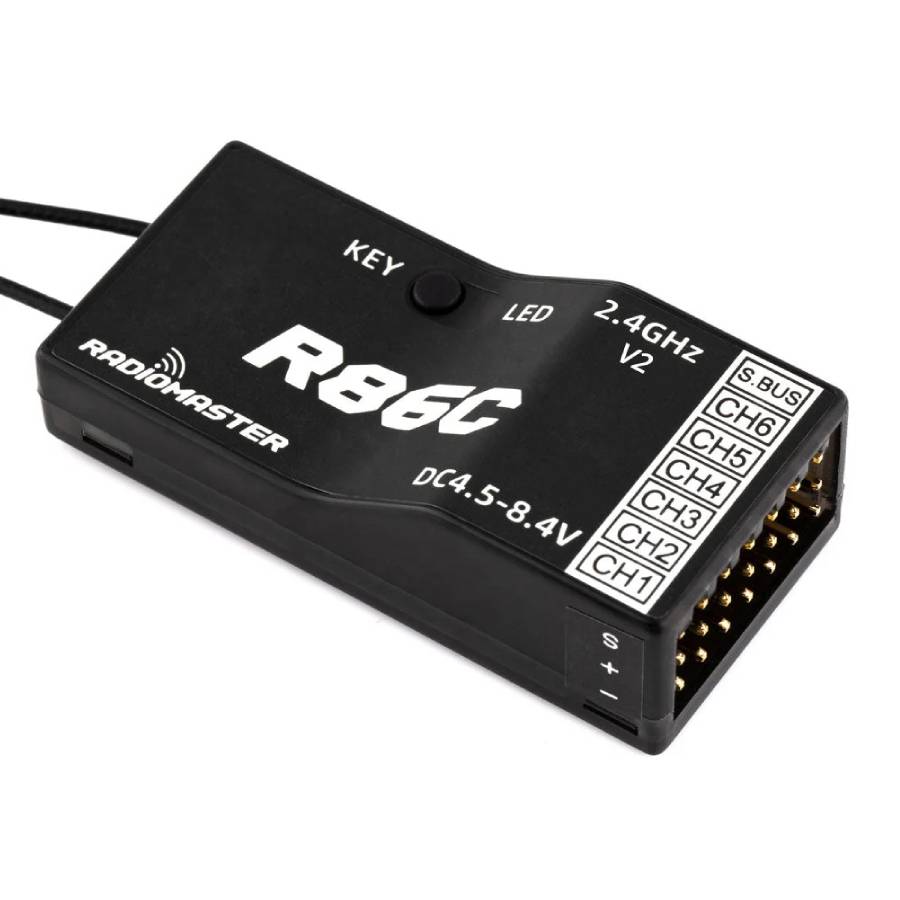

Radiomaster R86C V2 6CH FrSky Receiver

Overview:
The RadioMaster R86C V2 is a versatile 2.4GHz multi-protocol receiver designed for RC models that require reliable control and flexible output options. It supports both standard PWM and SBUS outputs, making it suitable for traditional servo setups and modern flight-controller configurations. The receiver is compatible with FrSky D8, D16 and Futaba SFHSS signal formats when used with a multi-protocol radio, offering wide application across fixed-wing aircraft, gliders, helicopters and surface models. Its compact size and lightweight construction make it suitable for installations where space is limited.

Features:
- Compatible with FrSky D8, D16 and Futaba SFHSS protocols for broad transmitter support when used with a multi-protocol radio.
- Dual output capability with standard PWM and SBUS for flexible system integration.
- Reliable control range exceeding 1km to support long-distance operation.
- Dual-antenna configuration enhances signal reception and reduces dropouts.
- Compact form factor that simplifies installation in models with restricted space.

Specification:
- Channels: 6 PWM channels and 8 SBUS channels
- Frequency range: 2400–2483.5MHz
- Power input range: 4.5–8.4V (limits to 4.5–6.6V when using SBUS)
- Output formats supported: PWM and SBUS
- Signal formats supported: D8, D16 and SFHSS
- Typical control range: more than 1km
- Antenna length: 15cm
- Dimensions: 45×21.2×12.7mm
- Weight: 8g

Versions available:
- Radiomaster R86C V2 Receiver (LBT)
- Radiomaster R86C V2 Receiver (FCC)

Included:
- 1x Radiomaster R86C V2 Receiver
- Accessories
