Overview:
The RadioMaster T8L brings the power of ExpressLRS 2.4GHz into a clean, compact form - and is the first screenless radio controller officially supported by ExpressLRS.
Designed for pilots who value simplicity, portability, and reliability, the T8L delivers responsive control with up to 10 channels via the CRSF protocol. Whether you’re flying a micro multi-copter, fixed-wing aircraft, or need a dependable backup radio, the T8L provides a smooth, streamlined experience - perfect for indoor or park flying.
With high-precision quad-bearing Hall-effect gimbals, integrated USB-C charging, and simulator compatibility, the T8L is ready to go right out of the box. Setup is quick and easy through a web-based configuration tool that runs directly in Chrome or Edge - no display or external software required.
Two 18650 3200mAh 3.7V Batteries are required to power the T8L (see related items below).
Features:
- Built-in ExpressLRS 2.4GHz module
- Single button press binding to any ExpressLRS receiver
- Quad bearing Hall-effect gimbals for smooth, precise stick control
- 5-way trim buttons with LED and audible feedback

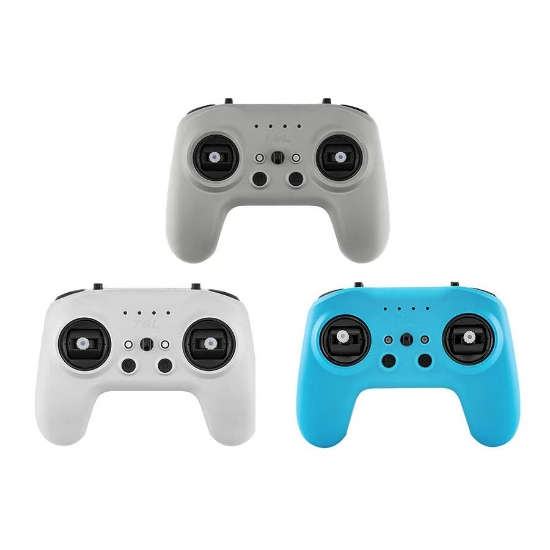

- Available in three colours: Blue, White and Grey
- USB-C port for charging, firmware updates, and simulator use
- Web-UI support (no screen required) for full configuration
- Up to 10 channels supported (receiver-dependent)
- Rear potentiometer slider for extra input or tuning
- Compact, lightweight design (just 204g) for easy transport
- LED-based interface for system status, battery level, and calibration
- Simulator-compatible—connect via USB and start flying virtually
- Custom button and switch behaviour settings via Web UI
Specification:
- Model: Radiomaster T8L Radio Controller
- Item: T8L Radio Controller
- Size: 165x120x70mm
- Weight: 204g
- Frequency: 2.400GHz-2.480GHz
- RF Module: 2.4GHz ExpressLRS(SX1281)
- Transmission power: Adjustable 10dBm(10mW) - Max 20dBm(100mW)
- Battery: 3.7v 18650 x 2 (Not Included)
- Charging: Built-in USB-C charging
- Firmware: T8L (Special T8L Edition, non-configurable)
- Colours: Blue, White, Grey
- Channels: Up to 10 channels (depending on the model/receiver)
- Gimbal: X5 Hall-effect, quad ball-bearing, nano gimbals
Available versions (see below for purchase options):
- Radiomaster T8L Radio Controller in Grey
- Radiomaster T8L Radio Controller in White
- Radiomaster T8L Radio Controller in Blue
Included:
- 1x Radiomaster T8L Radio Controller
- Accessories
