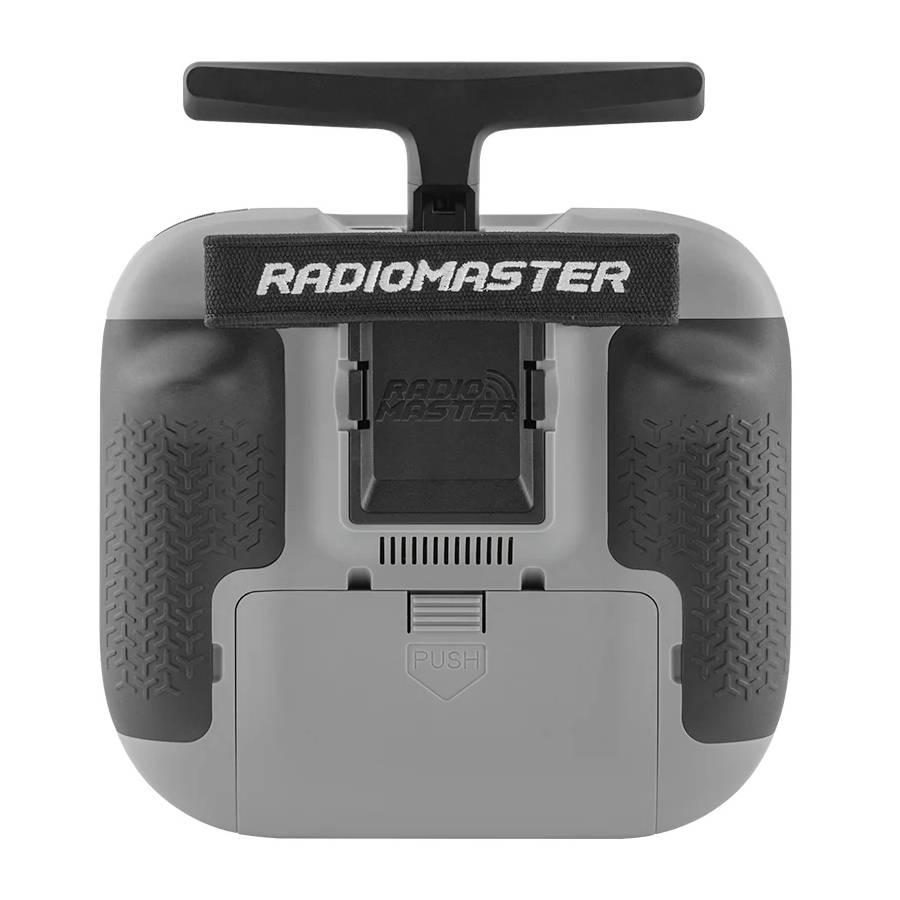

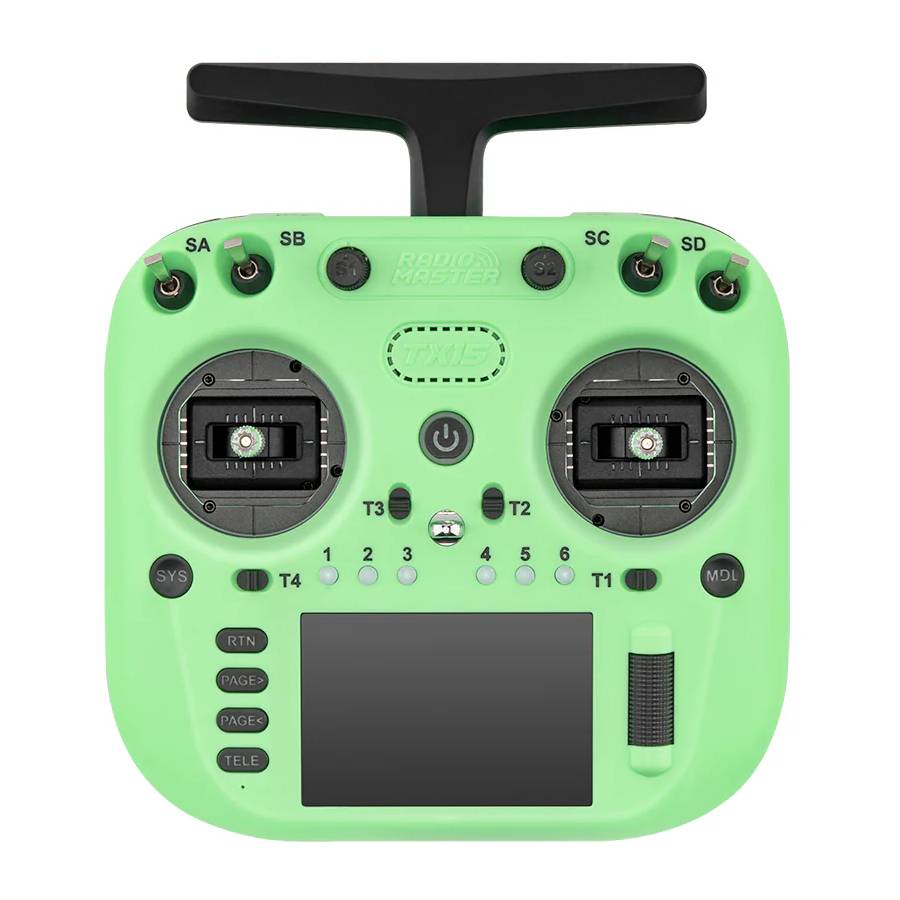

Overview:

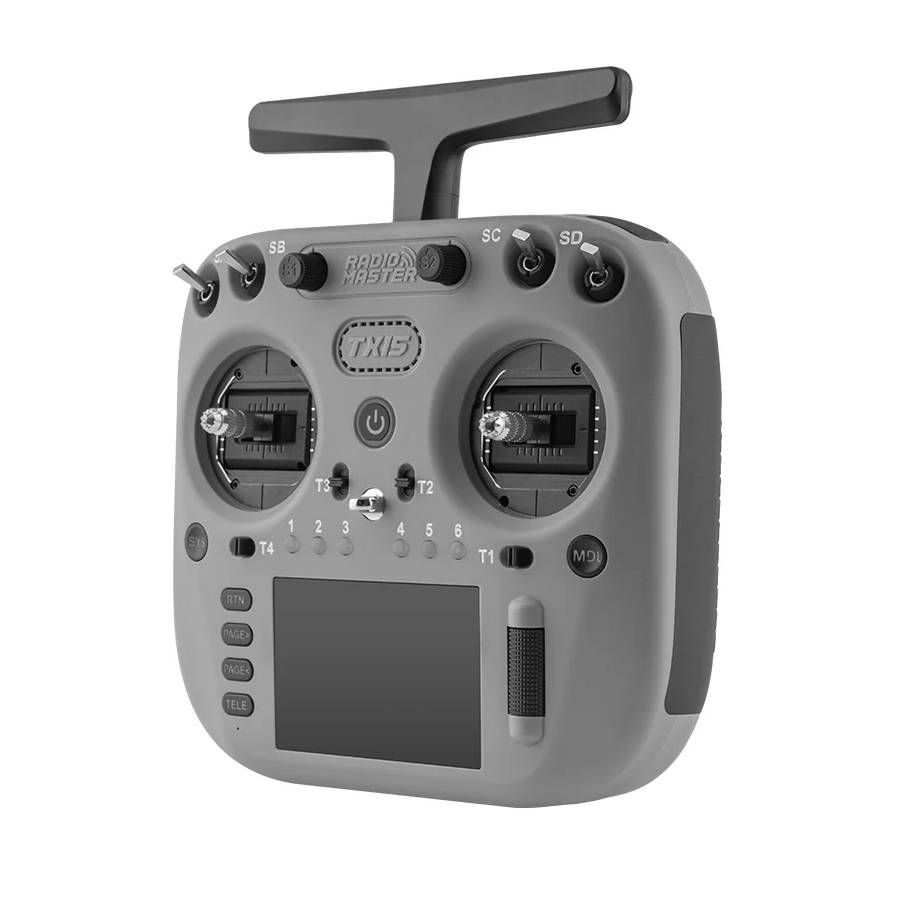

The Radiomaster TX15 Transmitter is driven by the high-performance STM32 H7 chip, it’s the powerhouse behind the fastest Radiomaster radio ever- enabling ultra-smooth EdgeTX control, instant model switching, and lightning-quick script execution. With 4GB of flash storage and MicroSD card expansion, you’ll have virtually unlimited space for models, scripts, sounds, and themes.
The TX15 features an LR1121 Semtech transceiver, supporting both 2.4GHz or 900MHz ExpressLRS (ELRS) for long-range, low-latency performance. Whether you're flying daily or operating in challenging RF environments, the TX15 is built to perform. A smart balance battery circuit maximises flight time, while the compact, foldable antenna design improves portability and ensures strong signal quality. The built-in gyro with TiltX/TiltY functions unlocks advanced control options, allowing you to trigger switches, pan/tilt cameras, or activate telemetry callouts with a simple tilt of your radio.
Experience clear visuals on the 3.5-inch IPS touchscreen with 262k color resolution and 600 nits brightness, visible in sunlight. The TX15 Standard features V5.0 hall sensor gimbals in six vibrant colors. It's advanced cooling, a USB-C port for charging, SIM connectivity, firmware updates, and high-speed memory access ensure reliable performance. Additional switches have been added so you can swap out the shoulder buttons with either a momentary or two-position latching switch—perfect if you prefer a traditional switch over a button.
Features:
- Fast Performance: The STM32 H7 chip powers our fastest radio ever.
- Touchscreen Display: 3.5-inch, 480 x 320 IPS touchscreen with vivid colours and sharp detail.

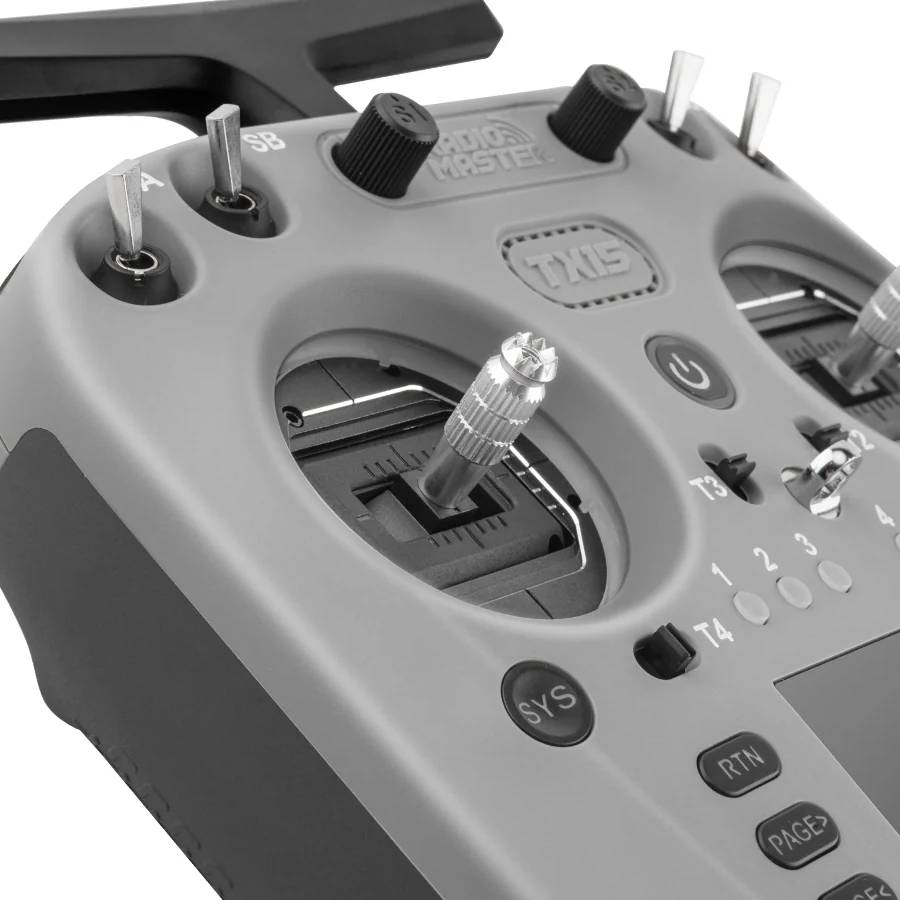

- Precision Gimbals: V5.0 Hall sensor gimbals
- Built-in ExpressLRS: 2.4GHz / Sub-G 900MHz ExpressLRS integration for reliable and long-range control.
- Smart Balance Battery Circuit: Maximises battery efficiency and longevity for more flight time.
- Powerful, Efficient Cooling System: Low-noise, high-output fans and an aluminium heat sink keep your radio cool even on the hottest days.
- Foldable Antenna: Compact and easy to store without compromising signal strength.
- Built-in Microphone: For future feature expansion.
- Built-in Gyro: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
- Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.
- Interchangeable Shoulder Switches: Customise your controls to match your flying style.

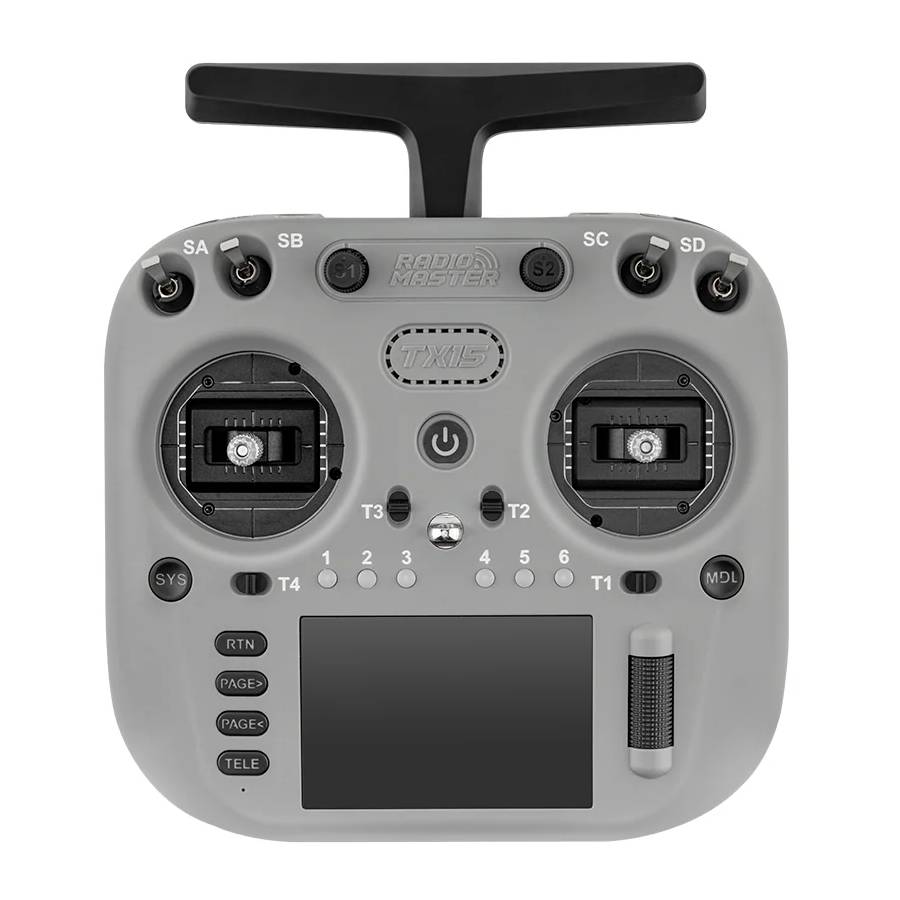

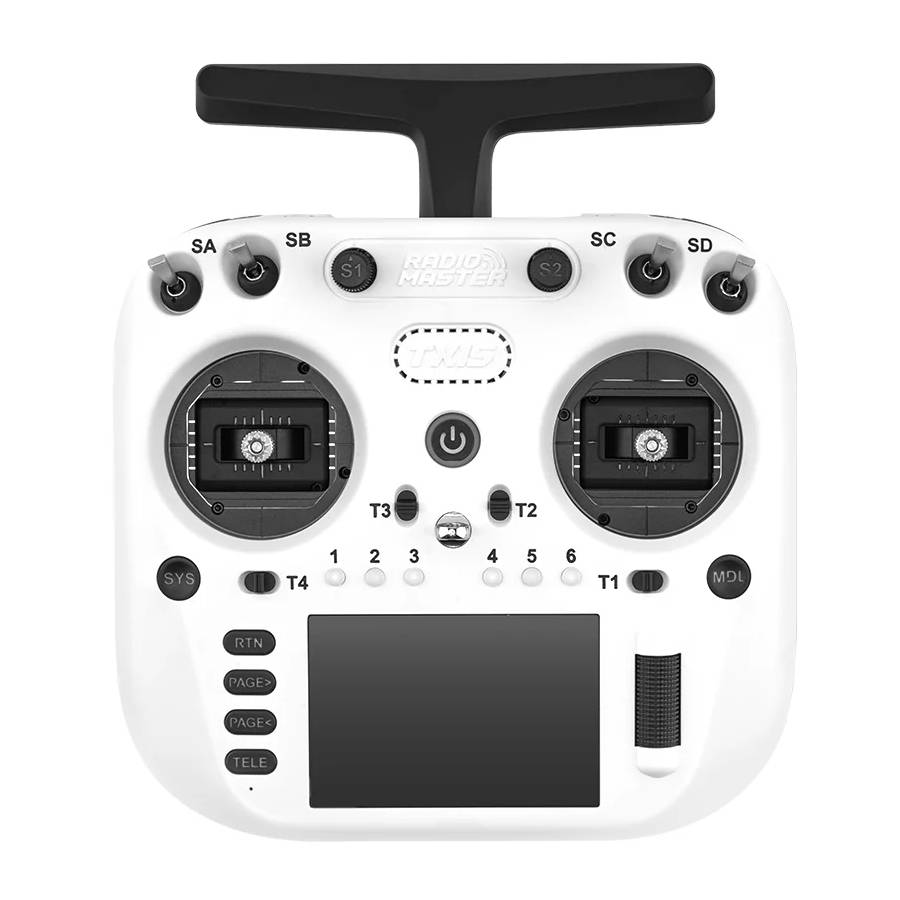

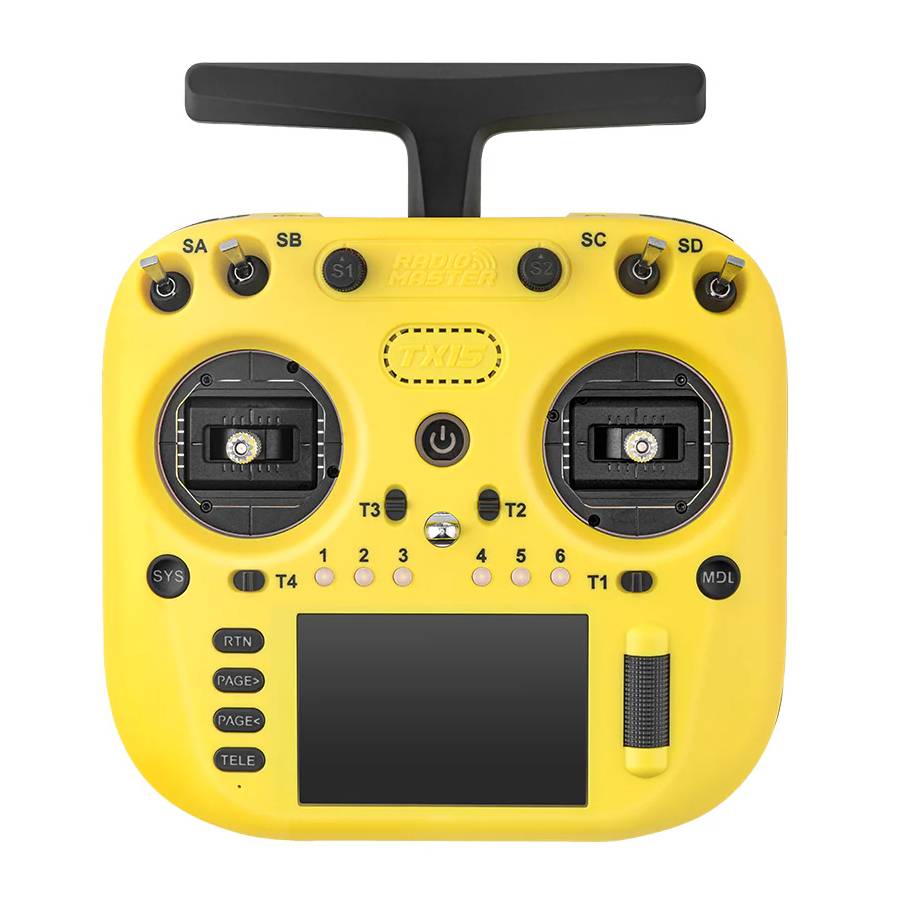

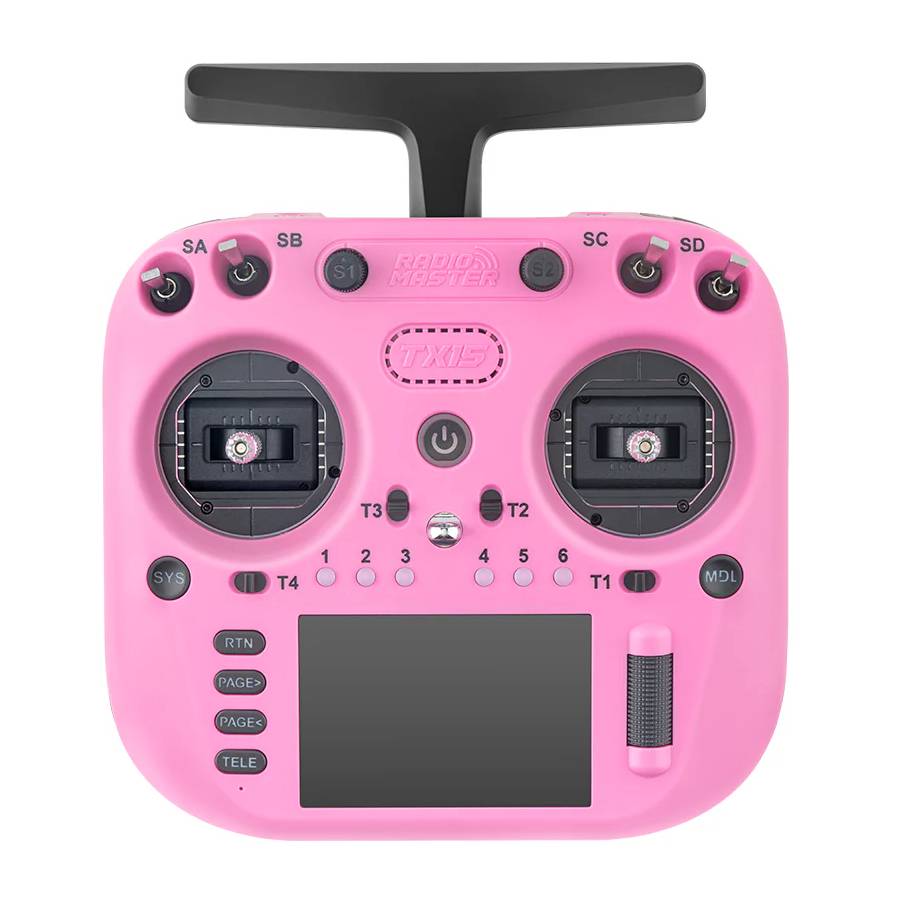

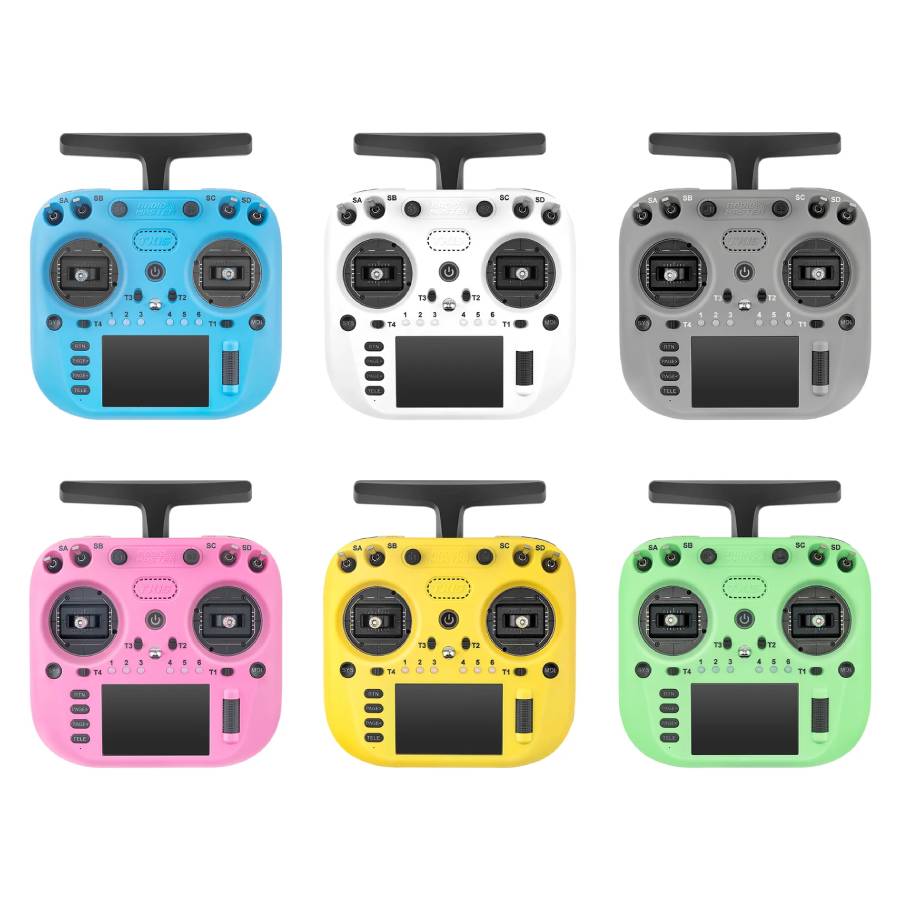

- Optional colours: Iron Grey/Frost White/Iceberg Blue/Mint Mist/Lemon Twist Yellow/Hot Pink
Specifications:
- Model: TX15 Radio Controller
- Size: 178*168*81mm
- Weight: 605g (without battery)
- Frequency: 2.400GHz OR Sub-G 900MHz
- Internal RF: ELRS 2.4GHz / Sub-G 900MHz
- Supported Protocols: Express-LRS
- Cooling Fan: Yes
- Transmitter Module: Built-in ELRS
- Built-in Flash Size: 4GB
- Built-in Microphone: Yes (Future expansion)
- MicroSD card (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)
- Antenna Gain: 2dB (transmit power adjustable)
- Current: 875mA at max power output
- Voltage Range: 6.6 - 8.4V DC
- Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later)
- Module Firmware: ExpressLRS
- Channels: Max 16 channels (Receiver dependent)
- Display: 3.5-inch IPS touchscreen (480 x 320 resolution)

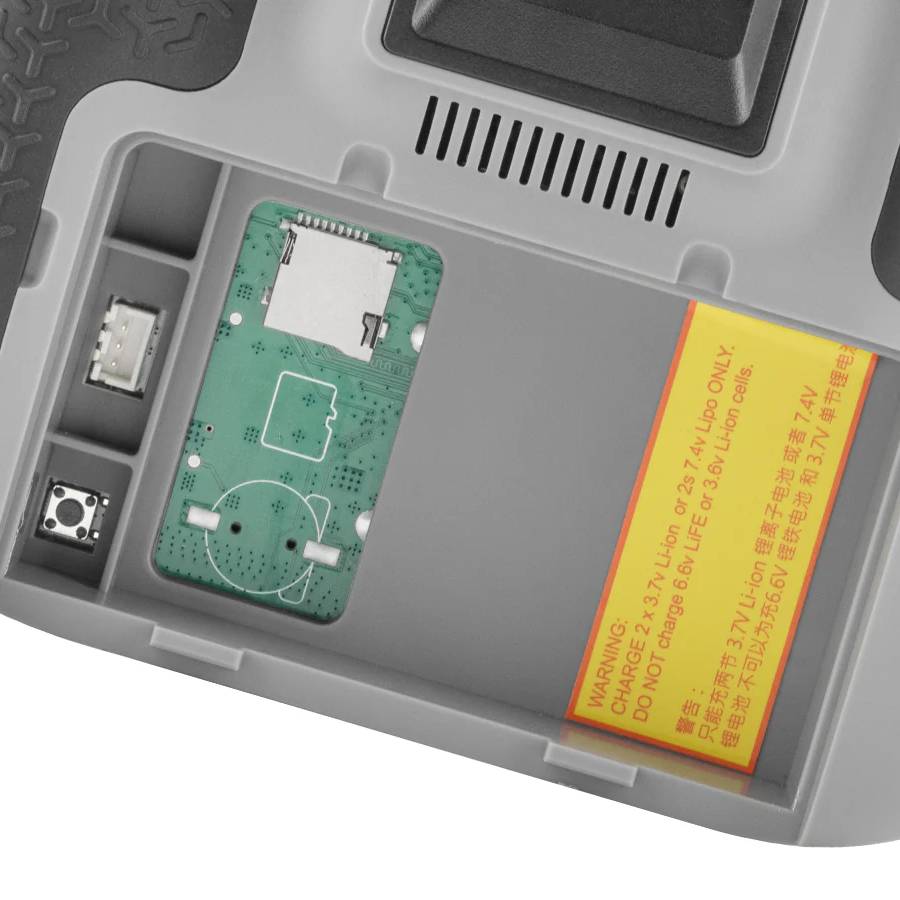

- Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh - Battery (batteries not included)
- Connectivity: USB-C
- Gimbals: V5.0 Hall sensor gimbals (standard)
- Gimbal Sticks: M4
- Upgrade Method: USB-C (UF2)
- Module Bay: JR-compatible module bay for additional modules
Included:
- 1x Radiomaster TX15 Transmitter
- Accessories
