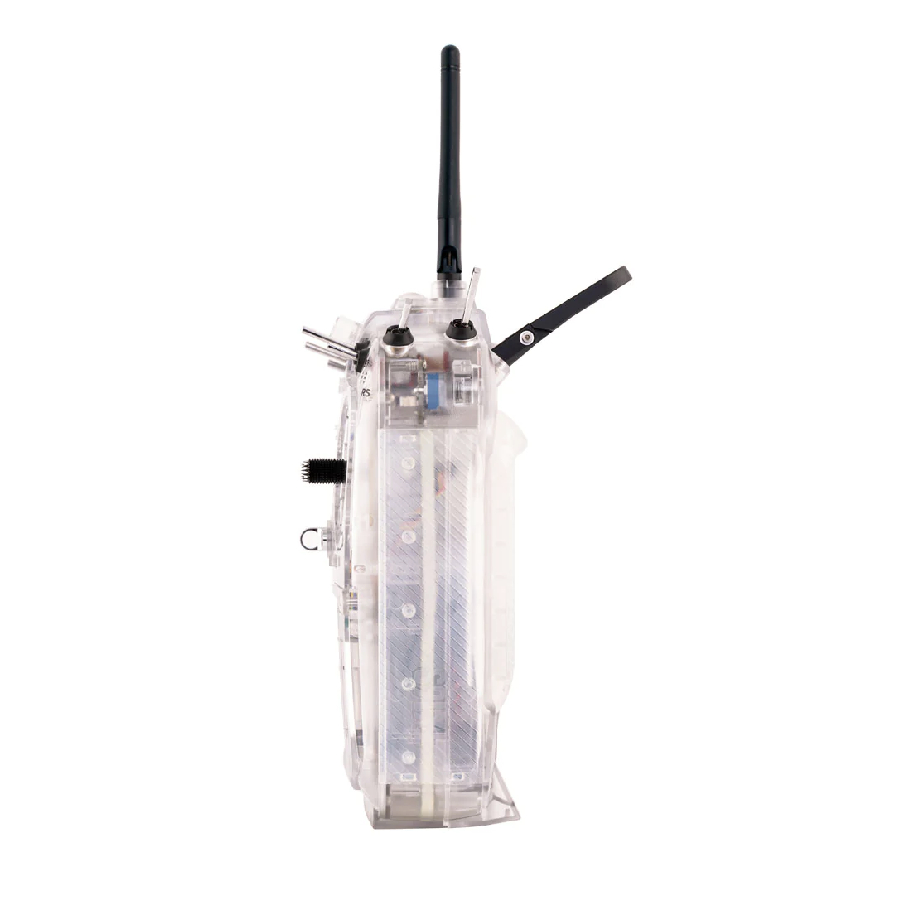

Radiomaster TX16S MKII Transparent Transmitter (MCK Edition) (ELRS)

Radiomaster TX16S MKII Transparent Transmitter (MCK Edition) with Hall sensor gimbals and ELRS module in transparent.
Manufacturer: Radiomaster
Availability: In stock
£249.99 inc VAT
Ship to
Shipping Method
Estimated Delivery
No shipping options

The Radiomaster TX16S MKII Transparent MCK edition is the second version of the TX16S MAX. The MCK edition features a transparent case design and innovative RGB light system offering four RGB modes and a choice of five vibrant colours. This allows you to tailor your radio to your mood or style. Unleash your creative and unique personality with the TX16S MKII Radio Transparent edition!

** HOBBYRC is the Radiomaster UK repair agent. Be assured these are genuine radios backed by genuine spares should something go wrong **

** Requires 2x 18650 cells OR LiPo battery to function (see related items) **

- Clear Crystal Case and surrounding RGB lights design, experience the Heartbeat of Technology
- CNC metal folding handle, easy to carry and storage
- Updated sticky360 gimbal stick ends to bring you a comfortable, zero-slip experience

MK II Improvements:
- Improved internal circuity and optimized power supply.
- New charge circuitry with integrated reverse-polarity protection.
- Optimized charge IC now allows up to 2.2A internal USB-C charge current.
- Rear mounted audio jack provided headphone output.
- V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
- Optional high/low rear grips included for improved ergonomics.
- Improved S1/S2 knobs with clear centre-detents.
- Improved LS/RS Sliders with smoother feel and better centre-detents.
- Redesigned battery cover for improved battery access.
- Retooled body shell with improved fit and finish.
- Trainer socket changed to standard TRS 3.5mm socket.
- Rear DIY Socket added for personalised mods.
- Improved internal plastics for better longevity.

TX16s Specifications:
- Size: 287x129x184mm
- Weight: 750g (without battery)
- Transmission frequency: 2.400GHz-2.480GHz
- Transmitter module: Internal ELRS (SX1280)
- Working current: 400mA
- Working voltage: 6.6-8.4v DC
- Radio firmware: EdgeTX
- Module Firmware: ExpressLRS (ELRS)
- Channels: Up to 16 channels (depending on the receiver)
- Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
- Gimbal: V4.0 Hall sensor
- Module Bay: JR compatible module bay
- Upgrade method: Supports USB-C online / SD card offline upgrade


- 1x Radiomaster TX16S MKII Transparent Transmitter (MCK Edition) (ELRS)
- 1x High Density Foam Case
- 1x Pair Of Flat Grips
- 1x Pair of Raised Grips

- 1x USB Cable
- 1x 18650 Tray
