Overview:

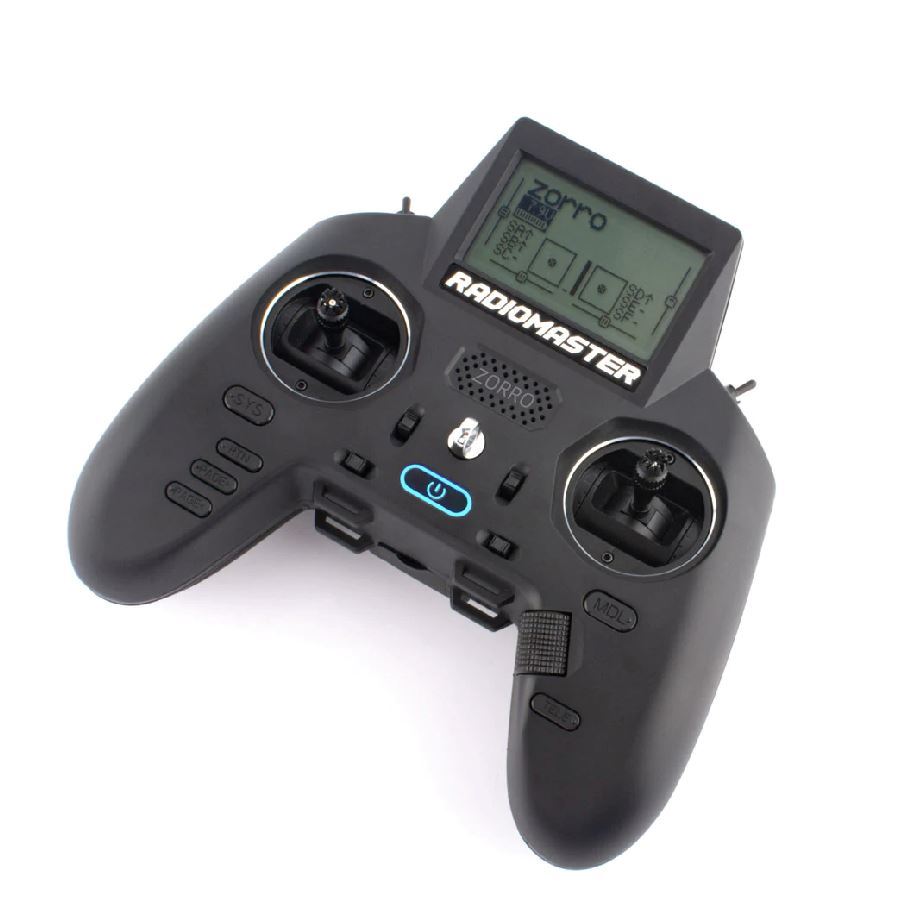

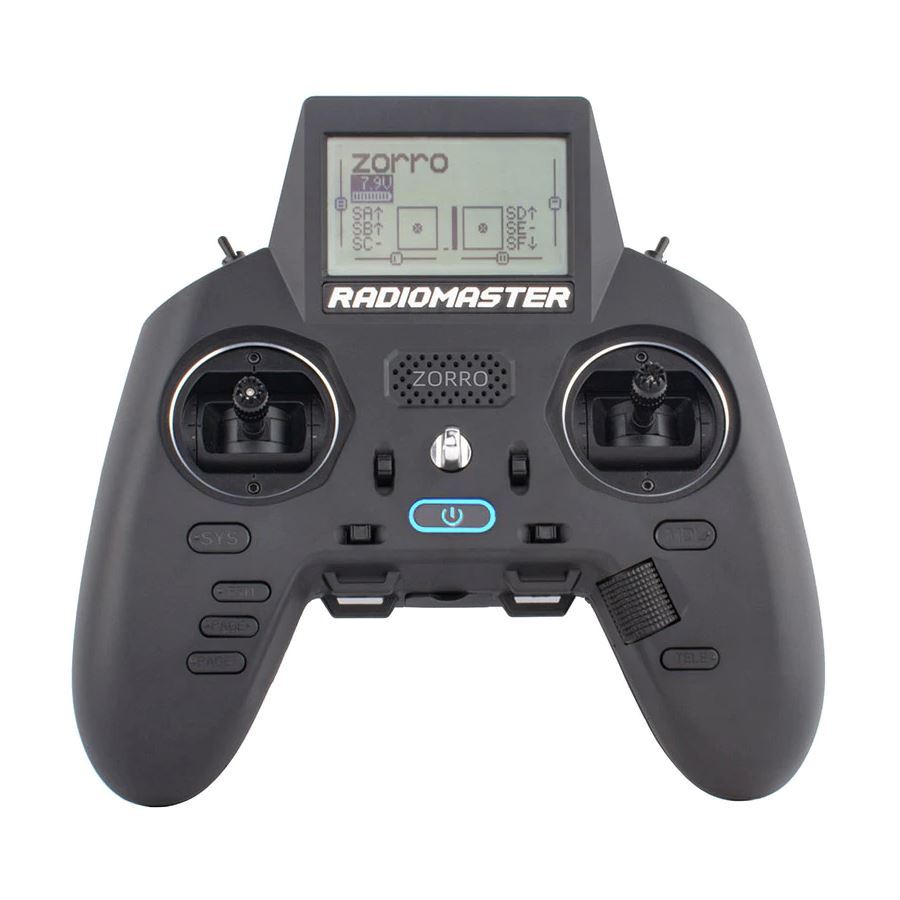

The Radiomaster Zorro features an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again. This version includes the 4in1 module, which supports a large range of protocols, including FRSKY ACCST, Spectrum DSM2, etc.
** HobbyRC is the only official Radiomaster UK Retail & Repair Agent. Rest assured, these are genuine transmitters backed by a full UK guarantee should a fault occur within the warranty period.**
** Requires 2x 18350 cells to function (see Related Products below).**
Features:
- Switchable in Mode 1 and Mode 2 - Zorro radio supports switching between Mode 1 and Mode 2 without disassembly. The default factory mode is Mode 2.
- Adjustable Hall Gimbals
- External Module Bay - Zorro Radio is with an external module bay for use with Crossfire / ELRS and other compatible modules.
- 4in1 module, compatible with a large list of protocols. See the list for full details and notes.
- 18350 Battery Compartments
- Battery Charging - Supports USB-C Direct Charging
- Supports External 2S Battery Power Supply
- Oversized LCD & Foldable Antenna
- Ergonomically Designed
Specification:
- Physical Dimensions 170*159*108mm
- Weight: 350g
- Operating Frequency:2.400GHz-2.480GHz
- Antenna Gain: Folding 2db
- Operational Current: 160mA@8.4V
- Operational Voltage: 6.6-8.4V DC
- Control Distance: > 2km @ 20dbm
- Operating system: OpenTX / EdgeTX Compatible
- Control channels: Maximum 16 (Rx dependent)
- Display: 128*64 Monochrome LCD
- Battery: 2 x 18350 (Not included)
- Charging: Built-in USB-C Charging
- Gimbal: Hall-effect
- Module Bay: Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
- Firmware Upgrade Method: Via USB or SD card
Included:
- 1x Radiomaster Zorro Transmitter (4in1 Module) MODE 2
