Radiomaster Zorro (CC2500)

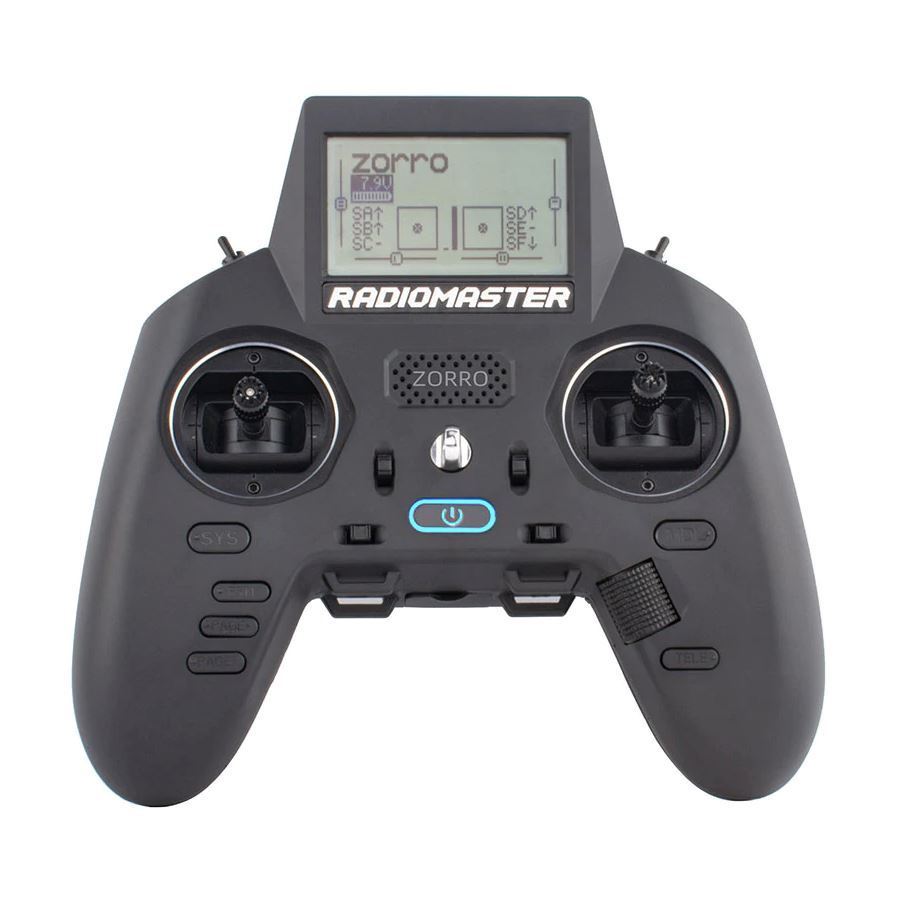

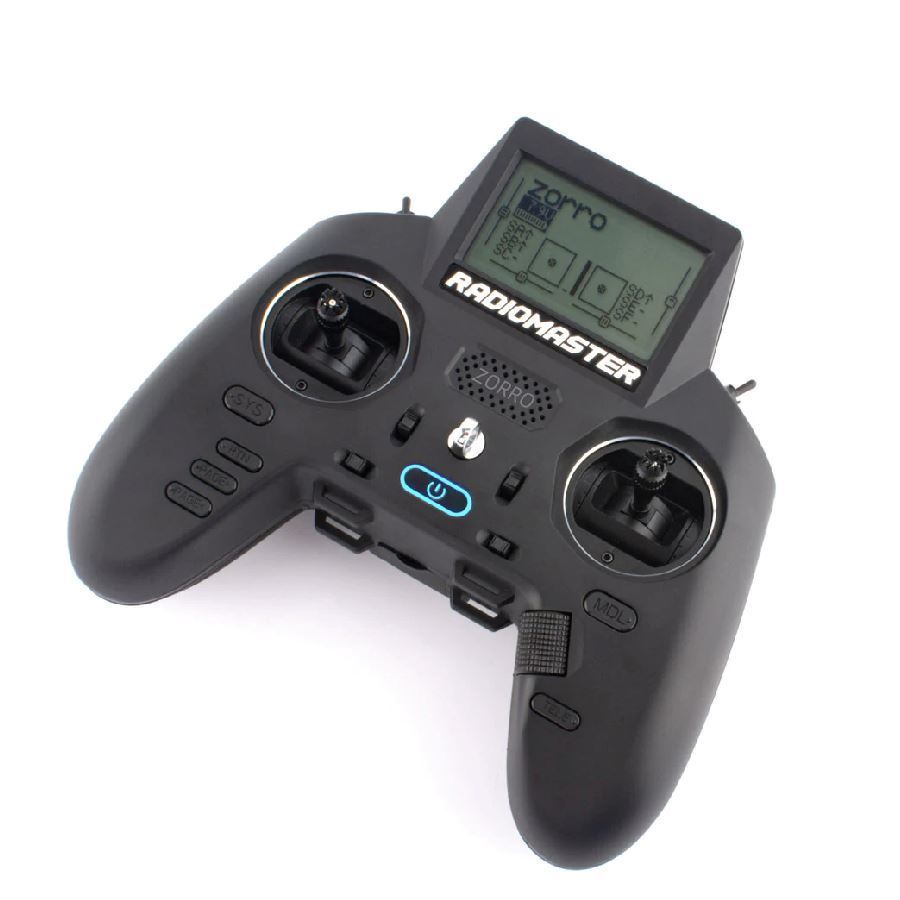

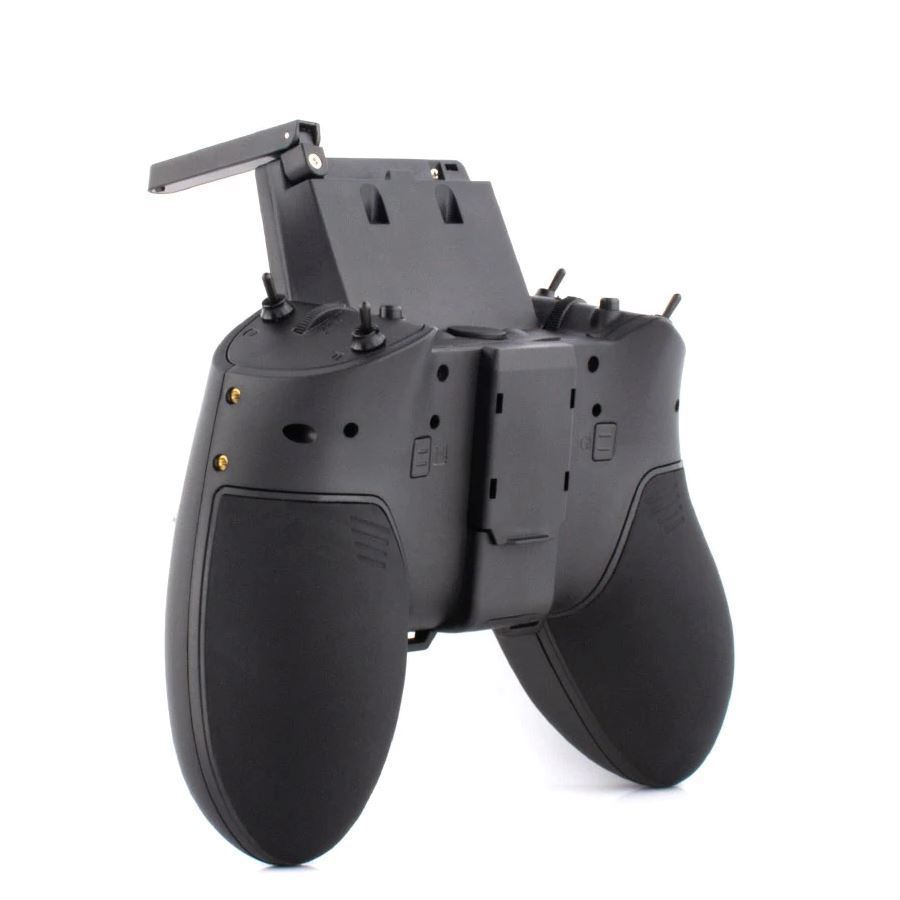

Radiomaster Zorro radio controller with CC2500 module.
Manufacturer: Radiomaster
Availability: Out of stock
£99.99 inc VAT
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview:

The Radiomaster Zorro features an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again. This version includes the CC2500 module so supports a smaller range of protocols like FrSKY ACCST V1/V2, FRSKY, FUTABA, SFHSS, Hitec and  Radiolink protocols.


** HOBBYRC is the Radiomaster UK repair agent. Be assured these are genuine radios backed by genuine spares should something go wrong **

** Requires 2x 18350 button top cells (not included - see related items). Batteries will come pre-installed if ordered together **

Radiomaster Zorro Features:
- Switchable in Mode 1 and Mode 2 - Zorro radio supports switching between Mode 1 and Mode 2 without disassembly. The default factory mode is Mode 2.

- Adjustable Hall Gimbals
-
External Module Bay - Zorro Radio is with an external module bay for use with Crossfire / ELRS and other compatible modules.

CC2500 module, compatible with some FrSKY ACCST V1/V2, FRSKY, FUTABA, SFHSS, Hitec and  Radiolink protocols. See list for full details and notes.
- 18350 Battery Compartments
- Battery Charging - Supports USB-C Directing Charging
- Supports External 2S Battery Power Supply
- Oversized LCD & Foldable Antenna
- Ergonomically Designed

Zorro Specifications:
- Physical Dimensions 170*159*108mm
- Weight: 350g
- Operating Frequency:2.400GHz-2.480GHz
- Antenna Gain: Folding 2db
- Operational Current: 160mA@8.4V
- Operational Voltage: 6.6-8.4v DC
- Control Distance: > 2km @ 20dbm
- Operating system: OpenTX / EdgeTX Compatible
- Control channels: Maximum 16 (Rx dependent)
- Display: 128*64 Monochrome LCD
- Battery: 2 x 18350 (Not included)
- Charging: Built in USB-C Charging
- Gimbal: Hall-effect
- Module Bay: Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
- Firmware Upgrade Method: Via USB or SD card

Included:

- 1x Radiomaster Zorro Transmitter (CC2500) MODE 2
