Overview:

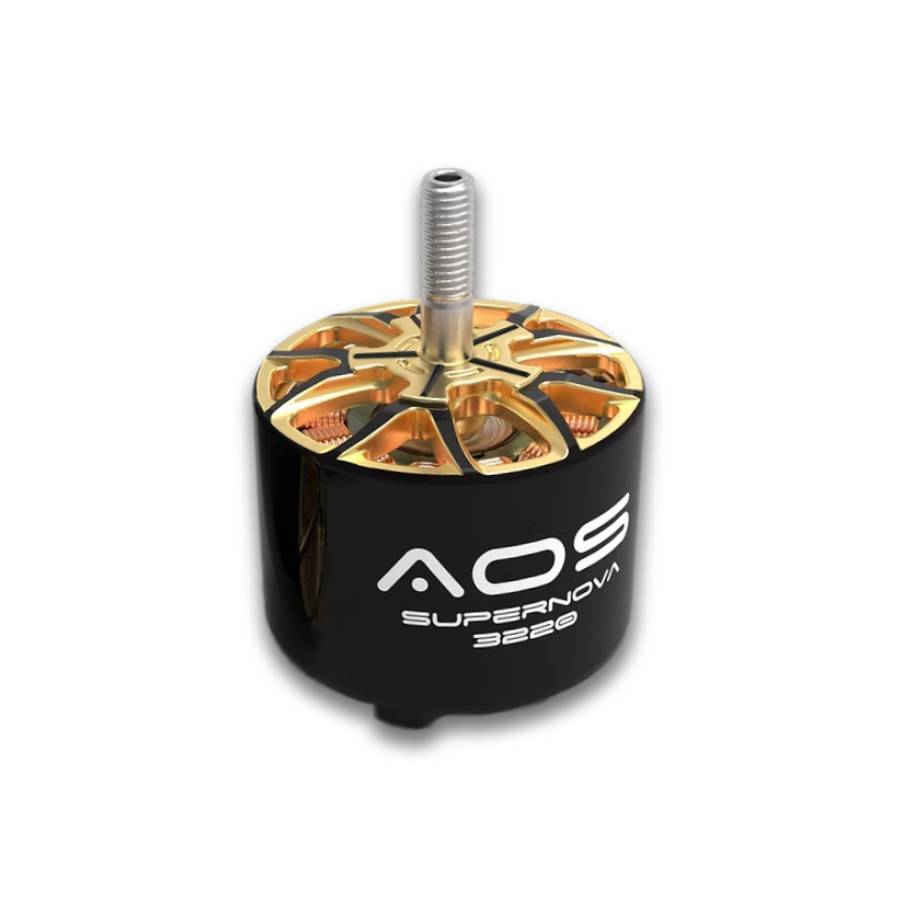

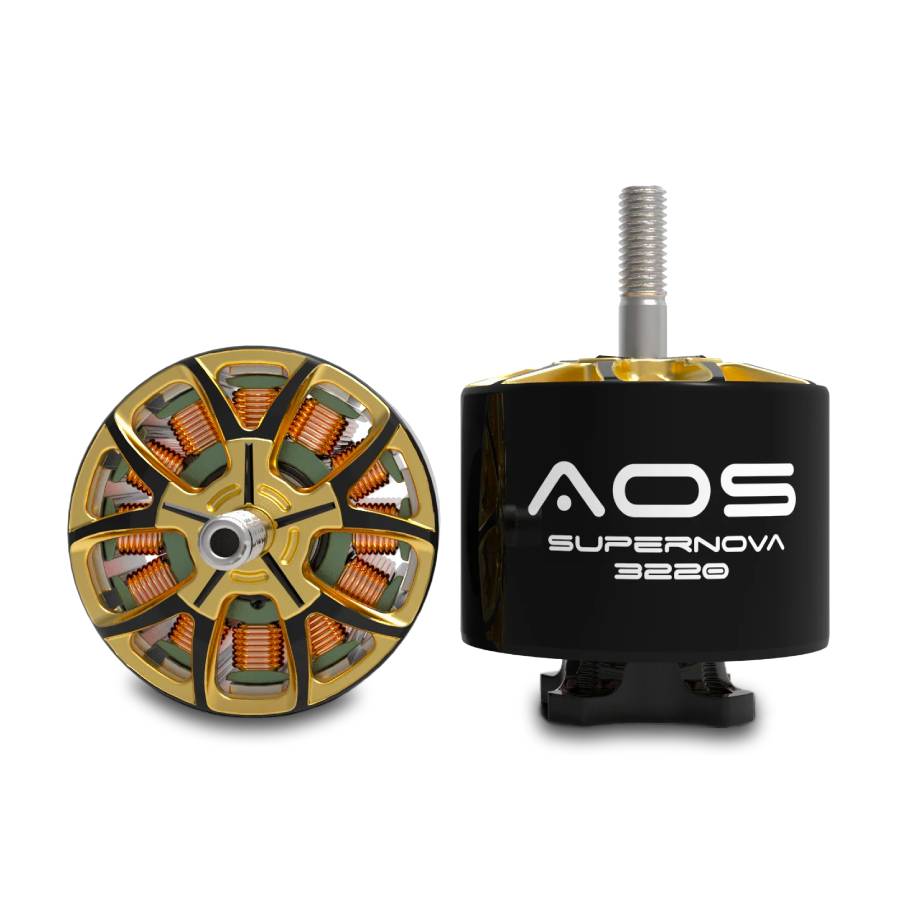

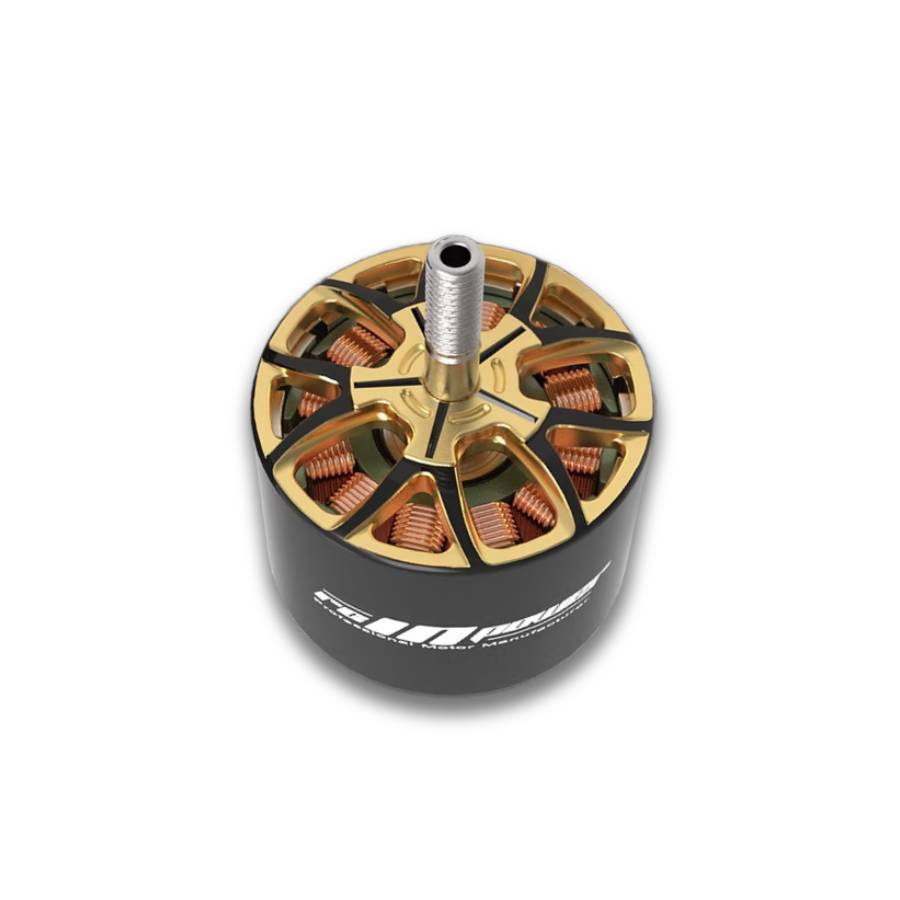

The RCInPower AOS Supernova 3220 motor range is engineered for large FPV platforms that demand high torque, strong thrust and efficient power delivery. Designed by AOS and manufactured by RCinPower, these motors are intended for larger propeller setups commonly used on 7-10inch drones, cinelifters and high-power FPV wings.
At the core of the design is a 3220 stator platform, providing substantial torque for spinning large propellers efficiently while maintaining smooth throttle response and precise control. The motor’s magnetic circuit and winding design were optimised through extensive simulation work, resulting in improved thrust output, responsiveness and electrical efficiency compared with typical motors in the same class.
The Supernova 3220 range is available in three KV options, allowing builders to match the motor to their airframe and battery setup. Lower KV versions favour efficiency and larger propellers on higher voltage systems, while higher KV options provide increased responsiveness for more aggressive setups. This flexibility makes the range suitable for heavy-lift cinematic drones, long-range FPV platforms and high-performance fixed-wing applications where consistent power and control are essential.
Manufactured by RCinPower and based on the proven Supernova design philosophy, the 3220 series focuses on delivering strong thrust, smooth power delivery and reliable efficiency for demanding large-format FPV builds.
Features:
- Large 3220 stator platform designed for high-torque large-propeller setups
- Developed by AOS and manufactured by RCinPower
- Optimised magnetic design developed through extensive simulation
- Designed for 7-10inch propeller applications including cinelifters and FPV wings
- Improved thrust output compared with typical motors in the 3220 class
- Responsive throttle control suited to large drone stabilisation
- High electrical efficiency across a wide throttle range
- Available in three KV variants to match different battery and propeller configurations
Specification:
Common to all versions:
- Motor stator size: 3220
- Shaft diameter: 5mm (hollow)
- Stator diameter: 32mm
- Stator length: 20mm
- Configuration: 12N14P
- Motor dimensions: 39.4x36.25mm
- Weight: 170g
- Max efficiency current: 5–12A (>86%)
700KV Version:
Idle current (10s)@10V: 1.8A
Recommended LiPo: 6–8S
Max continuous power (15S): 2214W
Internal resistance: 35mΩ
Max current (15S): 69.2A
Max efficiency current: 5–12A (>86%)
925KV Version:
Idle current (10s)@10V: 2.1A
Recommended LiPo: 5–6S
Max continuous power (15S): 1939W
Idle current (10s)@10V: 2.1A
Maximum current: 80.8A
Maximum continuous power (15S test): 1939W
Recommended LiPo cells: 5–6S
1000KV Version:
Idle current (10s)@10V: 2.3A
Recommended LiPo: 5–6S
Max continuous power (15S): 2110W
Internal resistance: 23mΩ
Max current (15S): 87.9A
Max efficiency current: 6–13A (>86%)
Included:
- 1x RCInPower AOS Supernova 3220 Motor
- Accessories
