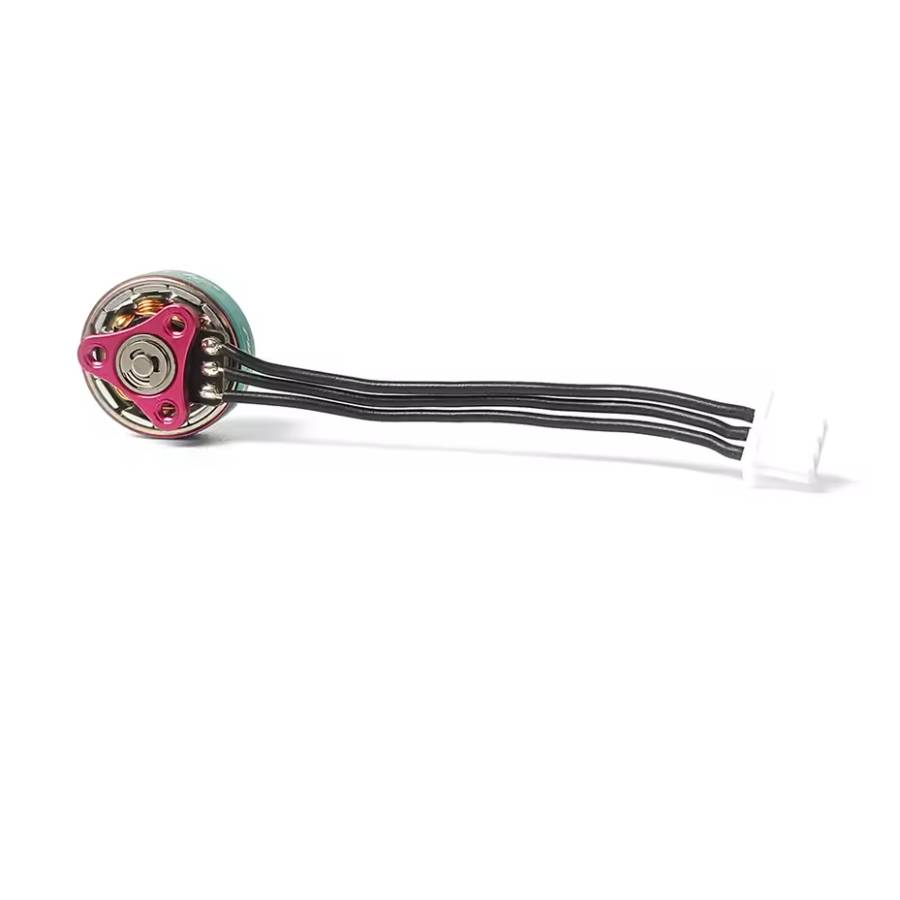

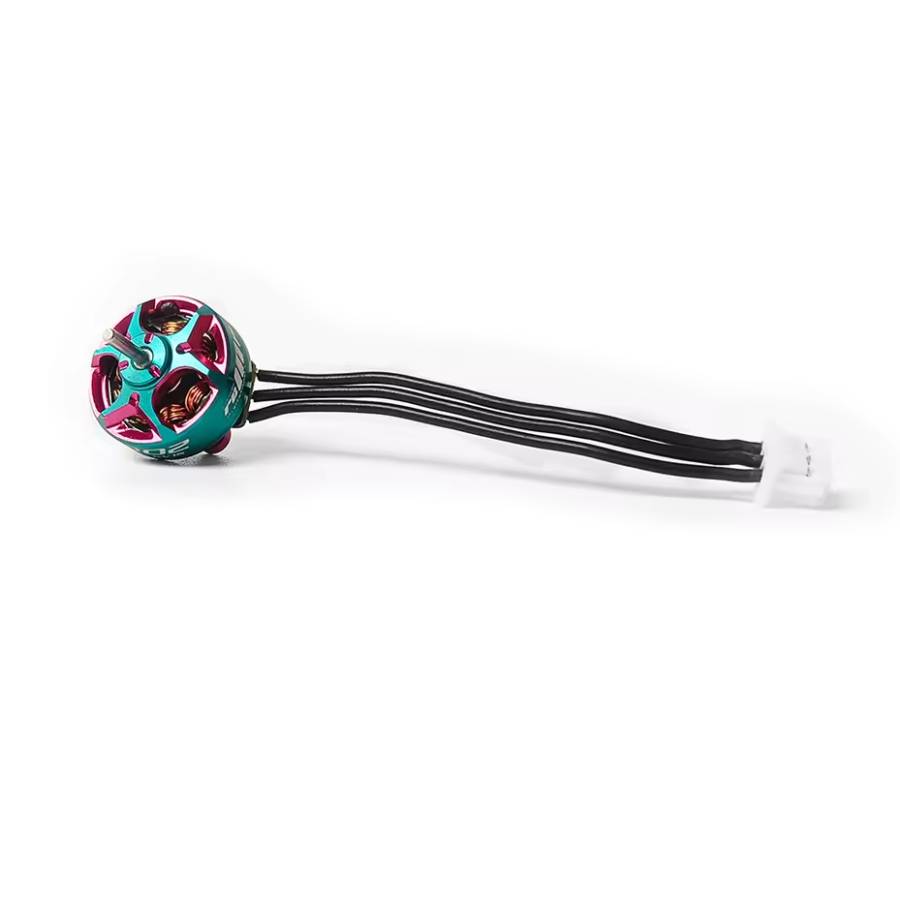

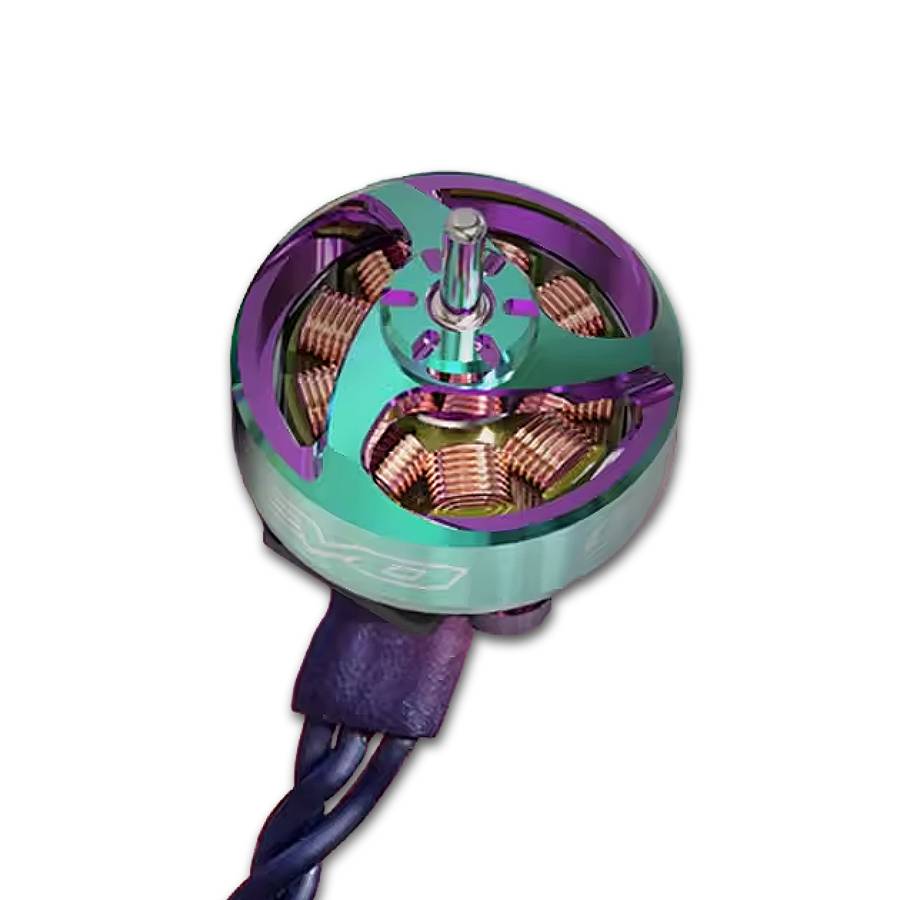

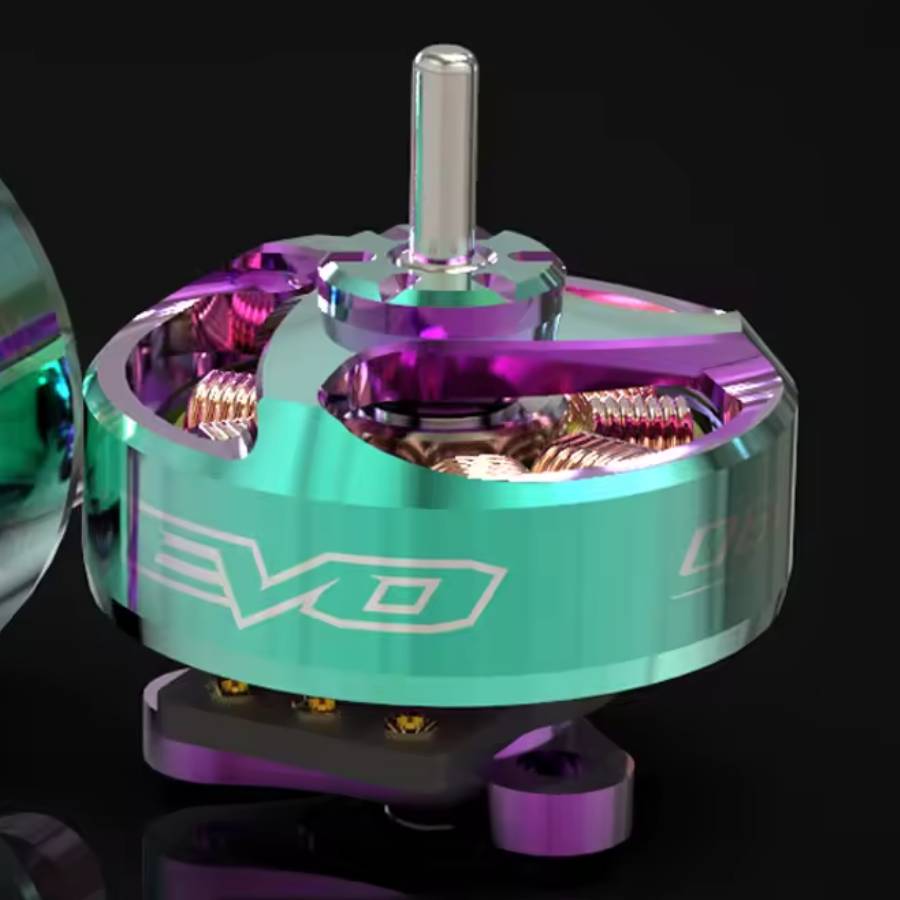

RCInPower EVO 0802 25000KV Brushless Motor

Overview:
The RCInpower EVO 0802 25000KV brushless motor is a lightweight high-RPM motor designed for 1S micro FPV drones, particularly 65–75mm whoops and toothpick drones. With an 0802 stator size and very high KV rating, it is intended to deliver fast throttle response and strong punch while keeping overall weight extremely low for responsive micro-quad performance.

The EVO series delivers smooth power delivery and efficiency through a compact 9N12P stator design and precision manufacturing. This helps minimise vibration and provides stable motor operation even at the high RPM required by modern 1S setups. At around 1.9g, including short leads, the motor keeps rotational mass and overall quad weight low, which is especially important for small indoor and lightweight outdoor builds. The motor uses a standard micro mounting pattern and a 1mm shaft to support common press-fit micro props used on tiny whoops and lightweight racing frames.

Finished in a teal blue and purple anodised colour scheme, the EVO 0802 combines compact size, high RPM capability and eye-catching design.

Features:
- 0802 stator size designed for lightweight micro FPV builds
- 25000KV rating optimised for high-RPM 1S performance
- 9N12P stator configuration for smooth and efficient motor operation
- Hollow 1mm shaft compatible with press-fit micro propellers
- Compact and lightweight construction for micro whoop platforms
- Precision micro bearings for smooth and consistent rotation
- Standard micro motor mounting pattern for whoop and toothpick frames

Specification:
- Stator diameter: 8mm
- Stator length: 2mm
- Configuration: 9N12P
- Motor dimensions: 11.2x8.2mm
- Shaft diameter: 1mm
- Weight: approx.1.85–1.9g
- Idle current (5V): approx.0.23–0.25A
- Internal resistance: approx.100–105mΩ
- Max continuous power: approx.23.7–24.1W
- Max current: approx.6.4–6.5A
- Max efficiency current: 1–2A (>82–83%)
- Supported battery: 1S LiPo
- Anodised finish

Included:
- 1x RCinPower EVO 0802 25000KV Motor
- Accessories
