Overview:
The RCInPower GTS V4 2207 UL Brushless Motors are designed for modern 5-inch FPV drones that require a balance of strong power delivery, smooth throttle response, and reliability. Built around a 2207 stator platform, this motor provides the torque and responsiveness commonly preferred for freestyle and racing builds while maintaining a relatively lightweight design.
Both available KV options share the same core construction and dimensions, allowing pilots to choose the version that best suits their setup. The 2100KV version offers a slightly more controlled throttle feel and efficiency for freestyle-focused builds, while the 2180KV version provides a touch more top-end responsiveness and power for aggressive flying or racing setups.
The motor features a hollow 4mm shaft and a 12N14P stator configuration, helping reduce rotating mass while maintaining strength and durability. This contributes to faster throttle response and improved braking characteristics when combined with modern ESC protocols and high-performance props.
Rated for 5–6S LiPo operation and capable of handling high current loads, the GTS V4 2207 UL is suitable for demanding freestyle or racing quads where consistent performance matters.
Features:
- 2207 stator size providing strong torque for 5-inch freestyle and racing drones
- Hollow 4mm shaft design for reduced rotating mass and improved throttle response
- 12N14P stator configuration for smooth motor operation
- UL lightweight construction to reduce overall quad weight
- Designed for 5S–6S LiPo powered FPV drone builds
- Suitable for freestyle, racing, and high-performance 5-inch quads
Specification:
2100KV Version:
- Configuration: 12N14P
- Stator diameter: 22mm
- Stator length: 7mm
- Shaft diameter: 4mm (hollow)

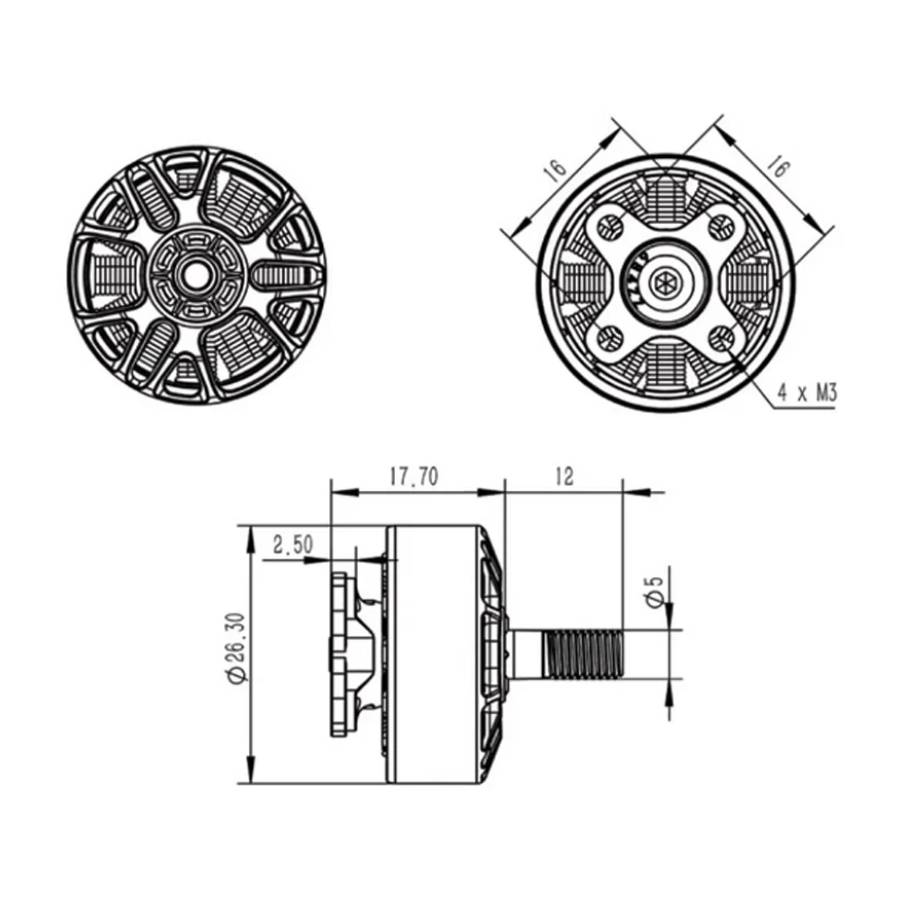

- Motor dimensions: 26.3x29.7mm
- Weight: 28.8g (with 2cm wire)
- Idle current (10s) @10V: 1.1A
- Internal resistance: 54mΩ
- Max current (5S): 55.1A
- Max continuous power (5S): 1322W
- Max efficiency current: 7–10A (>86%)
- Recommended LiPo: 5–6S
2180KV Version:
- Configuration: 12N14P
- Stator diameter: 22mm
- Stator length: 7mm
- Shaft diameter: 4mm (hollow)
- Motor dimensions: 26.3x29.7mm
- Weight: 28.8g (with 2cm wire)
- Idle current (10s) @10V: 1.2A
- Internal resistance: 49mΩ
- Max current (5S): 58.4A
- Max continuous power (5S): 1402W
- Max efficiency current: 6–10A (>85%)
- Recommended LiPo: 5–6S
Included:
- 1x RCInPower GTS V4 2207 UL Brushless Motor
- Accessories
