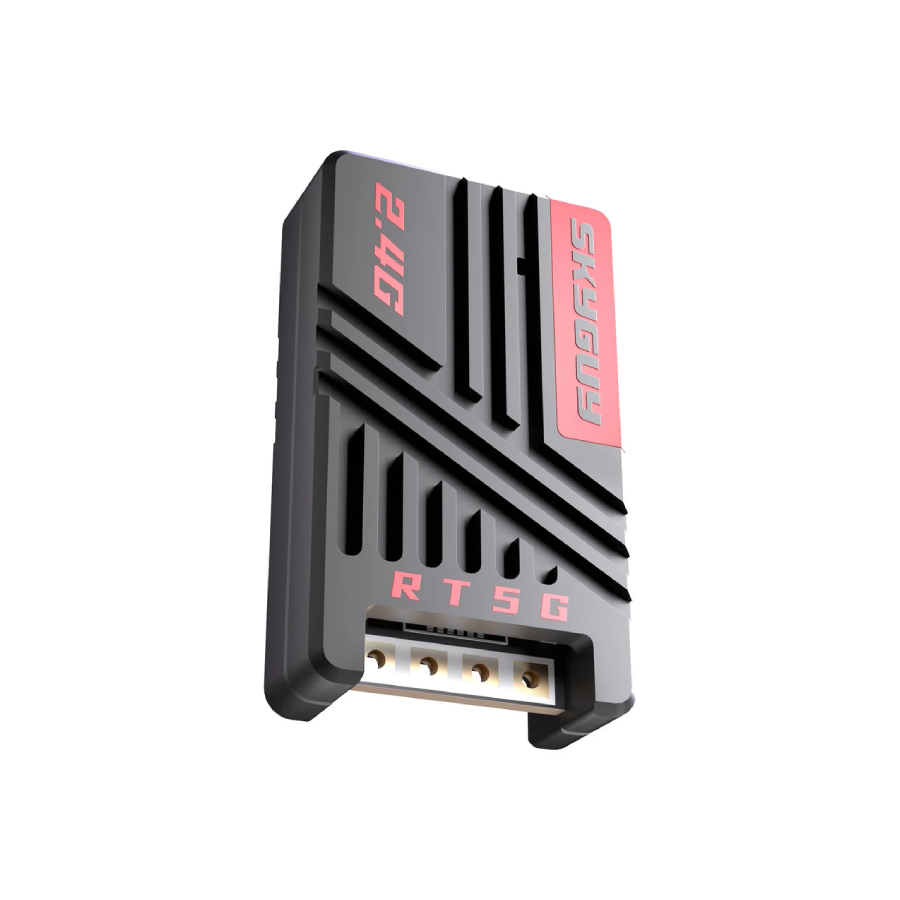

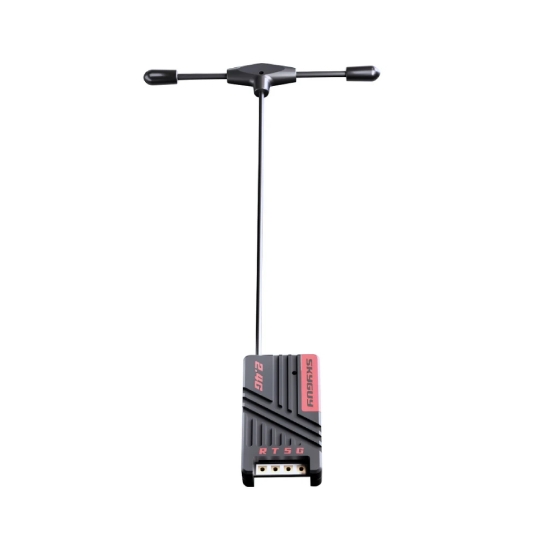

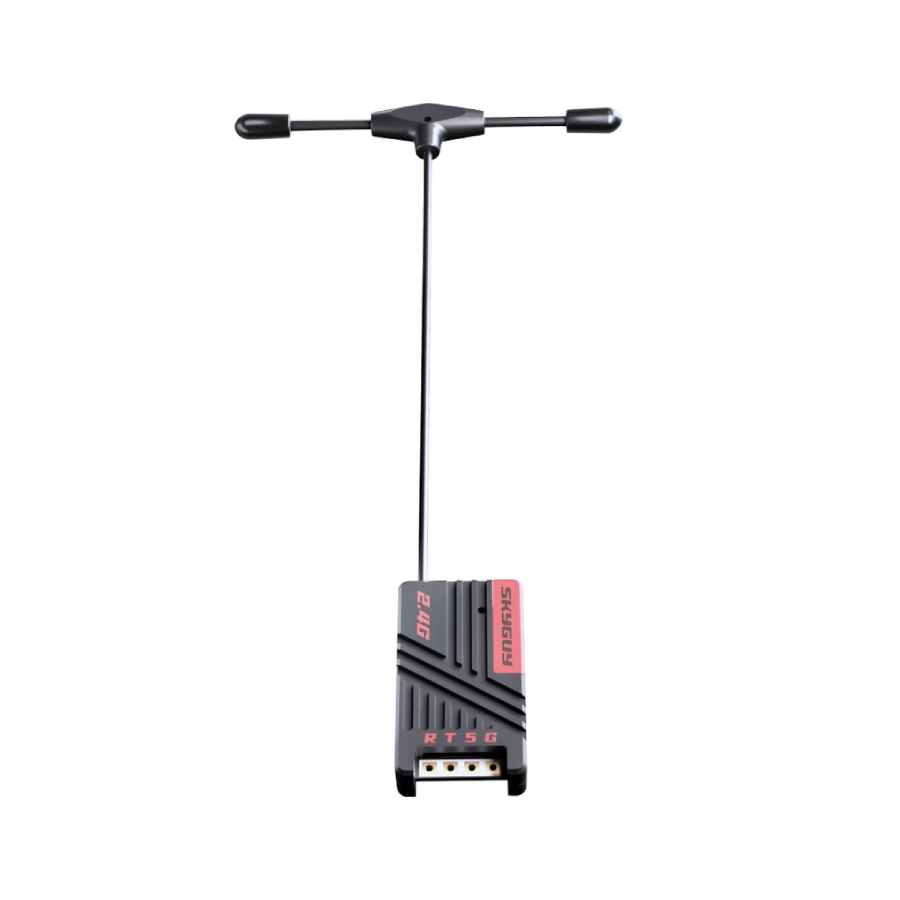

Runcam SkyGuy Max 2.4G ELRS Receiver (lightweight version)

Overview:
The RunCam SkyGuy Max is a high-power 2.4GHz ExpressLRS receiver designed for long-range FPV quads and fixed-wing aircraft. Built around an SX1280 RF chip and ESP32-C3 processor, it combines a responsive control link with adjustable telemetry output power up to 1000mW, helping maintain communication with your transmitter over demanding flight distances.

The receiver features an external IPEX antenna connection and is supplied with the lightweight T-antenna, making it a suitable choice for builds where reducing weight is important. Its selectable RF power levels allow telemetry output to be adjusted to suit the flight setup and applicable radio regulations. The compact receiver can be integrated into a range of FPV builds, from long-range multirotors to fixed-wing aircraft.

Features:
- High-power telemetry: Adjustable transmitter-side telemetry output helps maintain the return link between the aircraft and radio handset.

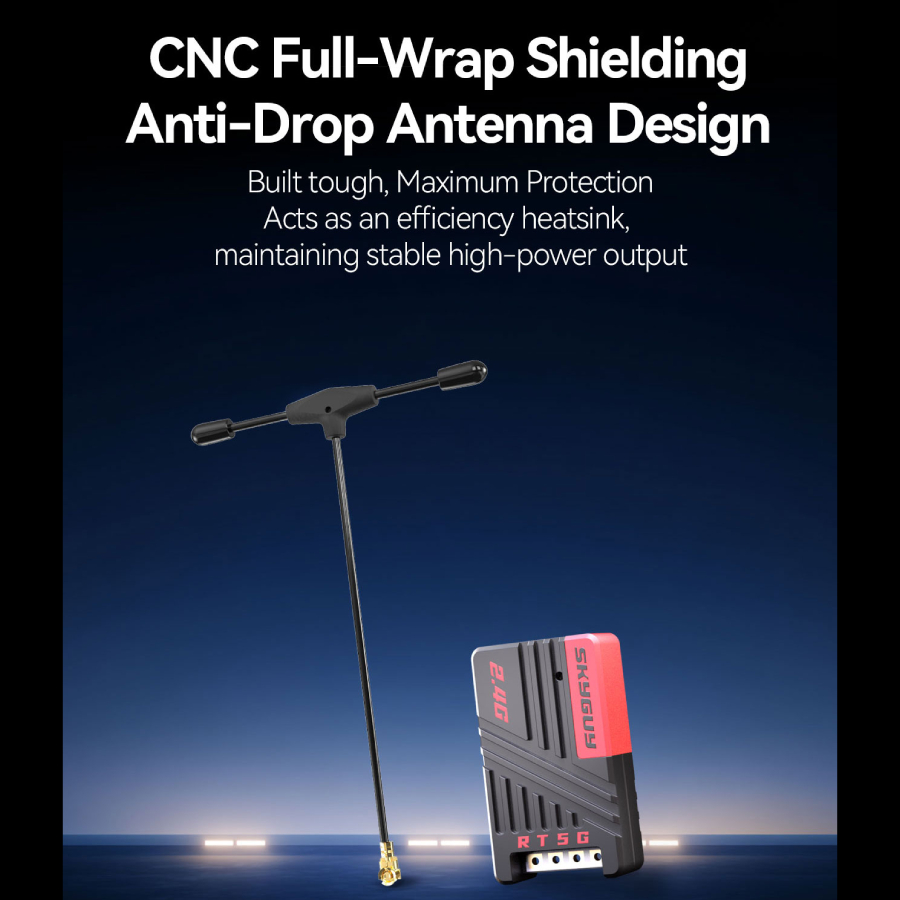

- Lightweight T-antenna: The smaller, lighter antenna option helps reduce installation weight.
- External antenna connection: The IPEX connector allows the antenna to be positioned for better reception, away from carbon fibre and other potential sources of signal obstruction.
- Compact installation: The small receiver board is suitable for space-conscious FPV and fixed-wing builds.
- Adjustable output levels: Lets pilots select a suitable telemetry power level for their setup and local regulations.

Specification:
- Model: RunCam SkyGuy Max
- Operating frequency: 2.4GHz
- RF chipset: SX1280
- Processor: ESP32-C3
- Selectable telemetry output power: 25mW, 50mW, 100mW, 250mW, 500mW and 1000mW
- Input voltage: 5V
- Antenna connector: IPEX1
- Antenna: Lightweight T format
- Antenna dimensions: 52x79mm
- Antenna weight: 0.9g
- Receiver dimensions: 16x27x7.5mm
- Receiver weight: 6g
- Default firmware: SkyGuy Max 2.4GHz RX v3.6.2

Included:
- 1x RunCam SkyGuy Max 2.4G ELRS Receiver (Lightweight version)
- Accessories
