Runcam Split 4 V2
The Runcam Split 4 V2 has the ability to capture HD footage in a wide range of resolutions, from 4K/30fps to 1080p/60fps.
Availability: Out of stock
Overview:
The RunCam Split 4 V2 combines a compact FPV camera with onboard 4K video recording, allowing pilots to capture high-resolution footage without carrying a separate action camera. Its Sony 13MP image sensor records at up to 4K/30fps, with additional recording modes for smoother footage at lower resolutions. The camera also provides a low-latency analogue video output for FPV flying, allowing pilots to record HD footage while maintaining a conventional live video feed to their goggles.
The split design separates the small camera module from the main recording board, giving greater flexibility when installing it in compact freestyle, racing and cinematic FPV builds. A UART connection allows compatible flight controllers to control recording and camera modes, while the 25.5 × 25.5mm mounting pattern makes it suitable for a large range of frames.
Features:
- Onboard HD recording: Captures high-resolution footage without requiring a separate action camera.
- Simultaneous FPV and HD video: Provides a live analogue video feed for piloting while recording footage to the microSD card.

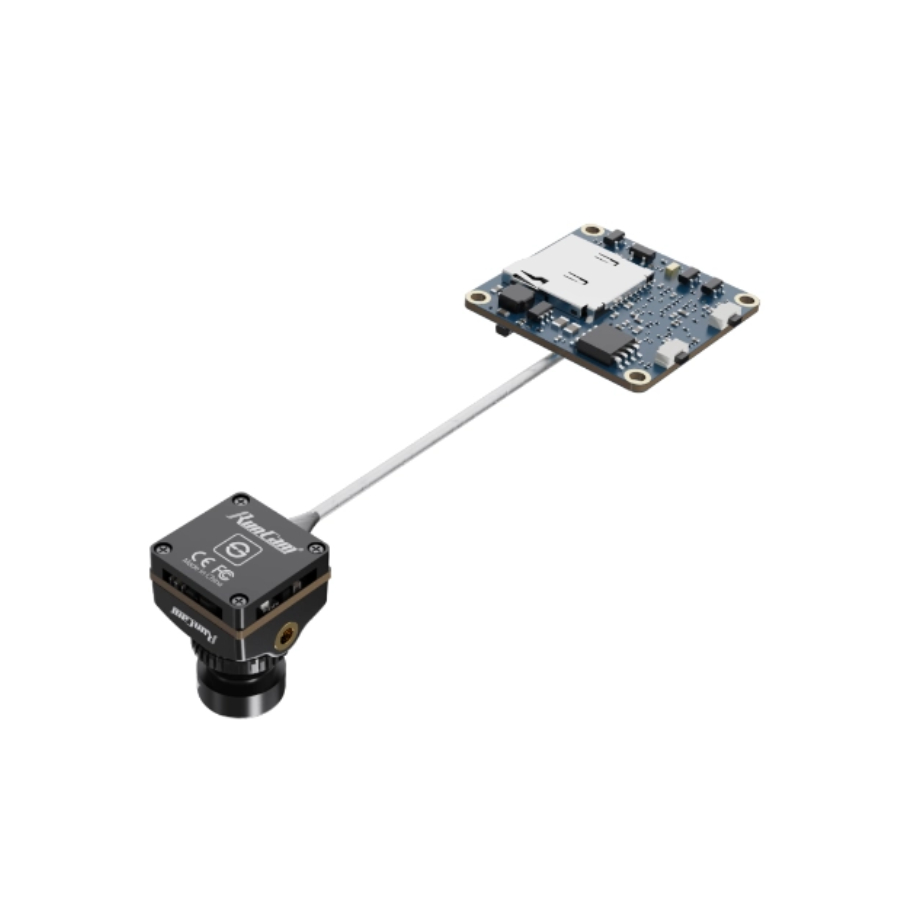

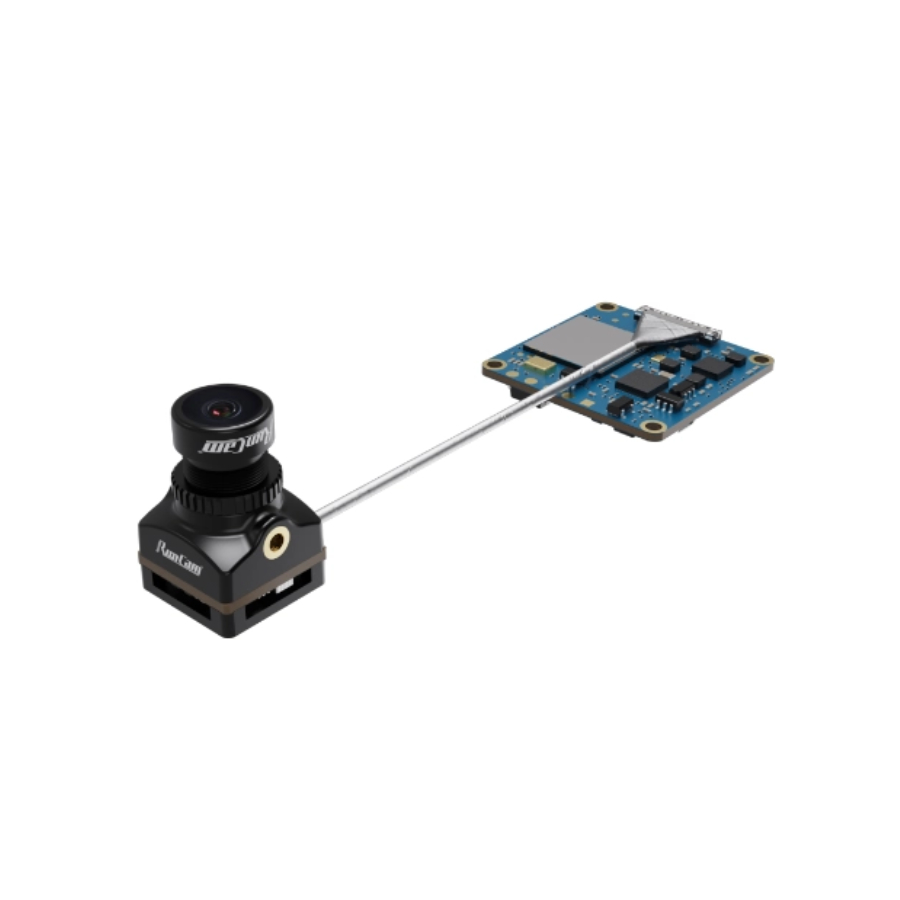

- Split modular design: Separates the lens module from the main board for more flexible installation in compact builds.
- Flight controller integration: UART control allows compatible flight controllers to manage recording and switch between video and OSD settings.
- Configurable camera settings: Onboard controls provide access to recording and camera setup options.
- Power-loss file handling: Firmware includes improvements to help preserve recordings if power is interrupted.
- Switchable video standard: Supports both PAL and NTSC analogue video output.
Specification:
- Model: RunCam Split 4 V2
- Image sensor: Sony 13MP
- Field of view: 140°
- Video recording resolutions: 4K/30fps, 2.7K/60fps, 2.7K/50fps, 1080p/60fps
- Recording format: MP4
- Analogue TV output: NTSC 720x480/PAL 720x576
- Interface: UART
- Maximum microSD card capacity: 128GB
- Recommended microSD card: U3
- Input voltage: 5-20V DC
- Maximum working current: 450mA at 5V

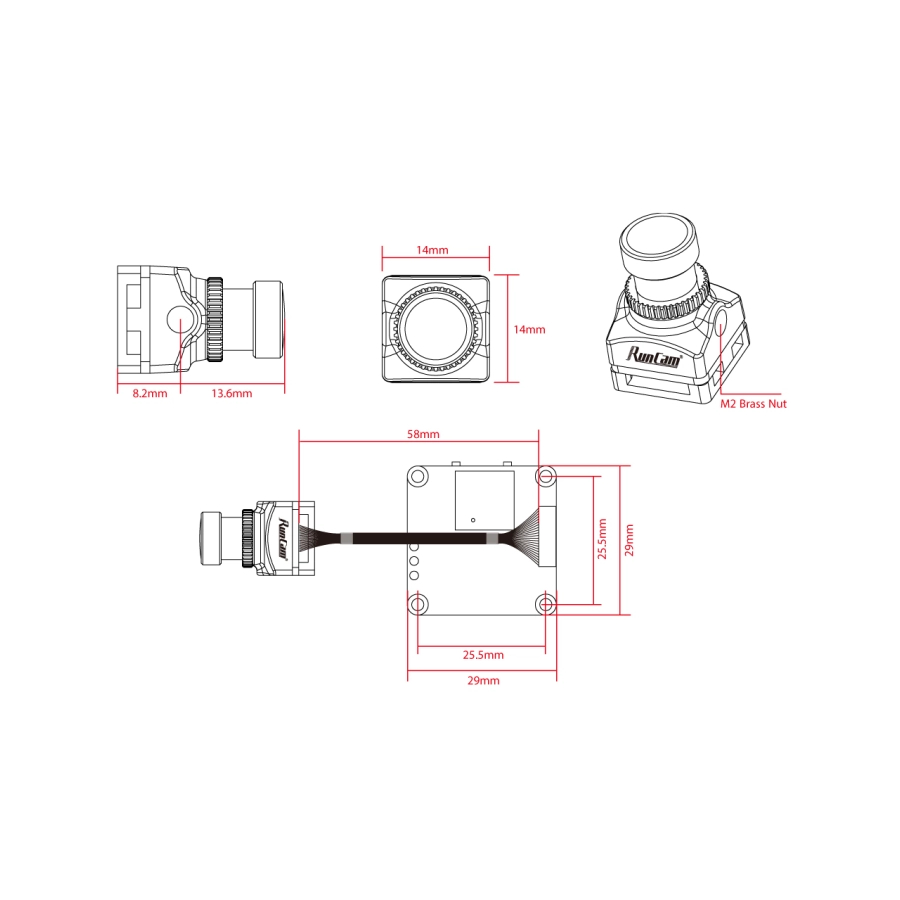

- Lens module dimensions: 14x14mm
- Main PCB dimensions: 29x29mm
- Mounting hole spacing: 25.5x25.5mm
- Weight: 10.2g
Included:
- 1x RunCam Split 4 V2
