Overview:

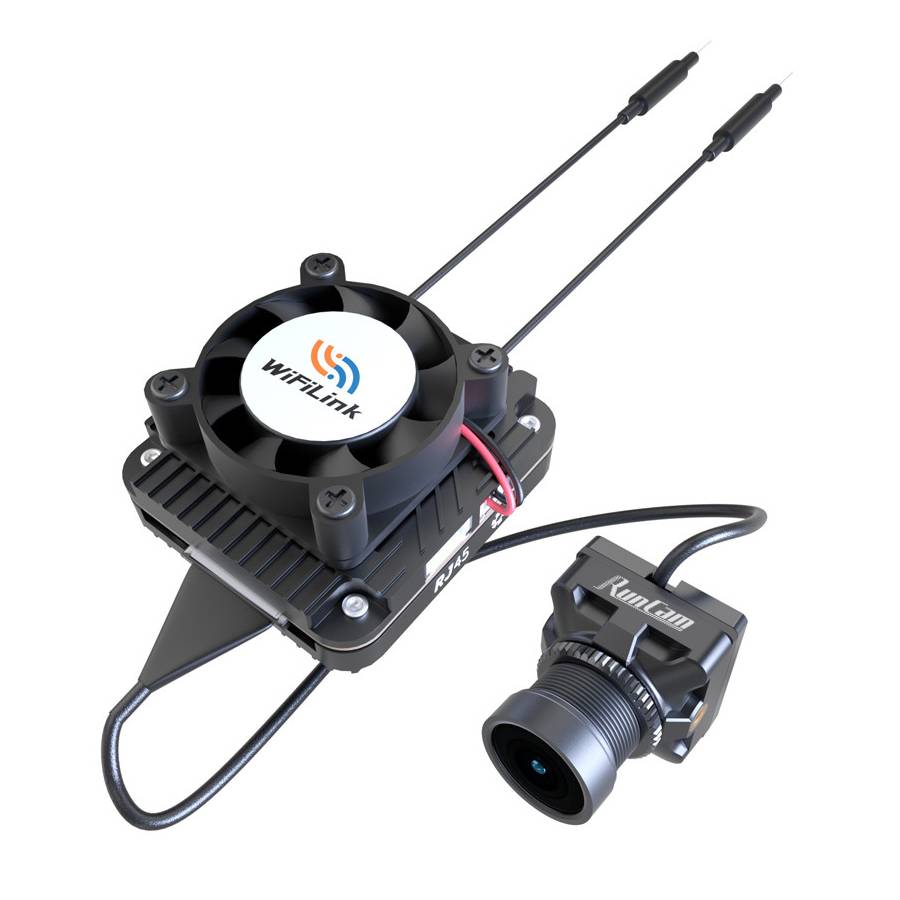

The RunCam WiFiLink 2 is a compact HD FPV camera and video transmitter powered by open-source OpenIPC firmware. It streams high-resolution video (up to 1080p @ 90 FPS or 720p @ 120 FPS) via Wi‑Fi to your mobile device, tablet, VR goggles or ground station. Housed in a CNC-machined aluminium case with integrated cooling fan, the unit is built for reliable performance and wide voltage compatibility across FPV drone setups.
Features:
- Streams high-definition FPV video directly to Wi‑Fi-enabled devices
- Runs OpenIPC open‑source firmware for future updates and customisation
- Aluminium housing with built-in fan for efficient heat management
- Supports crisp 1080p @ 60/90 FPS and 720p @ 120 FPS with low latency (~40 ms)
- Wide input voltage range (9–30 V), suitable for 3S–6S drones
- Interchangeable M12 lens module (19×19 mm) with MIPI cable for easy installation
- Dual-antenna IPEX1 design provides reliable Wi‑Fi signal (29 dBm output)
Specifications:
- Model: RunCam WiFiLink 2
- Image Sensor: Sony IMX415
- Field of View: 160°, providing a wide viewing angle
- Video Resolutions: 1080p @ 60/90 FPS, 720p @ 120 FPS
- Latency: Approximately 40 ms
- Power Input: 9–30 V DC; draws up to ~14 W
- Lens Module: 19×19 mm M12 with 130 mm MIPI cable
- PCB Size: 30×30 mm (camera board), 32×32 mm (Wi‑Fi board)
- Mounting Hole Pitch: 25.5×25.5 mm
- Weight: 30 g (with fan)
- Antenna: IPEX1 2 dBi (5 GHz Wi‑Fi)
- RF Output Power: Up to 29 dBm (FCC compliant)

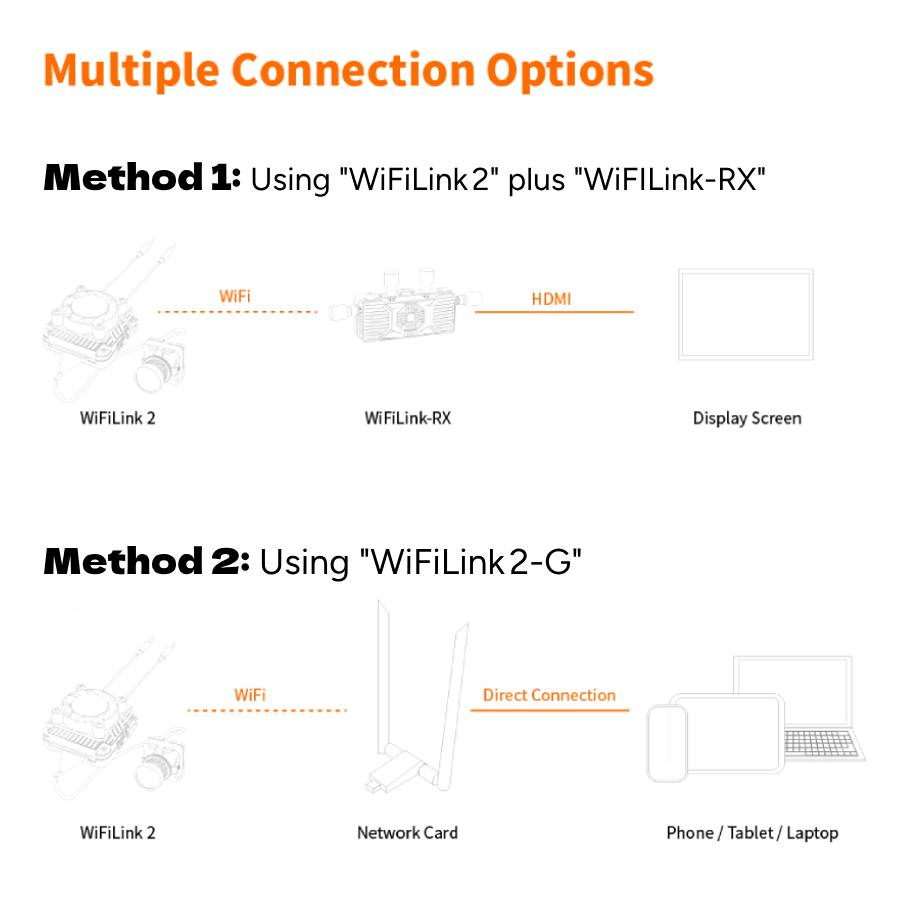

Available Versions (See below for purchase options):
- RunCam WiFiLink 2
- RunCam WiFiLink 2-G
Included:
- 1x RunCam WiFiLink 2
- Accessories
