Overview:
The RunCam WiFiLink‑RX is a high-definition digital video receiver designed to complement OpenIPC or Ruby-system video transmitters. In a compact, robust chassis, it outputs crisp 1080p or 720p video via HDMI, while supporting onboard recording and flexible power input. With selectable antennas and seamless integration options, it provides a versatile ground station solution for FPV pilots or RC operators.
Features:
- High-definition output: Delivers up to 1080p @ 60 FPS or 720p @ 60 FPS via Mini-HDMI
- Dual-system compatibility: Supports both OpenIPC and Ruby FPV video protocols
- Built-in storage: Includes 32 GB internal memory plus Micro‑SD support up to 256 GB

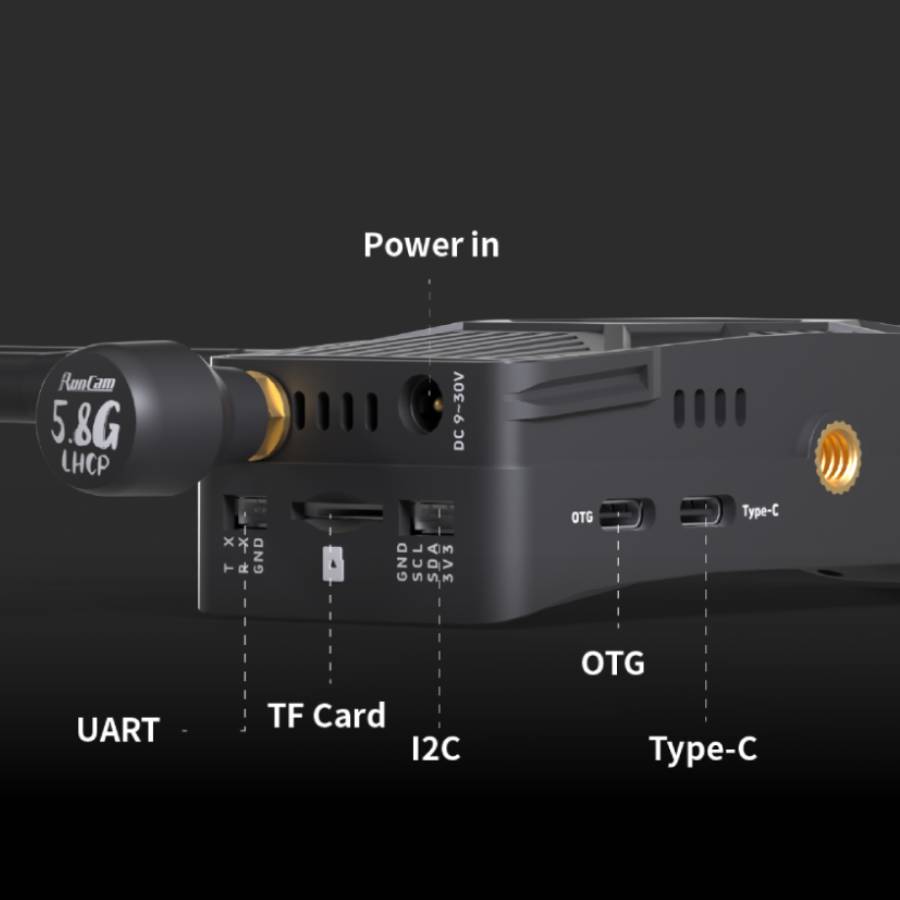

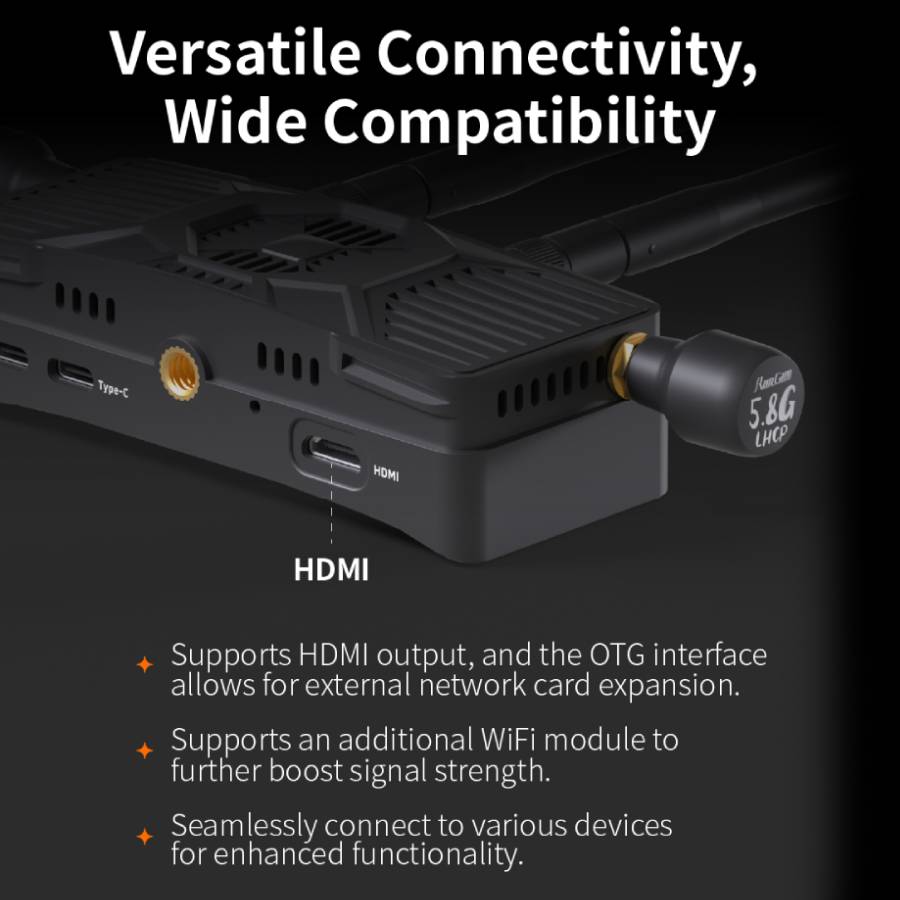

- Versatile connectivity: Features Mini-HDMI, USB‑C OTG, DC power input (5.5×2.1 mm), Micro‑SD and OTG ports

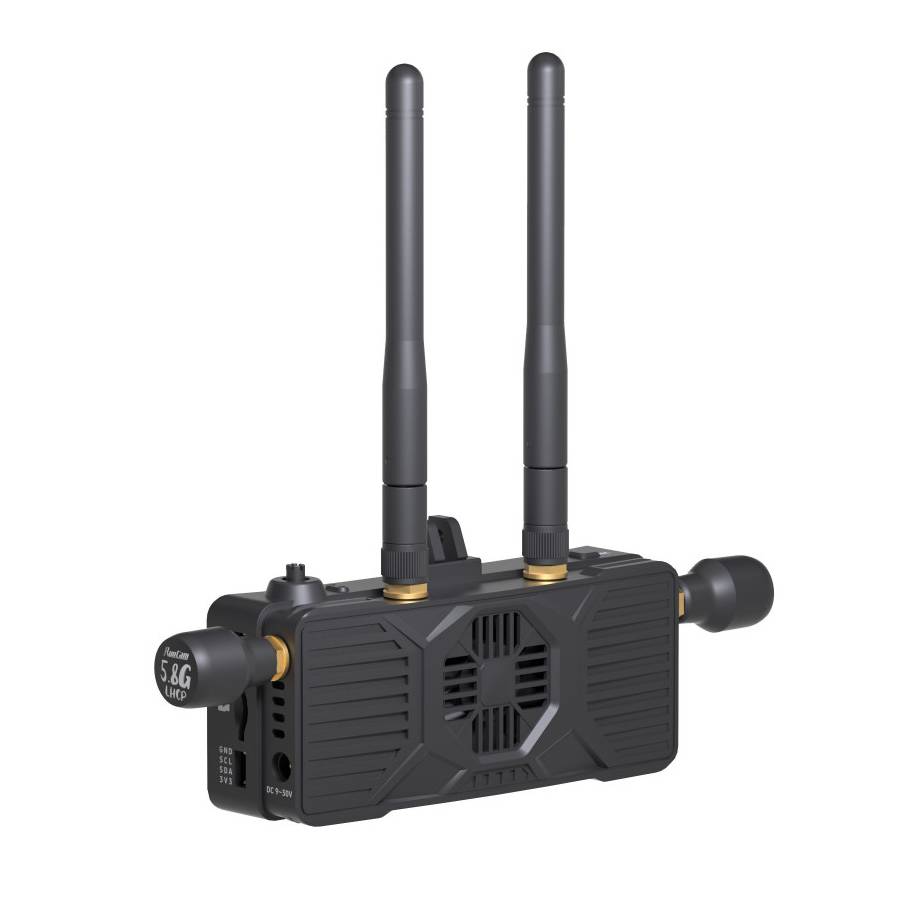

- Antenna options: Includes both vertical stick and LHCP Pagoda antennas for improved reception
- Wide voltage input: Accepts 9–30 V DC (3–6S), compatible with typical drone power systems
- High RF power: Up to 25 dBm output under FCC regulations for stable reception
Specification:
- Model: RunCam WiFiLink‑RX
- Operating Frequency: 5180–5885 MHz
- Transmission Power: <25 dBm (FCC), <14 dBm (CE), <20 dBm (SRRC), <25 dBm
- Dimensions: 110x27.3x46 mm
- Weight: ~122 g (excluding antenna)
- Video Output: 1080p @ 60 FPS or 720p @ 60 FPS via Mini‑HDMI
- Power Supply: 9–30 V DC (3–6S input)
- Storage Options: 32 GB internal + Micro‑SD (up to 256 GB)
- Included Antennas: Vertical stick (VP) & Pagoda (LHCP); both ~2.5 dBi gain, SWR ≤2.0
Included:
- 1x RunCam WiFiLink‑RX
- Accessories
