Overview:

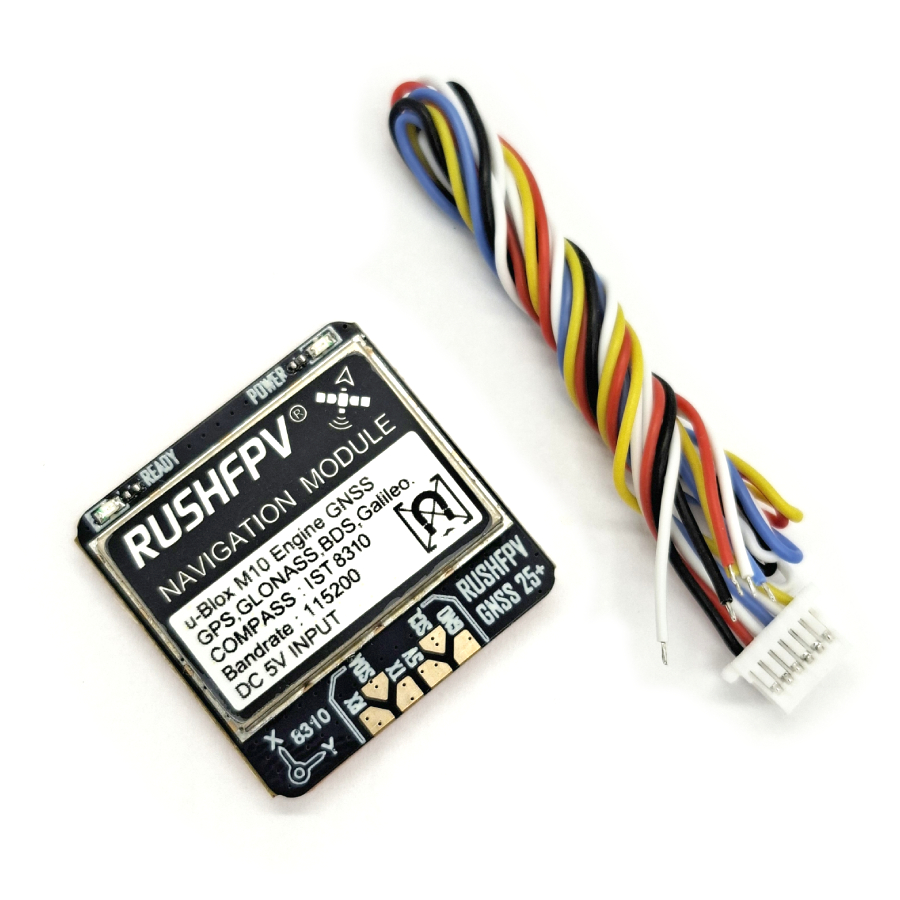

The RushFPV GNSS GPS Pro is a compact, high-performance GNSS module designed for FPV quads, fixed-wing aircraft and other autonomous RC platforms. Built around the latest u-blox M10 GNSS chipset, it delivers fast satellite acquisition, reliable positioning and support for multiple satellite constellations, making it an excellent choice for Betaflight GPS Rescue, INAV and ArduPilot builds.
The module is equipped with an integrated ceramic patch antenna, onboard backup battery and flash memory to support rapid hot starts after power cycling. With support for GPS, Galileo, GLONASS and BeiDou, the M10 chipset can simultaneously track multiple constellations for improved positioning accuracy and dependable navigation, even in more challenging environments.
This latest hardware revision features the IST8310 digital compass, replacing the previous HMC5883 magnetometer. Combined with the M10 receiver, the RushFPV GNSS GPS Pro provides an ideal navigation solution for aircraft requiring accurate heading information and reliable GPS positioning.
Benefits of the IST8310 Compass:
This revised version replaces the long-serving HMC5883 magnetometer with the newer IST8310 digital compass. The IST8310 offers improved temperature stability, lower magnetic hysteresis and reduced sensor noise, helping to provide more consistent heading information across a wider range of operating conditions. It also incorporates built-in temperature compensation and self-test functionality, making it a more capable sensor for navigation systems used with INAV and ArduPilot. Together with the u-blox M10 GNSS receiver, it forms a dependable solution for GPS-assisted flight and autonomous navigation.
Features:
- Latest hardware revision featuring the IST8310 digital compass
- u-blox M10 multi-constellation GNSS receiver
- Simultaneously tracks multiple satellite constellations
- Fast satellite acquisition with hot-start support
- Integrated backup battery and onboard flash memory
- Compact, lightweight design suitable for FPV quads and fixed-wing aircraft
- Supports Betaflight GPS Rescue, INAV and ArduPilot
- High-performance ceramic patch antenna
- Ideal for long-range, GPS-assisted and autonomous FPV builds
Specification:
- GNSS chipset: u-blox M10
- Magnetometer: IST8310
- Satellite systems: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
- Simultaneous constellation tracking: Up to 3 GNSS systems
- Receiving channels: 72
- Output protocol: UBX / NMEA
- Update rate: 1-10Hz
- Baud rate: 115200bps
- Horizontal positioning accuracy: 1.5m CEP
- Velocity accuracy: 0.05m/s
- Tracking sensitivity: -162dBm
- Maximum altitude: 50,000m
- Maximum velocity: 500m/s
- Supply voltage: 5V
- Current consumption: 30mA
- Compass interface: I²C

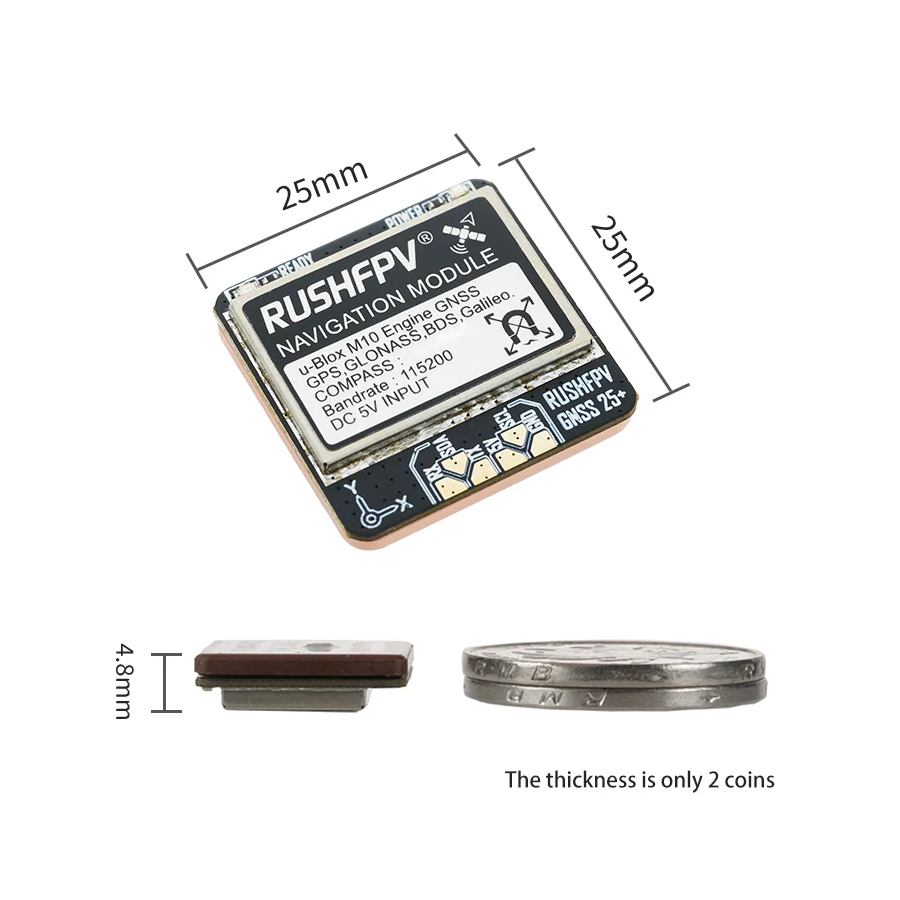

- Dimensions: 25x25x4.8mm
- Weight: 6.9g
Included:
- 1x RushFPV GNSS GPS Pro
- 1x Connection cable
