Overview:

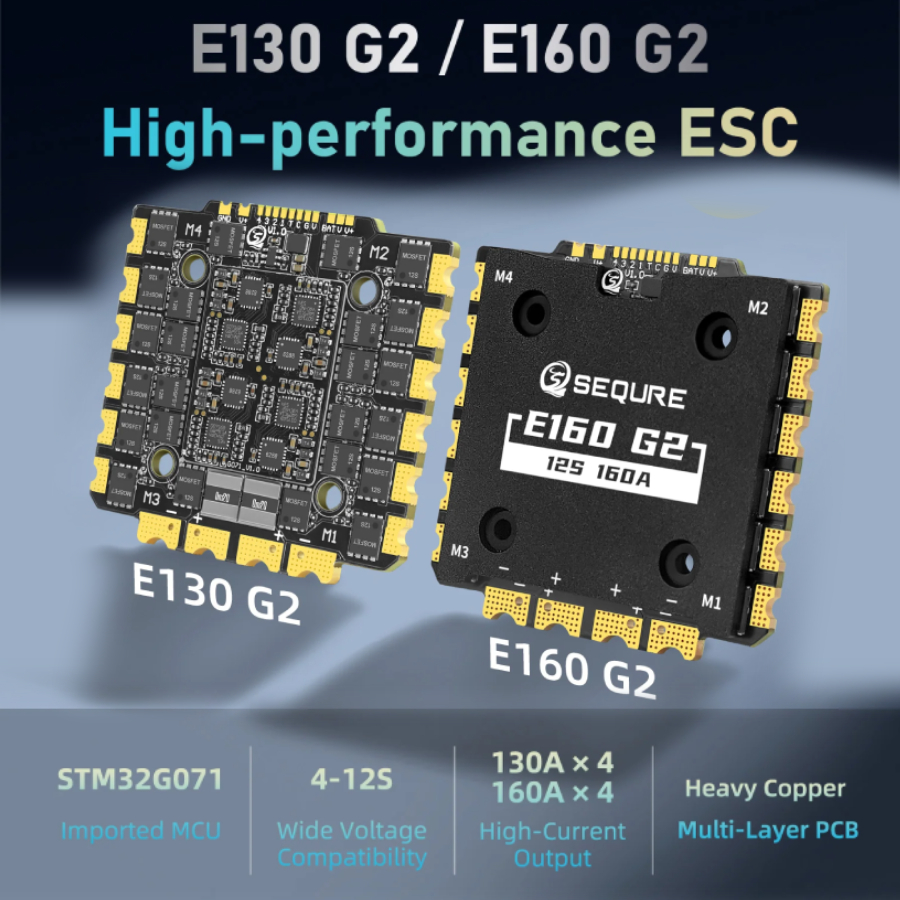

The Sequre E130 G2 and E160 G2 are high-current 4-in-1 ESCs designed for powerful FPV quad builds and other demanding multirotor applications. Both use an STM32G071 32-bit processor running AM32 firmware, with four motor channels, integrated current sensing, and ESC telemetry to monitor flight performance.
The E130 G2 delivers 130A continuous current per channel, while the E160 G2 increases this to 160A for builds requiring greater current capacity. Low-resistance MOSFETs, thick copper PCB layers and integrated copper bus bars are designed to handle high electrical loads while improving heat dissipation. Dual battery solder pads also provide flexibility when wiring high-current power systems.
With a 30.5x30.5mm mounting pattern, support for DShot and conventional ESC control protocols, and an integrated 16V/2A BEC, both versions offer substantial power handling in a compact 4-in-1 design.
Features:
- AM32 firmware: Provides configurable motor control settings, including motor timing, throttle calibration, motor direction and current detection.

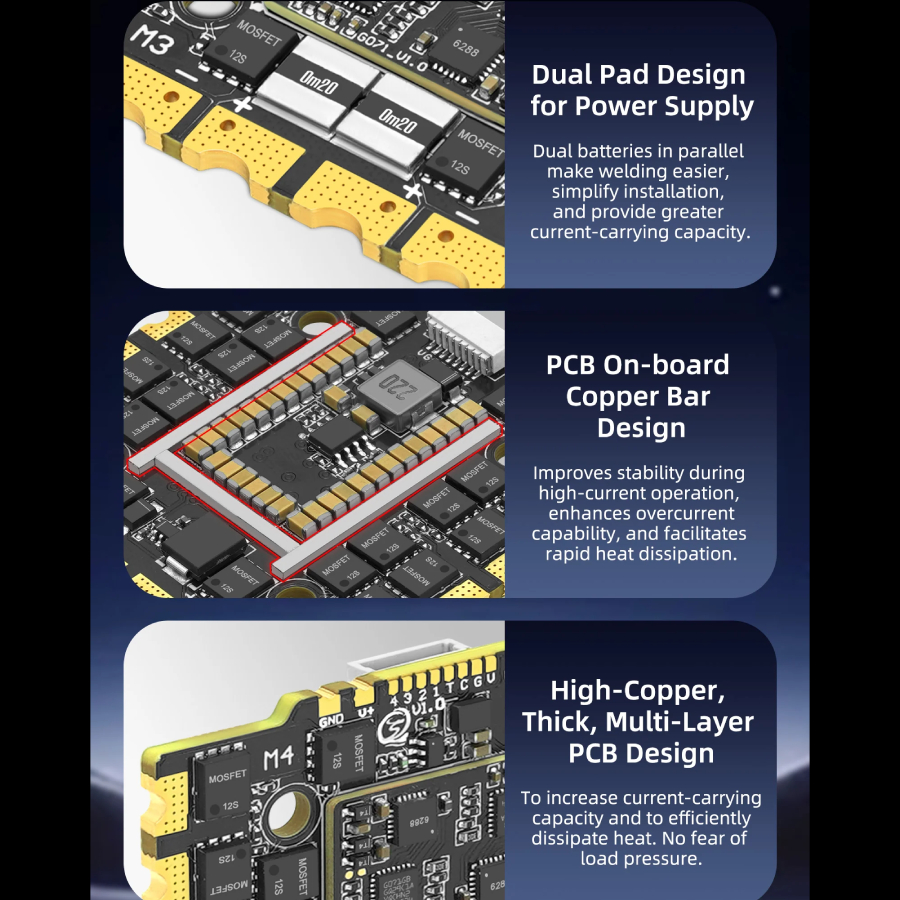

- High-current power design: Low-resistance MOSFETs, thick copper PCB layers and integrated copper bus bars help manage electrical losses and dissipate heat.
- Dual battery solder pads: Allow parallel power connections for flexible wiring in high-current builds.
- Integrated telemetry and current sensing: Reports operating data including motor RPM, temperature and current to a compatible flight controller.
- Wide control protocol support: Compatible with all DShot variants, PWM, OneShot and MultiShot.
- Integrated BEC: Provides a regulated power output for compatible onboard electronics.
- Standard mounting layout: Fits frames and stacks using the 30.5x30.5mm mounting pattern.
Specifications:
Sequre E130 G2 4-8S 130A 4-in-1 ESC (AM32)
- Firmware: AM32
- Processor: STM32G071 32-bit
- Battery compatibility: 4-8S LiPo/LiHV
- Input voltage: 14-35.2V
- Continuous current: 130A per channel
- Peak current: 220A per channel
- BEC output: 16V/2A
- Current sensor: Integrated
- ESC telemetry: Supported
- Control protocols: DShot, PWM, OneShot and MultiShot
- Mounting hole spacing: 30.5 × 30.5mm, Ø4mm/M3

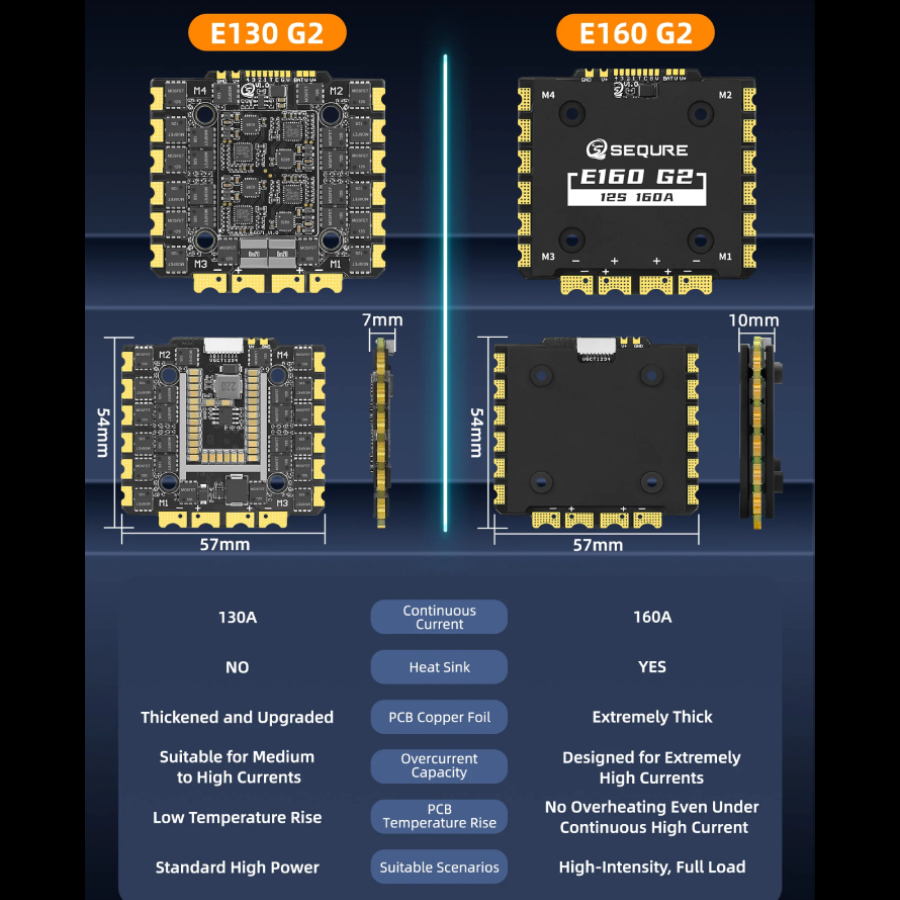

- Dimensions: 54 × 57 × 7mm
- Weight: 43g
Sequre E160 G2 4-8S 160A 4-in-1 ESC (AM32)
- Firmware: AM32
- Processor: STM32G071 32-bit
- Battery compatibility: 4-8S LiPo/LiHV
- Input voltage: 14-53V
- Continuous current: 160A per channel
- Peak current: 280A per channel
- BEC output: 16V/2A
- Current sensor: Integrated
- ESC telemetry: Supported
- Control protocols: DShot, PWM, OneShot and MultiShot
- Mounting hole spacing: 30.5 × 30.5mm, Ø4mm/M3
- Dimensions: 54 × 57 × 10mm
- Weight: 66g

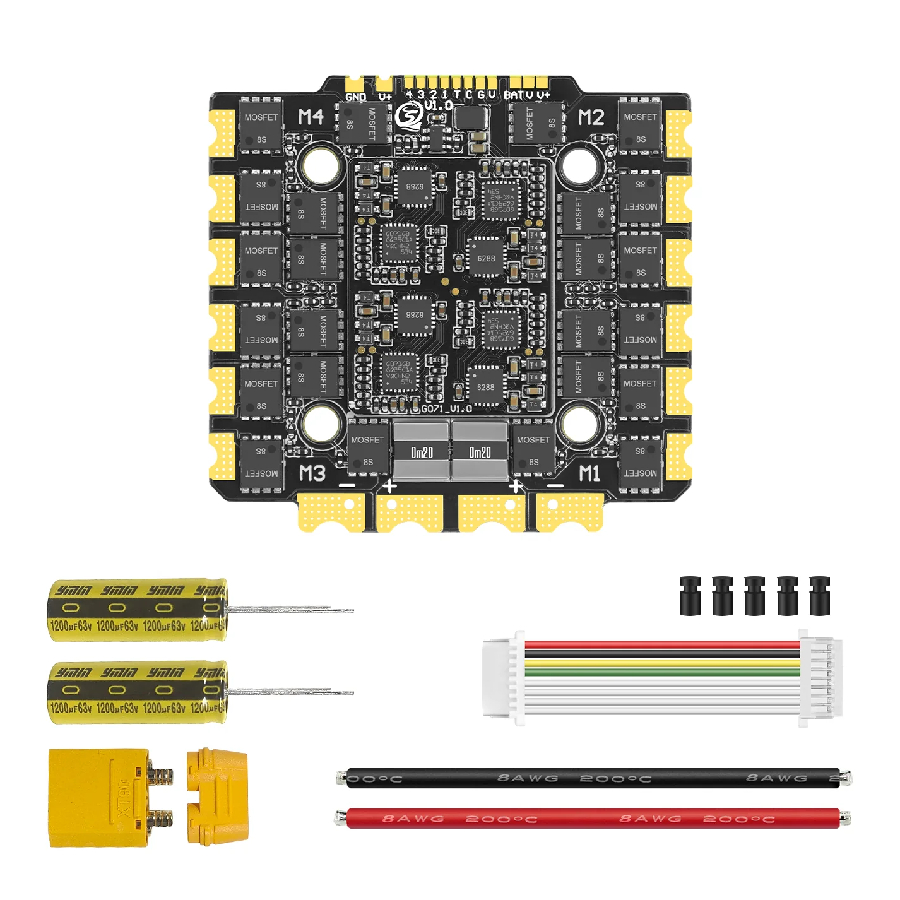

Included:
- 1x Sequre E130 G2 or E160 G2 4-in-1 ESC
- Accessories
