Sequre H743 V2 4-8S Flight Controller

Overview:
The Sequre H743 V2 is a high-performance flight controller designed for demanding FPV builds, including freestyle quads, long-range aircraft and multirotor configurations requiring up to eight motor outputs. Its STM32H743 processor runs at up to 480MHz, providing substantial processing capacity for flight control and navigation firmware.

An ICM-42688-P gyroscope provides motion sensing, while the onboard barometer, analogue OSD and 16MB black box memory support flight data monitoring and recording. Dual BEC outputs supply power for connected electronics, including a 10V output suitable for compatible FPV video transmitters such as DJI and supported analogue VTXs.

With six UARTs, USB-C connectivity and mounting options for both 20mm and 30.5mm stacks, the H743 V2 offers flexibility when integrating receivers, GPS modules, video systems and other peripherals. It supports Betaflight, INAV and ArduPilot, making it suitable for a variety of FPV and autonomous flight builds.

Features:
- High processing capacity: The H7 platform provides the processing headroom needed for complex flight-control setups.
- Integrated flight data recording
- Onboard barometer and OSD: Supporting altitude-related data and analogue flight information overlays.

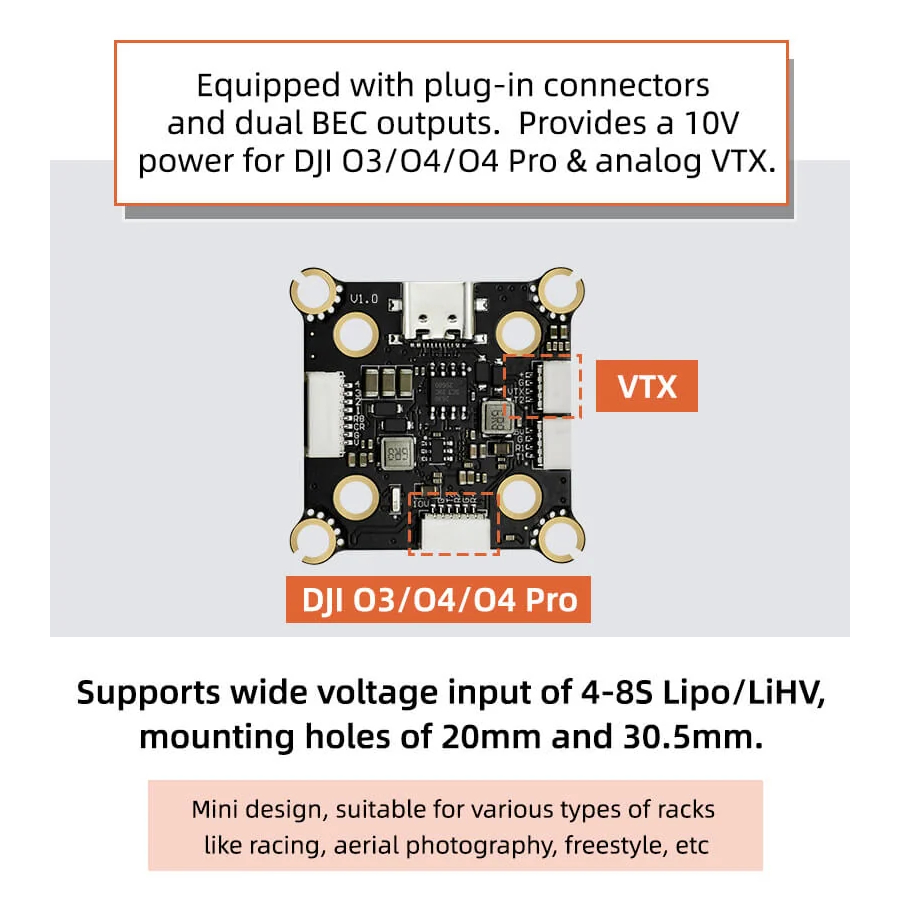

- Dual BEC power outputs: Separate regulated outputs simplify powering a camera, video transmitter and other electronics, subject to their voltage and current requirements.
- Eight motor outputs

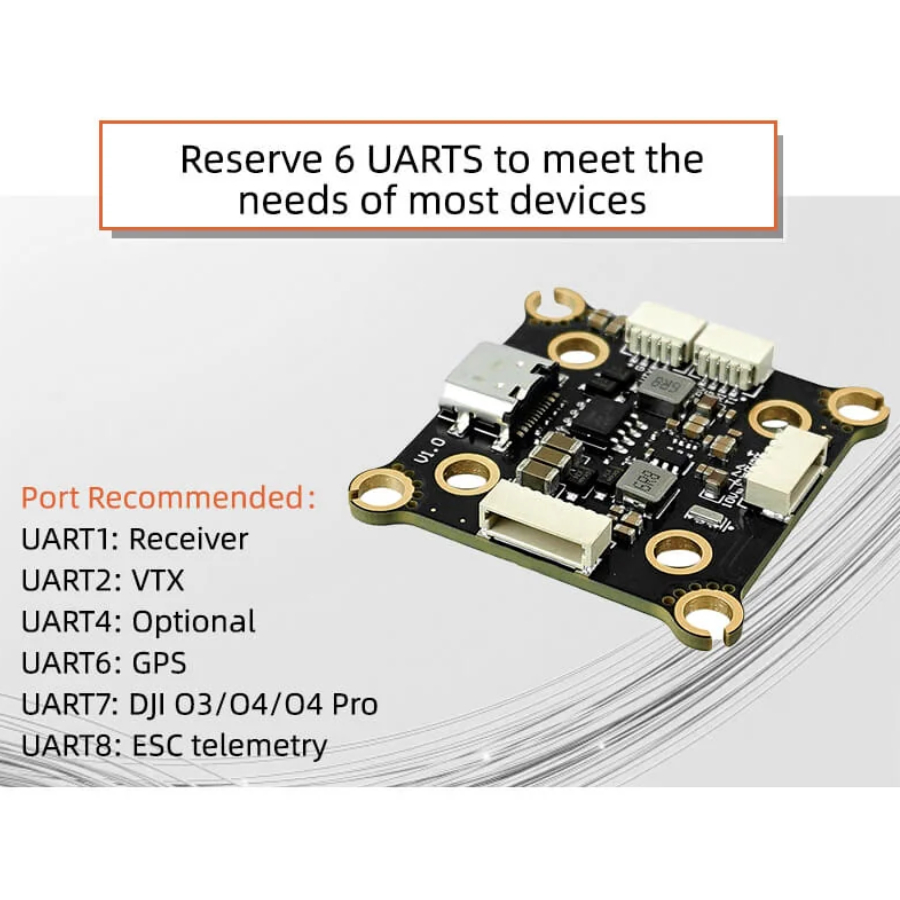

- Flexible peripheral integration: with six UARTs
- Multiple firmware choices
- Two mounting options to fit either 20mm or 30.5mm mounting patterns.

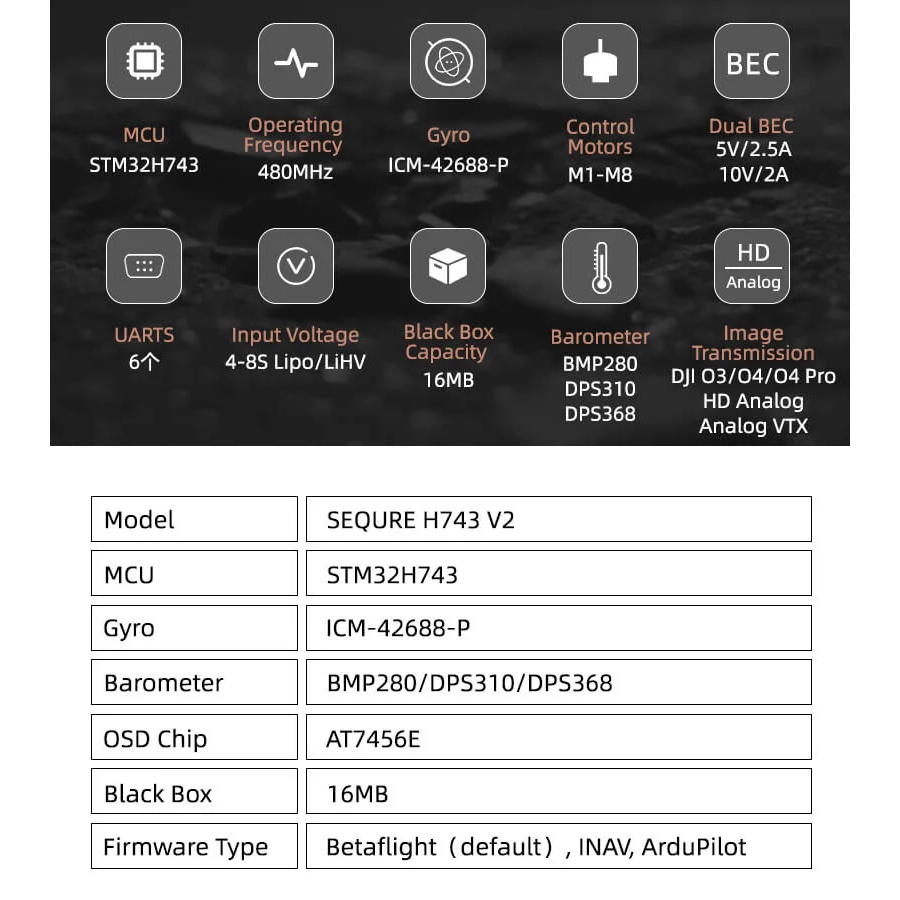

Specification:
- Model: Sequre H743 V2
- Flight controller MCU: STM32H743
- Gyroscope: ICM-42688-P
- Barometer: BMP280/DPS310/DPS368 (depending on production version)
- OSD chip: AT7456E
- Black box memory: 16MB
- Input voltage: 4–8S LiPo/LiHV
- BEC outputs: 5V/2.5A and 10V/2A
- UARTs: 6
- Motor outputs: M1–M8
- ESC telemetry: RX8
- LED support: Can support WS2812 addressable LED strips
- Buzzer support: Yes
- USB connection: USB Type-C

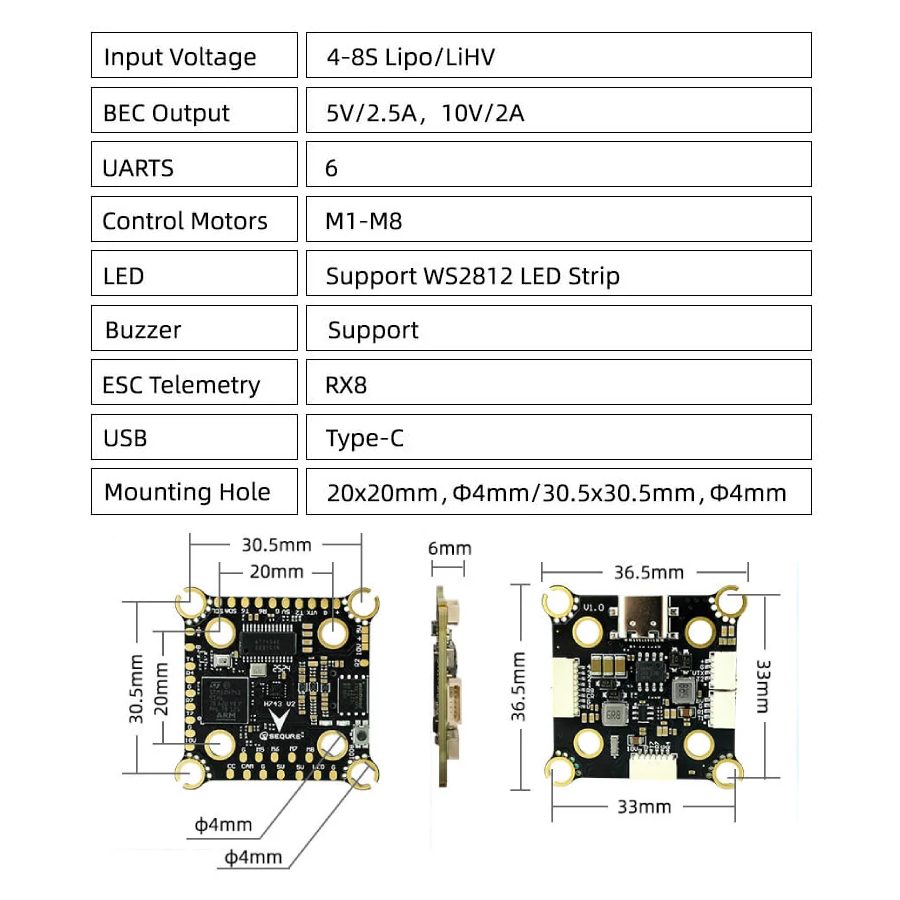

- Mounting hole patterns: 20×20mm/30.5×30.5mm
- Dimensions: 36.5×36.5×6mm
- Weight: 7.3g

Included:
- 1x Sequre H743 V2 4-8S Flight Controller
- Accessories
