Overview:

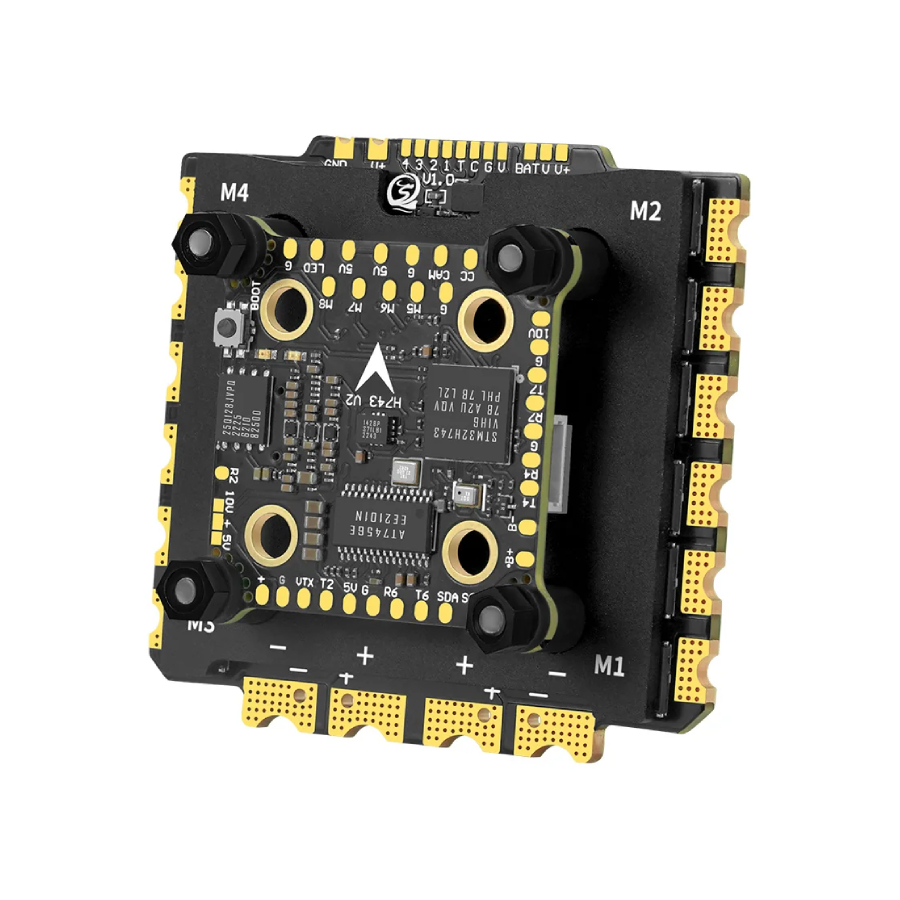

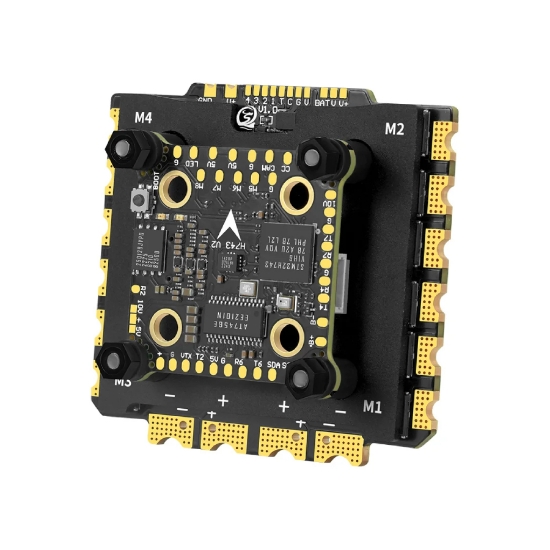

The Sequre H743 V2 & E160 G2 Stack combines a powerful H7 flight controller with a high-current 4-in-1 ESC running AM32 firmware. Designed for demanding FPV builds, large multirotors and high-power applications, it pairs the STM32H743 processor with an ICM-42688-P gyroscope and an E160 G2 ESC rated for 160A continuous current per motor channel.
The H743 V2 provides six UARTs, a barometer, analogue OSD and 16MB of black box memory. It supports Betaflight, INAV and ArduPilot, with outputs for up to eight motors for more complex multirotor configurations. Separate 5V and 10V BEC outputs help simplify power delivery to onboard electronics, including compatible digital FPV systems.
The E160 G2 ESC supports 4-12S LiPo/LiHV batteries and uses low-resistance MOSFETs with a high-current power design. Current sensing and ESC telemetry provide useful flight data, while support for DShot, PWM, OneShot and MultiShot allows integration with a range of flight control setups.
* Note: The E160 G2 ESC supports up to 12S, but the H743 V2 flight controller’s specified direct input range is 4-8S. For a 12S build, make sure the FC is powered through an appropriate regulated supply and follow Sequre’s wiring instructions.
Features:
- High-performance flight control: The H7 platform provides processing capacity for advanced flight control and navigation setups.
- Multiple firmware options: Compatible with Betaflight, INAV and ArduPilot to suit different multirotor and autonomous flight applications.
- Integrated flight data recording: The onboard black box stores flight logs for tuning and troubleshooting.
- FPV system integration: Dedicated connectors and separate BEC outputs simplify wiring for compatible DJI digital air units and analogue video transmitters.
- High-current ESC construction: Low-resistance MOSFETs, thick copper layers and copper bus bars are designed to manage power loss and heat under heavy loads.
- Flexible motor control: The flight controller supports configurations with up to eight motors, including suitable X8 builds.

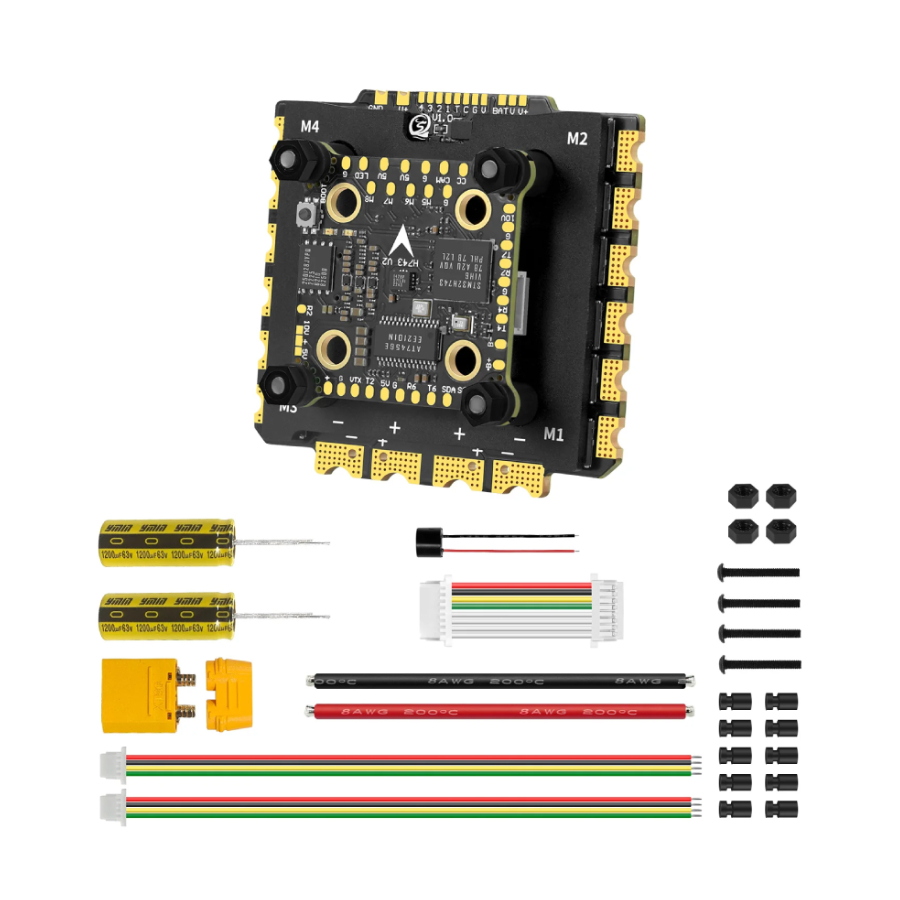

- Convenient wiring and installation: The stack includes power cables, interconnection cables, mounting hardware, etc
Specification:

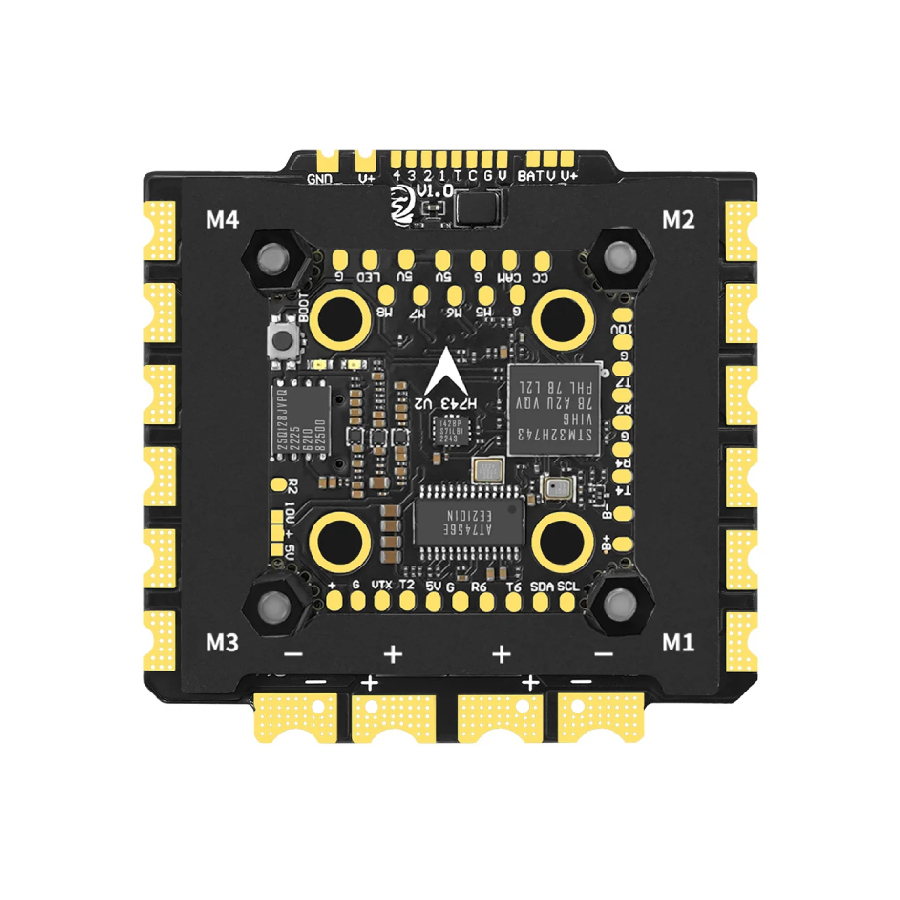

Flight Controller: Sequre H743 V2
- Processor: STM32H743, up to 480MHz
- Gyroscope: ICM-42688-P
- Barometer: BMP280/DPS310/DPS368, depending on production version
- OSD chip: AT7456E
- Black box memory: 16MB
- Firmware target: SEQUREH7V2
- Input voltage: 4-8S LiPo/LiHV
- BEC outputs: 5V/2.5A and 10V/2A
- UARTs: 6
- Motor outputs: M1-M8
- ESC telemetry input: RX8
- USB: Type-C
- LED support: WS2812
- Buzzer support: Yes
- Mounting patterns: 20x20mm and 30.5x30.5mm
- Dimensions: 36.5x36.5x6mm
- Weight: 7.3g
4-in-1 ESC: Sequre E160 G2 (AM32)
- Processor: STM32G071 32-bit
- Firmware: AM32
- Battery compatibility: 4-12S LiPo/LiHV
- Operating voltage: 14-53V
- Continuous current: 160A per channel
- Peak current: 280A per channel
- BEC output: 16V/2A
- Current sensing: Integrated
- ESC telemetry: Supported
- Control protocols: DShot, PWM, OneShot and MultiShot
- Mounting pattern: 30.5x30.5mm, Ø4mm/M3
- Dimensions: 54x57x10mm
- Weight: 66g
Complete Stack:

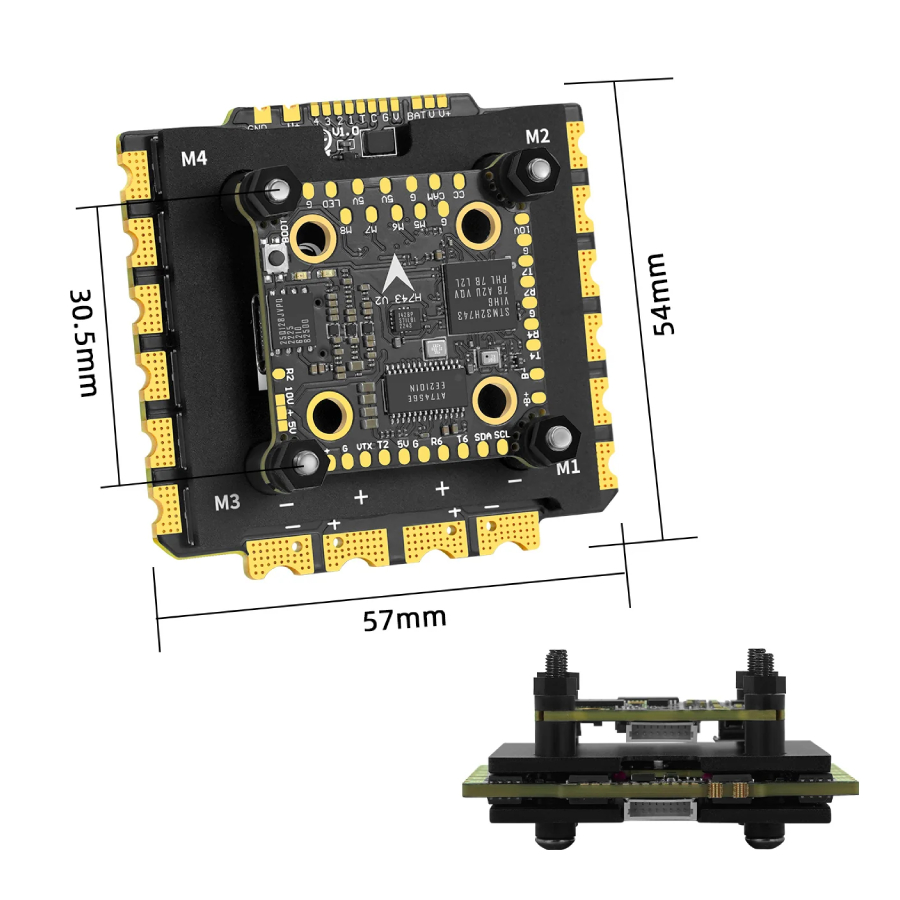

- Overall footprint: 54x57mm
- Assembled weight: 79.7g
Included:
- 1x Sequre H743 V2 + E160 G2 Stack
- Accessories
