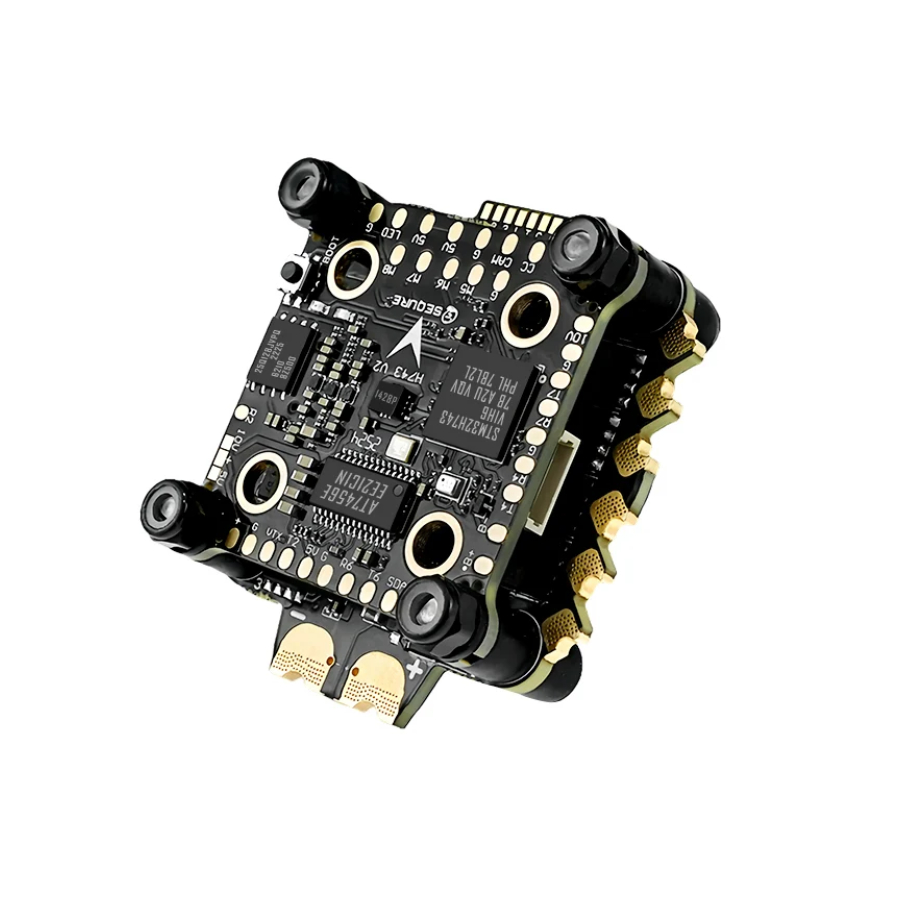

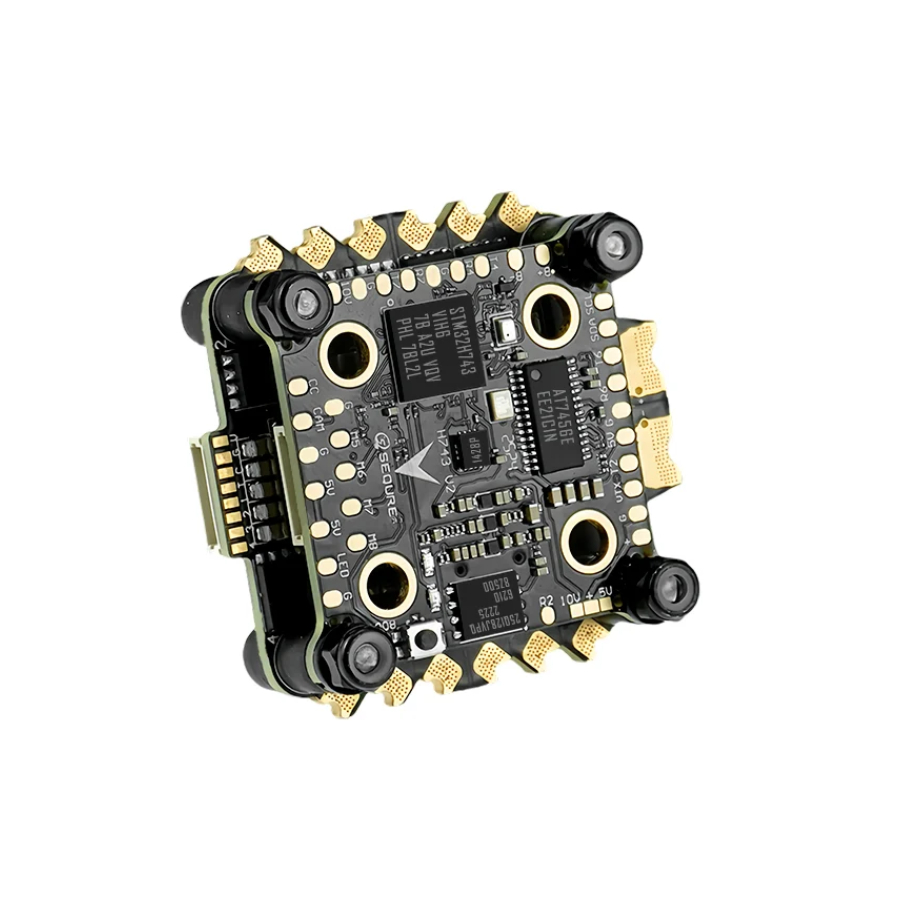

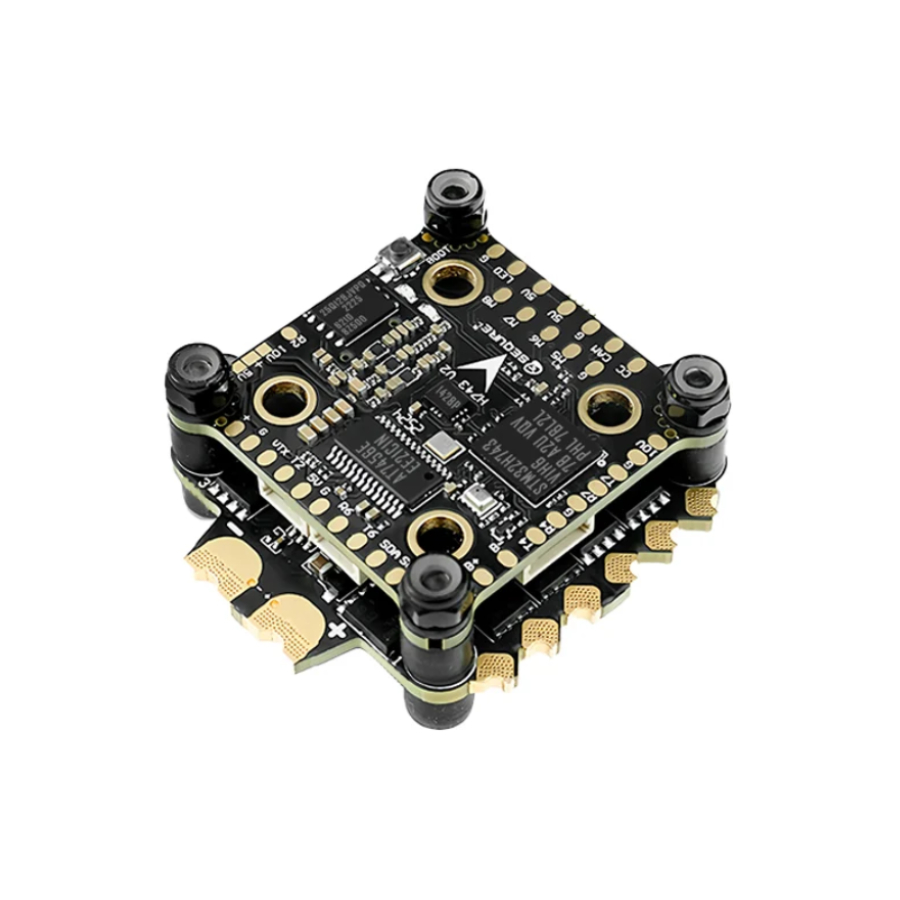

Sequre H743 V2 & E70 G2 Stack

Overview:
The Sequre H743 V2 & E70 G2 Stack combines a high-performance flight controller with a 70A 4-in-1 ESC running AM32 firmware. Designed for demanding FPV builds, the stack pairs an STM32H743 processor with an ICM-42688-P gyroscope, onboard barometer and 16MB of black box storage for flight data recording.

The H743 V2 supports Betaflight, INAV and ArduPilot, with six UARTs for connecting GPS modules, receivers and other peripherals. Separate 5V and 10V BEC outputs provide power for compatible onboard electronics, including digital FPV air units and analogue video transmitters. The flight controller can also control up to eight motors for suitable multirotor configurations.

The E70 G2 ESC uses an STM32G071 processor and supports AM32 firmware, with 70A continuous current per motor channel and 150A peak current. Integrated current sensing and ESC telemetry provide real-time operating data, while its angled motor solder pads help keep wiring tidy. This stack is suited to pilots building powerful 4-8S quads for freestyle, racing and other demanding multirotor applications.

Features:
- AM32 ESC firmware: Offers configurable motor control settings and compatibility with supported AM32 configuration tools.
- Flight data recording: Onboard black box storage helps with flight analysis and tuning.
- Flexible firmware support: Compatible with Betaflight, INAV and ArduPilot.
- Multiple peripheral connections: Six UARTs support integration of compatible receivers, GPS modules and other serial peripherals.
- Digital and analogue FPV integration: Dedicated connections and dual BEC outputs simplify wiring for compatible video systems.
- ESC telemetry and current sensing: Provides operating data such as motor speed, temperature and current to compatible flight control software.
- High-current ESC design: High-power MOSFETs and a multi-layer PCB with thick copper construction help manage electrical losses and heat.
- Neater motor wiring: Angled solder pads help align motor connections with the arms of a suitable frame.
- Stack mounting: The assembled FC and ESC use a 30.5x30.5mm mounting pattern.

Specification:

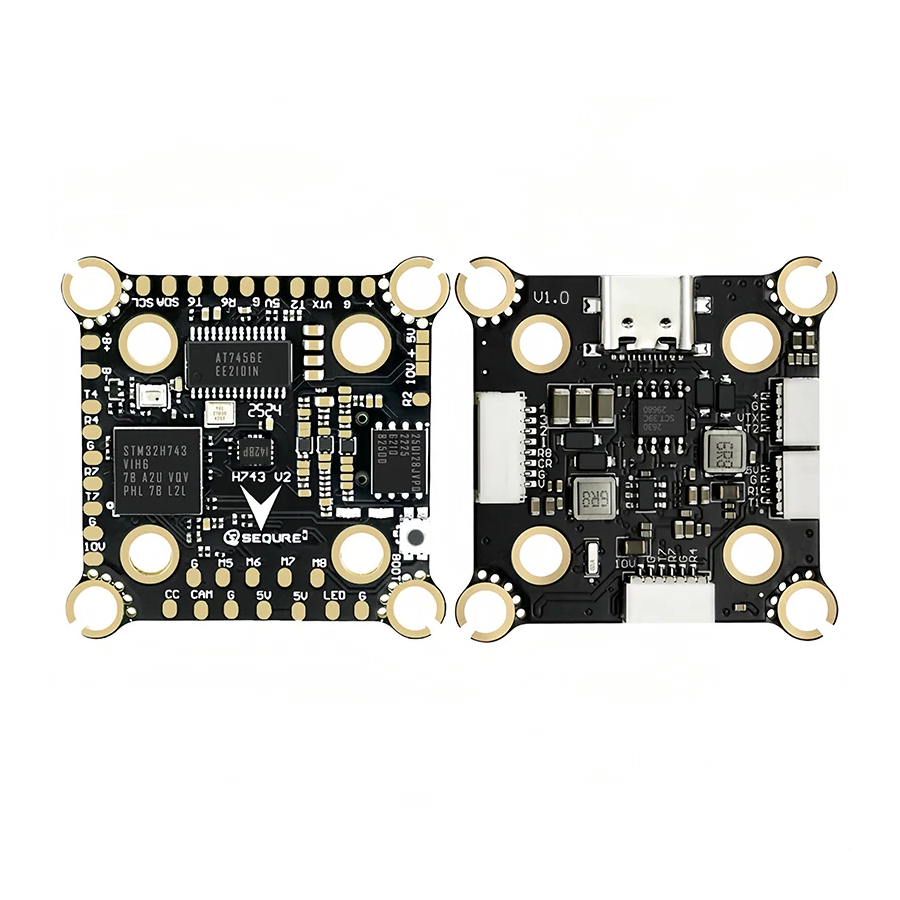

Flight Controller: Sequre H743 V2
- Processor: STM32H743, up to 480MHz
- Gyroscope: ICM-42688-P
- Barometer: BMP280/DPS310/DPS368, depending on production version
- OSD chip: AT7456E
- Black box memory: 16MB
- Firmware target: SEQUREH7V2
- Input voltage: 4-8S LiPo/LiHV
- BEC outputs: 5V/2.5A and 10V/2A
- UARTs: 6
- Motor outputs: M1-M8
- ESC telemetry input: RX8
- LED support: WS2812
- USB connector: Type-C
- Mounting holes: 20x20mm and 30.5x30.5mm

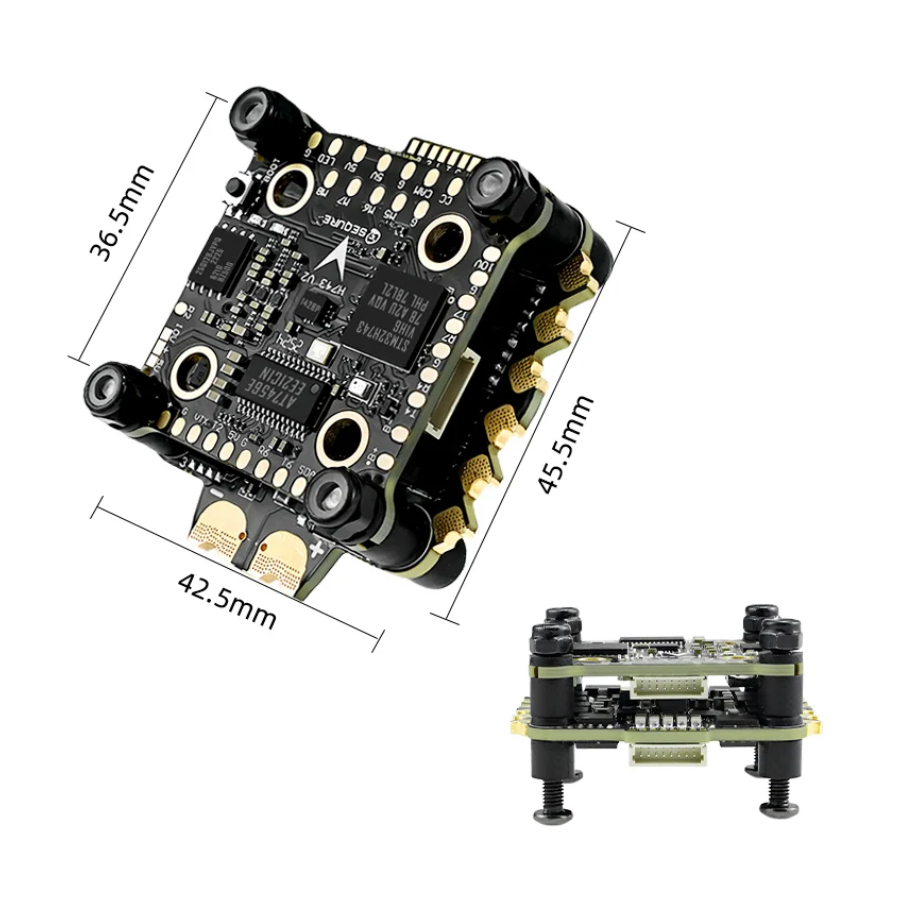

- Dimensions: 36.5x36.5x6mm
- Weight: 7.3g

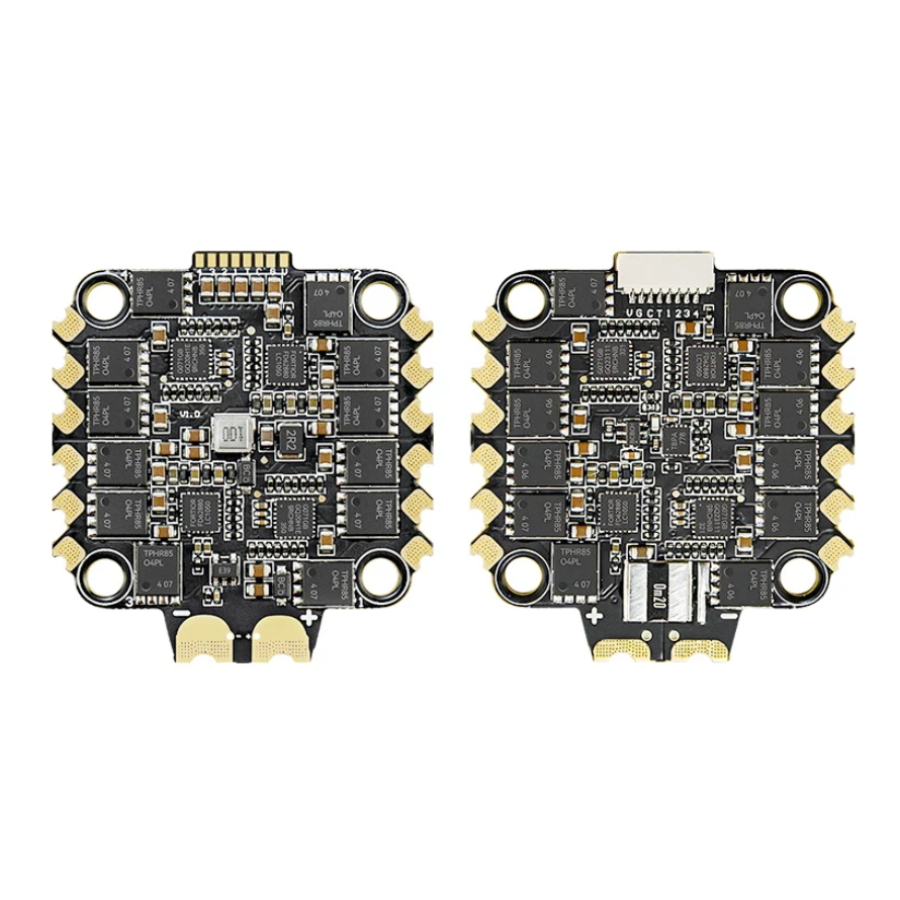

4-in-1 ESC: Sequre E70 G2 (AM32)
- Processor: STM32G071
- Firmware: AM32
- Battery compatibility: 2-8S LiPo/LiHV
- Continuous current: 70A per channel
- Peak current: 150A per channel
- PWM frequency: 16-128kHz
- Control protocols: DShot150/300/600, OneShot, MultiShot and PWM
- Current sensing: Integrated
- ESC telemetry: Supported
- BEC: None
- Mounting holes: 30.5x30.5mm, Ø4mm/M3
- Dimensions: 45.5x42.5x6mm
- Weight: 17.5g

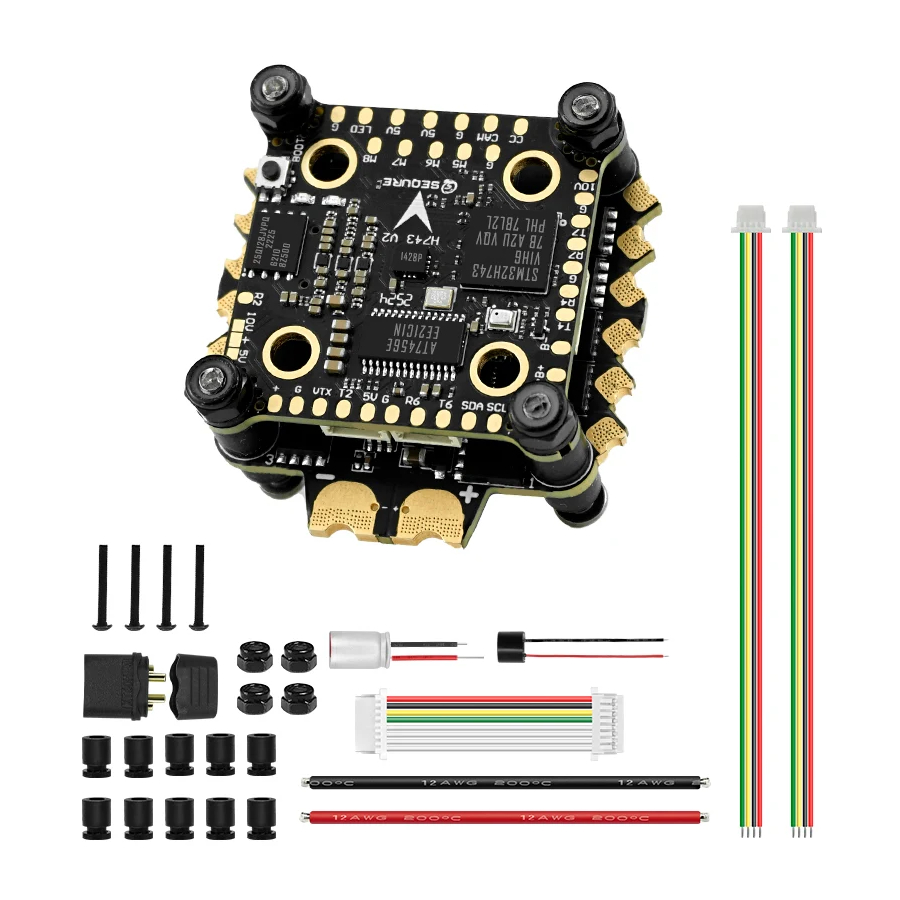

Included:
- 1x Sequre H743 V2 & E70 G2 Stack (AM32)
- Accessories
