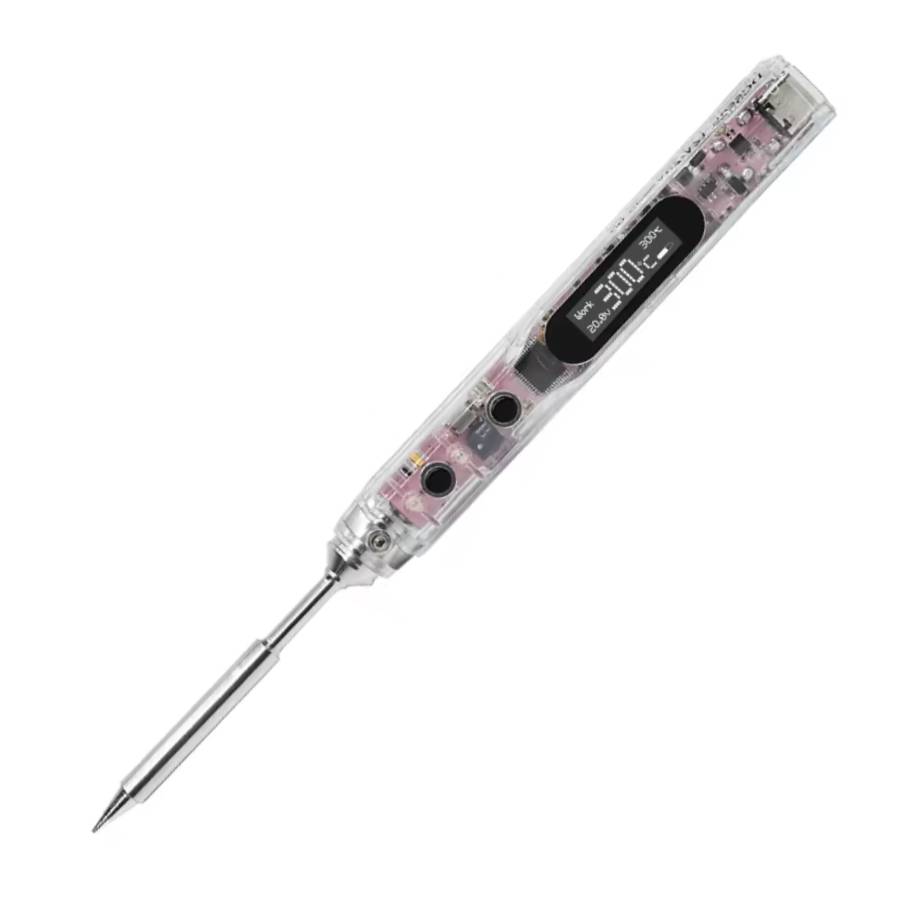

Overview:
The Sequre SI012 Pro Max is a high-performance, portable soldering iron tailored for hobbyists and professionals alike. Equipped with a TS‑D24 tip, this compact iron delivers rapid heat-up, precise thermal control, and broad power compatibility make it perfect for both fieldwork and the workshop. With intelligent firmware, OLED display and intelligent safety features, it defines smart soldering.

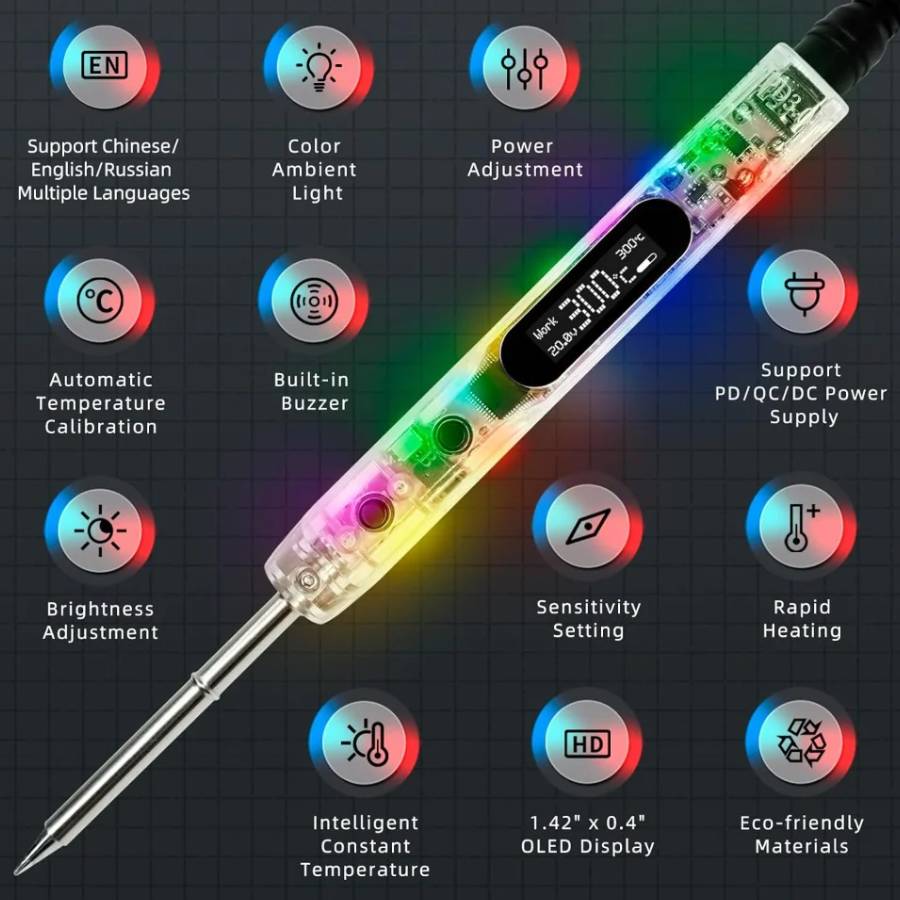

Features:
- TS‑D24 soldering tip included for precise and efficient soldering.
- Rapid thermal response, reaching soldering temperature in approximately 8 seconds.
- Broad power input compatibility, with support for USB‑C Power Delivery (PD3.0), QC2.0/3.0 and DC connector.
- Smart temperature management, featuring PID control, self‑calibration and temperature compensation for stable soldering.
- Auto‑sleep and standby modes to conserve battery and extend tip life after inactivity periods.
- Audible alerts, brightness control and language options.
- Transparent fire‑resistant PC housing, featuring sleek aesthetic with Coloured LED mood lighting.
- Safety protections including low‑voltage warning, over‑temperature and high‑voltage alarms.
- Firmware upgrade support via USB‑C for future enhancements and interface improvements.
Specification:
- Model: Sequre SI012 Pro Max Kit (TS‑D24 tip included)
- Input Voltage: DC 9 V–25 V (including 3S–6S LiPo battery), USB‑C (PD3.0), QC2.0/3.0 fast-charge, DC5525 jack
- Maximum Power Output: Up to 100 W under SI‑series tip, up to ~65 W with TS‑D24 tip depending on input voltage
- Temperature Range: 50 °C–450 °C (122 °F–842 °F), with ±1 % control accuracy

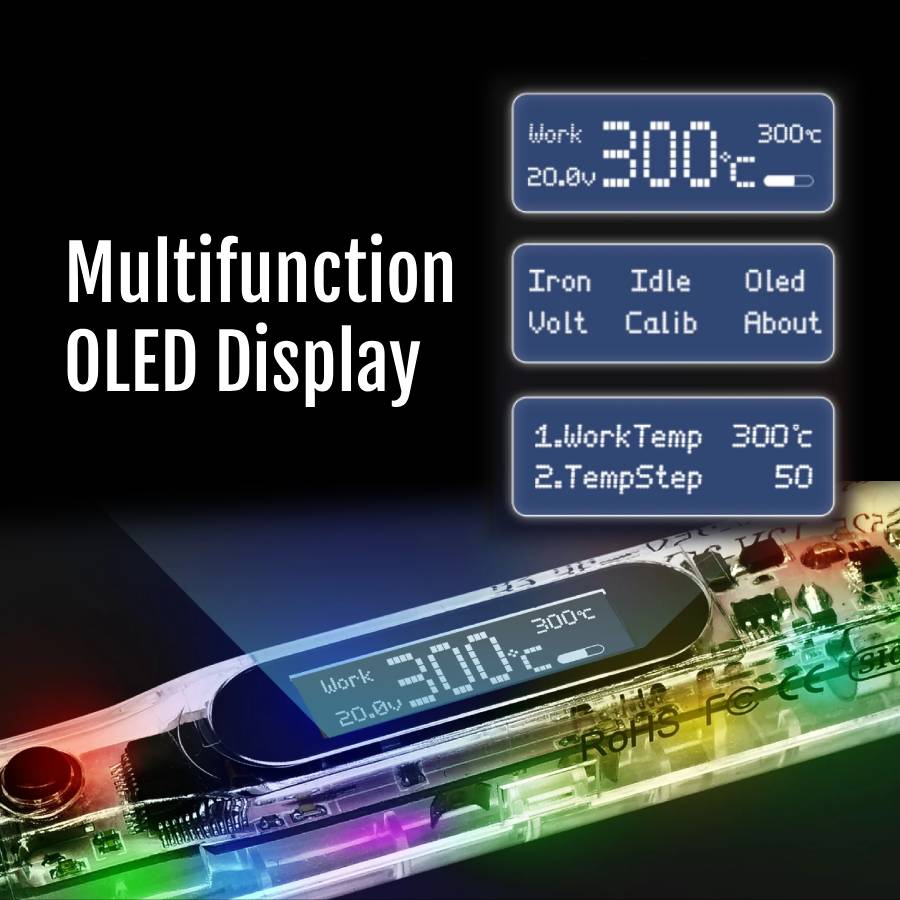

- Display Type: 0.91″ (128×32 pixel) OLED with adjustable brightness and auto‑rotate screen orientation
- Dimensions: 112 mm in length
- Material: Transparent, high‑temperature resistant fire‑proof PC shell, with optional LED mood lighting
- Compatibility: Accepts long and short TS or T12 tips (including TS‑D24, TS‑B2, BC2, etc.)
Available versions (see below for purchase options):

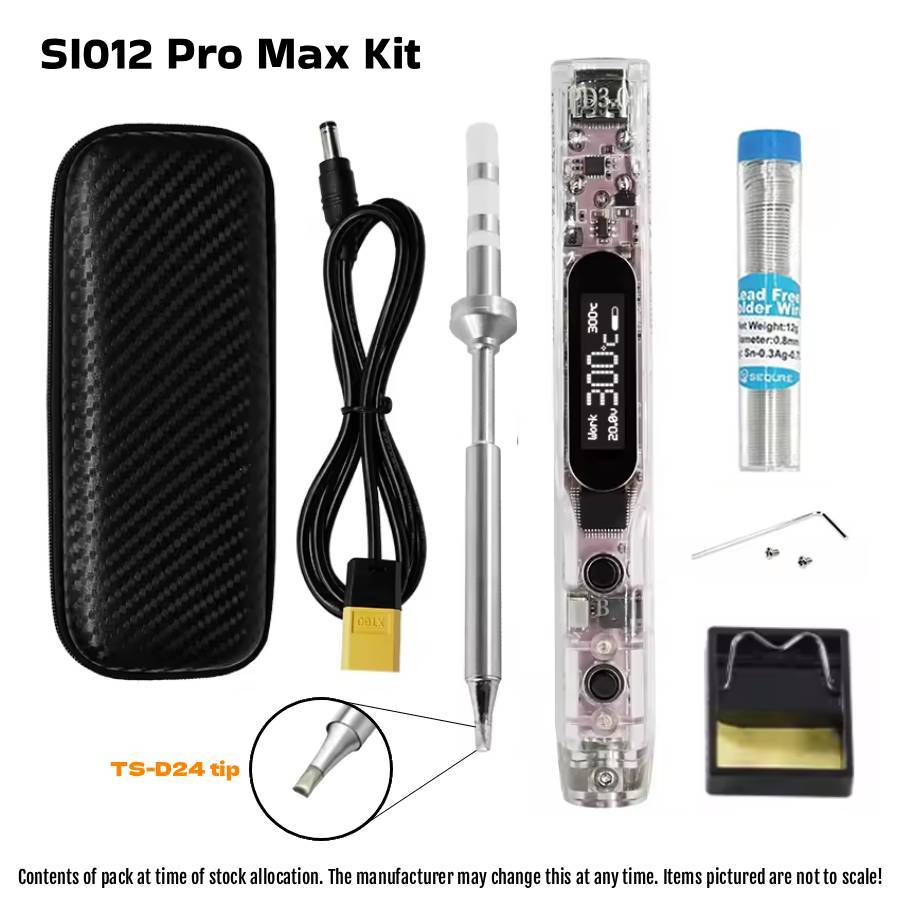

- SI012 Pro Max Soldering Iron with TS-D24 Tip, Zipped Case, Solder, Stand/Cleaning station, Power Cable, Hex Key & Spare Screws.

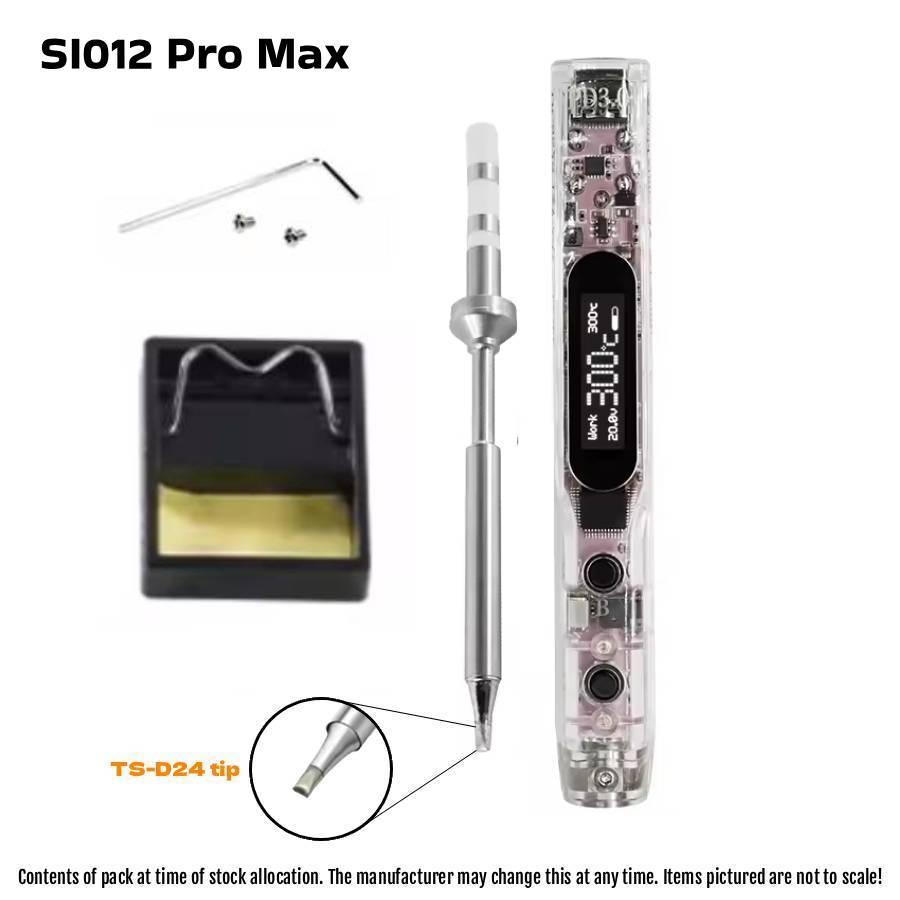

- SI012 Pro Max Soldering Iron with TS-D24 Tip, Stand/Cleaning Station, Hex Key & Spare Screws.
