Sequre SQ-001 Soldering Iron Kit

The Sequre SQ-001 Kit includes a TS100 like soldering iron, 4 tips, solder, stand and wick.
Availability: Out of stock
£62.35 inc VAT
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Description:

The Sequre SQ-001 Kit includes a TS100 like soldering iron that employs 304 stainless steel nested shell of ABS and polycarbonate plastic. The kit also comes with 4 soldering tips (TS-B2, TS-BC2, TS-D24, TS-I). a soldering stand, case, lead free solder and solder wick. The SQ-001 is designed with safety circuit and anti-static structure. The SQ-001 features an integrated with DC5525 12-24V port, dual-temperature sensors and accelerometer sensors and a powerful STM32 microprocessor. The SQ-001 allows temperature to be controlled accurately, stably and easily adjusted from 100°C to 400°C.

This package includes an XT60 to DC cable so you can use your normal 3/4S batteries to power the soldering iron!

Specifications:
- Power - 65W

- Temperature stability - ±2%
- Soldering tip resistance to GND - <2Ω
- Temperature Range - 100℃ - 400℃(max)
- Max operation ambient temperature - 40°C
- OLED screen
- Micro USB port
- DC5525 port
- Compliant with EU certification: CE FCC

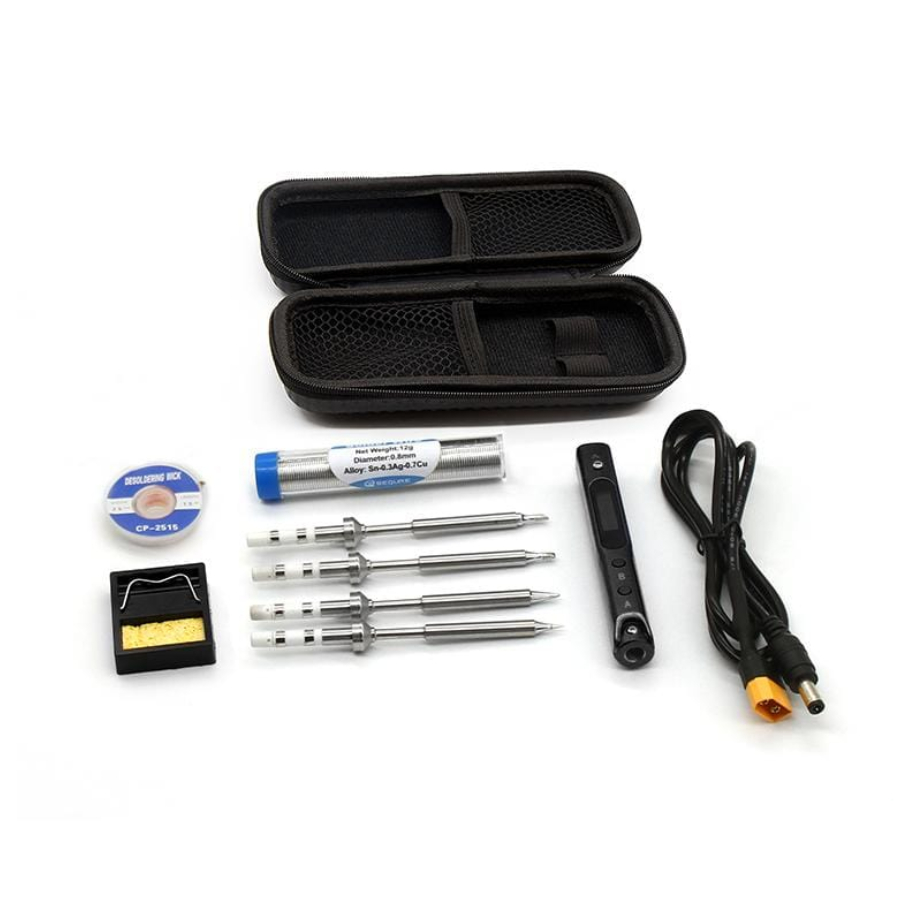

Includes:
- 1x SQ-001 65W digital soldering iron
- 4x Tips (TS-B2, TS-BC2, TS-D24- TS-I)
- 1x Lead free solder wire
- 1x Tin absorbing solder wick wire
- 1x Case

- 1x allen key
- 1x Soldering Stand
- Instructions Manual
- XT60 > DC power cable

IMPORTANT SAFETY CONSIDERATIONS:

1. Please use ground clamp, proper power supply and other accessories to ensure safe use.
2. When the SQ-001 is used for the first time, it may slightly smoke due to heating of the electric heating element, which is normal.
3. If SQ-001 is used continuously for more than 350 ° C for 40 minutes, the handle temperature of soldering iron will reach 50°C~60°C.
4. When heated DO NOT touch the iron tip, always wear proper protection to prevent burns.
5. When SQ-001 has been powered on, do not attempt to remove the tip until the iron has fully cooled.
