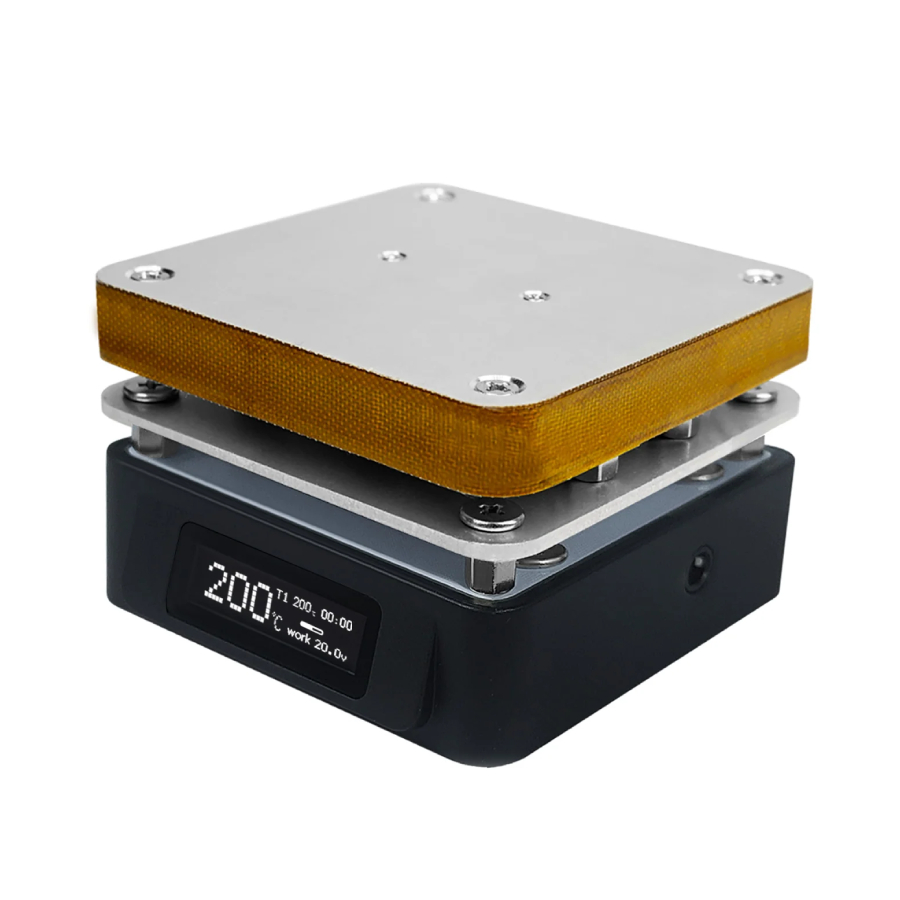

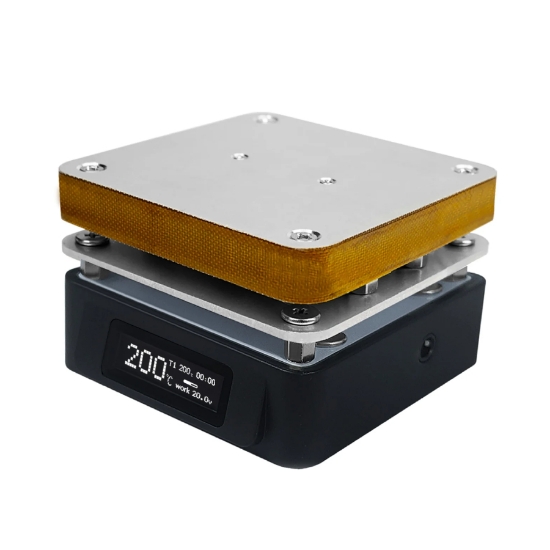

Sequre T55 Smart Mini Hot Plate

Overview:
The Sequre T55 is a compact, temperature-controlled hot plate designed for preheating PCBs and supporting soldering and desoldering work. It is useful for electronics repairs involving surface-mounted components, including FPV flight controllers, ESCs and other circuit boards where controlled, even heating can make rework easier.

Its 55x55mm aluminium heating surface distributes heat across the work area, while the intelligent temperature control system provides temperature compensation to help maintain stable heating. The temperature can be adjusted from 50°C to 280°C, making the T55 suitable for a range of PCB preheating and small-component rework tasks.

The T55 supports USB-C power input from compatible USB Power Delivery (PD) and Quick Charge (QC) supplies, as well as DC power. Its OLED display shows operating information, and the built-in timer can stop heating automatically after a preset period. Compact and lightweight, it's a practical addition to an electronics repair bench or portable soldering setup.

Features:

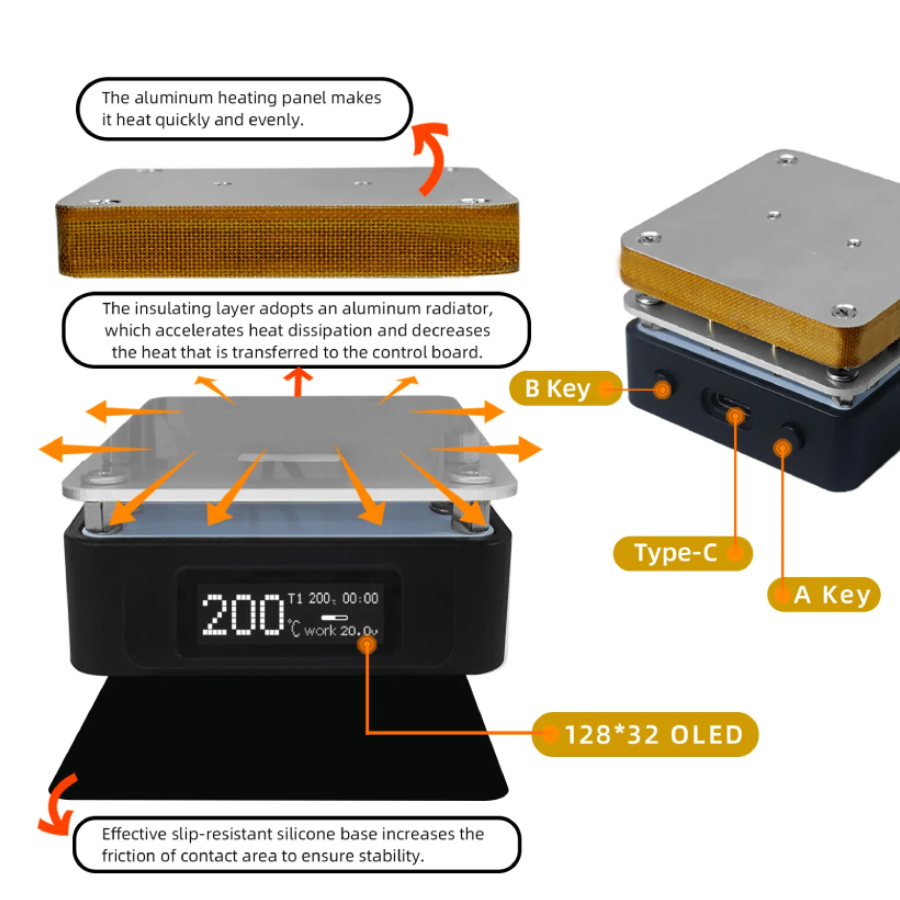

- Even-heating aluminium plate: Provides a broad, flat surface for preheating circuit boards and small components.
- Intelligent temperature regulation: Temperature compensation helps maintain consistent heating, with stability specified by the manufacturer at around 1%.
- Timed heating: Set a heating duration for automatic shut-off when the preset time is reached.
- High-accuracy temperature sensing: A heat-resistant ceramic sensor monitors the heating temperature.
- Clear OLED interface: Displays operating information and uses a built-in buzzer to indicate alerts.
- Adjustable user settings: Supports temperature compensation, adjustable temperature steps and Celsius/Fahrenheit selection.

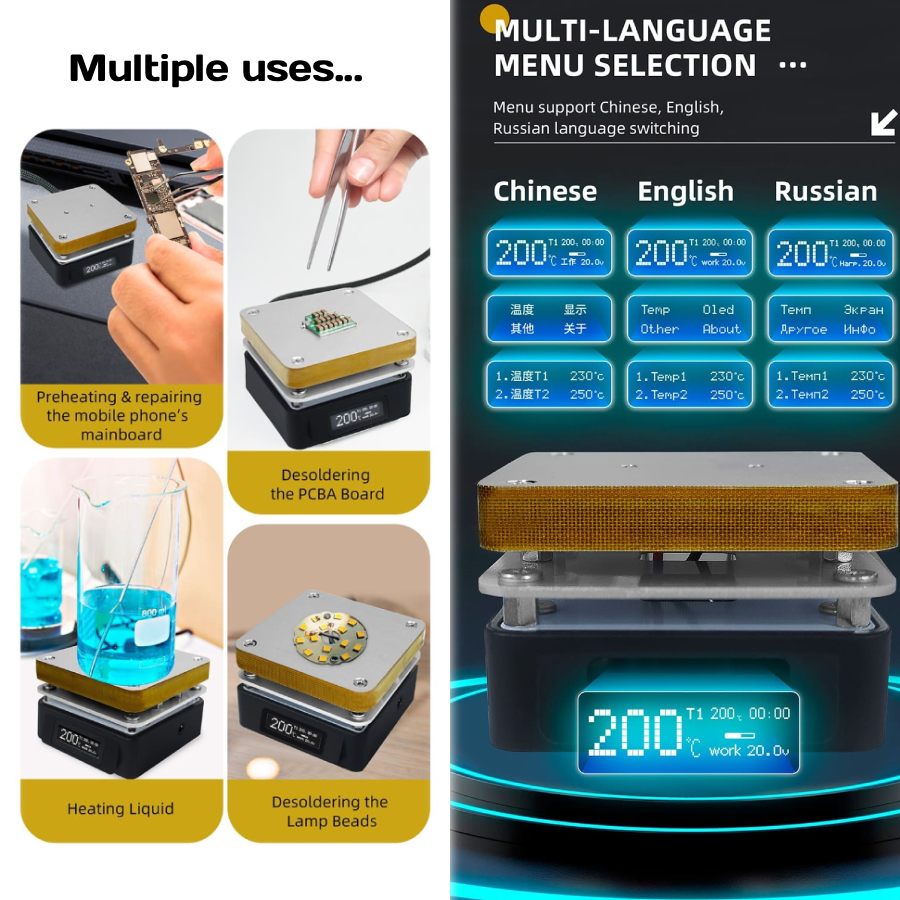

- Multilingual display
- Firmware upgrade support: Allows the station's firmware to be updated.
- Stable base: A non-slip silicone base helps keep the station steady on the workbench.

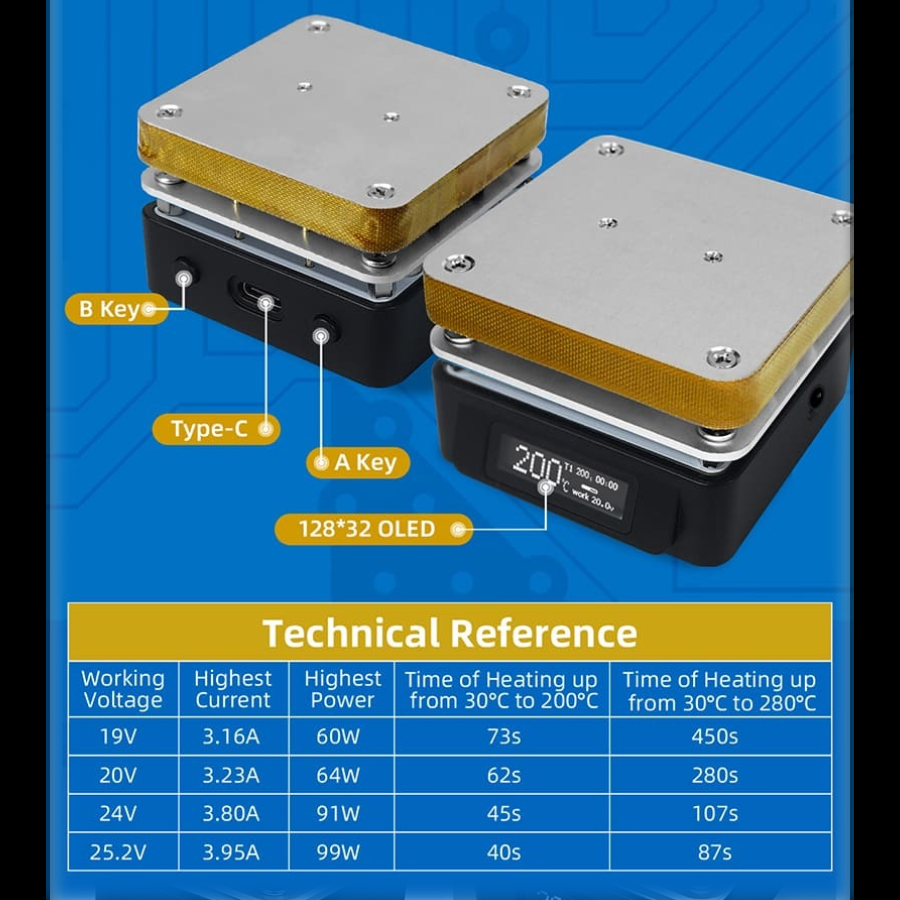

Specification:
- Model: Sequre T55
- Product type: Smart PCB preheating hot plate/desoldering station

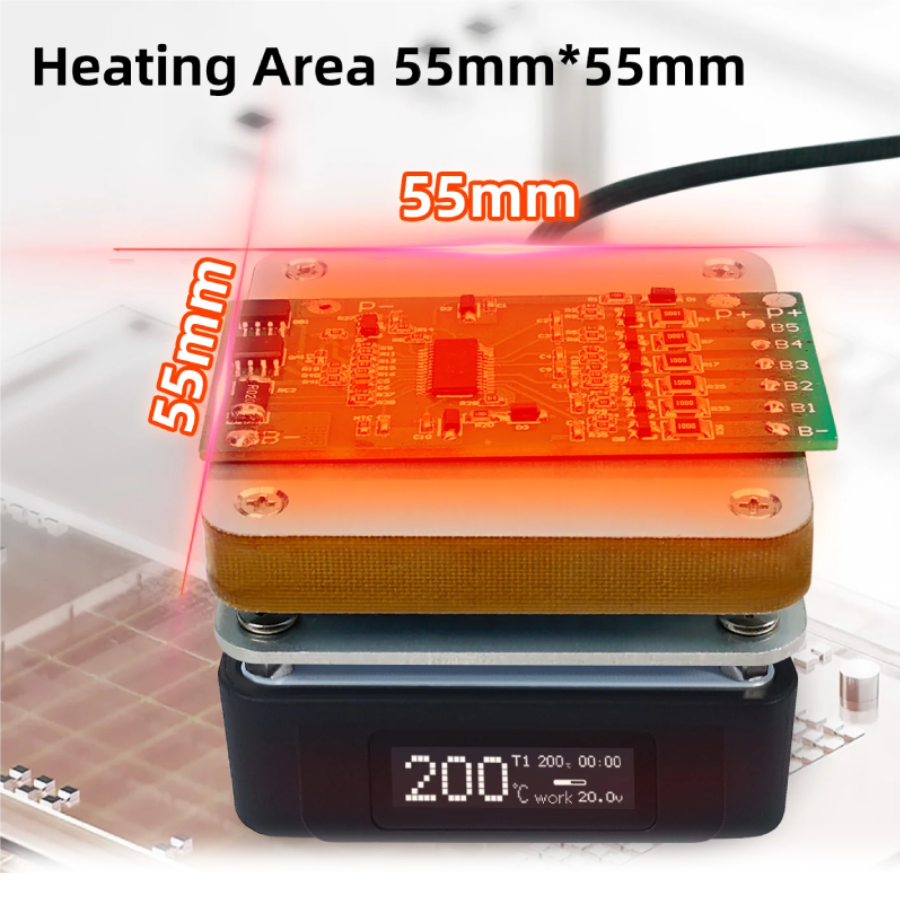

- Heating area: 55x55mm
- Temperature range: 50°C – 280°C
- Maximum input voltage: 25V
- Maximum rated power: 95W
- Recommended input voltage: 19–25V
- USB-C PD supply requirement: 20V, at least 3A
- Supported power inputs: USB-C: PD, QC and DC
- Interface: USB Type-C
- Display: 128x32-pixel OLED

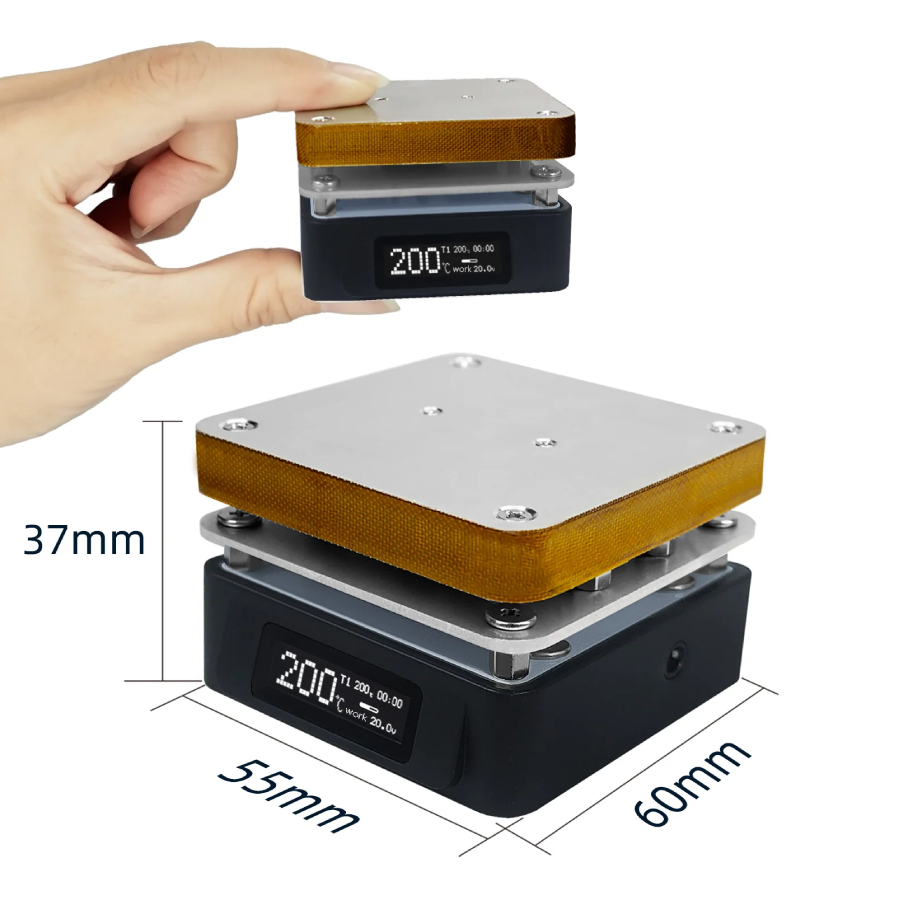

- Dimensions: 55x60x37mm
- Weight: 92g

Included:
- 1x Sequre T55 Smart Mini Hot Plate/Desoldering Station
